Lightolier PENDALYTE POWERHEAD Instrucciones de uso

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING LUMINAIRE

This luminaire is intended for installation in accordance with the National Electrical Code and local regulations.

To assure full compliance with local codes and regulations, check with your local electrical inspector before

installation. To prevent electric shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference. IS:4091216

INSTRUCTION SHEET NO.

A0304 Page 1 of 1

COMPANY

631

rpor

ver,

02720

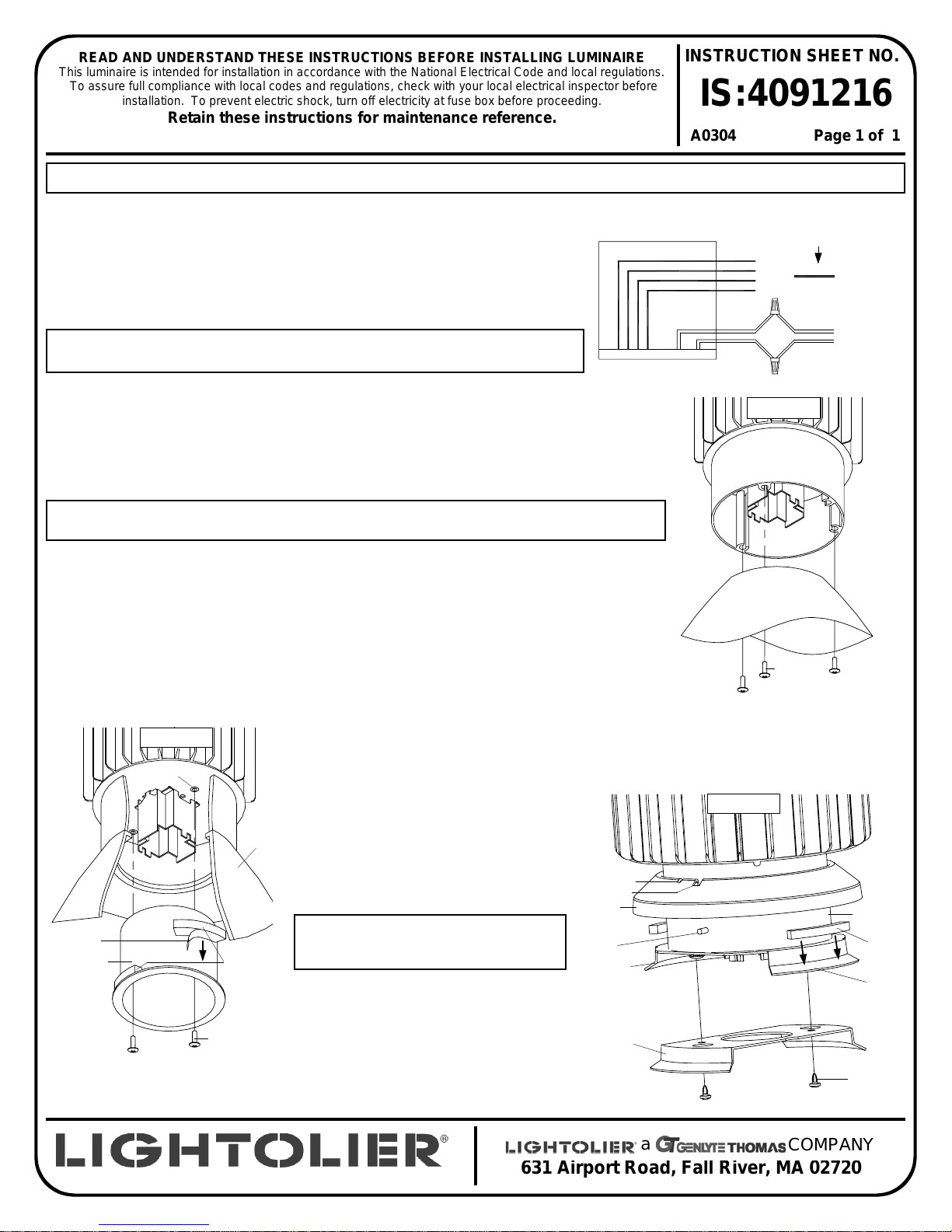

INSTRUCTION SHEET FOR 9”,12”&16” PENDALYTE™ POWERHEAD

POWERHEAD

Fig. 2

8-32

SCREWS

ALUMINUM REFLECTOR

SPACER COLLAR

To wire POWERHEAD to suspension kit (Standard, Stem, and Deco suspension kits sold

separately) follow instructions enclosed with individual suspension kit and connect as follows:

Using wire nuts (local hardware item) connect black lead to hot (black) power lead, connect

white lead to neutral (white) power lead, connect green/bare leads to ground (green) lead.

METAL HALIDE FIXTURES: refer to wiring diagram in fig. 1.

HID BALLAST

277V

240V

208V

120V

BLACK

WHITE

COMMON

GROUND GROUND

POWERCORD

Fig. 1

CONNECT TO APPROPRATE VOLTAGE

9”ALUMINUM REFLECTOR INSTALLATION

1. Locate 8-32 SCREWS, (supplied with POWERHEAD).

2. Align holes in ALUMINUM REFLECTOR with threaded holes in SPACER COLLAR. (Fig. 2)

3. Install 8-32 SCREWS and tighten evenly.

1. Locate RETAINER CUP, GASKET STRIPS and 8-32 SCREWS, (supplied with POWERHEAD).

Thoroughly clean aluminum retainer cup to insure good adhesion of GASKET STRIPS. Peel off

ADHESIVE BACKING and apply GASKET STRIPS to retainer, equally spaced, as shown. (Fig. 3)

2. Support glass shade in place, align evenly with extruded collar, and align RETAINER CUP with

THREADED INSERTS in socket plate.

3. Install 8-32 SCREWS and tighten evenly to compress gasket strips.

CAUTION: Wear safety glasses. Glass is fragile. Handle with care. Broken glass may pose

a personal safety hazard.

9” GLASS SHADE INSTALLATION

NOTE: Natural oils and soil may discolor and stain glass finish. Wearing clean cotton gloves is recommended.

12”&16” REFLECTOR/REFRACTOR INSTALLATION

1. Slide COLLAR up extruded NECK.

2. Peel off backing of FOAM GASKET and adhere to TABS on SOCKET MOUNT PLATE. (Fig. 4)

3. Tip Reflector/Refractor over SOCKET MOUNT PLATE and allow Reflector/Refractor to rest on

FOAM GASKET.

4. To secure Reflector/Refractor align SLOT in

COLLAR over PINS and slide COLLAR down

NECK. Twist COLLAR counter-clockwise allowing

PIN to rest in NOTCH.

12” REFRACTOR SUPPORT

REFRACTOR SUPPORT PLATE and SUPPORT

PLATE SCREWS ARE supplied with all 12” HID

units.

1. Install Acrylic Refractor per instructions above.

2. Align REFRACTOR SUPPORT PLATE over

SOCKET MOUNT PLATE. (Fig. 4)

3. Secure REFRACTOR SUPPORT PLATE with

SUPPORT PLATE SCREWS.

COLLAR NECK

FOAM

GASKET

SOCKET

MOUNT

PLATE TAB

REFRACTOR

SUPPORT

PLATE

SUPPORT

PLATE

SCREWS

POWERHEAD

Fig. 4

NOTCH

SLOT

Note: This instruction sheet covers several luminaire styles. Powerhead assembly, lamp type, and reflector style may vary slightly from that

shown, although installation is the same.

CAUTION: 12” HID units with Acrylic Refractor

must have REFRACTOR SUPPORT PLATE

installed.

MAXIMUM WATTAGE AS MARKED ON LUMINAIRE MUST NOT BE

EXCEEDED.

CAUTION:

GASKET

STRIPS

RETAINER CUP

8-32

SCREWS

THREADED

INSERT

GLASS

SHADE

Fig. 3

ADHESIVE

BACKING

POWERHEAD
