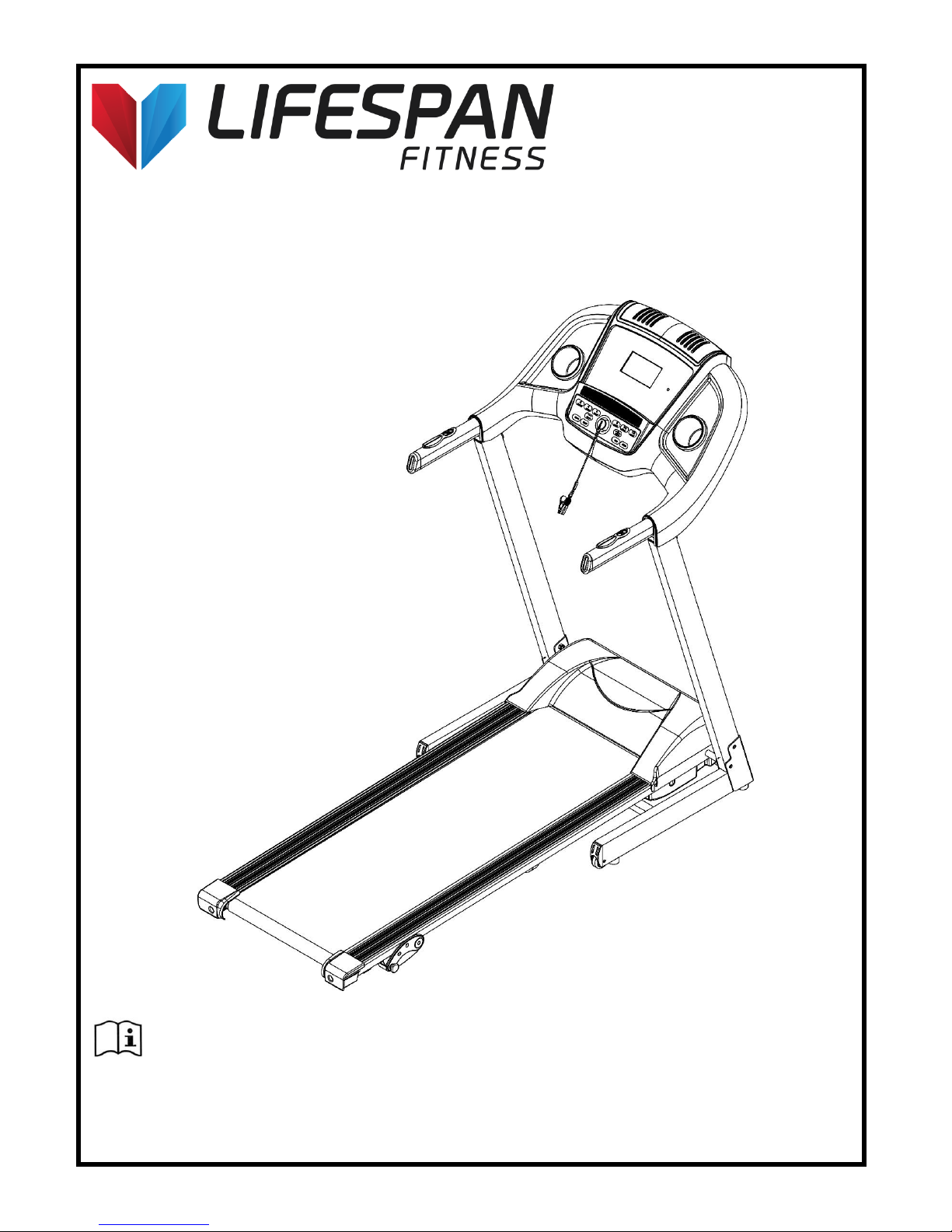

Life Span NOVA Manual de usuario

NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanfitness.com.au

Product may vary slightly from the item pictured due to model upgrades

Read all instructions carefully before using this product. Retain this owner’s manual for

future reference.

NOVA OWNER’S MANUAL

NOVA

TABLE OF CONTENTS

1. IMPORTANT SAFETY INSTRUCTIONS 3

2. IMPORTANT ELECTRICAL INFORMATION 4

3. IMPORTANT OPERATING INSTRUCTIONS 5

4. ASSEMBLY INSTRUCTIONS 6

5. FOLDING INSTRUCTIONS 10

6. OPERATION GUIDE 11

7. EXERCISE GUIDE 15

8. MAINTENANCE INSTRUCTIONS 17

9. EXPLODED DIAGRAM 25

10. PARTS LIST 26

11. TROUBLE SHOOTING GUIDE 27

12. WARRANTY 30

NOVA

1. IMPORTANT SAFETY INSTRUCTIONS

WARNING - Read all instructions before using this treadmill.

It is important your treadmill receives regular maintenance to prolong its useful life. Failing to

regularly maintain your treadmill may void your warranty.

Danger –To reduce the risk of electric shock disconnect your treadmill from the electrical outlet prior to

cleaning and/or service work.

DO NOT USE AN EXTENSION CORD: DO NOT ATTEMPT TO DISABLE THE GROUNDED PLUG BY

USING IMPROPER ADAPTERS OR IN ANY WAY MODIFY THE CORD SET.

Install the treadmill on a flat level surface with access to a 220-240 volt (50/60Hz), grounded outlet.

Do not operate treadmill on deeply padded, plush or shag carpet. Damage to both carpet and

treadmill may result.

Do not block the rear of the treadmill. Provide a minimum of 1 metre clearance between the rear of

the treadmill and any fixed object.

Place your unit on a solid, level surface when in use

When running, make sure the plastic clip is fastened on your clothing. It is for your safety, should

you fall or move too far back on the treadmill.

Keep hands away from all moving parts.

Never operate the treadmill if it has a damaged power cord or plug. When damaged, these must be

replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a

hazard.

Keep the cord away from heated surfaces.

Do not operate where aerosol spray products are being used or where oxygen is being

administered. Sparks from the motor may ignite a highly gaseous environment.

Never drop or insert any object into any openings.

NOVA

The treadmill is intended for in-home use only and not suitable for long term running.

To disconnect, turn all controls to the off position, remove the safety key, and then remove the plug

from the outlet.

The pulse sensors are not medical devices. Various factors, including the user’s movement, may

affect the accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in

determining heart rate trends in general.

Use the handrails provided; they are for your safety.

Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your

treadmill. Quality athletic shoes are recommended to avoid leg fatigue.

Before undertaking any type of exercise program, it is recommended that you consult a doctor.

Injuries to health may result from incorrect or excessive training.

This appliance is not intended for use by persons (including children) with reduced physical, sensory

or mental capabilities, or lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a person responsible for their safety.

WARNING heat rate monitoring systems may be inaccurate. If you feel faint stop exercising

immediately.

Children should not be allowed on or around the equipment, even when not in use.

Children should be supervised to ensure that they do not play with this machine

Loose-fitting clothing or jewellery that could become an entanglement hazard should not be worn.

Training shoes should be worn when using the equipment.

Equipment must be used on a level and stable surface.

All fixings should be checked before the equipment is used.

All literature relating to the use of the equipment should be retained for future reference.

Allowed operating temperature: 5-40°C

Remove the safety key after use to prevent unauthorized treadmill operation.

NOVA

2. IMPORTANT ELECTRICAL INFORMATION

WARNING!

Route the power cord away from any moving part of the treadmill including the elevation mechanism

and transport wheels.

NEVER remove any cover without first disconnecting AC power.

NEVER expose this treadmill to rain or moisture. This treadmill is not designed for use outdoors,

near a pool, or in any other high humidity environment.

This is a high-power item; please do not share the same outlet with other high power machines such

as, fridges, air conditioning etc. Please choose an outlet exclusively for the machine and make sure

the fuse is 10A.

3. IMPORTANT OPERATING INSTRUCTIONS

Understand that changes in speed and incline do not occur immediately. Set your desired speed on

the computer console and release the adjustment key. The computer will obey the command

gradually.

Use caution while participating in other activities while walking on your treadmill, such as watching

television, reading, etc. These distractions may cause you to lose balance or stray from walking in

the centre of the belt; which may result in serious injury.

In order to prevent losing balance and suffering unexpected injury, never mount or dismount the

treadmill while the belt is moving. This unit starts with at a very low speed. Simply standing on the

belt during slow acceleration is proper after you have learned to operate this machine.

Always hold on to handrail while making control changes.

A safety key is provided with this machine. Remove the safety key will stop the walking belt

immediately; the treadmill will shut off automatically. Inserting the safety key will reset the display.

Do not use excessive pressure on console control keys. They are precision set to function properly

with little finger pressure.

NOVA

Replace any defective components immediately. The machine must be kept out of use until

repaired.

4. ASSEMBLY INSTRUCTIONS

PARTS LIST

NO.

Description

Specification

Nos.

NO.

Description

Specification

Nos.

Main Frame

Lock Washer

5#Allen Wrench

5mm

Oil bottle

Bolt

M8*45

Safety Key

Bolt

M8*16

Mp3

ASSEMBLY TOOLS:

5# Allen Wrench 5mm: 1pcs

Wrench with screw driver S=13,14,15: 1pcs

NOVA

STEP 1:

STEP 2:

1. Open the carton. Place the Main

Frame onto level ground.

1. Hold the console frame.

2. Using the 5#Allen Wrench, attach the

console frame onto the left and right

upright tube with bolt (51) & lock

washer (64)

NOVA

STEP 3:

STEP 4:

1. Erect the Upright

1. Using the 5# Allen wrench (12),

insert the Bolt M8*45 (70) through

the Lock Washer (64). Use this to

lock the left and right uprights to the

main frame.

2. Use the 5# Allen wrench (12) to

insert the M8*16 Bolt (51) through

the Lock Washer (64) and then into

the assembly to further secures the

upright/main frame assembly.

Reference the picture left.

Attention: Hold the upright tubes when

attaching them to the main frame.

NOVA

STEP 5:

1. Attach the Safety Key (71) onto the

console

NOVA

5. FOLDING INSTRUCTIONS

Folding:

Unfolding:

Place your hand on position (A), then pull

up the base frame until you hear the click

sound emitted when the air pressure bar

(B) is locked into the round tube.

Whilst supporting position A with our

hand, gently push the marked area on the

air pressure bar with your foot.

The base frame will descend

automatically. (Please keep people and

any pets away the machine during

descent)

Video Tutorial Available at:

http://youtu.be/cP9NtFHfWlc

Lifespan Fitness Channel:

http://www.youtube.com/user/treadmillsvideos
