Life Span Delta 2.0 Manual de usuario

Product may vary slightly from the item pictured due to model upgrades.

Read all instructions carefully before using this product.

Retain this owner’s manual for future reference.

NOTE:

This manual should not be used to guide your purchasing decision. Your product, and the contents inside its carton, may vary

from what is listed in this manual. This manual may also be subject to updates or changes. Updated manuals are available

through our website at www.lifespanfitness.com.au

Delta 2.0 Treadmill

USER MANUAL

Find the

Digital Manual

Online

TABLE OF

CONTENTS

I. Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 03

II. Important Electrical Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05

III. Important Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . 06

IV. Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 07

VI. Folding and Unfolding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

VII. Operation Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

VIII. Maintenance Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

IX. Exploded Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

X. Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

XI. Exercise Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

XII. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

XIII. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

XIV. Hand Pulse Technology. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

| TABLE OF CONTENTS

3IMPORTANT SAFETY INSTRUCTIONS |

I. IMPORTANT SAFETY

INSTRUCTIONS

WARNING: Read all instructions before using this treadmill.

It is important your treadmill receives regular maintenance to prolong its useful life. Failing to

regularly maintain your treadmill may void your warranty.

DANGER

To reduce the risk of electric shock disconnect your treadmill from the electrical outlet prior to

cleaning and/or service work.

DO NOT USE AN EXTENSION CORD:

DO NOT ATTEMPT TO DISABLE THE GROUNDED PLUG BY USING IMPROPER ADAPTERS OR IN ANY

WAY MODIFY THE CORD SET.

1) Install the treadmill on a flat level surface with access to correct voltage and frequency, grounded

outlet.

2) Do not operate treadmill on deeply padded, plush or shag carpet. Damage to both carpet and treadmill

may result.

3) Do not block the rear of the treadmill. Provide a minimum of 1 meter clearance between the rear of the

treadmill and any fixed object.

4) Place your unit on a solid, level surface when in use.

5) Never allow children on or near the treadmill.

6) When running, make sure the plastic clip is fastened on your clothing. It is for your safety, should you

fall or move too far back on the treadmill.

7) Keep hands away from all moving parts.

8) Never operate the treadmill if it has a damaged cord or plug.

9) Keep the cord away from heated surfaces.

10) Do not operate where aerosol spray products are being used or where oxygen is being administered.

Sparks from the motor may ignite a highly flammable environment.

4| IMPORTANT SAFETY INSTRUCTIONS

Remove the safety key after use to prevent unauthorized

treadmill operation.

11) Never drop or insert any object into any openings.

12) The treadmill is intended for in-home use only and not suitable for long time running.

13) To disconnect, turn all controls to the off position, remove the safety key, and then remove the plug

from the outlet.

14) The pulse sensors are not medical devices. Various factors, including the user’s movement, may affect

the accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in determining

heart rate trends in general.

15) Use handrails provided; they are for your safety.

16) Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your

treadmill. Quality athletic shoes are recommended to avoid leg fatigue.

17) Allowed temperature: 5 to 40 degrees.

Grounded Outlet

Grounded

Outlet Box

Grounding Pin

IMPORTANT ELECTRICAL INFORMATION |

II. IMPORTANT ELECTRICAL INFORMATION

1) NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power cord

away from any moving part of the treadmill including the elevation mechanism and transport wheels.

2) NEVER operate treadmill on Generator or UPS power supply.

3) NEVER remove any cover without first disconnecting AC power.

4) NEVER expose this treadmill to rain or moisture. This treadmill is not designed for use outdoors, near

a pool, or in any other high humidity environment.

WARNING!

GROUNDING METHODS

This product must be grounded. Grounding provides the least resistance for electrical current and will reduce the

risk of electric shock. The plug must be plugged into an appropriate outlet that is properly installed and grounded

in accordance with all local codes and ordinances. Ensure that the product is connected to an outlet which

contains the same configuration as the plug. Do not use an adaptor for this product.

This product is for use on a nominal circuit and has a grounding plug that looks like the plug illustrated in sketch

A. Make sure that the product is connected to an outlet having the same configuration as the plug. No adapter

should be used with this product.

This treadmill requires a right power source to properly operate. For your safety, as well as the safety of others,

please verify that the power source is correct before plugging the equipment. Any incorrect power source could

cause significant damage to the equipment and or user.

1. NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the

power cord away from any moving part of the treadmill including the elevation mechanism

and transport wheels.

2. NEVER operate the treadmill using a generator or UPS power supply.

3. NEVER remove any cover without first disconnecting power.

4. NEVER expose the treadmill to rain or moisture. This treadmill is not designed for use

outdoors, near pools or in any other high humidity environment.

WARNING!

6| IMPORTANT OPERATING INSTRUCTIONS

III. IMPORTANT OPERATING

INSTRUCTIONS

1) Insert the power plug into the socket directly.

2) The constant running time is less than 2 hours. Be sure to read the entire manual before operating

your machine.

3) Understand that changes in speed and incline do not occur immediately. Set your desired speed on

the computer console and release the adjustment key. The computer will obey the command gradually.

4) Use caution while participating in other activities while walking on your treadmill; such as watching

television, reading, etc. These distractions may cause you to lose balance or stray from walking in the

Centre of the belt; which may result in serious injury.

5) In order to prevent losing balance and suffering unexpected injury, NEVER mount or dismount the

treadmill while the belt is moving. This unit starts with a very low speed. Stand on the side rails and

wait for the belt to start moving before stepping on the belt.

6) Always hold on to handrail while making control changes.

7) A safety key is provided with this machine. Remove the safety key will stop the walking belt

immediately; the treadmill will shut off automatically. Insert the safety key will reset the display.

8) Do not use excessive pressure on console control keys. They are precision set to function properly

with little finger pressure.

9) This appliance is not intended for use by persons (including children) with reduced physical, sensory

or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person responsible for their safety, Children should be

supervised to ensure that they do not play with the appliance.

10) Please consult your doctor at first before running, if you have one of the following diseases:

a. Cardiopathy, hypertension, sugar diabetes, respiratory disease, smoking, and other chronic

diseases, complication disease.

b. If you are over 35 years old and heavier than common weight.

c. Women in pregnant or in breasting period.

11) Please stop exercising immediately and consult your doctor when you feel giddy, surfeit, thorax ache

or other symptoms.

12) Please drink adequate water after taking exercises on our treadmill for more than 20 minutes.

WARNING: Now here we suggest that you should consult with your physician or health professional

before starting your workout, especially for the age up to 35 old or once-health problem people. We

take no responsible for any troubles or hurts if you don’t following our specification. Treadmill will be

carefully assembled and covered the motor shield, then connect to the power.

IV. ASSEMBLY INSTRUCTIONS

PARTS LIST

Installation Tools:

ASSEMBLY HARDWARE |

The following figure shows the scatter diagram of the parts installed in the whole machine table.

Open the packaging box, and you can remove the following parts from the box.

21 22 42

55 70 67

52 53 54

Part No. Description Specs Qty.

1Main frame assembly 1

21 Left bottom side cover 1

22 Right bottom side cover 1

42 Safety lock 1

53 With cross wrench S = 13, 14, 15 1

52 Oil bottle 1

51 Power cord 1

Part No. Description Specs Qty.

54 5 # hexagon wrench 5mm 1

55 6 # hexagon wrench 6mm 1

70 Hexagon socket flat

round head screw M8*42 2

67 Hexagon socket flat

round head screw M8*16 4

88 Self tapping and self drilling

screws with cross recessed

disc head and pad ST4.2*19 4

86 Internal serrated lock

washer 8 6

5 # Hexagon wrench 5mm 1pcs.

6 # hexagon wrench 6mm 1pcs.

With cross wrench S=13, 14, 15 1pcs.

Note: Do not plug in the power supply until the installation is completed.

8| ASSEMBLY HARDWARE

1. Open the package and remove the contents. Lay the machine on flat ground and check all parts are

there.

1. Hold the upper console by hand, then use

the hexagon wrench (54) to lightly secure the

hexagon flat round head screw (67) and the

internal serrated locking washer (86) to the

L/R posts as pictured.

Caution: Be careful not to clamp of any wires.

Hold the upright post with one hand to avoid

injury from the console falling.

STEP 1

STEP 2

V. ASSEMBLY INSTRUCTIONS

9ASSEMBLY INSTRUCTIONS |

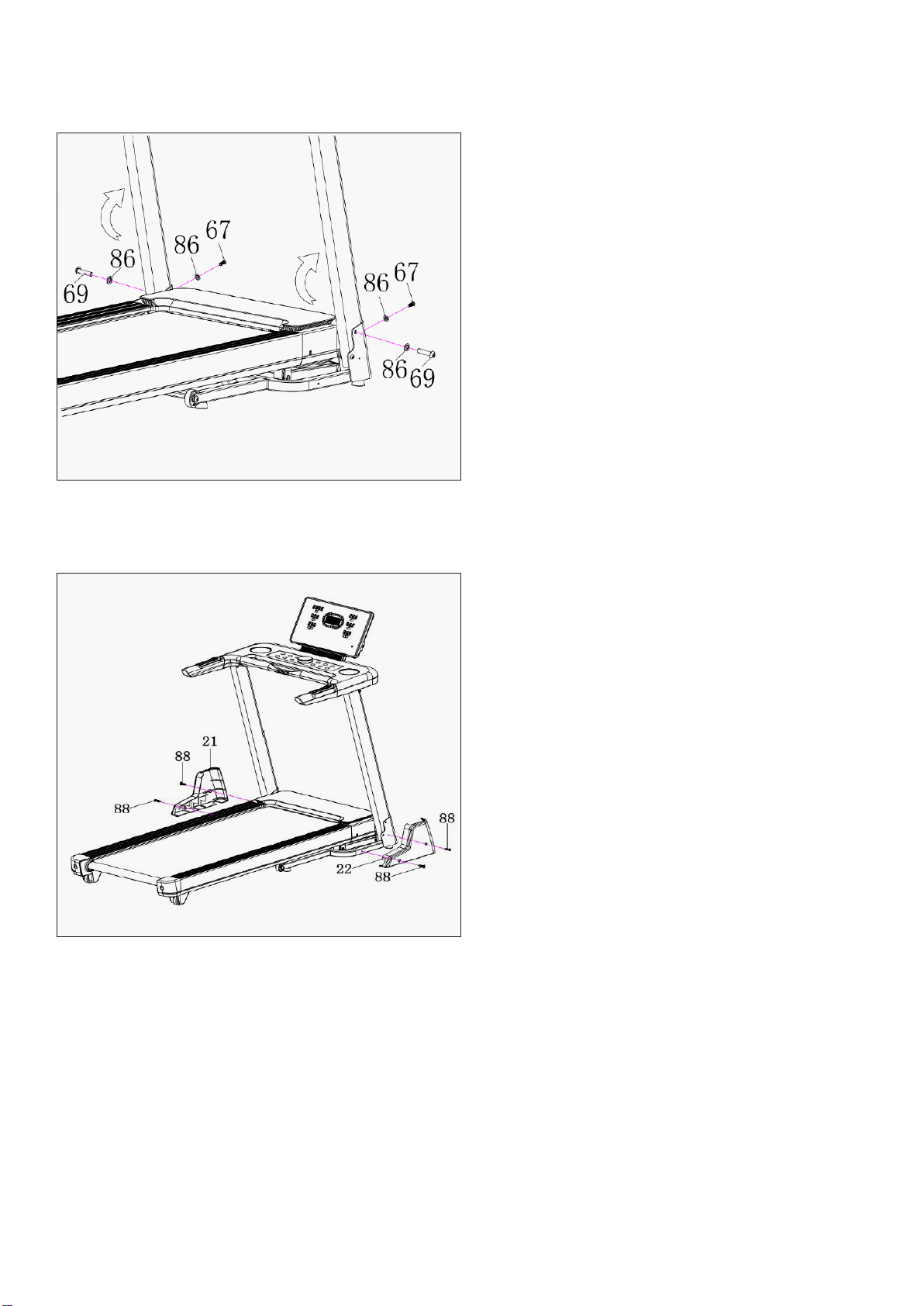

1. First, use 5 # hexagon wrench to secure the

M8*42 hexagon flat round head screw (69)

and internal serrated locking washer (86) to

the upright post group on the base.

2. Then use 5 # hexagon wrench to secure the

M8*16 hexagon flat round head screw (67) and

internal serrated locking washer (86) to the

column group on the main frame group.

3. The left and right sides are the same.

1. Lock the left base cover (21) to the base

using the cross recessed pan head pad self-

tapping self-drilling screw (88) with a cross

wrench (53).

2. Lock the right base cover (22) to the base

using the cross-slotted pan head padded self-

tapping self-drilling screw (88) with a cross

wrench (53).

Caution: Hold the upright post with one hand

to avoid injury from the console falling.

STEP 3

STEP 4

88 21

10 | ASSEMBLY INSTRUCTIONS

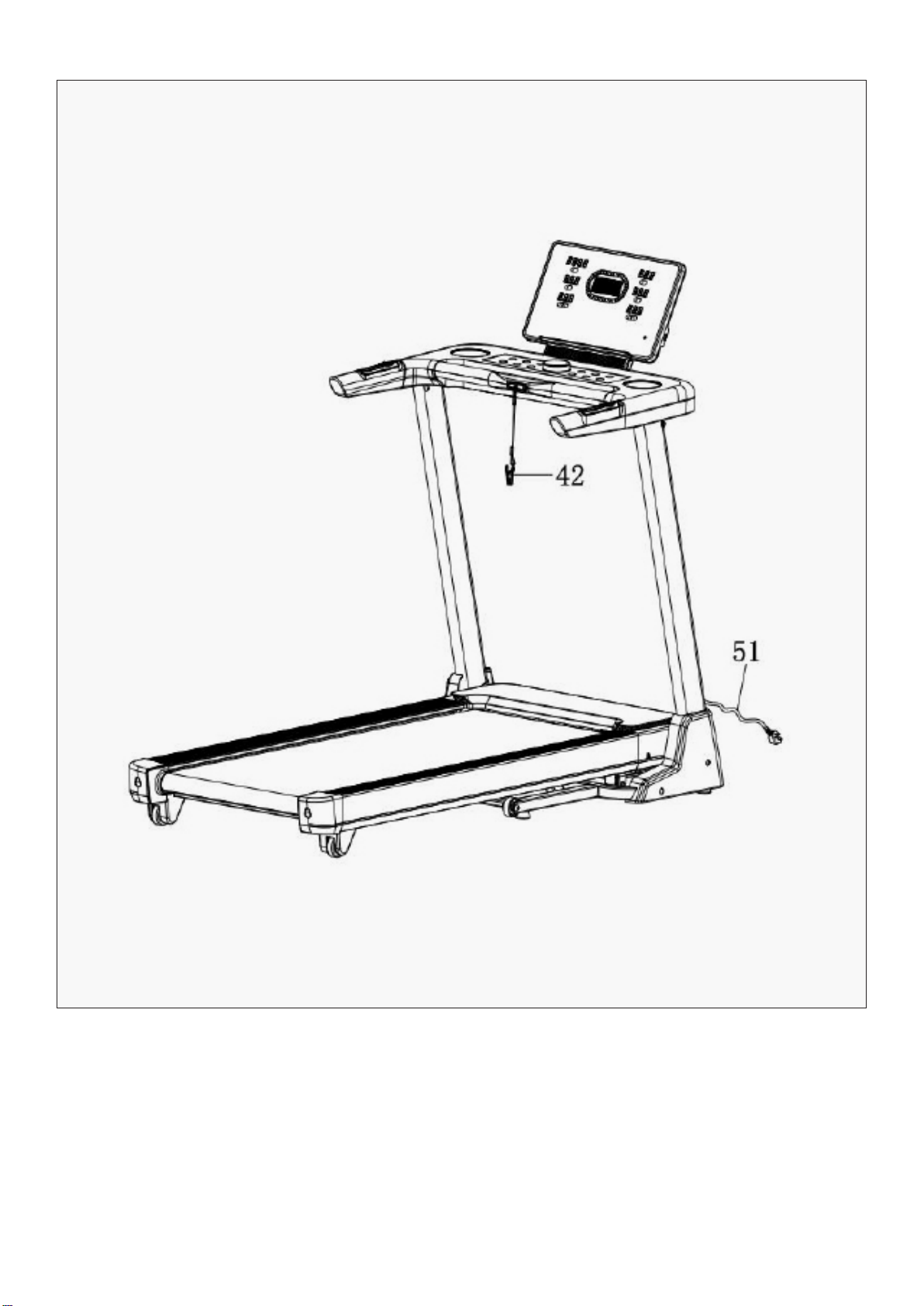

Place the safety lock (42) on the console . Then connect the power cord (51) to the power supply, and you

can then turn on the treadmill.

STEP 5
