LG 19MB35PM Manual de usuario

www.lg.com

ENGLISH

OWNER’S MANUAL

IPS LED MONITOR

(LED LCD MONITOR)

19MB35PM

22MB35PM

23MB35PM

Please read this manual carefully before operating

your set and retain it for future reference.

IPS LED(LED LCD) MONITOR MODEL

WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other

reproductive harm. Wash hands after handling.

ENG

ENGLISH

TABLE OF CONTENTS

CONTENTS

3 ASSEMBLINGANDPREPAR-

ING

3 Unpacking

4 Parts and buttons

5 Setting up the Monitor set

5 - Attaching the Stand Base

5 - Detaching the stand base

6 - Detaching the stand body

7 - Mounting on a table

7 - Adjusting the angle

8 - Adjusting the stand height

8 - Using the Kensington locking device

9 - Swivel stand

9 - Using the Pivot function

10 - Mounting on a wall

11 USINGTHEMONITORSET

11 Connecting to a PC

11 - D-SUB connection

11 - DVI-D connection

12 - Peripheral device connection

13 CUSTOMIZINGSETTINGS

14 Customizing Settings

14 - Menu Settings

15 - Picture

16 - Color

17 - Display

18 - Others

19 READER Setting

20 - SUPER ENERGY SAVING

21 TROUBLESHOOTING

23 SPECIFICATIONS 

23 19MB35PM

24 22MB35PM

25 23MB35PM

26 Preset Modes (Resolution)

26 Indicator

27 PROPERPOSTURE

27 Proper posture for using the Monitor set.

ENG

ENGLISH

ASSEMBLING AND PREPARING

ASSEMBLINGANDPREPARING

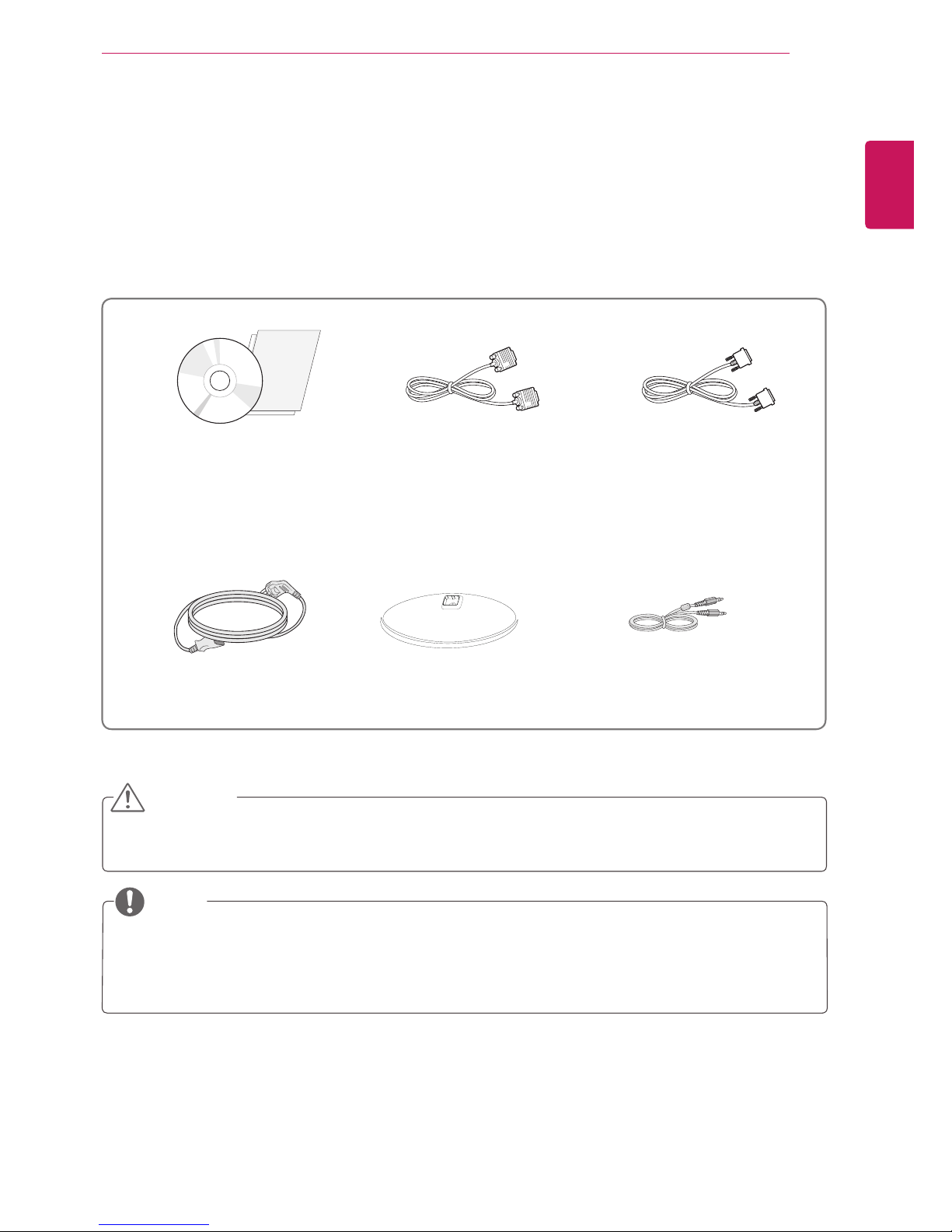

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

 Do not use any unapproved accessories to ensure the safety and product life span.

 Any damages or injuries by using unapproved accessories are not covered by the warranty.

 The accessories supplied with your product may vary depending on the model.

 Product specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

CAUTION

NOTE

StandBase

CD(Owner'sManual)/

Card

D-SUBCable

(This cable is not included in all

countries.)

( Depending on the country )

PowerCord

DVI-DCable

(This cable is not included in all

countries.)

AudioCable

ENG

ENGLISH

ASSEMBLING AND PREPARING

Partsandbuttons

(Power Button)

PowerIndicator

 LED On : Power is on

 LED Off: Power is off

Front Side Buttons

Input Connectors (See p.11 to 12)See p.11 to 12) to 12)12))

ENG

ENGLISH

ASSEMBLING AND PREPARING

SettinguptheMonitorset

AttachingtheStandBase

1 Place the Monitor set with the screen side

down on a flat and cushioned surface.

StandBase

StandBody

StandBase

StandBody

 To protect the screen from scratches, cover

the surface with a soft cloth.

3 Using a coin, turn the screw clockwise to se-

curethestandbase.

2 Check the position(atthefrontandrear)of

the stand body,thenmount the standbase on

the standbodyas shown in the figure.

CAUTION

StandBase

 The components appearing in the illustra-

tions may look different from the actual prod-

uct.

 Do not carry the monitor upside-down as this

may cause it to fall off its stand, resulting in

damage or injury.

 To avoid damaging the screen when lifting

or moving the monitor, only hold the stand or

the plastic cover. This avoids putting unnec-

essary pressure on the screen.

 Only remove the tape and the locking pin

when the monitor is mounted on the stand

base and is in an upright position. Otherwise,

the stand body may protrude, which may

lead to injury.

Detachingthestandbase

1 Place the monitor's screen face down.

To protect the screen from scratches, cover the

surface with a soft cloth.

2 Using a coin, turn the screw in the stand base

counterclockwise. Detach the standbasefrom

the standbody.

CAUTION

ENG

ENGLISH

ASSEMBLING AND PREPARING

Detachingthestandbody

1 Place the monitor's screen face down. To

protect the screen from scratches, cover the

surface with a soft cloth.

2 Using a screwdriver, remove the four screws

and detach the stand from the monitor.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Adjustingtheangle

1 Place the monitor mounted on the stand base

in an upright position.

2 Adjust the angle of the screen. The angle of

the screen can be adjusted up to 5° forwards

and 20° backwards for a comfortable viewing

experience.

 To avoid injury to the fingers when adjusting

the screen, do not hold the lower part of the

monitor's frame as illustrated below.

 Be careful not to touch or press the screen

area when adjusting the angle of the monitor.

WARNING

Mountingonatable

1 Lift the monitor and place it on the table in an

upright position.

Install at least 10cmaway from the wall to

ensure sufficient ventilation.

3 Press the (Power) button on the front of the

monitor to turn on the monitor.

10 cm

 Unplug the power cord prior to moving or

installing the monitor. There is risk of electric

shock.

CAUTION

FrontSideRearSide

Connect the Power cord to the monitor, then

plug the power cord into the wall outlet.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Using the Kensington locking

device

The connector for the Kensington lock is located

on the rear of the monitor.

For more information on installation and usage,

refer to the Kensington lock user manual or visit

the website at http://www.kensington.com.

Connect the monitor to the table with the Kensing-

ton lock cable.

 Using the Kensington lock is optional. The

accessories can be purchased at your local

electronics store.

NOTE

 Once the pin is removed, it is not necessary

to re-insert it to adjust the height.

Adjustingthestandheight

1 Place the monitor mounted on the stand base

in an upright position.

2 Remove the tape attached at the bottom rear

of thestandbody,then pull out the locking

pin.

3 The height can be adjusted up to 110mm.

 Do not put your finger be-

tween the screen and the

base (chassis) when adjust-

ing the screen's height.

Tape

LockingPin

StandBody



CAUTION

WARNING

110.0mm

19MB35PM 22MB35PM 23MB35PM

ENG

ENGLISH

ASSEMBLING AND PREPARING

Swivelstand

 Image shown may differ from your Monitor

set.

1 Swivel 355 degrees and adjust the angle of the

Monitor set to suit your view.

1 Lift the monitor to its highest height to utilize

the Pivot function.

UsingthePivotfunction

The pivot function allows you to rotate the screen

90 degrees clockwise.

2 Landscape & Portrait : You can rotate the panel

90° clockwise. Please be cautious and avoid

contact between the monitor head and the

Stand Base when rotating the screen to access

the Pivot function. If the monitor head touches

the Stand Base, then the Stand Base could

crack.

Head

section

Stand

section

3 Be careful with the cables when rotating the

screen.
