LG 24MP88TM Manual de usuario

www.lg.com

Please read the safety information carefully before using the

product.

IPS LED Monitor (LED Monitor) Model List

Owner's Manual

IPS LED MONITOR

(LED MONITOR*)

*LG LED Monitors are LCD Monitors with LED Backlighting.

24MP88HM

24MP88HV

24MP88GM

24MP88TM

ENG

ENGLISH

Contents

CONTENTS

25 - -Reset

26 - -Picture mode

27 TROUBLESHOOTING

29 SPECIFICATIONS

33 Preset Modes (Resolution)

33 Indicator

34 PROPER POSTURE

34 Proper posture for using the Monitor set.

3LICENSE

4ASSEMBLING AND

PREPARING

4Product Components

5Component and Button Description

5- How to Use the Joystick Button

6Parts and buttons

6Input Connector

7Moving and Lifting the Monitor

8Installing the Monitor

8- Assembling the stand base

9- Detaching the Stand Base

10 - Using the cable holder

10 - Installing onto a table

11 - Adjusting the angle

12 - Using the Kensington lock

13 - Mounting on a wall

14 USING THE MONITOR

14 Connecting to a PC

14 - D-SUB connection

14 - HDMI connection

15 Connecting to AV Devices

15 - HDMI connection

15 Connecting to External Devices

15 - Connecting Headphones

16 USER SETTINGS

17 Customizing settings

17 - Menu Settings

17 - -Quick Settings

19 - -Picture

22 - -Sound

23 - -General

24 - -Auto Configuration

ENG

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI Logo are trademarks or registered trademarks of HDMI Licensing Ad-

ministrator, Inc.

The following content is only applied to the monitor which is sold in Europe market and which needs to meet

the ErP Directive:

* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no

adjustment to display.

* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

MaxxAudio and additional MAXX trademarks are trademarks and/or

registered trademarks of Waves Audio Ltd.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Product Components

Please check whether all the components are included in the box before using the product. If there are

missing components, contact the retail store where you purchased the product. Note that the product and

components may look different from those shown here.

yAlways use genuine components to ensure safety and product performance.

yThe product warranty will not cover damage or injury caused by the use of counterfeit components.

yNote that the components may look different from those shown here.

yWithout prior notice, all information and specifications in this manual are subject to change to im-

prove the performance of the product.

yTo purchase optional accessories, visit an electronics store or online shopping site or contact the

retail store where you purchased the product.

yThe DisplayPort cable may not be available in some areas.

CAUTION

NOTE

CD / Card

Stand Base Stand Body

HDMI Cable

( This cable is not in-

cluded in all countries. )

( Depending on the country ) ( Depending on

the country )

Power Cord AC-DC Adapter AC-DC Adapter

Cable Holder Screw Cover 2 Screws

27MP67VQ24MP67VQ22MP67VQ 23MP67VQ

22MP67HQ 23MP67HQ 24MP67HQ 27MP67HQ

D-SUB Cable

( This cable is not included in all

countries. )

ENG

ENGLISH

ASSEMBLING AND PREPARING

Component and Button Description

Power LED

yOn: power is on

yOff: power is off

Joystick Button

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with

your finger.

Basic Functions

Power on Press the joystick button once with your finger to turn on the

monitor.

Power off Press and hold the joystick button once with your finger to turn off

the monitor.

◄/►Volume

Control You can control the volume by moving the joystick button left/right.

yThe joystick button is located at the bottom of the monitor.

NOTE

ENG

ENGLISH

ASSEMBLING AND PREPARING

Input Connector

AUDIO IN HDMI IN 1 HDMI IN 2

Parts and buttons

Connection panel (See p. 14~15)

ENG

ENGLISH

ASSEMBLING AND PREPARING

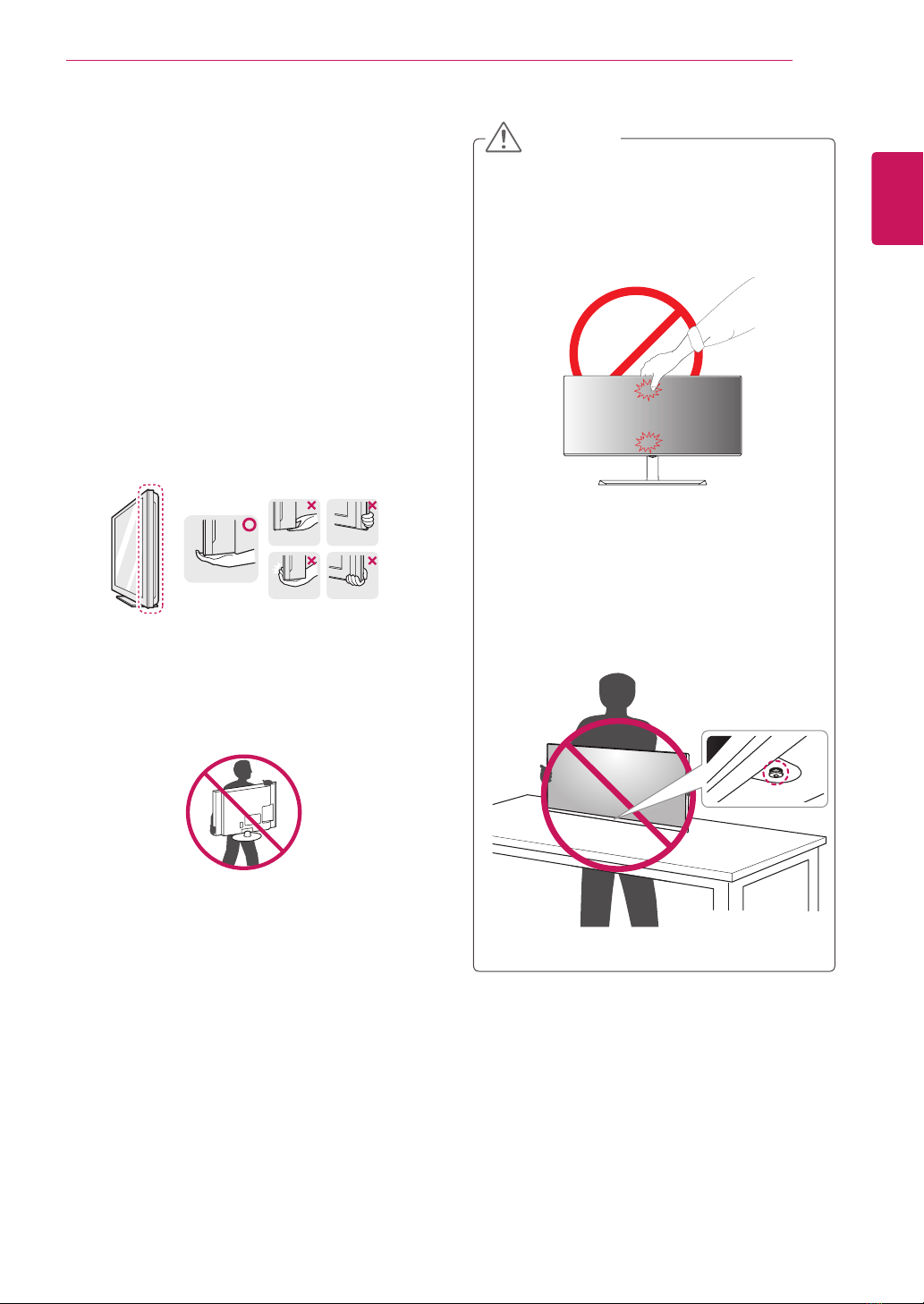

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these

instructions to prevent the monitor from being

scratched or damaged and to ensure safe trans-

portation regardless of its shape or size.

yAs far as possible, avoid touching the moni-

tor screen. This may result in damage to the

screen or some of the pixels used to create

images.

yIt is advisable to place the monitor in the

original box or packing material before at-

tempting to move it.

yBefore moving or lifting the monitor, discon-

nect the power cord and all cables.

yHold the top and bottom of the monitor frame

firmly. Do not hold the panel itself.

yWhen holding the monitor, the screen should

face away from you to prevent it being

scratched.

yWhen moving the monitor, avoid any strong

shock or vibrations to the product.

yWhen moving the monitor, keep it upright,

never turn the monitor on its side or tilt it

sideways.

CAUTION

yIf you use the monitor panel without the

stand base, its joystick button may cause

the monitor to become unstable and fall,

resulting in damage to the monitor or human

injury. In addition, this may cause the joystick

button to malfunction.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Installing the Monitor

Assembling the stand base

yTo protect the screen from scratches, cover

the surface with a soft cloth.

CAUTION

1Place the screen face down.

2Check the direction of the stand body

(front, back) and then mount the stand body

onto the stand hinge.

Use a tool to attach the stand body as shown

in the figure.

Stand Body

Stand Base

Screw Cover

Attach the Stand Base to Stand Body.

Tighten the screw to the right.

4Attach the screw cover.

Applying excessive force when tightening

the screws may cause damage to the moni-

tor. Damage caused in this way will not be

covered by the product warranty.

CAUTION

It may hurt your foot off the stand, so be

careful.

CAUTION

ENG

ENGLISH

ASSEMBLING AND PREPARING

Detaching the Stand Base

Screw Cover

Stand Body

Stand Base

1 Place the screen face down.

yTo protect the screen from scratches, cover

the surface with a soft cloth.

CAUTION

Turn the screw to the left.

Pull out the Stand Base.

As shown in the illustration, pull Screw Cover

out to separate it from the set.

4Remove the two screws on the back of stand

body.

As shown in the illustration, disconnect the

stand body from the stand hinge.

yIllustrations in this document represent typi-

cal procedures, so they may look different

from the actual product.

yApplying excessive force when tightening

screws may cause damage to the monitor.

Damage caused in this way will not be cov-

ered by the product warranty.

yBe careful not to hurt your hand on the edges

of the screw covers.

yDo not carry the monitor upside down by just

holding the base. This may cause the moni-

tor to fall off the stand and could result in

personal injury.

yWhen lifting or moving the monitor, do not

touch the monitor screen. The force applied

to the monitor screen may cause damage to

it.

CAUTION

It may hurt your foot off the stand, so be

careful.

CAUTION

Stand Body

ENG

ENGLISH

ASSEMBLING AND PREPARING

Using the cable holder

Cable Holder

Arrange the cables using the cable holder as

shown in the illustration.

Installing onto a table

1Lift the monitor and place it on the table in an

upright position.

Place at least 100 mm (3.94 inches) away

from the wall to ensure sufficient ventilation.

2Connect the power adapter to the monitor and

then plug the power cord into the wall outlet.

100 mm

(3.94 inches) 100 mm

(3.94 inches)

100 mm

(3.94 inches)

100 mm

(3.94 inches)

yUnplug the power cord prior to moving or

installing the monitor. There is risk of electric

shock.

CAUTION

3Press the joystick button on the bottom of the

monitor to turn on the monitor.
