LevelOne IGP-1271 Manual del operador

IGP-1271

12-Port L3 Lite Managed Gigabit PoE

Industrial Switch

Quick Installation and

Initial Configuration


ii
Contents
Chapter 1 Introduction.................................................... 1
Overview ............................................................................ 1
Front View of the Switch .................................................... 1
Rear View of the Switch...................................................... 2
LED Descriptions................................................................. 2
DIP Switch .......................................................................... 5
Reset Button....................................................................... 5
Chapter 2 Installing the Switch.................................... 6
Package Contents ............................................................... 6
Mounting the Switch on a DIN Rail ..................................... 6
Mounting the Switch on Wall (Optional) ............................ 7
Connecting the DC Power Cord .......................................... 8
Connecting the DI/DO Relay Wires..................................... 9
Installing SFP Modules...................................................... 10
Chapter 3 Initial Configuration of Switch...............12
Initial Switch Configuration Using Web Browsers ............. 12
Initial Switch Configuration Procedure ............................. 12
Chapter 4 Troubleshooting..........................................15


Chapter 1 Introduction

Overview

This user guide describes how to install, configure, and troubleshoot the

IGP-1271, 12-Port L3 Lite Managed Gigabit PoE Industrial Switch.

By reading this user guide, users can perform the following tasks:

•To check the switch status by reading the LED behavior

•To reset the switch or to restore the switch to factory defaults

•To install the switch

•To use a Web browser to initially configure the switch

•To troubleshoot the switch

Front View of the Switch

Figure 1: Front panel of the switch

Rear View of the Switch

Figure 2: Rear panel of the switch

LED Descriptions

The LEDs on the front panel provide users with switch status checking and

monitoring. There are three types of LEDs as follows:

•Power LEDs

indicates if the switch is powered up correctly or not.

•System LED

indicates if the system is ready or not.

•Alarm LED

indicates if the system is normal or not.

•Ring Master and Rapid Chain LED

indicates if the Rapid Ring is ready or not.

•Port Status LEDs

indicates the current status of each port. Users can check these LEDs

to understand the port status.

The following table details the functions and descriptions of various LED

indicators.

Table 1: Power LEDs

LED

Color

State

Description

Power1

Green

The switch is powered ON correctly.

Off

The switch is not receiving power from

power1.

Power2

Green

The switch is powered ON correctly.

Off

The switch is not receiving power from

power2.

Table 2: System LED

LED

Color

State

Description

System

Green

The switch is ready.

Off

The switch is not ready.

Table 3: Alarm LED

LED

Color

State

Description

Alarm

Red

An abnormal state, such as temperature,

voltage or DC power1/2, has been detected

in the switch.

Off

The system is normal.

Table 4: Ring Master and Rapid Chain LED

LED

Color

State

Description

(Ring Master)

Green

Ring Master has been detected in the

switch.

Amber

Ring Member has been detected in the

switch.

Off

Disable

(Rapid Chain)

Green

Rapid Chain has been detected in the

switch. (Active path)

Amber

Rapid Chain has been detected in the

switch. (Backup path)

Blinking

Error:

There is no correspondent Rapid Chain

Switch found.

Off

Disable

Users can check the port status by reading the LED behaviors per the

table below.

Table 5: Port Status LEDs

LED

Color

State

Description

RJ45

Ports

Green

The port is enabled and established a link to connected

device, and the connection speed is 1000Mbps.

Green

Blinking

The port is transmitting/receiving packets, and the

connection speed is 1000Mbps.

Amber

The port is enabled and established a link to connected

device, and the connection speed is 10/100Mbps.

Amber

Blinking

The port is transmitting/receiving packets, and the

connection speed is 10/100Mbps.

Off

The port has no active network cable connected, or it is

not established a link to connected device. Otherwise, the

port may have been disabled through the switch user

interface.

RJ45

Ports

Down

Green

The port is enabled and supplying power to connected

device.

Amber

An abnormal state, such as overload status, has been

detected in the switch.

Off

The port has no active network cable connected, or it is

not connected a PoE PD device. Otherwise, the port may

have been disabled through the switch user interface.

SFP

Ports

Green

The port is enabled and established a link to connected

device, and the connection speed is 1000Mbps.

Green

Blinking

The port is transmitting/receiving packets, and the

connection speed is 1000Mbps.

Amber

The port is enabled and established a link to connected

device, and the connection speed is 100Mbps.

Amber

Blinking

The port is transmitting/receiving packets, and the

connection speed is 100Mbps.

Off

The port has no active network cable connected, or it is

not established a link to connected device. Otherwise, the

port may have been disabled through the switch user

interface.

DIP Switch

By configure the DIP Switch, users can perform the Rapid Ring tasks.

Detail setting can refer to Rapid Ring User Manual.

Reset Button

By pressing the Reset Button for certain period of time, users can perform

the following tasks.

•Reset the Switch

to reboot and get the switch back to the previous configuration

settings saved.

•Restore the Switch to Factory Defaults

to restore the original factory default settings back to the switch.

Note:

According to the table below, users can easily judge which task is being

performed by reading the LED behaviors while pressing the Reset button.

Once the LED behaviors are correctly displayed, users may just

release the button.

Table 6: Reset Button Descriptions

Task to be

Performed

Time Period of

Pressing Button

SYS LED

Behavior

Port Status LED

Behavior

Reset the Switch

2 ~ 7 seconds

Blinking

Green

ALL LEDs Light OFF

Restore to Defaults

7 ~ 12 seconds

Blinking

Green

ALL LEDs Stay ON

Chapter 2 Installing the Switch

Package Contents

•IGP-1271

•Console Cable

•Installation Guide

•Mounting kit

Mounting the Switch on a DIN Rail

Step 1: Attach the DIN Rail mounting kit to rear panel of the chassis.

Insert screws and tighten then with a screwdriver to secure the

kit.

Figure 3: Attaching DIN Rail Kit to the Switch

Step 2: Insert the upper lip of the DIN rail into the DIN-rail mounting

kit. And press the switch towards the DIN rail until it snaps into

place.

Figure 4: Insert switch to the DIN Rail

Step 3: Make sure that the switch is attached securely to DIN Rail.

Figure 5: The switch is attached to DIN Rail

Mounting the Switch on Wall (Optional)

Step 1: Attach the wall mounting plates to rear panel of the chassis.

Insert screws and tighten then with a screwdriver to secure the

plates.

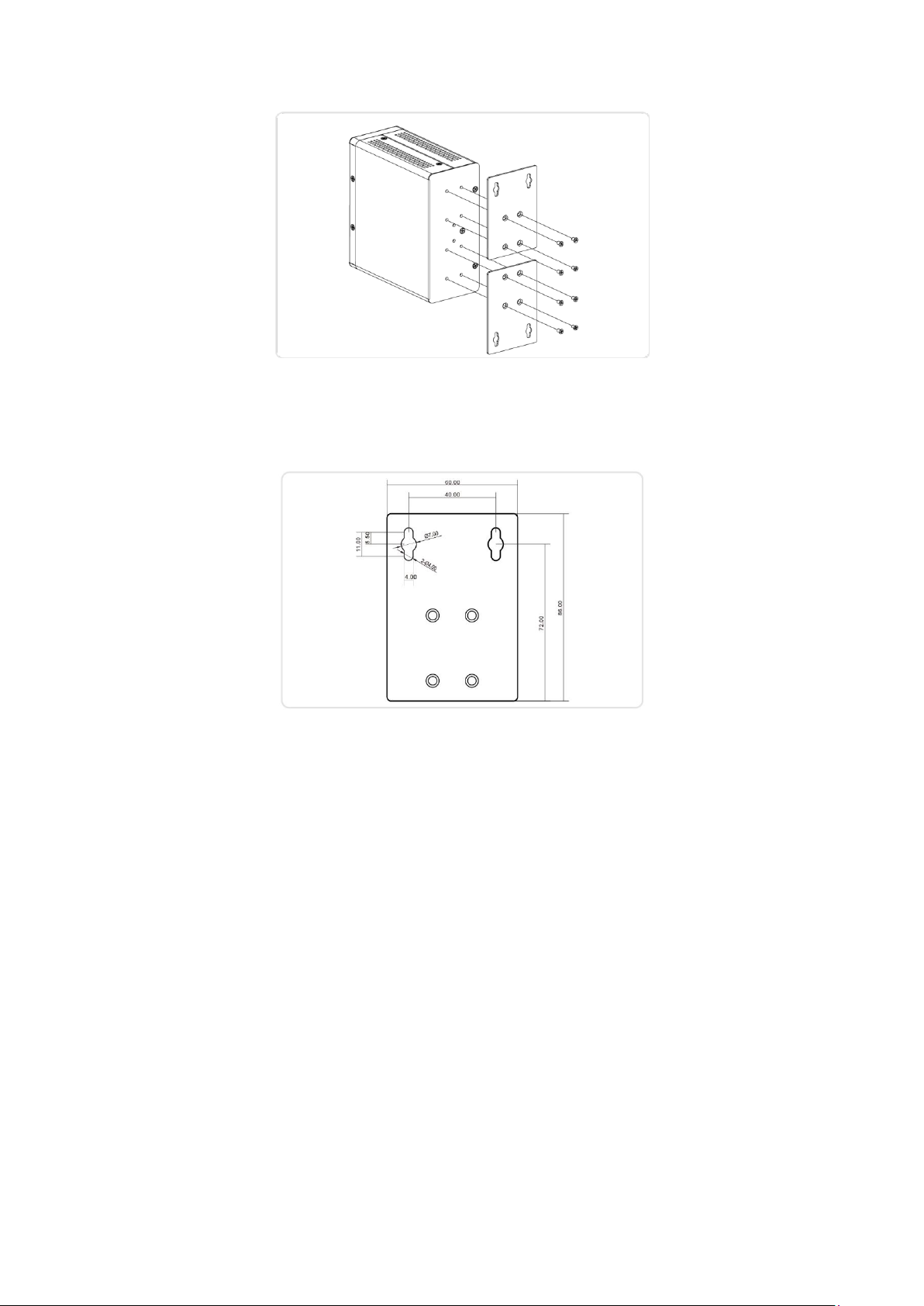

Figure 6: Attaching Wall Mounting Plates to the Switch

Figure 7: The Dimension of Wall Mounting Plates

Step 2: Install user-supplied screws on the appropriate location on the

wall.

Step 3: Make sure that the switch is attached securely to wall.

Connecting the DC Power Cord

Step 1: Insert the negative/positive DC wires into the V-/V+ terminals,

respectively.
