1
IGP-0401
4-Port Gigabit PoE
Industrial Switch
User Manual
Introduction
This IGP-0401 Industrial 4 port Gigabit Ethernet Switch is equipped with two PoE ports. The PSE ports are
critical for your PD environment. They will not only perform your network job, but also provide PSE power
to your PD WiFi or IP CAM applications. This product has been rigorously tested in harsh environment.
These PSE ports can be powered by 48-56 VDC input voltage. The additional Gigabit TX port and Gigabit
SFP port can be easily cascaded to extend your existing networks. With its multi- purpose design, it can
also be Din-Rail or wall-mounted. It is an ideal unit for Mobile Base Station (BTS), IP surveillance, traffic
monitoring and security application in critical environment. It can tolerate -40°C to 75°C in harsh
environment to perform a reliable network.
2
Installation package
This unit can be din-rail mounted or wall-mounted. Din-rail brackets and wall-mounted brackets are included.
Power connection
Wall mount bracket x 2
Din Rail Bracket x 1
This unit provides 6 pin terminal block. The PoE port can be operated from 48-56VDC power source input.
Always make sure your input voltage is within this supported voltage range .
WARNING –any exceeded input voltage will not make this unit function and may damage this unit.
This unit comes with 3 power input sources. P1, P2, and P3
To make power connection –Follow the printed polarity for P1+, P1-, P2+, P2-, and ground. Connect positive
wire to P1+ or P2+, connect negative wire to P1- or P2-, also connect
neutral wire to the ground screw as shown.
Relay -- You may use 24V@1A relay connection to your external
device for special purpose. When 2 powers are connected, the relay
is in OPEN mode. If only one of the power source is connected, the
relay change to SHORT mode. This Relay will only work with P1 and
P2. It is independent to P3
Power connecting procedure:
STEP 1 –Pull out 6 pin terminal block.
STEP 2 –Connect wire to P1+, P1-, or P2+, P2-, and Ground the neutral wire to the ground screw.
STEP 3–Plug back 6 pin terminal block to its place.
Or, Connect the P3 power DIN from external power adopter.
WARNING –
Always ground the power source to maintain a clean power input. Due to too many cheap made power
supplies, it creates too much noise, and it will cause the power input fluctuates when connect to this unit.
To avoid this, always ground the power source to gain a clean power input.
6 pin Terminal Block x1
Philips Head Screw x 4
4
Specification:
IEEE Standard
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3z 1000Base-X Gigabit Ethernet
IEEE802.3x Flow Control and Back Pressure,
IEEE802.3af for POE
IEEE802.3at for POE+
Switch Architecture
Back-plane (Switching Fabric): 8-Gbps
Data Processing
Store and Forward
Flow Control:
IEEE 802.3x Flow Control and Back Pressure
Jumbo Frame
10KB
MAC address Table Size
8K
Packet Buffer Size
1Mbits
Network Connector:
3 x RJ-45 10/100/1000BaseT(X) auto negotiation,
2 x Gigabit 30Watts PoE+ 802.3at/af PSE port
1 x 10/100/1000M TX
1 x 100/1000M SFP
Auto MDI/MDI-X function, Full/Half duplex
Network Cable
UTP/STP Cat.5e Cable or above
EIA/TIA-568 10-ohm (100m)
Protocol
CSMA/CD

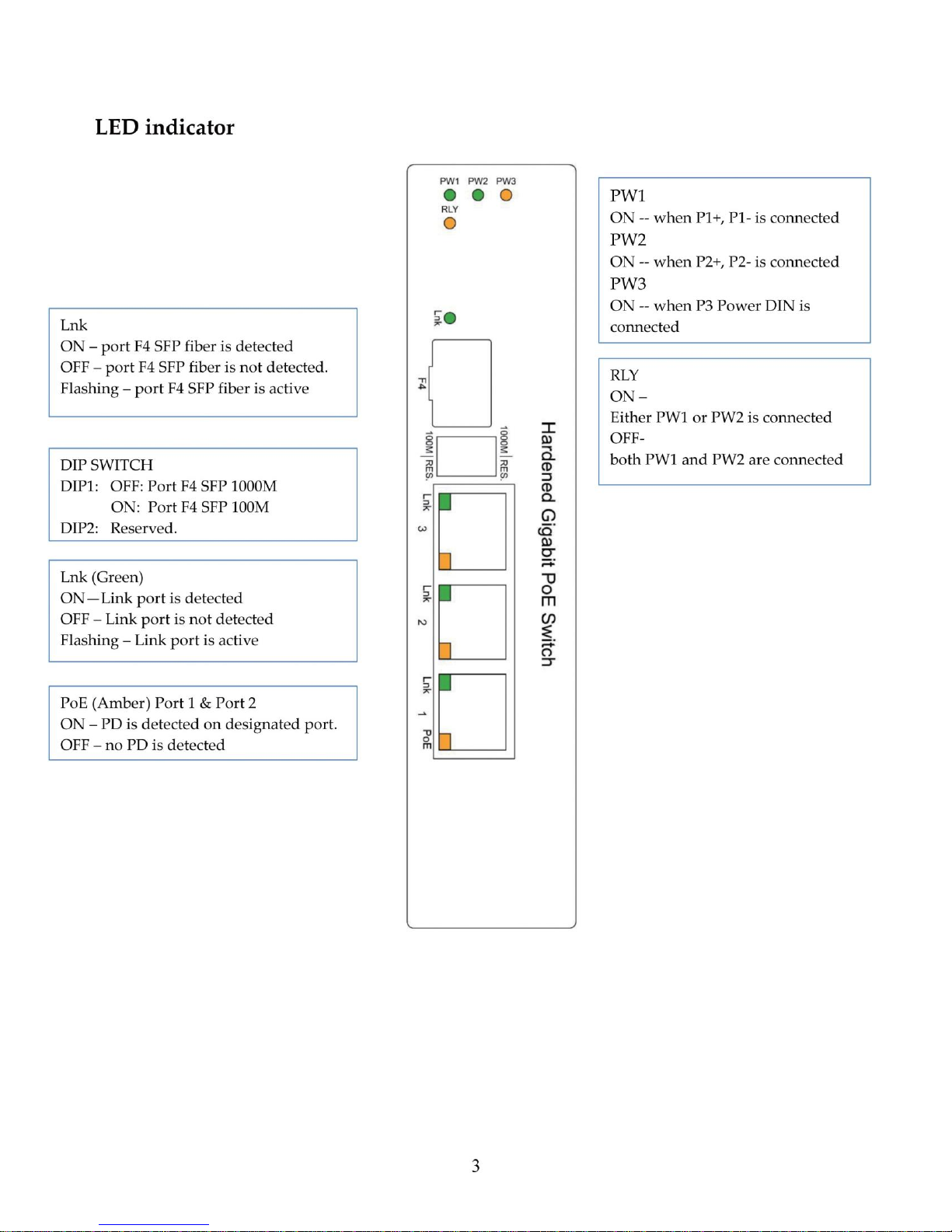

LED
PW1(Power 1) Green,
PW2(Power 2) Green,
PW3(Power 3) Amber, for external power adapter
RLY (Relay) Amber
TX/RJ-45 port:
Lnk (Link/Active) Green/Flashing
PoE Amber
SFP port:
F4 (Link/Active) Green
DIP Switch
DIP1: OFF: Port 4 SFP 1000M
ON: Port 4 SFP 100M
DIP2: Reserve
Reserve polarity protection
Present
Overload current protection
Present
Power Supply
Redundant Dual DC 48V-56V Power Input
PoE input 48-56VDC
Power Consumption
4.0 W@48 VDC full load, Without POE
Max total power 65 Watts
Alarm Relay Contact
Relay outputs with current carrying capacity of 1 A
5
@24VDC,
Relay in open circuit mode when 2 powers are
connected. in short circuit mode when only one power
supply is connected
Removable Terminal Block
Provide 2 Redundant power, Alarm relay contact ,6 Pin
Wire range: 0.34mm^2 to 2.5mm^2
Solid wire (AWG):12-24/14-22
Stranded wire(AWG): 12-24/14-22
Torque:5lb-In/0.5Nm/0.56Nm
Wire Strip length: 7-8mm
Power DIN
For 110VAC/240VAC external power adapter, 4 pin high
current with lock type
Operating Temperature
-40
℃
~75
℃
fully tested.
Operating Humidity
5% to 95% (Non-condensing)
Storage Temperature
-40
℃
~85
℃
MTBF (mean time between failure)
>500,000 hrs. (MIL-HDBK-217F) at 25°C
Housing
Rugged Metal, IP30 Protection
Case Dimension (W X D X H)
142 x 36.2 x 105 mm (L x W x D)
Installation mounting
DIN Rail mounting and Wall Mounting
Certifications
EN55022/24
ITE equipment
EN55011
Industrial, Scientific and Medical (ISM) equipment
Safety
IEC EN60950-1
EMC/EMS
CE, FCC, VCCI
EMI
FCC Part 15 Subpart B Class A,
CE EN 55022 Class A
EN 50155 / EN 60068-2-6
Vibration
EN 50155 / EN 60068-2-27
Shock
EN 50155 / EN 60068-2-32
Free Fall
6
Housing Dimensions
