LevelOne GSW-1674T Manual de usuario

LevelOne

GSW-1674T

GSW-2474T

16/24-Port 10/100/1000Mbps

Gigabit Ethernet Web Smart Switch

User’s Guide

FCC Warning

This equipment has been tested and found to comply with the

regulations for a Class A digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in

accordance with this user’s guide, may cause harmful interference to

radio communications. Operation of this equipment in a residential

area is likely to cause harmful interference, in which case the user will

be required to correct the interference at his or her own expense.

CE Mark Warning

This is a Class A product. In a domestic environment, this product

may cause radio interference, in which case the user may be required

to take adequate measures.

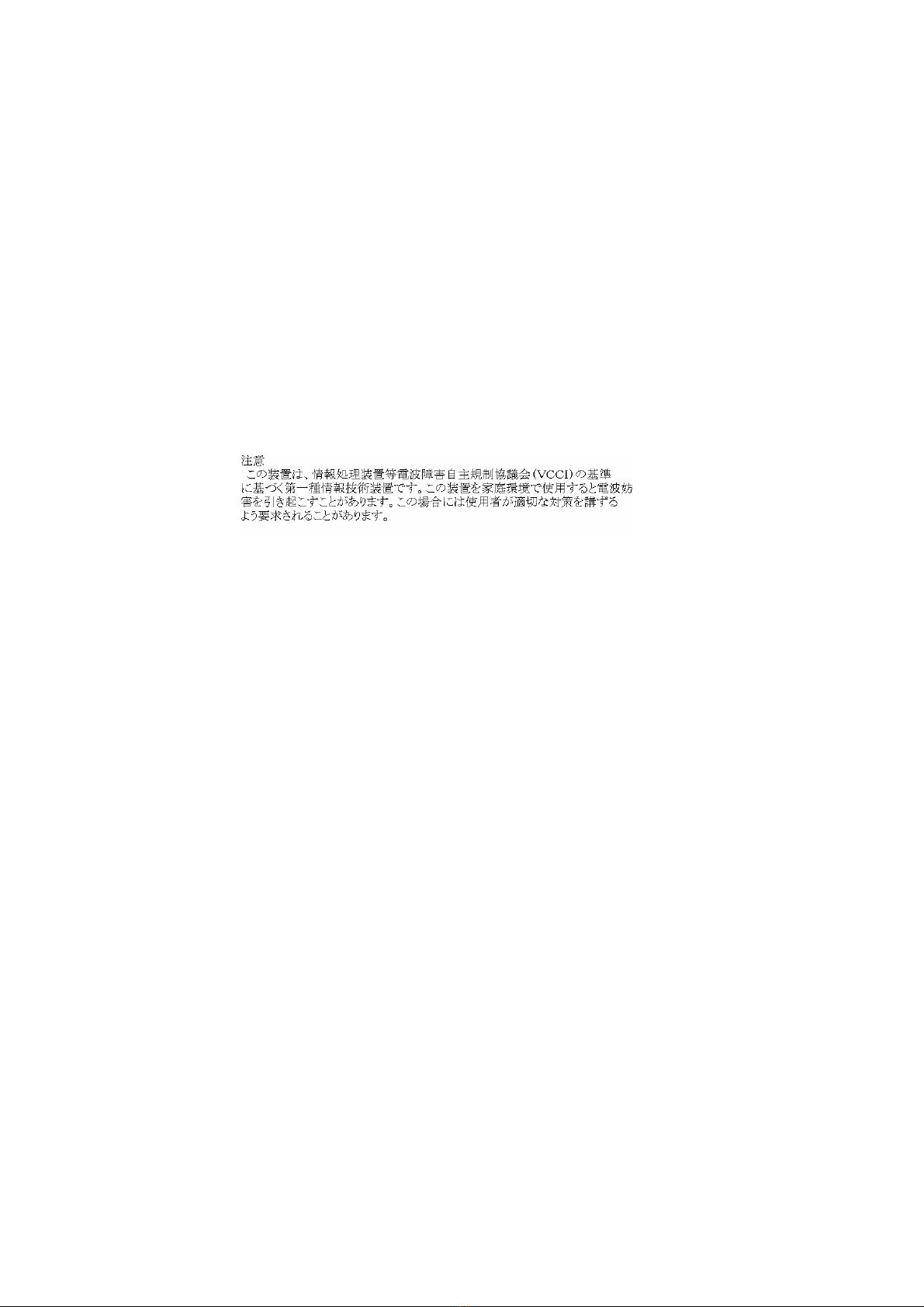

VCCI Warning

This is a product of VCCI Class A Compliance.

UL Warning

a) Elevated Operating Ambient Temperature- If installed in a closed

or multi-unit rack assembly, the operating ambient temperature of the

rack environment may be greater than room ambient. Therefore,

consideration should be given to installing the equipment in an

environment compatible with the manufacturer's maximum rated

ambient temperature (Tmra).

b) Reduced Air Flow- Installation of the equipment in a rack should

be such that the amount of air flow required for safe operation of the

equipment is not compromised.

c) Mechanical Loading- mounting of the equipment in the rack should

be such that a hazardous condition is not achieved due to uneven

mechanical loading.

d) Circuit Overloading- Consideration should be given to the

connection of the equipment to the supply circuit and the effect that

overloading of circuits might have on over current protection and

supply wiring. Appropriate consideration of equipment nameplate

ratings should be used when addressing this concern.

e) Reliable Earthing- Reliable earthing of rack-mounted equipment

should be maintained. Particular attention should be given to supply

connections other than direct connections to the branch circuit (e.g.,

use of power strips).

Ver. 1.00

TABLE OF CONTENT

About This Guide................................................................................. 1

Purpose ............................................................................................ 1

Terms/Usage .................................................................................... 1

Introduction.......................................................................................... 2

Gigabit Ethernet Technology........................................................... 2

Fast Ethernet Technology ................................................................ 3

Switching Technology ..................................................................... 4

VLAN (Virtual Local Area Network).............................................. 5

Features............................................................................................ 5

Unpacking and Installation .................................................................. 7

Unpacking........................................................................................ 7

Installation ....................................................................................... 7

Rack Mounting ................................................................................ 8

Connecting Network Cable.............................................................. 9

AC Power......................................................................................... 9

Identifying External Components ...................................................... 10

Front Panel..................................................................................... 10

Rear Panel...................................................................................... 11

Understanding LED Indicators .......................................................... 12

Power and System LEDs ............................................................... 12

Ports 1~16/24 Status LEDs ............................................................ 13

Configuration ..................................................................................... 14

Installing the Web Management Utility......................................... 14

Discovery List................................................................................ 15

Monitor List ................................................................................... 16

Device Setting................................................................................ 18

Toolbar........................................................................................... 20

Configuring GSW-1674T/2474T................................................... 21

Setup Menu .................................................................................... 23

Configuring Setup Setting.............................................................. 24

Port Settings............................................................................... 24

VLAN Settings (Virtual Local Area Network) .......................... 26

Trunk Setting ............................................................................. 27

Mirror Setting............................................................................. 28

Device Status ............................................................................. 28

Statistic....................................................................................... 29

System Setting ........................................................................... 30

Trap Setting................................................................................ 30

Set Password .............................................................................. 31

Backup Setting........................................................................... 32

Reset Setting .............................................................................. 33

Logout............................................................................................ 33

Technical Specifications .................................................................... 34

ABOUT THIS GUIDE

Congratulations on your purchase of LevelOne GSW-1674T/2474T

16/24-Port 10/100/1000 Mbps Gigabit Ethernet Web Smart Switch.

This device integrates 1000Mbps Gigabit Ethernet, 100Mbps Fast

Ethernet and 10Mbps Ethernet network capabilities in a highly

flexible package.

Purpose

This guide discusses how to install your 16/24-port 10/100/1000Mbps

Gigabit Ethernet Web Smart Switch.

Terms/Usage

In this guide, the term “Switch” (first letter upper case) refers to your

LevelOne 16/24-port 10/100/1000Mbps Gigabit Ethernet Web Smart

Switch, and “switch” (first letter lower case) refers to other Ethernet

switches.

INTRODUCTION

This chapter describes the features of Levelone GSW-1674T/2474T

16/24-port 10/100/1000 Mbps Gigabit Ethernet Web Smart Switch

and some background information about Ethernet/ Fast Ethernet/

Gigabit Ethernet switching technology.

Gigabit Ethernet Technology

Gigabit Ethernet is an extension of IEEE 802.3 Ethernet utilizing the

same packet structure, format, and support for CSMA/CD protocol,

full duplex, flow control, and management objects, but with a tenfold

increase in theoretical throughput over 100-Mbps Fast Ethernet and a

hundredfold increase over 10-Mbps Ethernet. Since it is compatible

with all 10-Mbps and 100-Mbps Ethernet environments, Gigabit

Ethernet provides a straightforward upgrade without wasting a

company’s existing investment in hardware, software, and trained

personnel.

The increased speed and extra bandwidth offered by Gigabit Ethernet

is essential to coping with the network bottlenecks that frequently

develop as computers and their busses get faster and more users use

applications that generate more traffic. Upgrading key components,

such as your backbone and servers to Gigabit Ethernet can greatly

improve network response times as well as significantly speed up the

traffic between your subnets.

Gigabit Ethernet enables fast optical fiber connections to support

video conferencing, complex imaging, and similar data-intensive

applications. Likewise, since data transfers occur 10 times faster than

Fast Ethernet, servers outfitted with Gigabit Ethernet NIC’s are able to

perform 10 times the number of operations in the same amount of time.

In addition, the phenomenal bandwidth delivered by Gigabit Ethernet

is the most cost-effective method to take advantage of today and

tomorrow’s rapidly improving switching and routing internetworking

technologies. And with expected advances in the coming years in

silicon technology and digital signal processing that will enable

Gigabit Ethernet to eventually operate over unshielded twisted-pair

(UTP) cabling, outfitting your network with a powerful 1000-Mbps-

capable backbone/server connection creates a flexible foundation for

the next generation of network technology products.

Fast Ethernet Technology

The growing importance of LANs and the increasing complexity of

desktop computing applications are fueling the need for high

performance networks. A number of high-speed LAN technologies

have been proposed to provide greater bandwidth and improve

client/server response times. Among them, 100BASE-T (Fast

Ethernet) provides a non-disruptive, smooth evolution from the

current 10BASE-T technology. The non-disruptive and smooth

evolution nature, and the dominating potential market base, virtually

guarantees cost-effective and high performance Fast Ethernet

solutions.

100Mbps Fast Ethernet is a standard specified by the IEEE 802.3

LAN committee. It is an extension of the 10Mbps Ethernet standard

with the ability to transmit and receive data at 100Mbps, while

maintaining the CSMA/CD Ethernet protocol. Since the 100Mbps

Fast Ethernet is compatible with all other 10Mbps Ethernet

environments, it provides a straightforward upgrade and takes

advantage of the existing investment in hardware, software, and

personnel training.

Switching Technology

Another approach to pushing beyond the limits of Ethernet technology

is the development of switching technology. A switch bridges

Ethernet packets at the MAC address level of the Ethernet protocol

transmitting among connected Ethernet or Fast Ethernet LAN

segments.

Switching is a cost-effective way of increasing the total network

capacity available to users on a local area network. A switch increases

capacity and decreases network loading by dividing a local area

network into different segments, which don’t compete with each other

for network transmission capacity.

The switch acts as a high-speed selective bridge between the

individual segments. The switch, without interfering with any other

segments, automatically forwards traffic that needs to go from one

segment to another. By doing this the total network capacity is

multiplied, while still maintaining the same network cabling and

adapter cards.

Switching LAN technology is a marked improvement over the

previous generation of network bridges, which were characterized by

higher latencies. Routers have also been used to segment local area

networks, but the cost of a router, the setup and maintenance required

make routers relatively impractical. Today switches are an ideal

solution to most kinds of local area network congestion problems.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cambiar de LevelOne

LevelOne

LevelOne FSW-0803TX Manual de usuario

LevelOne

LevelOne FEP-2402 Series Manual de usuario

LevelOne

LevelOne ProCon GSW-1291 Manual de usuario

LevelOne

LevelOne FEP-0311 Manual de usuario

LevelOne

LevelOne GSW-5150 Manual de usuario

LevelOne

LevelOne GSW-2692 Manual de usuario

LevelOne

LevelOne IGP-0432 Manual de usuario

LevelOne

LevelOne OfficeCon GSW-2420 Manual de usuario

LevelOne

LevelOne GSW-4876 Manual de usuario

LevelOne

LevelOne KVM-8916 Manual de usuario

LevelOne

LevelOne IGP-1271 Manual de usuario

LevelOne

LevelOne GEP-0950 Manual de usuario

LevelOne

LevelOne FGL-2870 Manual de usuario

LevelOne

LevelOne Infinity IES-1085 Manual de usuario

LevelOne

LevelOne GES-1652 Manual de usuario

LevelOne

LevelOne IES-0851 Manual de usuario

LevelOne

LevelOne GEL-2681 Manual de usuario

LevelOne

LevelOne FEP-2401 Series Manual de usuario

LevelOne

LevelOne FSW-2410TX Manual de usuario

LevelOne

LevelOne GEU-0822 Manual de usuario

LevelOne

LevelOne Infinity IES-1080 Manual de usuario

LevelOne

LevelOne IGP-0502 Manual de usuario

LevelOne

LevelOne GSW-0509 Manual de usuario

LevelOne

LevelOne GSW-1657 Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
