LevelOne FPC-0106TX Manual de usuario

LevelOne

FPC-0106TX

32-bit 10/100Mbps PCMCIA

Card Bus Adapter

User Manual

INTRODUCTION ......................................... 1

SYSTEM REQUIREMENTS............................. 1

OPERATING SYSTEMS ................................. 1

INTRODUCTION TO CARDBUS ................ 2

HARDWARE INSTALLATION .................... 4

INSERTING THE CARDBUS DUAL-SPEED PC

CARD ......................................................... 4

REMOVING THE CARDBUS DUAL-SPEED PC

CARD ......................................................... 4

CONNECTING TO THE NETWORK .................. 4

LED INDICATORS........................................ 5

SOFTWARE INSTALLATION..................... 6

INSTALLATION FOR WINDOWS 98 ................. 6

INSTALLATION FOR WINDOWS 2000 ............. 9

INSTALLATION FOR WINDOW ME................ 12

INSTALLATION FOR WINDOWS XP .............. 14

INSTALLATION FOR NOVELL NETWARE....... 15

SPECIFICATIONS..................................... 17

- 1-

INTRODUCTION

System Requirements

 An IBM compatible notebook computer

with 486 or faster processor with CardBus

supported socket.

 Drivers and utilities provided with this

product

 PCMCIA PC Card compliant Card

Services and Socket Services

 100Base-TX Fast Ethernet or 10BaseT

Ethernet connectivity to your local area

network.

Operating Systems

 Windows 98SE/ME, Windows 2000, XP

- 2-

INTRODUCTION TO CARDBUS

Cardbus is the next generation 32-bit version

issued by PCMCIA PC Card standard. In

addition to support a wider bus (32 bits

instead of 16 bits), CardBus also supports bus

mastering and operation speeds up to 33

MHz. The 132MBytes bus transfer rate

(compares with legacy 16-bit I/0 PC Card,

20MByte) provides the mobile user to enjoy

the high-bandwidth network connection.

A Mobil computer, which equipped with

CardBus and properly configured is the

fundamental requirement to use the CardBus

10/100M PC Card. To make sure about this

point, please follow the guideline listed below:

 Cardbus is designed to support both

16-bit and Cardbus Card. But the legacy

16-bit PC Card slot couldn't accept the

CardBus PC Card. In order to prevent the

wrong operation, CardBus is thus

developed with particular mechanical

consideration to prevent it fit into the

legacy 16-bit PC Card Slot. If you can't

insert the CardBus 10/100 PC Card into

the slot firmly reaching the bottom, your

notebook probably hasn’t the capability to

support CardBus technology. Please

check your notebook manual for detail

information.

- 3-

 Due to variant design of notebook

computers, some models implement a

setting in the Computer’s BIOS to switch

between Cardbus and 16-bit PC Card

modes. You could consult the User’s

Guide of your notebook and properly set

on the CardBus or Auto_Detect mode.

- 4-

HARDWARE INSTALLATION

Inserting the CardBus Dual-Speed PC

Card

1. Hold the CardBus PC Card with wide

connector toward the slot and the brand

label facing upward.

2. Insert the CardBus PC Card and push it

firmly into the bottom. (Please see the

figure on the next page for reference)

Removing the CardBus Dual-Speed

PC Card

It’s quite different for various computer

mechanical designs. Please refer to the PC

Card removal instruction in the document for

your notebook computer.

Connecting to the Network

Connect RJ-45 port of the CardBus 10/100

Ethernet PC Card Adapter to the Category 5

Network cable before loading any network

driver.

 For operation in the 100Mbps

(100Base-TX) Ethernet network, a

Category 5 unshielded twisted pair (UTP)

cable should be used to connect between

- 5-

the RJ-45 port and 100Mbps hub or

switch.

 For operation in the 10Mbps (10Base-T)

Ethernet network, Category 3, 4 or 5

unshielded twisted pair (UTP) cable could

be used to connect between the RJ-45

port and a 10Mbps hub or switch.

LED Indicators

PowerLI

ACT

1. RJ-45 port: connects to the Category 5

Ethernet Network Cable.

2. LINK 10 LED indicator: glows green

when operated in the 10Mbps Ethernet

network.

3. LINK 100 LED indicator: glows green

when operated in the 100Mbps Ethernet

network.

4. ACT LED indicator: blinks orange when

the CardBus 10/100 Ethernet Attached

Port PC Card Adapter is

transmitting/receiving data.

- 6-

SOFTWARE INSTALLATION

Installation for Windows 98

1. When the PC Card is well inserted into

the PC Card slot in your computer, the

following picture will appear

automatically and prompt you to insert

the new device driver. Click Next to

proceed.

2. Select Search for the best driver for

your device (recommended) and click

Next.

- 7-

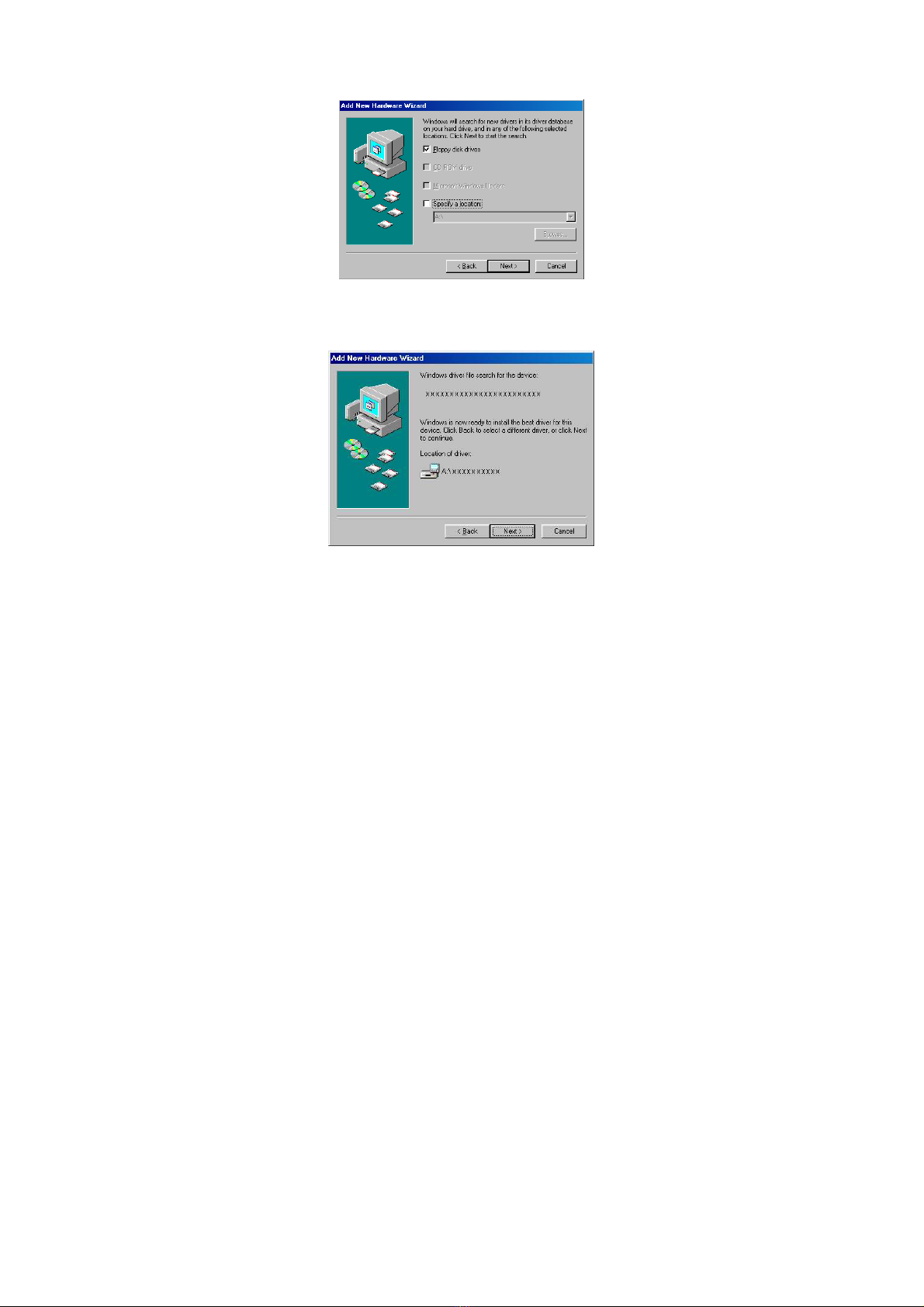

3. Select Floppy disk drives and click

Next to proceed searching.

4. Windows has found the appropriate

driver for the new device. Click Next to

install.

5. Click Finish. The PC Card driver

installation will be successfully

completed.

- 8-

6. Click Yes to restart your computer.
