LevelOne USB-0301 Manual de usuario

USB-0301

User Manual

Ver. 1.0.0

USB Fast Ethernet Adapter

FCC Certifications

This Equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio

communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference,

and (2) this device must accept any interference received; including interference

that may cause undesired operation.

CE Mark Warning

This equipment complies with the requirements relating to electromagnetic

compatibility, EN 55022 class B for ITE, the essential protection requirement of

Council Directive 89/336/EEC on the approximation of the laws of the Member

States relating to electromagnetic compatibility.

Company has an on-going policy of upgrading its products and it may be

possible that information in this document is not up-to-date. Please check with

your local distributors for the latest information. No part of this document can be

copied or reproduced in any form without written consent from the company.

Trademarks:

All trade names and trademarks are the properties of their respective companies.

Table of Contents

1. UNPACKING INFORMATION.......................... .............. 3

2. OVERVIEW..................................................................... 3

2.1 INTRODUCTION....................................................... 3

2.2 KEY FEATURES....................................................... 4

2.3 LED DEFINITION...................................................... 4

2.3.1 10/100M............................................................. 4

2.3.2 Link/Act ............................................................. 4

2.3.3 USB Link............................................................ 4

3. INSTALLATION .............................................................. 5

3.1 SYSTEM REQUIREMENTS ..................................... 5

3.2 HARDWARE INSTALLATION................................... 5

3.2.1 Connect the adapter to your PC ........................ 6

3.2.2 Networking cable installation.............................. 6

3.3 SOFTWARE INSTALLATION .................................. 7

3.3.1 Windows 2000 Setup......................................... 7

3.3.2 Windows XP Setup ........................................... 8

3.3.3 Windows Vista/7 Setup...................................... 9

3.3.4 Mac OS Setup ................................................. 12

3.3.5 Wii Setup ......................................................... 14

4. PRODUCT SPECIFICATIONS ..................................... 15

1. Packing Information

Thank you for purchasing the USB-0301. Before you start, please verify that

your package contains the following items:

1. One USB-0301 .

2. One driver & manual CD

3. QIG

2. Overview

2.1 Introduction

The USB-0301 provides users to launch Internet via the USB interface up to

100Mbps transferring and receiving rate.

The device is compatible to USB 2.0, 1.1, and 1.0. Along with complying 802.3,

802.3u and 802.3x standards, users are allowed to get connection to network

in any environment that encountered. What‟s more, you would not have to

endure the effort opening PC cases anymore.

To laptop users, it would be even more profitable with the low power

consumption feature. Together with the high compatibility, laptop users are

allowed to connect to network easily with lower power consumption and hence

strengthen the power efficiency. Along with Plug & Play, hot inserting/swapping

supported, the device makes your PC and peripherals being connected in much

an easier way.

2.2 Key Features

‧

Complies with IEEE 802.3 10BASE-T standard

Complies with IEEE 802.3u 100BASE-TX standard

Complies with IEEE 802.3x full duplex flow control

Compliant to USB 1.0, 1.1 and 2.0 standards

Powered over USB bus with low power consumption

Support full/half Duplex operation

Support drivers for Windows 2000/XP/Vista/7

Support drivers Mac OS 10.3, Mac 10.4 for 32-bit

Active LED indicators

Plug and Play Installation

Support hot inserting and swapping

Support Wake-on-LAN

Support Wii player

CE FCC, VCCI class B

2.3 LED Definition

2.3.1 10/100M

Green:

Off:

100M

10M

2.3.2 Link/Act

Green:

Off:

On for connection to a 100Mbps network.

Off for connection to a 10Mbps or not connected.

2.3.3 USB Link

Yellow:

Off:

LAN activity. Blinking when there is data flow between LAN and the host computer.

No valid link with this adapter

3. Installation

3.1 System Requirements

A Pentium 166 MMX or above processor-based PC, any devices that support standard USB

One available USB port Microsoft Windows 2000/XP/Vista/7; MAC OS 10.3 or 10.4 for

32-bit/64bit x86 and Power PC based computer. A CD-ROM Drive

3.2 Hardware Installation

Before installation, please check if there is an available USB port being enabled.

To check this, you may click My Computer →Control Panel →System,

then click the Device Manager tab to check if the Universal Serial Bus

controller to be shown on the following list.

3.2.1 Connect the adapter to your PC

1. Plug the USB-0301 adapter to your PC.

2. Windows will detect new hardware automatically and prompt you for

driver. For driver installation, please refer to the chapter “Software

Installation”.

3.2.2 Networking cable installation

1. Connect the UTP Ethernet cable to the network port of the USB Adapter.

2. Plug the other end of the cable into a 10/100 Switch or Hub.

Note: You may select the networking cable according to the following

information:

10 BASE-T: Category 3, 4 or 5 UTP/STP

100 BASE-TX: Category 5 UTP/STP

3.3 Software Installation

After attaching the USB to Ethernet adapter to your PC or laptop, the

auto-detection for new hardware will be activated automatically. The

procedures to perform driver installation differ slightly from each operation

system. Please refer to the following paragraphs for detail instruction.

3.3.1 Windows 2000 Setup

There are two ways to install the Win 2000 software: by using auto-install

program, or, thorough the “Found New Hardware Wizard.” Please refer to the

following instruction.

Auto-Install Program

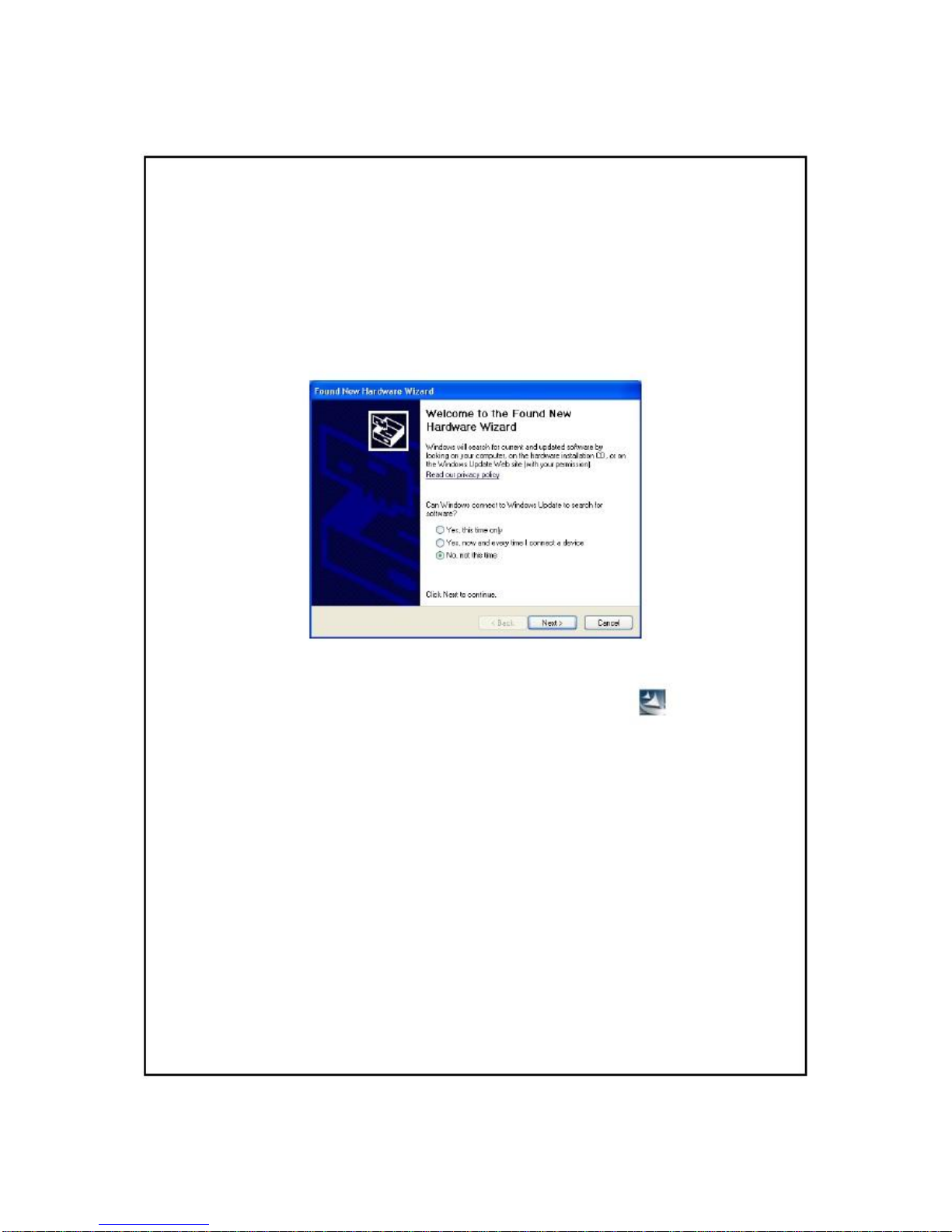

1. The “Found New Hardware Wizard” window pops up. Click “Cancel” to close

the window.

2. Insert the CD-Rom that came with this product to your CD-Rom drive.

Click on My Computer --> your CD-Rom drive --> Driver -

WinXP2K_32bit_driver Set up

installation.

3. After complete installation, click the “Finish” button.

then double-click the

icon to start

3.3.2 Windows XP Setup

There are two ways to install the Win XP software: by using auto-install

program, or, thorough the “Found New Hardware Wizard.” Please refer to the

following instruction.

Auto-Install Program

1. The “Found New Hardware Wizard” window pops up. Click “Cancel” to close

the window.

2. Insert the CD-Rom that came with this product to your CD-Rom drive. Click

on My Computer --> your CD-Rom drive --> Driver -

WinXP_2K_32bit_driver set up then double-click the

installation.

3. After complete installation, click the “Finish” button.

icon to start

3.3.3 Windows Vista/7 Setup

There are two ways to install the Win Vista software: by using auto-install

program, or, thorough the “Found New Hardware Wizard.” Please refer to the

following instruction.

Auto-Install Program

1. The “Found New Hardware Wizard” window pops up. Click “Cancel” to close

the window.

2. Insert LevelOne CD-Rom to your CD-Rom drive. Click on My Computer -->

your CD-Rom drive --> Driver --Vista 32 bit press setup icon then it will

start to install the driver

3. After complete installation, click the “Finish” button.
