LevelOne WNC-0302USB Manual de usuario

LevelOne

WWNNCC--00330022UUSSBB

110088MMbbppssUUSSBBAAddaapptteerr

User Manual

V1.0-0506

CONTENTS

1INTRODUCTION............................................................................. 1

1.1 FEATURES .................................................................................................... 1

1.2 SPECIFICATIONS............................................................................................ 1

1.3 PACKAGE CONTENTS..................................................................................... 2

2INSTALLATION PROCEDURE ..................................................... 3

3CONFIGURATION UTILITY ....................................................... 12

3.1 WIRELESS CONNECTION STATUS.................................................................. 12

3.2 PROFILE MANAGEMENT............................................................................... 12

3.3 DIAGNOSTICS ............................................................................................. 14

3.4 SECURITY................................................................................................... 14

3.4.1 WPA Security Settings ............................................................................................ 17

EAP-TLS Security...........................................................................16

EAP-TTLS Security.........................................................................17

PEAP (EAP-GTC) Security..............................................................18

PEAP (EAP-MSCHAP V2) Security..................................................19

LEAP Security................................................................................21

3.4.2 Using WPA Passphrase Security ............................................................................. 23

3.4.3 Pre-Shared Encryption Keys .................................................................................... 24

OVERWRITING AN EXISTING STATIC WEP KEY ..................................................... 26

DISABLING STATIC WEP...................................................................................... 26

4TROUBLESHOOTING .................................................................. 27

1 Introduction

Thank you for purchasing LevelOne WNC-0302USB 108Mbps USB Adapter. This USB

Adapter is designed to comply with IEEE 802.11g Wireless LAN standard and easy to carry

with the Mini size. It is suitable for any Laptop or Desktop computers.

This adapter supports 64/128/152-bit WEP data encryption that protects your wireless

network from eavesdropping. It also supports WPA (Wi-Fi Protected Access) feature that

combines IEEE 802.1x and TKIP (Temporal Key Integrity Protocol) technologies. Client

users are required to authorize before accessing to APs or AP Routers, and the data

transmitted in the network is encrypted/decrypted by a dynamically changed secret key.

It supports the Super G mode feature to enhance the data rate to reach to 108Mbps, it can

enhance the data rate when it connect with Super G product.

This adapter is with the versatile features; it is the best solution for you to build your

wireless network.

1.1 Features

•Complies with the IEEE 802.11b and IEEE 802.11g 2.4GHz standards.

•Up to 54Mbps high data transfer rate. ( 108M : Super G mode enabled)

•Support 64/128/152-bit WEP, WPA, IEEE 802.1x high level of security.

•Complies with IEEE 802.11d country roaming standard.

•Support the most popular operating system: Windows 98SE/Me/2000/XP.

•Supports USB 2.0/1.1/1.0 interface.

•Portable and mini-size design.

•Suitable for Any Notebook or Desktop PC.

1.2 Specifications

•Standard: IEEE 802.11g/b

•Bus Type: USB 2.0 Type A

•Frequency Band: 2.4000~2.4835GHz (Industrial Scientific Medical Band)

•Modulation: OFDM with BPSK, QPSK, 16QAM, 64QAM (11g)

BPSK, QPSK, CCK (11b)

•Data Rate: 54/48/36/24/18/12/11/9/6/5.5/2/1Mbps auto fallback (108Mbps: Super G enabled)

•Security: 64/128/152-bit WEP Data Encryption, WPA , IEEE 802.1x

•Antenna: Internal Antenna

•Drivers: Windows 98SE/Me/2000/XP

•LED: Link/Activity

•Transmit Power: 16dBm (Typical)

•Dimension: 9(H) x 27(W) x 87(D)

•Temperature: 32~131°F (0 ~55°C)

•Humidity: 0-95% (NonCondensing)

•Certification: FCC, CE

1.3 Package Contents

Before you begin the installation, please check the items of your package. The package

should include the following items:

•LevelOne WNC-0302USB 108Mbps USB Adapter

•LevelOne USB 2.0 Extension Cable (100 cm)

•LevelOne Quick Installation Guide

•LevelOne CD (Driver/Utility/Manual)

If any of the above items is missing, contact your supplier as soon as possible.

2 Installation Procedure

Before you proceed with the installation, please read the following chapter!

Note1: For Windows 98SE please make sure your copy of windows is fully updated with the

latest hotfixes by going to http://windowsupdate.microsoft.com

Note2: For Windows XP or Windows XP SP1, please update your windows with the following

hotfix http://support.microsoft.com/?scid=kb%3Ben-us%3B822603&x=10&y=13

if your copy of Windows XP has been updated with Service Pack 2 (SP2), you do not

need to apply this hotfix.

Note3: The following installation was operated in Windows XP. (Procedures are similar for

Windows 98SE/ME/2000)

Note4: If you have installed the Wireless PC Card driver & utility before, please uninstall the

old version first.

This chapter describes using the LevelOne installer to install the LevelOne USB

wireless network adapter driver.

Installation

Important Note: (For Windows 2K/XP) Please ensure that the USB

adapter is plugged into the computer before starting the installation

program!!! (For Windows 98SE, do not plug in the device before starting

the installation program)!!!

To install the LCU and USB device driver:

1. For Windows 2k/XP insert the USB device into the computer, (for windows

98SE do not insert the device), and insert the installation CD.

2. Open the InstallShield Wizard (setup2k.exe for Windows XP/2000 and

setup98.exe for Windows98SE/Me).

3. LevelOne Client Installation installer opens. Click Next.

4. LevelOne license agreement window appears. Read and accept the agreement

to continue. Click Next.

5. The Installation Program window appears with three setup options.

To install the client utilities and driver, select the appropriate installation type

(see Table (2-1) and click Next.

Table 2-1. Installer Installation Selections

Radio Button Description

Install Client

Utilities and

Driver

(recommended)

Installs the driver and client utilities. This is the recommends

option.

Install Driver Only Installs only the driver without installing the client utilities.

Make Driver

Installation

Diskette(s)

Creates driver installation diskettes.

6. A prompt appears warning that the install requires the system to be rebooted

at the end of the installation process. Click Yes to continue.

7. Choose the setup directory. The default is C:\Program Files \LevelOne

Click Next.

8. Choose the program folder for the start menu. The default is LevelOne Click

Next.

9. For a windows XP installation, the next screen defines the Windows Zero

Configuration. Windows XP Zero Configuration provides functionality to

automatically try to connect the station to available wireless networks. For

complete information on Windows Zero Configuration, see the Microsoft web

site.

10.In this installation, select the LevelOne Client Utility and Supplicant.

Click Next. The installer automatically installs the driver.

11.Make sure that the USB device is inserted. If it is not, insert it, then cancel

the found New Hardware Wizard if it appears. Proceed with the installation.

Click OK.

12.Windows may display a Windows Logo error for the USB bootloader. Click

Continue Anyway.

The installer continues installation.

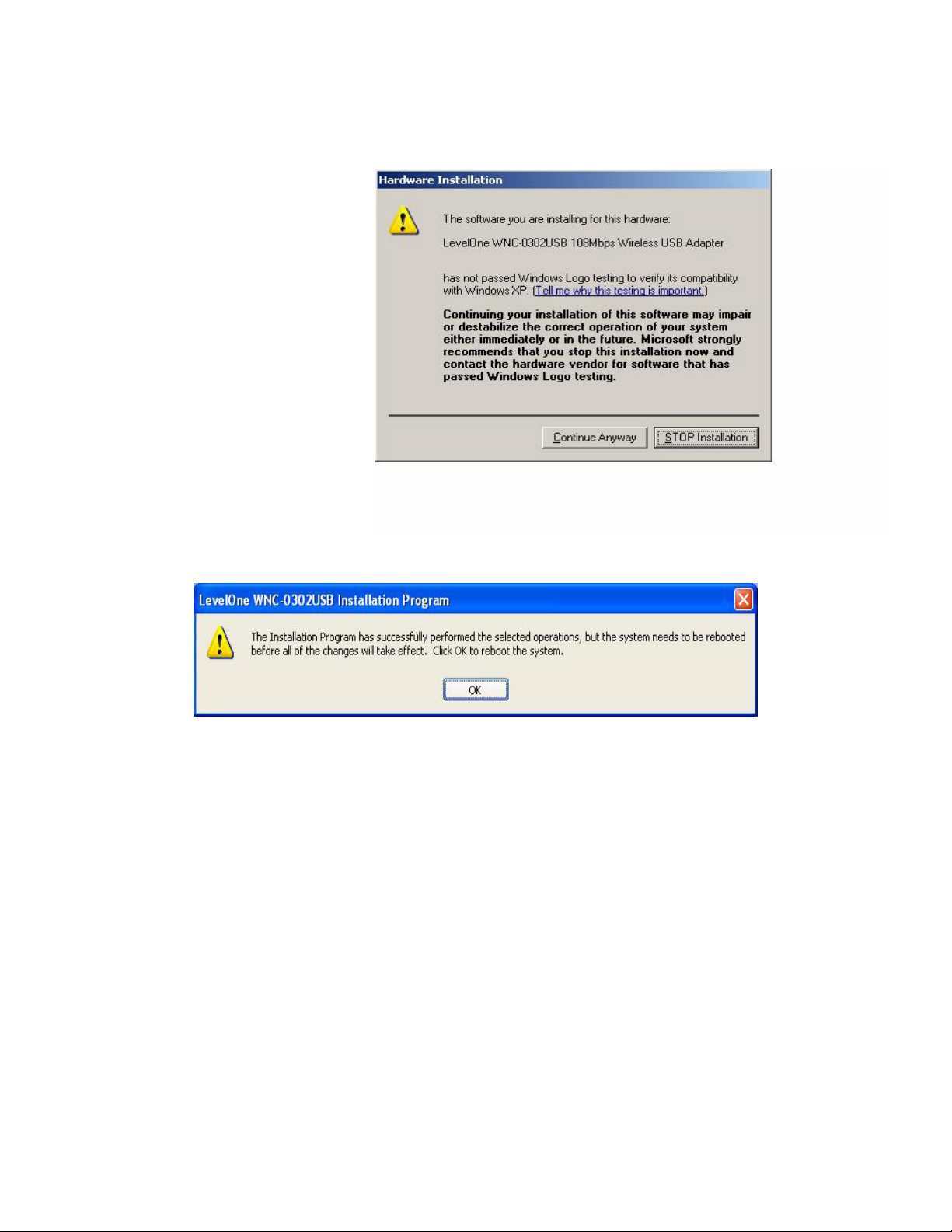

13.Windows may display a Windows Logo error for the WLAN driver. Click Click

Continue Anyway.

The installer continues installation.

14.Click OK at the prompt to reboot and complete the installation.

Installing LevelOne WNC-0302USB Wireless

Network Adapter

To install the USB driver and LevelOne Client Utility, see “To install the ACU and

USB device driver:” on page 2-1.

To install the USB Device Driver separately:

1. Insert the USB device into the computer: The Found New Hardware Wizard

opens. Choose advanced installation and click Next.

2. Choose Search for driver in these locations. The driver is located in the

Ndis5x\2KXP directory. (For Windows 98SE/ME computers, the driver is located

in the Ndis5x\98ME).

3. Windows may display a Windows Logo error for the bootloader. Click Continue

Anyway. The installer will continue with the installation.

4. Click Finish to close the Found New Hardware Wizard and complete installation

of the USB device bootloader.

5. The Found New Hardware Wizard opens to install software for the USB device.

Click Next to continue.
