INSTALLATION/

OPERATION

INSTRUCTIONS

CONTROLS

507561-04

8/2018

Supersedes 507561-03

This manual must be left with the

owner for future reference.

Shipping and Packing List

Package 1 of 1 contains;

1 – Wired Controller

1 – Installation and operation manual

1 – Cable with connector – 20 ft. (6 m)

IMPORTANT!

Frequent changes to operating mode

may cause system malfunction.

Allow at least one minute between

mode changes to allow the system to

stabilize.

Lennox Mini-Split

Systems Wired Indoor Unit

Controller (M0STAT61Q-1)

WARNING

Improper installation, adjustment,

alteration, service or maintenance

can cause property damage, personal

injury or loss of life.

Installation and service must be

performed by a licensed professional

HVAC installer (or equivalent) or

service agency.

Requirements

Turn off power supply before beginning

installation. Use this controller only as

described in this manual. Do not install

the controller on outside walls (where

there is unconditioned space on opposite

side of wall) or in locations where direct

sunlight may be present.

Installation

WARNING

IBe sure that power supply has

been turned off before beginning

installation.

CAUTION

Clean controller using a clean, damp

cloth. Do not spray cleanser on or

around controller.

WARNING

Do not operate controller with wet

hands.

CAUTION

Do not install controller in areas where

heavy oil, vapor, or gases containing

sulfur may exist or the controller may

be damaged.

IMPORTANT!

Read all of the information in this

manual before using this controller.

All wiring must conform to local and

national building and electrical codes

and ordinances. This is a 5 VDC

controller. Do not install on voltages

higher than 5 VDC.

• This manual provides the installation

instructions for this controller. Refer to

the included wiring diagram to connect

the controller to the indoor unit.

• The controller uses low voltage. Keep

a minimum distance of 12” (305 mm)

between low voltage control wire and

high voltage power wires.

• Ground the shielded control wiring.

• Do not use a megger to test insulation.

• The controller cable length should not

exceed 40 ft. (12 m).

IMPORTANT!

The provided cables must be used. Do not use excessive force while pulling the

cable or when making the connections.

1. Connect controller to indoor unit main control board by inserting the plug of the

5-conductor cable into the socket provided at the indoor unit.

Indoor unit

display board

5-conductor wire 5-conductor wire

Figure 1. Wiring Connection

2. Remove the cover from the wall plate using a at-head screwdriver. See gure 2.

3. Mount the wall plate as appropriate for your application. See gure 3.

NOTE: Provide for future maintenance by allowing enough slack in the wiring to

allow the controller to be removed from the wall if needed.

Slots

Figure 2. Remove Cover from Wall Plate

4. Attach the wall plate using the provided screws. See gure 3.

Back plate

Screws (M4×20)

J-box

Back plate

Screw (M4×20)

Screws (M4×25)

Figure 3. Mount Wall Plate

5. Reattach the cover to the wall plate. See gure 4.

Figure 4. Reattach Cover to Wall Plate

Field Wiring Diagram

RUN GND

+5V

Wired

Controller

5-Way Terminal

Shielded

5-Conductor Cable

Emitter Tube

Indoor Unit

Display Board

Figure 5. Typical Wiring Diagram

Specications

Table 1. Specications

Input Voltage 5VDC

Ambient Temperature 23~110°F (-5~43°C)

Ambient Humidity RH40%~RH90%

Display

1 2

1 12

Operation mode indication Follow me function

ON/OFF indication

Timer ON/OFF

Temperature display zone

Lock

Fan speed indication

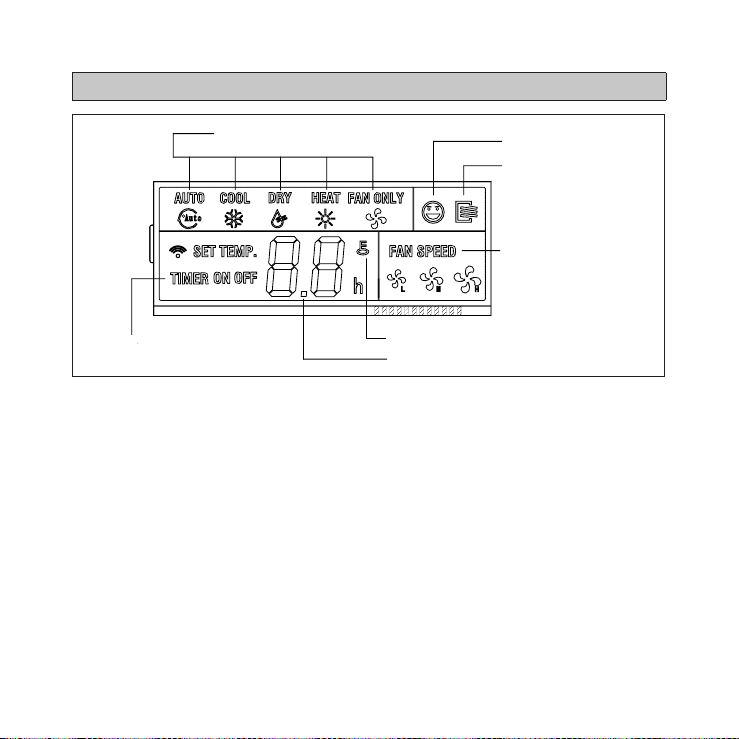

Figure 6. Display

• Operation mode. These icons

show the current mode of operation.

Press the mode button to scroll

through the operation modes:

Auto → Cool → Dry → Heat → Fan.

• Timer ON/OFF. These icons light

to indicate that the indoor unit has a

timed auto-start or auto-stop set.

• Follow me. This icon displays when

the air temperature sensor in the

wired remote controller is the sensor

being used by the indoor unit. When

this function is off, the indoor unit uses

a built-in sensor.

• ON/OFF. This icon displays when the

indoor unit is turned on.

• Fan speed. Displays the current fan

speed.

• Lock. This icon displays when the

controller is locked.

• Temperature display. Displays

setpoint temperature.

Button Descriptions

MODE BUTTON

TIMER ON BUTTON

FOLLOW ME BUTTON

TIMER OFF BUTTON

RESET BUTTON

ON / OFF BUTTON

ADJUST BUTTON▲

ADJUST BUTTON▼

SWING BUTTON

ECONOMY BUTTON

FANSPEEDBUTTON

LOCK BUTTON

TIMER

OFF

MODE

RESET LOCK

FAN SPEED

ECO

SWING TEMP

Figure 7. Buttons

• Mode button. Press to scroll

through the operation modes:

Auto → Cool → Dry → Heat → Fan.

• Timer ON button. Press to set the

number of hours of delay before the

indoor unit begins operation.

• Timer OFF button. Press to set the

number of hours of delay before the

indoor unit stops operation.

• Follow Me button. Press to activate

the controller’s air temperature

sensor. This transfers the temperature

sensing function from the indoor unit

to the controller. The indoor unit’s air

temperature sensor will be disabled.

• Reset button. Using a blunt-tipped

device (paper clip), press to cancel

current settings and reset remote

controller to factory settings.

• On/Off button. Press to turn the

indoor unit on or off.

• Up arrow button. Press to increase

the temperature setpoint or to scroll

through settings options.

• Down arrow button. Press to

decrease the temperature setpoint or

scroll through settings options.

• Swing button. Press once to initiate

louver left & right oscillation. Press

again to stop louver oscillation.

Louvers remain in place where

stopped. Not available in all indoor

unit models.

• Economy button. Not used.

• Fan speed. Press to scroll through

the fan speeds: Auto → Low → Med

→ High.

• Lock button. Using a blunt-tipped

device (paper clip), press to lock or

unlock the current setting.

Operations

Start/Stop Operation

Press the LED power button.

• Controller ON: Power button LED lit

brightly.

• Controller OFF: Power button LED

not lit.

Select Fahrenheit or Celsius

Display

Press and Up and Down buttons at the

same time, and hold for three seconds to

toggle between Fahrenheit and Celsius.

To set the Operation Mode

Press the Mode button to scroll through

the mode selections.

• Auto – System operates in cooling or

heating mode as determined by the

setpoint and the room temperature.

NOTE: The use of Auto mode for multi-

zone units is not recommend.

All zones should be in the

same mode of operation to

ensure there is not a conict

error mode.

• Cool – System operates in cooling

mode.

• Dry – System removes humidity

according to preset conditions (fan

speed and setpoint temperature, not

a humidistat sensor). Cannot adjust

fan speed.

• Heat – System operates in heating

mode.

• Fan – Fan only, no heating or cooling.

To Set (or change) the Room

Temperature Setting (Set )Point)

Press the up arrow & down arrow buttons

to adjust the setpoint.

Dry mode

1. Press the Power button, an LED

light on the indoor unit displays.

2. Press the Mode button to select Dry.

3. Adjust the temperature setpoint

using up and down arrow buttons.

NOTE: Fan speed is not adjustable.

Timer Operation

Timer ON and Timer OFF are used to

turn on and turn off the indoor unit at

selected intervals.

Timer ON operation

1. Press the Timer ON button. The

Timer on icon, the last auto-on time,

and “h” will display.

2. Press the Timer ON button again to

set the amount of time before the

indoor unit begins operation. Each

press will increase the time in half

hour increments until 10 hours, then

the increment becomes 1 hour.

Timer OFF Operation

1. Press the Timer OFF button. The

Timer off icon, the last auto-off time,

and “h” will display.

2. Press the Timer OFF button again

to set the amount of time before the

indoor unit stops operation. Each

press will increase the time in half

hour increments until 10 hours, then

the increment becomes 1 hour.

Modify Timer ON/OFF Settings

1. Press either the Timer ON button or

the Timer OFF button to modify that

setting.

2. Continue to press the Timer ON or

Timer OFF button until the display

shows the new time. Each press

will increase the time in half hour

increments until 10 hours, then the

increment becomes 1 hour.

3. Set the timer to 0.0 to turn off timed

operation.

Troubleshooting

Table 2. Fault Codes (Indoor

Unit)

Code Description

E0 Indoor unit EEPROM error

E1 Communication error

between indoor unit and

outdoor unit

E3 Indoor fan speed error

E4 Indoor return air temperature

sensor error

E5 Indoor coil temperature

sensor error

EC Low refrigerant

EE High water level alarm

F0 Outdoor current overload

sensed

F1 Outdoor ambient

temperature sensor error

F2 Outdoor coil temperature

sensor error

F3 Compressor discharge

temperature sensor error

F4 Outdoor unit EEPROM error

Table 2. Fault Codes (Indoor

Unit)

Code Description

F5 Outdoor unit fan speed error

P0 Inverter module IPM error

P1 High or low voltage

protection

P3 Outdoor unit low temperature

lockout

P4 Compressor drive error

-- Mode conict

P6 Compressor high-pressure or

low-pressure switch open

Tabla de contenidos

Otros manuales de Controladores de Lennox

Lennox

Lennox V0STAT54P-2 Instrucciones de instalación

Lennox

Lennox e-Lite LV-CW02 Manual de usuario

Lennox

Lennox F1943L-3P Manual de usuario

Lennox

Lennox icomfort Wi-Fi (2.0) Demo Manual de usuario

Lennox

Lennox E210 Manual de instrucciones

Lennox

Lennox VRF F1943L-3P Instrucciones de instalación

Lennox

Lennox 20 Guía del usuario

Lennox

Lennox CLIMATIC series Manual de usuario

Lennox

Lennox M0STAT60Q-1 Manual de usuario

Lennox

Lennox V0STAT51P-3 Instrucciones de instalación

Lennox

Lennox V0STAT54P-2 Manual de usuario

Lennox

Lennox M0STAT64Q-2 Instrucciones de instalación

Lennox

Lennox CLIMATIC 200 Manual de usuario

Lennox

Lennox DC 60 Manual de usuario

Lennox

Lennox VRF VEWCL1E Manual de usuario

Lennox

Lennox 22U50 Manual de usuario

Lennox

Lennox V0STAT52 Manual de usuario

Lennox

Lennox OLT-1X Manual de usuario

Lennox

Lennox M0STAT120N-1 Manual de usuario

Lennox

Lennox HYDROCONTROL Manual de usuario

Lennox

Lennox Core Unit Controller Manual de usuario

Lennox

Lennox RG10F2-MMA Manual de usuario

Lennox

Lennox LXTFF01M Manual de usuario

Lennox

Lennox PRODIGY M2 Manual de usuario

Manuales populares de Controladores de otras marcas

Digiplex

Digiplex DGP-848 Instrucciones de funcionamiento

YASKAWA

YASKAWA SGM series Manual de usuario

Sinope

Sinope Calypso RM3500ZB Manual de usuario

Isimet

Isimet DLA Series Style 2 Manual de instalación

LSIS

LSIS sv-ip5a Manual de usuario

Rockwell Automation

Rockwell Automation 1769-L31 Manual de usuario

Airflow

Airflow Uno hab Manual de usuario

ABB

ABB ACS580-01 drives Manual de usuario

Panasonic

Panasonic GM1 Series Manual de usuario

Emerson

Emerson SW93 Manual de usuario

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manual de usuario

Panasonic

Panasonic FP? Positioning Unit RTEX Manual de usuario

Samson

Samson Type 5824 Manual de servicio

Alpha IP

Alpha IP MIOB 21001 Manual de usuario

Siemens

Siemens OpenAir GMA 1 Series Manual de usuario

Surecom

Surecom SR-629 Manual de usuario

Fishman

Fishman TriplePlay Manual de usuario

Regulus

Regulus SRS1 T Manual de usuario
