LENCO TAB-740 Manual de usuario

User manual

TAB-740

Please read this User Manual carefully to ensure proper

use of this product and keep this manual for future

reference.

www.lenco.com

5. TV Player application

6. Install Applications

7. Uninstall Applications

8. Music

9. Settings

The symbol indicates that dangerous voltages constituting a

risk of electric shock are present within this unit.

The symbol indicates that there are important operating and

maintenance instructions in the literature accompanying this

unit.

CAUTION:

When the apparatus was in electrostatic circumstance, it may

be malfunction and need to reset by user.

The USB memory stick should be plug in the unit directly.

USB extension cable should not be used to avoid failing of

data transferring and interference caused.

WARNING: To reduce the risk of fire or electric shock, do not expose

this apparatus to rain or moisture.

WARNING: The batteries shall not be exposed to excessive heat

such as sunshine, fire or the like.

WARNING: Never place heavy or sharp objects on the LCD panel or

frame.

CAUTION: Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type.

WARNING: The excessive sound pressure from earphones and

headphones can cause hearing loss.

5. TV Player application

5.1. Program Scan

Select the TVPlayer application then it

will have a tip of

“There are no

channels stored, do you want to update the list of channels?” Press “Yes”

button to enter

scan

Menu. The scan menu have two ways to scan,

one is Auto scan, one is Manual scan.

5.1.1

Auto scan

In the Auto scan menu there is some Areas to choose, the frequencys are

changed according to the areas. Then press “ok” button to enter the auto

scan state. In the process of scanning it will present the scanning

frequency and the percent of the scanning after finishing, it will have a tip

to present the number of TV and Radio have been received.

5.1.2

Manual scan

In the Manual scan menu there is Area 、Frequency 、Bandwidth to

choose, select the right selection or type the right number, then Press

“ok” button to enter the manual scan state. In the process of scanning it

will present the scanning frequency and the percent of the scanning. after

finishing, it will have a tip to present the number of TV and Radio have

been received.

5.2. DVB Mainmenu

In the program playing, touch the screen, then it will present the DVB

mainmenu. it include the subtitle, channel list, change program, teletext,

audio track, information and settings.

5.2.1 icon is the subtitle button, click the button, it will present the

Subtitle language set Menu, if only have one subtitle, select is ok. If have

many kind of subtitle , select one kind of your needed.

5.2.2 icon is the channel list button, click the button to see the

channel list.

5.2.3 icon is the change channel button, press the buttons to

change the channel to next or previous ,

5.2.4 icon is the channel list button, if the stream have no teletext,

press the button, it will present “no teletext”, if the stream have teletext,

press the button it will present the teletext information.

5.2.5 icon is the audio track button,if the stream have more than one

audio tracks ,press the button to change the audio track as your wanted.

5.2.6 icon is the channel information button, press the button, it will

press Channel Information ,it include Channel name, Frequency, Signal

Strength, Signal Quality, Video PID, Audio PID .

5.2.7 icon is the audio track button

5.2.8 icon is the setting button, press the button you can .

5.3.DVB setting menu

It include Audio Track、Channel Search、Factory data reset、Set

password、Update system time、 TTX Region、LCN item.

5.3.1 Audio Track.

5.3.2 Channel Search.

5.3.3 Factory data reset, the default code is 1234,the master code is 0000.

5.3.4

Set Password, the password is 4 digit code.

5.3.5 Update system time, the setting is making time synchronization

system.

5.3.6 TTX Region, set the TTX language as you wanted.

5.3.7 LCN set, when LCN I is on, it will be According to the

sequence of LCN if the stream have no LCN information, it will be

start from 900. If two streams have same LCN information, the later

received channel will be start from 900. When LCN is off, it will be

According to the sequence of service ID. such as 1,2,3…

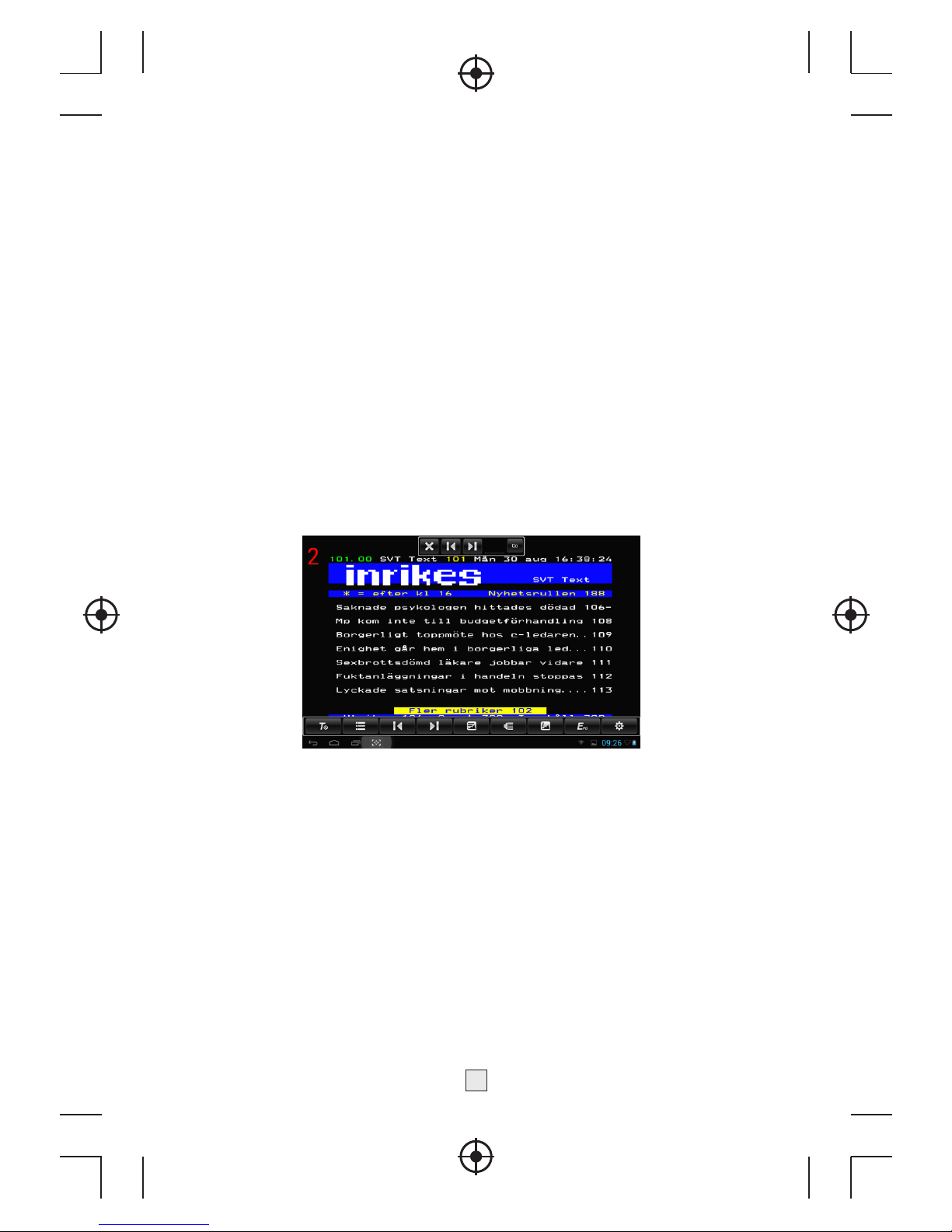

5.4.Teletext information

When playing the stream with teletext information, open Teletext, it

will show different TTX language setting according your set.
