LEGRAND 0 677 886L Manual de usuario

1/3

SOMMAIRE

Wireless and batteryless Wake Up/Sleep control

Fiche technique : S000113317EN-00 Mise à jour le : Créée le : 07/10/2020

Catalogue number(s) : 0 648 84L/85L - 0 677 886L

0 770 57L - 6 000 91L

5 742 87/93 - 5 743 22 - 5 748 36

7 418 03L/33L/63L

128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex

Tel : 0 (+33) 5 55 06 87 87 Fax : 0 (+33) 5 55 06 88 88

www.legrand.com

1. USE

Wireless, batteryless control for lighting scenes fonction.

Controls the connected lighting micromodules, socket-outlets, dimmer-

switches and roler shutters.

• Can be fixed directly to a wall, screwed to an electric flush mounting

box or placed on a cabinet.

• Can be combined in multigangs with other wiring devices except in

Arteor.

• Can control up to 20 connected products

2. RANGE

Delivered without plate.

Equipped with a button used to configure the product.

Repositionable self-adhesive stickers (x2 supplied)

RANGE COLOR CAT. NUMBER

CELIANE White 0 648 84L

CELIANE Titanium 0 648 85L

CELIANE Graphite 0 677 86L

MOSAIC White 0 770 57L

DOOXIE White 6 000 91L

ARTEOR Aluminium 5 742 93

ARTEOR White 5 742 87

ARTEOR Champagne 5 748 36

ARTEOR Magnesium 5 743 22

VALENA NEXT White 7 418 03L

VALENA NEXT Aluminium 7 418 33L

VALENA NEXT Black 7 418 63L

3. DIMENSIONS (MM)

ARTEOR

CELIANE

MOSAIC/VALENA NEXT

2/3

SOMMAIRE

Wireless and batteryless Wake Up/Sleep control

Fiche technique : S000113317EN-00 Mise à jour le : Créée le : 07/10/2020

Catalogue number(s) : 0 648 84L/85L - 0 677 886L

0 770 57L - 6 000 91L

5 742 87/93 - 5 743 22 - 5 748 36

7 418 03L/33L/63L

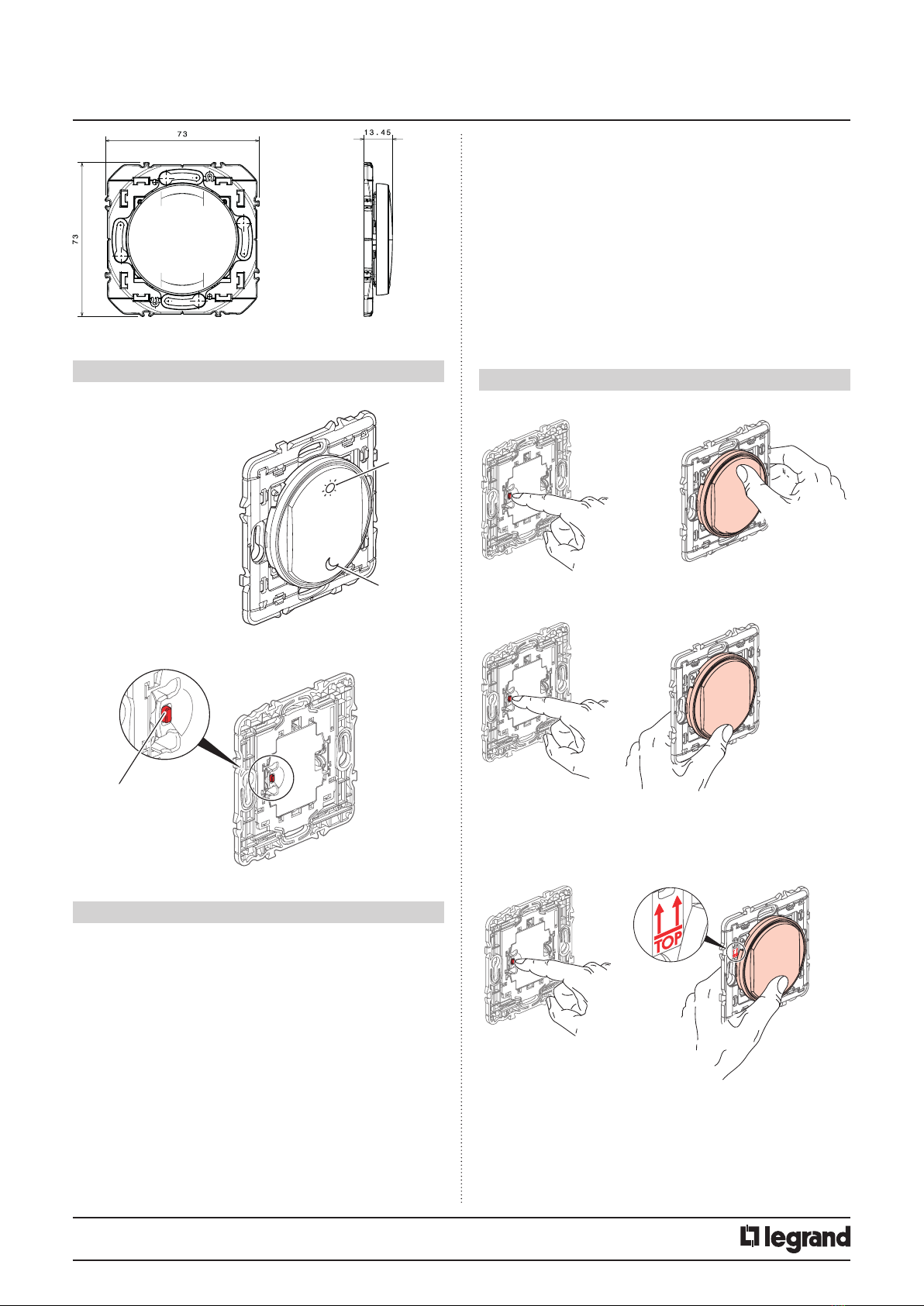

DOOXIE

4. OPERATION

onguration button

Sleep

Wake up

5. TECHNICAL CHARECTERISTICS

5.1 Mechanical characteristics

Impact protection : IK 02

Protection again solid/liquid bodies : IP 20 without plate

IP 40 assembled product

5.2 Caractéristiques matières

Rocker :

white : ABS

Color : ABS + paint

Mechanism box with support : Charged PC 10 % fiberglass

Halogen free

UV resistant

Self-extinguishing : 650° C / 30 s

5.3 Electrical characteristics

Self powered

Radio technology zigbee frequence 2,4 GHz to 2,4835 GHz

RADIO Performance : Minimum range 150 m in point-to-point link and

free field

Power level : < 20 mW

Zigbee Canal by default : 11

Technology: Zigbee PRO Certified, Green Power feature (bidirectional

communication : not supported).

5.4 Climatic characteristics

Use temperature : + 5° C to + 45° C

Storage temperature : 0° C to + 45° C

6. PROGRAMMATION

6.1 ASSOCIATION

While holding the «setup» button on the wireless, batteryless control, briefly

press the «Sleep» or «Wake Up» button on the wireless batteryless control.

6.2 CHANNEL CHANGE

While holding the «setup» button on the wireless, batteryless control, press the

lower button on the wireless batteryless control for 5 seconds.

Details and order of channel changes : (FACTORY : 11) 15, 20, 25, 12, 13, 14, 16,

17, 18, 19, 21, 22, 23, 24, 26, 11, 15, 20, ...

3/3

SOMMAIRE

Wireless and batteryless Wake Up/Sleep control

Fiche technique : S000113317EN-00 Mise à jour le : Créée le : 07/10/2020

Catalogue number(s) : 0 648 84L/85L - 0 677 886L

0 770 57L - 6 000 91L

5 742 87/93 - 5 743 22 - 5 748 36

7 418 03L/33L/63L

6.3 BACK IN FACTORY MODE (DISASSOCIATION + BACK ON

CHANNEL 11)

While holding the «setup» button on the wireless, batteryless control,

press the upper button for 5 seconds.

Check that your control is correctly reset by making an «Wake Up» com-

mand, then «Sleep».

Additional Zigbee documentation is available at «developer.legrand.

com».

7. CARE

Clean the surface with a cloth.

Do not use acetone, tar-removing cleaning agents or trichloroethylene.

Resistant to the following products: Hexane (EN 60669-1), methylated

spirit, soapy water, diluted ammonia, bleach diluted to 10%, window-clea-

ning products, pre-impregnated wipes.

Caution : Always test before using special cleaning products, a prior

test is required

Must not be painted.

8. ACCESSORIES

0 648 71: Repositionable adhesive for wireless control

9. STANDARDS AND APPROVALS

The undersigned, LEGRAND, declares that the radio-electric equipment

type (0 648 84L/85L - 0 677 886L - 0 770 57L - 6 000 91L - 5 782 87/93 - 5

743 22 - 5 748 36 - 7 418 03L/33L/63L) complies with directive 2014/53/

EU.

The full text of the EU declaration of conformity is available on the fol-

lowing website: www.legrandoc.com

Model : ZLGP16
