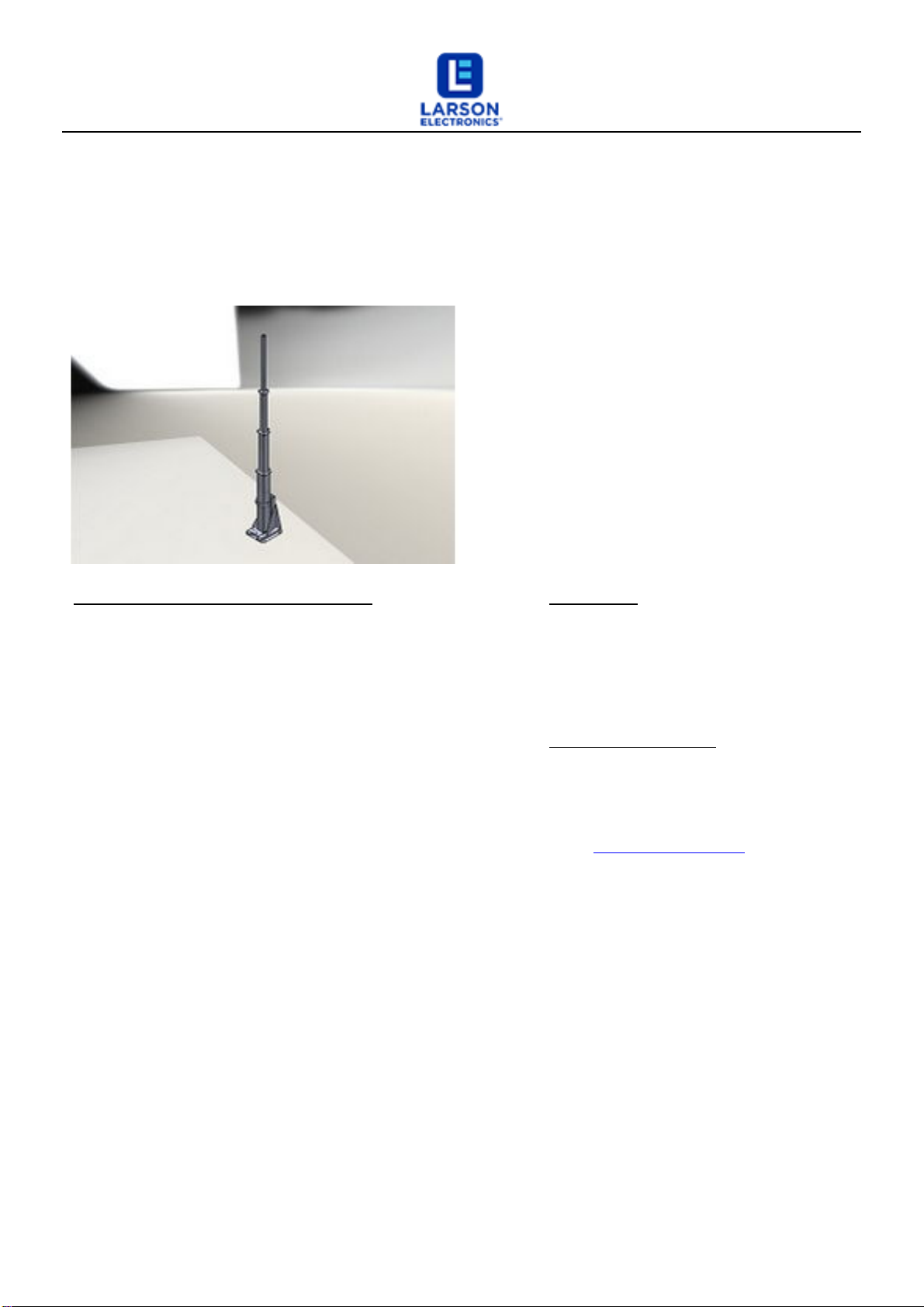

Larson Electronics LM-21-9.1-4S-EW Manual de usuario

21 Foot Telescoping Light Mast - 9' to 21' Stationary Four Stage Light Tower - 360° Rotating

Boom

LM-21-9.1-4S-EW

Please see last page for supporting documentation for this product(certificates, CAD files & drawings, IES

files, wiring diagrams, etc).

LM-21-9.1-4S-EW Four Stage Telescoping Light Tower Quick Summary

Length: 9.17` - 21.125` 9.1` to 21` Light Mast

Weight: +-1,200 lbs Steel Construction

Capacity: 1500 lbs Power Coated Finish

Materials: Steel 125 mph Wind Resistance

Finish: Powder Coated Manual or Optional Electric Operation

Operation:1,500lbs Electric Winch UL 508A

Winch Voltage:120V or 240V AC 50/60 Hz

Cable:1/4" Aircraft Cable

Mounting: 1/2" thick, 28"x28" Six Bolt Hole Bracket Special Orders- Requirements

Ancho Bolts:(6) 1" Anchor Bolts (not included) Contact us for special requirements

Shipping: Common Freight Toll Free: 1-800-369-6671

Shipping Dimensions:16.5`-L x 4`-W x 5`-H Intl: 1-214-616-6180

Shipping Weight: +-2000 lbs Fax: 1-903-498-3364

Options: Length- Mounting-Fixtures/ Call Us for Special Requirements E-mail: [email protected]

The customer ships the failed light mast to Larson Electronics at their expense. If the failure

is a manufacturer defect, we will repair and/or replace the unit.

This unit is Made In USA - Manufactured in Texas

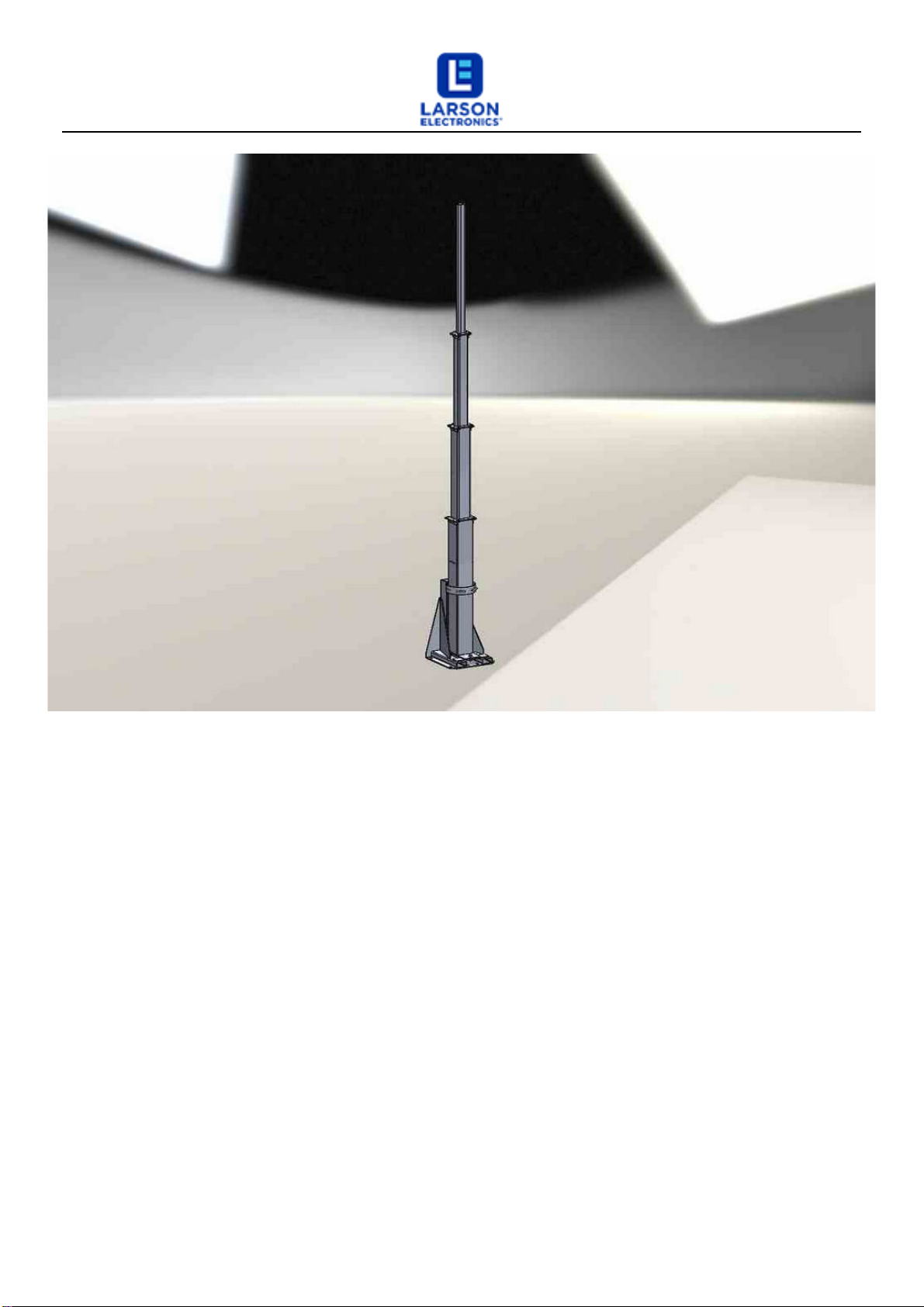

The Larson Electronics LM-21-9.1-4S-EW fixed mount 4-stage light mast provides a safe

and effective way for operators to quickly deploy lights, security cameras and other

equipment to elevations up to twenty-one feet. This stationary light tower features a

rotating boom that allows for 360° of rotation and a removable mast head for storing

mounted equipment when not in use.

*PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR

LIGHT TOWERS*

This telescoping three stage steel light mast from Larson Electronics’ is designed

to allow operators to quickly and safely deploy lighting, cameras, and other

electrical equipment in locations where this equipment must be elevated to

heights up to 21` for effective coverage. This light boom can be extended to 21`

for maximum area coverage and collapsed to 9.1` for applications where a

footprint smaller is required. The tower is constructed of square steel tubing with a

lower section 6.18` in length and 10" by 10" by 3/8" thick, second section 6.27`

in length and 8" by 8" by 3/8" thick, third section 6.45` in length and 6" by 6" by

3/8" thick, and an upper section 8.45` in length and 4" by 4" by 1/2" thick. Each

section has 2` of overlap. The mast is extended to its full height via using an

Larson Electronics LLC

9419 E US HWY 175, Kemp, TX 75143

Phone: 800.369.6671

www.LarsonElectronics.com

Email: [email protected]

Fax: 903.498.3364

included 1,500 lbs rated electric winch with 1/4" cable.

Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge

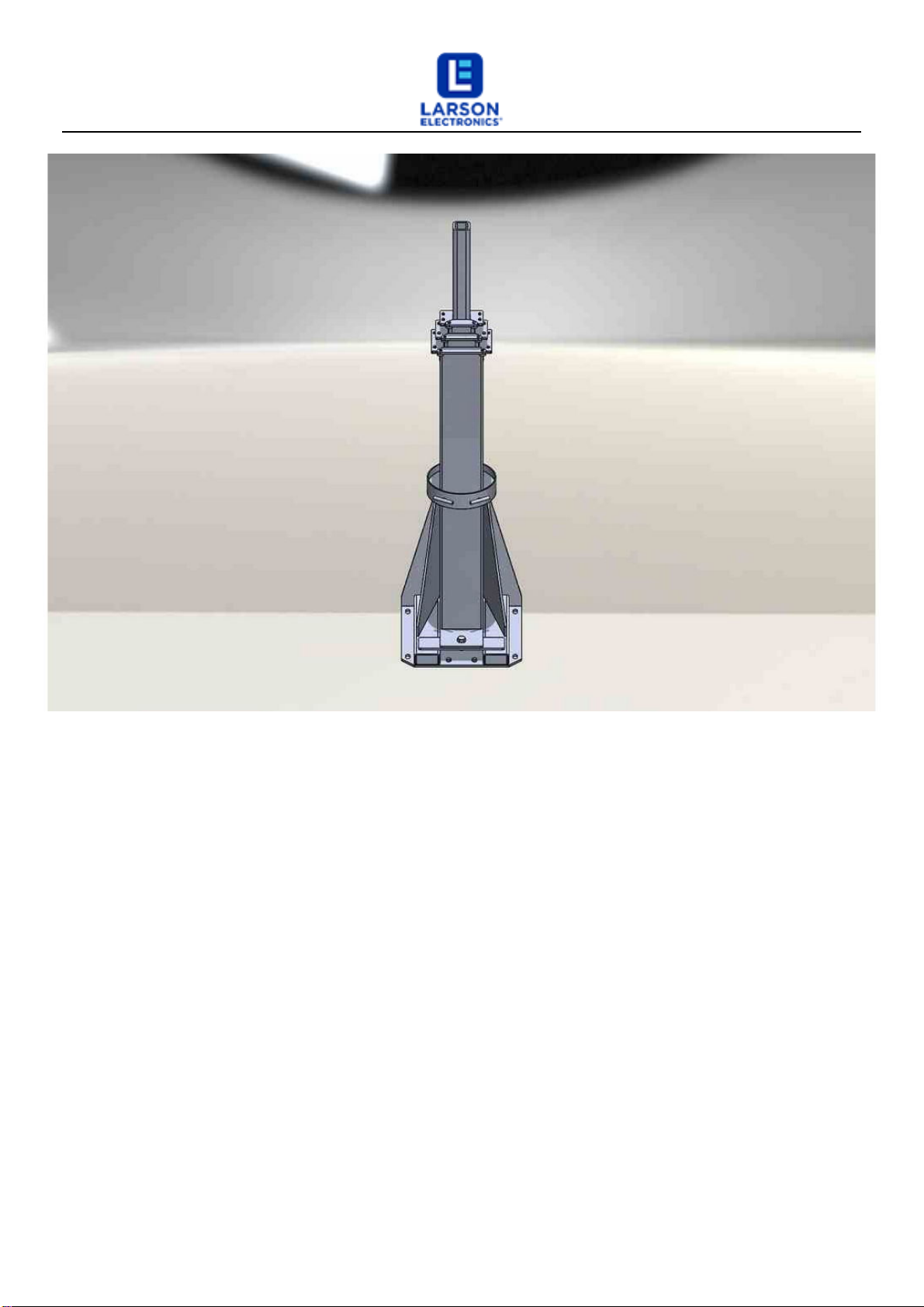

The LM series of towers are powder coated with glossy blue finish for corrosion

resistances and aesthetics. These light masts are typically mounted to trailers or

other stable surfaces via a 28" by 28", 1/2" thick mounting base-plate which has

been drilled to accept six 1-1/4" anchor bolts. Two 3" by 6" by 1/4" thick skid

pockets at the base of the mast aid in transportation and installation of the mast.

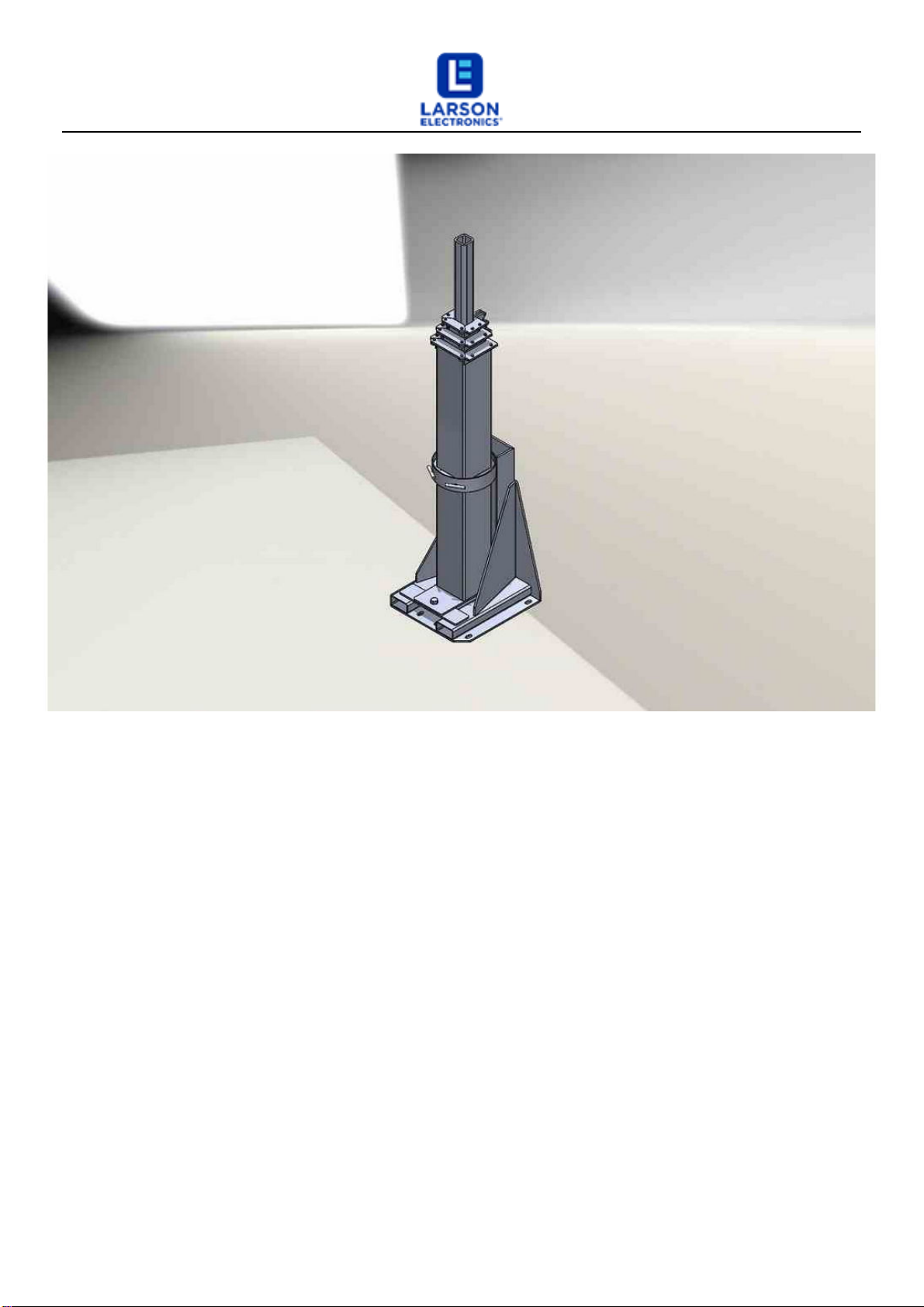

When fully collapsed, the top stage has 24" extending from the second stage,

allowing operators to mount larger equipment without having to dismount when

collapsed.

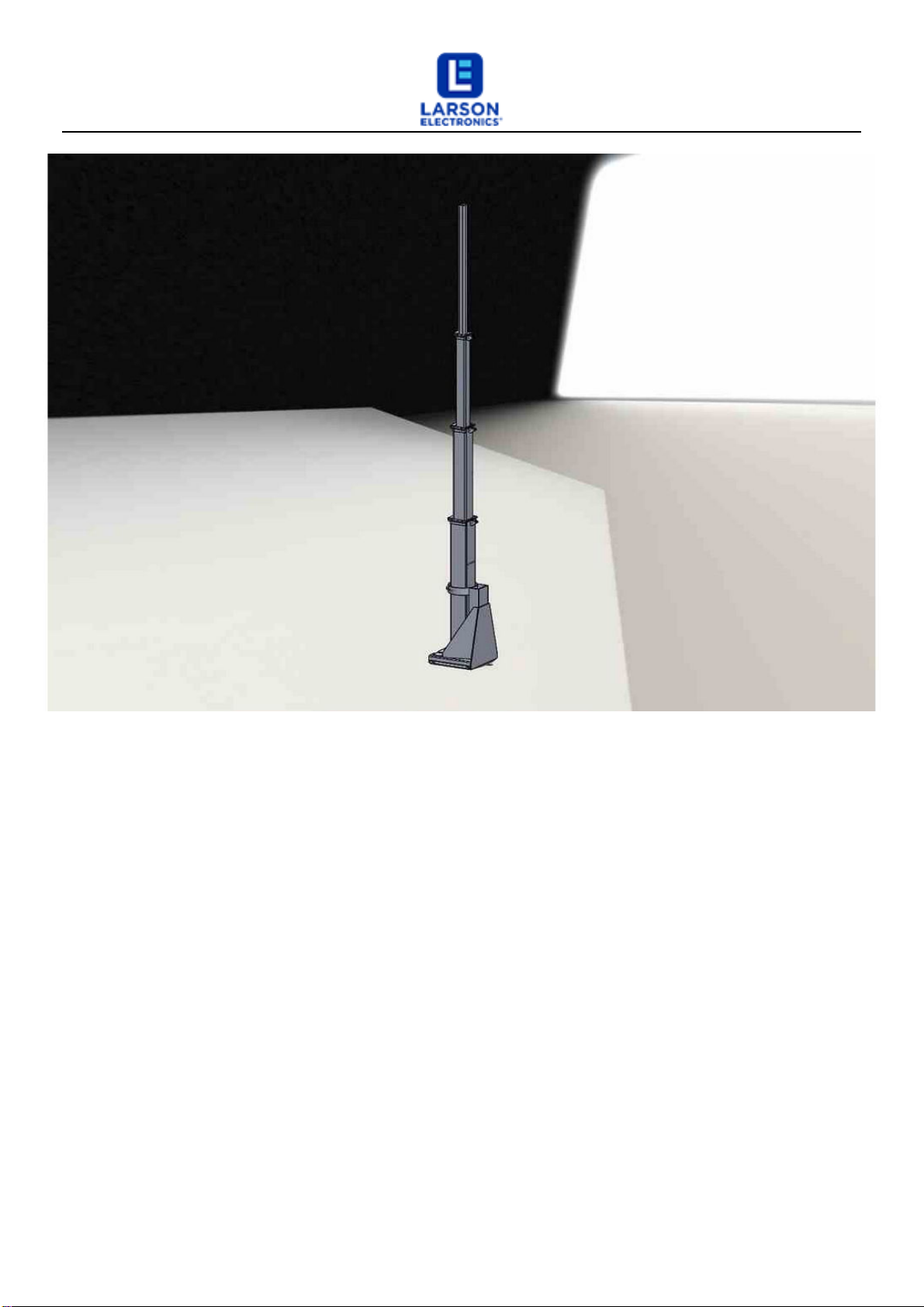

The LM family of telescoping towers feature a proprietary mast guidance system,

which provide increased stability during high winds. When lowered to 9`, the mast

can withstand winds up to 125 mph. When elevated to its full upright position, the

mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate

the mast with easy in either direction. The mast can be positioned in any direction

and locked back in place by re-tightening the T-handle. The mast itself spins freely

with easy, and can typically be rotated with a single hand.

The electric winch on this mast is offered in 120V or 240V AC 50/60 HZ. Additional

voltage options are available at an additional charge. Larson Electronics can offer

single phase and three phase AC winches, or low voltage DC winches.

This light tower weighs approximately 1,200 lbs, can easily support and lift 1,500

lbs. The entire tower assembly is shipped via common freight carrier and when

shipped measures approximately 16.5 feet long, 4 feet wide, 5 feet tall and

weighs approximately 2000 lbs. Larson Electronics can custom tailor these units to

the customer’s requirements with longer sections and larger mounting plates. For

example, the LM-30-3S is another model that reaches to a length of 30 feet, with

a 14 foot lower section, 12 foot middle section, and a 8 foot upper section and a 4

foot wide upper mounting bracket. We also offer a choice of either the manual

1,000 lbs hand winches included standard or optional electric winches.

Suggested Applications: Temporary lighting, construction sites, and security

camera deployment. We can equip this mast with 1000W or 1500W Metal Halide

lights or a wide variety of high powered LED lights with comparable power,

including the LED10WSA-160, LEDLB-200X2E, LEDLB-160X2E or LEDLB-80x2E.

Larson Electronics LLC

9419 E US HWY 175, Kemp, TX 75143

Phone: 800.369.6671

www.LarsonElectronics.com

Email: [email protected]

Fax: 903.498.3364

Frequently Asked Questions (FAQ)

Larson Electronics LLC

9419 E US HWY 175, Kemp, TX 75143

Phone: 800.369.6671

www.LarsonElectronics.com

Email: [email protected]

Fax: 903.498.3364

Larson Electronics LLC

9419 E US HWY 175, Kemp, TX 75143

Phone: 800.369.6671

www.LarsonElectronics.com

Email: [email protected]

Fax: 903.498.3364

Larson Electronics LLC

9419 E US HWY 175, Kemp, TX 75143

Phone: 800.369.6671

www.LarsonElectronics.com

Email: [email protected]

Fax: 903.498.3364

Larson Electronics LLC

9419 E US HWY 175, Kemp, TX 75143

Phone: 800.369.6671

www.LarsonElectronics.com

Email: [email protected]

Fax: 903.498.3364

Larson Electronics LLC

9419 E US HWY 175, Kemp, TX 75143

Phone: 800.369.6671

www.LarsonElectronics.com

Email: [email protected]

Fax: 903.498.3364

Options:

LM-21-9.1-4S-EW-Winch Voltage

Example: LM-21-9.1-4S-EW-120V

Winch Voltage

120V -120V

240V -240V

Larson Electronics LLC

9419 E US HWY 175, Kemp, TX 75143

Phone: 800.369.6671

www.LarsonElectronics.com

Email: [email protected]

Fax: 903.498.3364

Links (Click on the below items to view):

- Dimensional Drawing 2D

- Operations Manual

- STEP File (3D CAD Model)

- HigResPic1

- HigResPic2

- HigResPic3

- HigResPic4

- HigResPic5

- HigResPic6

- HigResPic7

- HigResPic8

- HigResPic9

- HigResPic10

- ISO 9001 Certification

- Business Certificate

Larson Electronics LLC

9419 E US HWY 175, Kemp, TX 75143

Phone: 800.369.6671

www.LarsonElectronics.com

Email: [email protected]

Fax: 903.498.3364
