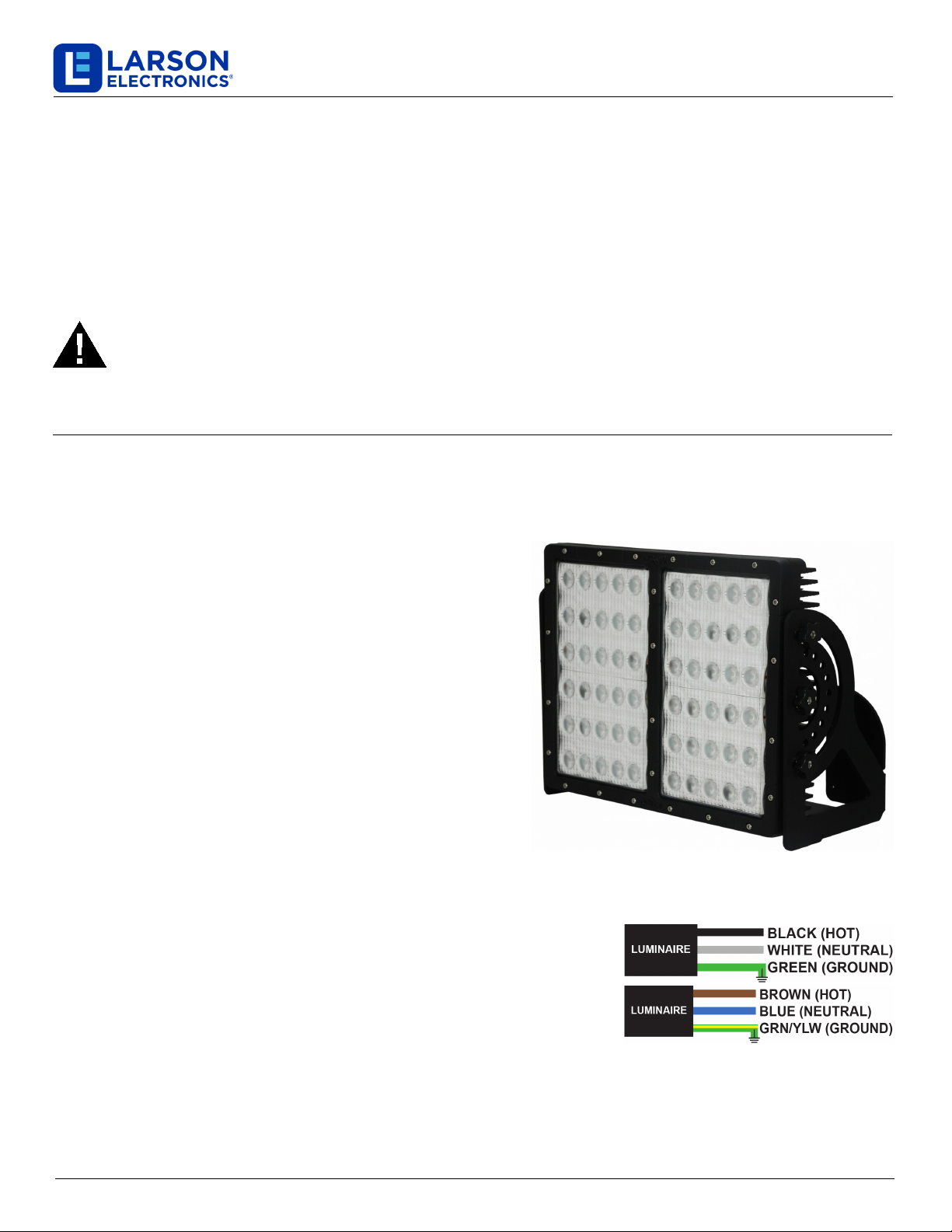

Larson Electronics LEDP5W-60XC-1227 Manual de usuario

LEDP5W-60XC-1227

High Intensity Colored LED Light

300 Watts - 60 LEDs - 29,580 Lumens - 120-277V AC

Instruction Manual

IMPORTANT

READ CAREFULLY BEFORE INSTALLING THIS FIXTURE. SAVE THESE INSTRUCTIONS FOR FUTURE

REFERENCE. THE LEDP5W-60XC-1227 MUST BE WIRED IN ACCORDANCE WITH NATIONAL ELECTRICAL CODE

AND ALL APPLICABLE LOCAL CODES. PROPER GROUNDING IS REQUIRED FOR SAFETY.

WE STRONGLY ENCOURAGE ONLY A LICENSED ELECTRICIAN INSTALL, OPERATE AND MAINTAIN THIS

PRODUCT. IF YOU ARE NOT QUALIFIED OR UNFAMILIAR WITH ANY ASPECT OF THIS INSTRUCTION SHEET,

CONSULT AN ELECTRICIAN. THERE ARE NO SERVICEABLE PARTS INSIDE.

WARNING: MAKE SURE POWER IS TURNED OFF BEFORE STARTING THE

INSTALLATION OR PERFORMING ANY MAINTENANCE.

RISK OF FIRE/ELECTRIC SHOCK –DISCONNECT POWER AT BREAKER BEFORE INSTALLING OR SERVICING.

RISK OF PERSONAL INJURY –FIXTURE MAY BECOME UNSTABLE OR DAMAGED IF NOT INSTALLED PROPERLY.

RISK OF BURN –ALLOW FIXTURE TO COOL BEFORE SERVICING.

The LEDP5W-60XC-1227 Colored LED Light offers high output from a compact form factor and is ideal for use in mining

applications as well as heavy equipment, hunting, boating, vehicle, military, law enforcement and industrial manufacturing

uses. A 29,580 lumen output, 2.5 amp draw, 50,000 hour service life and 24 volt compatibility provides mine operators

with a rugged and powerful LED alternative to 1000 watt metal halide lamps that uses little power and can withstand

rugged use and abusive conditions.

Mounting

The LEDP5W-60XC-1227 is equipped with a trunnion style mount

that allows the light to be mounted in any flat location that is

capable of supporting the load. Mark the location to be mounted,

using the mount itself as your template. Pre-drill the mount holes,

and secure to the location using bolts, washers, and nuts. Mounting

hardware is not included, but can be ordered from Larson

Electronics if needed. Mounting bracket is slotted to allow for some

rotational and front to back movement, if needed. Once mounted,

the light head angle can be adjusted vertically by loosening the

thumbscrews on the sides of the light, moving to desired angle, and

tightening the thumbscrews again to hold in place. To achieve

maximum vertical adjustment, the top or bottom set of thumbscrews

may be removed to allow full rotation.

Larson Electronics, LLC Phone: (877) 348-9680 Fax: (903) 498-3364 www.larsonelectronics.com 1of 2

Wiring

Warning: Check product label for correct input voltage!

Cord termination is chosen when ordering, and unit will come fitted with selected

cord cap, or flying leads.

We strongly encourage a licensed electrician install this product, in all

locations, especially in outdoor areas where weatherproofing may be required.

Attach supply line wires to the appropriate light fixture wires as shown in the

diagram 

Secure each pair of wires according to the diagram. Utilize a junction box or similar

device and take precautionary steps for weatherproofing all connections if installed

in a location where water may come in contact with the unit. Ensure the unit is

properly grounded and that wiring is done according to all local and national

electrical/building codes.

If a cord cap was chosen instead, mate cord cap with compatible outlet outputting

the correct voltage for the fixture.

LEDP5W-60XC-1227

Larson Electronics, LLC Phone: (877) 348-9680 Fax: (903) 498-3364 www.larsonelectronics.com 2of 2

MAINTENANCE

There are no serviceable parts inside the fixture. However, it is good practice to routinely clean and check the

fixture for proper function.

•Disconnect power running to the lamp and be sure the fixture is cool to the touch.

•Use a non-abrasive glass cleaning solution to clean the lens.

Note: It is not necessary to open the fixture and clean or touch the LED’s.

USE AND CARE

Unauthorized modification may impair the function and/or safety of this device and could affect the life of the equipment.

Always check for damaged or worn out parts before using the device. Store it in a secure place out of the reach of

children when not in use.Inspect for good working condition prior to storage and before re-use.

REPLACEMENT PARTS

The LEDP5W-60XC-1227 is designed to provide years of reliable performance. Should the need for replacement parts

arise, please contact Larson Electronics.

THESE INSTRUCTIONS MAY NOT COVER ALL DETAILS OR VARIATIONS OF THIS PRODUCT FOR YOUR EQUIPMENT OR INSTALLATION REQUIREMENTS.

SHOULD FURTHER INFORMATION NOT COVERED BY THESE INSTRUCTIONS BE REQUIRED, PLEASE CONTACT LARSON ELECTRONICS BY EMAIL AT

SAL[email protected] OR BY PHONE AT 1-877-348-9680 FOR FURTHER ASSISTANCE.

PLEASE VISIT LARSONELECTRONICS.COM FOR WARRANTY AND RETURN INFORMATION.
