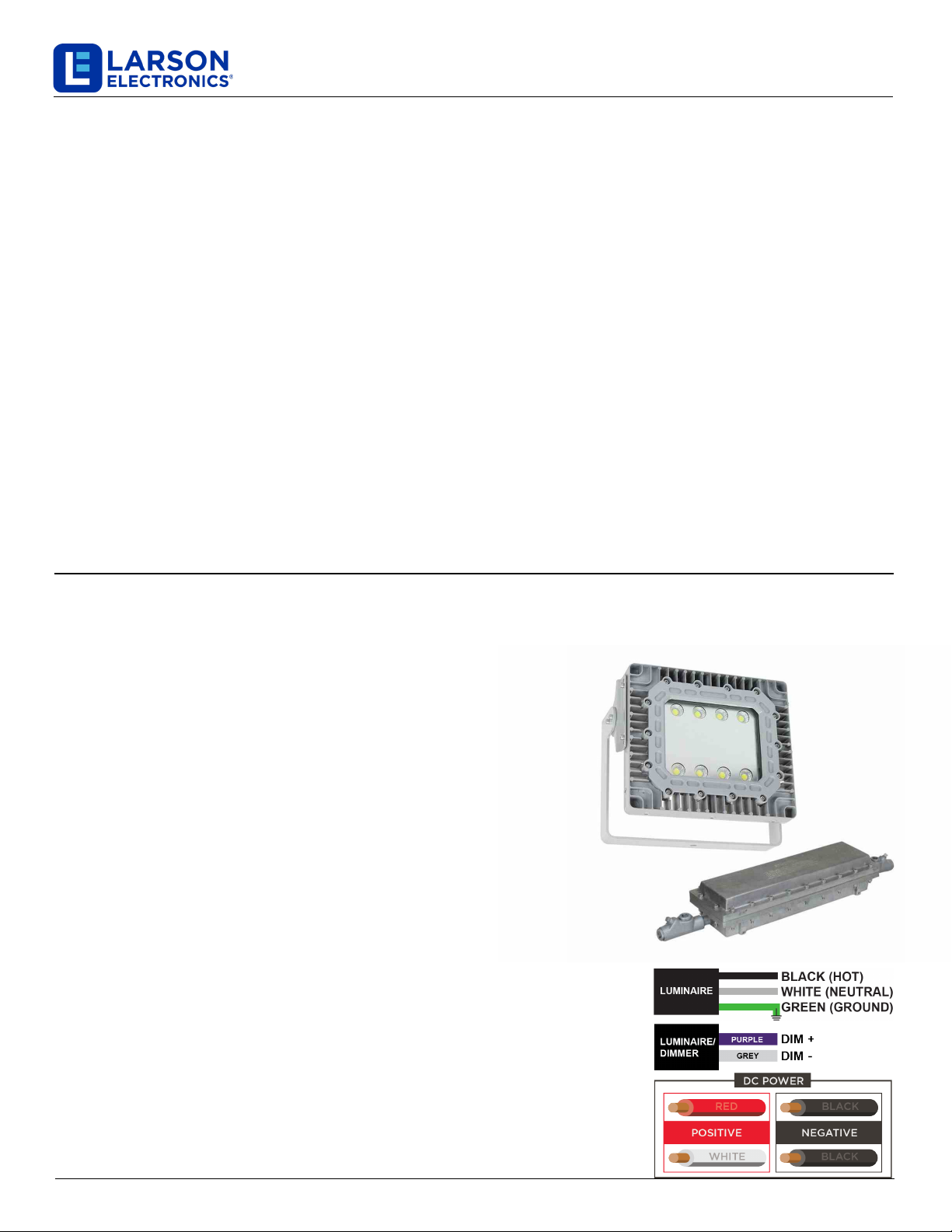

Larson Electronics EPL-EMG-LED-100W-RT Manual de usuario

EPL-EMG-LED-100W-RT

100W Explosion Proof Emergency LED Flood Light

Surface Mount - 14,000 Lumens - C1D1

Instruction Manual

Thank you for your purchase of the Larson Electronics EPL-EMG-LED-100W-RT explosion proof emergency LED flood

light.

WARNING

TO AVOID THE RISK OF FIRE, EXPLOSION OR ELECTRIC SHOCK, THIS PRODUCT SHOULD BE INSTALLED,

INSPECTED AND MAINTAINED BY A QUALIFIED ELECTRICIAN ONLY, IN ACCORDANCE WITH ALL APPLICABLE

ELECTRICAL CODES.

TO AVOID ELECTRIC SHOCK:

•BE CERTAIN ELECTRICAL POWER IS OFF BEFORE AND DURING INSTALLATION AND MAINTENANCE.

•PRODUCT MUST BE CONNECTEDTOA WIRING SYSTEM WITHAN EQUIPMENT-GROUNDING

CONDUCTOR.

TO AVOID EXPLOSION:

•MAKE SURE THE SUPPLY VOLTAGE IS WITHIN THE VOLTAGE RATING.

•ENSURE THE MARKED T RATING IS LESS THAN THE IGNITION TEMPERATURE OF THE HAZARDOUS

ATMOSPHERE.

•DO NOT OPERATE IN AMBIENT TEMPERATURES ABOVE THOSE INDICATED ON THE PRODUCT

NAMEPLATE.

•DO NOT OPERATE IF THE LENS, CORD, SEALS, HOUSING, RECEPTACLES, ETC. IS CRACKED OR

DAMAGED. IF SO, DISCONTINUE USE AND CONTACT MANUFACTURER FOR REPLACEMENT PARTS.

•ALL FASTENERS SHOULD BE PROPERLY SEATED.

The Larson Electronics EPL-EMG-LED-100W-RT Explosion Proof Emergency LED Flood Light Fixture provides operators

with a powerful and energy efficient alternative to traditional hazardous location luminaries. Cree LED technology and

compact design makes this lamp an excellent replacement upgrade option for bulky and high maintenance cost older

fixtures. This unit features a remote mount battery backup for emergency operation.

Mounting

The Larson Electronics EPL-EMG-LED-100W-RT is designed for surface

mounting applications. The light fixture and emergency ballast are equipped

with U-brackets with a pre-drilled hole in the bottom for mounting to any flat,

sturdy surface capable of supporting the load. Secure the light and ballast in

the desired location with appropriate hardware. Mounting hardware is not

included, but is available from Larson Electronics if needed. Be sure ballast is

mounted near enough to supply power wires, and near enough to light to

complete wiring connections. Set desired vertical angle of the light fixture by

removing the rear Allen head screws on either side of the U-bracket attached

to light, tilt the light to desired angle, and replace screws to hold in place.

Power

Warning: Check product label for correct input voltage!

We strongly encourage a licensed electrician install this product, in all

locations, especially in outdoor areas where weatherproofing may be required.

Attach supply line wires to the appropriate light fixture wires as shown in

the applicable diagram 

Secure each pair of wires according to the diagram. Utilize a junction box or similar

device and take precautionary steps for weatherproofing all connections if installed in

a location where water may come in contact with the unit. Ensure the unit is properly

grounded and that wiring is done according to all local and national electrical/building

codes. If you are unfamiliar with these systems, or if you feel uncomfortable completing

this installation, stop and contact a licensed and qualified electrician to complete the

installation.

Larson Electronics, LLC Phone: (877) 348-9680 Fax: (903) 498-3364 www.larsonelectronics.com 1of 2

EPL-EMG-LED-100W-RT

Larson Electronics, LLC Phone: (877) 348-9680 Fax: (903) 498-3364 www.larsonelectronics.com 2of 2

Emergency Operation

This emergency LED light works, mounts, and is wired like our EPL-LED-100W-RT LED light fixtures. The main difference

is that we add a remote mounted battery backup unit that adds emergency light functionality to the fixture. This emergency

LED light will run at the standard UL suggested 90 minutes after power is lost at 2,625 lumens. The light recharges the

battery once electrical power is restored. Standard configuration includes a single emergency battery backup that is

automatically recharged and kept in a ready state.

MAINTENANCE

There are no serviceable parts inside the fixture. However, itis good practice to routinely clean and check the

fixture for proper function.

•Disconnectpower running to the lamp and be sure the fixture iscool to the touch.

•Use a non-abrasive glass cleaning solution to clean the lens.

Note: It is notnecessary toopen the fixture and clean or touch the LED’s.

USE AND CARE

Unauthorized modification may impair the function and/or safety of this device and could affectthe life of the equipment.

Always check for damaged or worn out parts before using the device. Store it in a secure place out of the reach of children

when not in use.Inspect for good working condition prior to storage and before re-use.

REPLACEMENT PARTS

The EPL-EMG-LED-100W-RT is designed to provide years of reliable performance. Should the need for replacement parts

arise, please contact Larson Electronics.

THESE INSTRUCTIONS MAY NOT COVER ALL DETAILS OR VARIATIONS OF THIS PRODUCT FOR YOUR EQUIPMENT OR INSTALLATION REQUIREMENTS.

SHOULD FURTHER INFORMATION NOT COVERED BY THESE INSTRUCTIONS BE REQUIRED, PLEASE CONTACT LARSON ELECTRONICS BY EMAIL AT

SAL[email protected] OR BY PHONE AT 1-877-348-9680 FOR FURTHER ASSISTANCE.

PLEASE VISIT LARSONELECTRONICS.COM FOR WARRANTY AND RETURN INFORMATION.
