Larson Electronics EPL-48-4L-LED-D-V2-100C Manual de usuario

EPL-48-4L-LED-D-V2-100C

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

1of 5

112W Explosion Proof LED Light for Paint Spray Booth

C1&2D1 - 4' 4 Lamp - T6 Temp - 0-10V Dimming - 100' 12/5 SOOW Cord

Instruction Manual

Thank you for your purchase of the Larson Electronics EPL-48-4L-LED-D-V2-100C.

WARNING:

READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.

CRITICAL SAFETY INSTRUCTIONS:

•INSTALLATION SHOULD ONLY BECONDUCTED BY A QUALIFIED ELECTRICIAN IN ACCORDANCE WITH NEC AND ANY

RELEVANT LOCAL BUILDING CODES.

•RISK OFFIRE OR ELECTRIC SHOCK. FIXTURE INSTALLATION REQUIRES KNOWLEDGE OF FIXTURE'S ELECTRICAL

SYSTEMS. IFNOTQUALIFIED, CONTACT A QUALIFIED ELECTRICIAN.

•BE CERTAIN ELECTRICAL POWER IS OFF BEFORE AND DURING INSTALLATION AND MAINTENANCE.

•MAKE SURE THE SUPPLY VOLTAGE IS THE SAME AS THE FIXTURE'S RATED VOLTAGE.

•TO PREVENT WIRING DAMAGE OR ABRASION, DO NOT EXPOSE WIRING TO EDGES OF SHEET METAL OR SHARP

OBJECTS. SUITABLE FOR DAMP LOCATIONS.

IMPORTANT

READ CAREFULLY BEFORE INSTALLING THIS FIXTURE. SAVE THESE INSTRUCTIONS FOR FUTURE

REFERENCE. THE EPL-48-4L-LED-D-V2-100C MUST BE WIRED IN ACCORDANCE WITH NATIONAL ELECTRICAL

CODE AND ALL APPLICABLE LOCAL CODES. PROPER GROUNDING IS REQUIRED FOR SAFETY.

WE STRONGLY ENCOURAGE ONLY A LICENSED ELECTRICIAN INSTALL, OPERATE AND MAINTAIN THIS

PRODUCT. IF YOU ARE NOT QUALIFIED OR UNFAMILIAR WITH ANY ASPECT OF THIS INSTRUCTION SHEET,

CONSULT AN ELECTRICIAN. THERE ARE NO SERVICEABLE PARTS INSIDE.

WARNING: MAKE SURE POWER IS TURNED OFF BEFORE STARTING THE

INSTALLATION OR PERFORMING ANY MAINTENANCE.

RISK OF FIRE/ELECTRIC SHOCK –DISCONNECT POWER AT BREAKER BEFORE INSTALLING OR SERVICING.

RISK OF PERSONAL INJURY –FIXTURE MAY BECOME UNSTABLE OR DAMAGED IF NOT INSTALLED PROPERLY.

RISK OF BURN –ALLOW FIXTURE TO COOL BEFORE SERVICING.

WARNING:

USER SHOULD BE TRAINED IN THE PROPER USE AND MAINTENANCE OF THIS DEVICE. THIS LINE

CORD IS INTENDED TO ALLOW OPERATORS TO EXTEND POWER TO EQUIPMENT WHEN STATIONARY OUTLETS ARE NOT

READILY AVAILABLE.

IMPROPER USE OF THIS CORD, PLUG, AND RECEPTACLE CAN LEAD TO SERIOUS INJURIES OR DEATH TO

PERSONNEL.

PERIODIC INSPECTION OF THE CORD IS NECESSARY.

THE CORD MUST BE ROUTINELY CHECKED FOR CUTS, BREAKS, OR ANY SEVERE ABRASIONS, AND IF ANY ARE FOUND,

THE CORD MUST BE REPLACED BEFORE RESUMING USE.

EPL-48-4L-LED-D-V2-100C

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

2 of 5

WARNING

TO AVOIDTHE RISKOF FIRE,EXPLOSION OR ELECTRIC SHOCK, THIS PRODUCT SHOULD BE INSTALLED,

INSPECTEDAND MAINTAINEDBY A QUALIFIED ELECTRICIANONLY, IN ACCORDANCEWITHALL

APPLICABLEELECTRICAL CODES.

TO AVOIDELECTRIC SHOCK:

•BE CERTAIN ELECTRICAL POWER IS OFF BEFORE AND DURING INSTALLATION AND MAINTENANCE.

•PRODUCT MUST BE CONNECTED TO A WIRING SYSTEM WITH AN EQUIPMENT-GROUNDING

CONDUCTOR.

TO AVOID EXPLOSION:

•MAKE SURE THE SUPPLY VOLTAGE IS WITHIN THE VOLTAGE RATING.

•ENSURE THE MARKED T RATING IS LESS THAN THE IGNITION TEMPERATURE OF THE HAZARDOUS

ATMOSPHERE.

•DO NOT OPERATE IN AMBIENT TEMPERATURES ABOVE THOSE INDICATED ON THE PRODUCT

NAMEPLATE.

•DO NOT OPERATE IF THE LENS, CORD, SEALS, HOUSING, RECEPTACLES, ETC. IS CRACKED OR

DAMAGED. IF SO, DISCONTINUE USE AND CONTACT MANUFACTURER FOR REPLACEMENT PARTS.

•ALL FASTENERS SHOULD BE PROPERLY SEATED.

The EPL-48-4L-LED-D-V2-100C from Larson Electronics is an Explosion Proof Dimmable LED Light Fixture that is NRTL

Listed for United States and Canada and rated Class I Divisions 1 & 2 and Class II Divisions 1 & 2 for areas where

flammable chemical/petrochemical vapors, gases and/or pulverized dust and fibers exist or have the potential to exist. This

explosion proof LED light has a T6 temperature rating and carries a paint spray booth light certification, making it ideal for

applications such as paint booths, oil rigs, offshore applications, petrochemical, manufacturing, chemical storage, water

treatment centers, and food processing plants. The EPL-48-4L-LED-D-V2-100C is equipped with 100' of 12/5 SOOW cord

that brings power to both the light and the dimming controls.

WIRING

The EPL-48-4L-LED-D-V2-100C is outfitted with 100' of 12/5 SOOW cord terminated in a blunt cut end. This cord includes

power to the light and the dimming controls.

Standard pigtail(flying leads) wiring

We strongly encourage a licensed electrician install this product,in all locations especially in outdoor areas

where weatherproofing may be required. Universal voltage driver permits operation at 120V - 277V AC, 50 or 60Hz.

Warning: Check product label for correct input voltage!

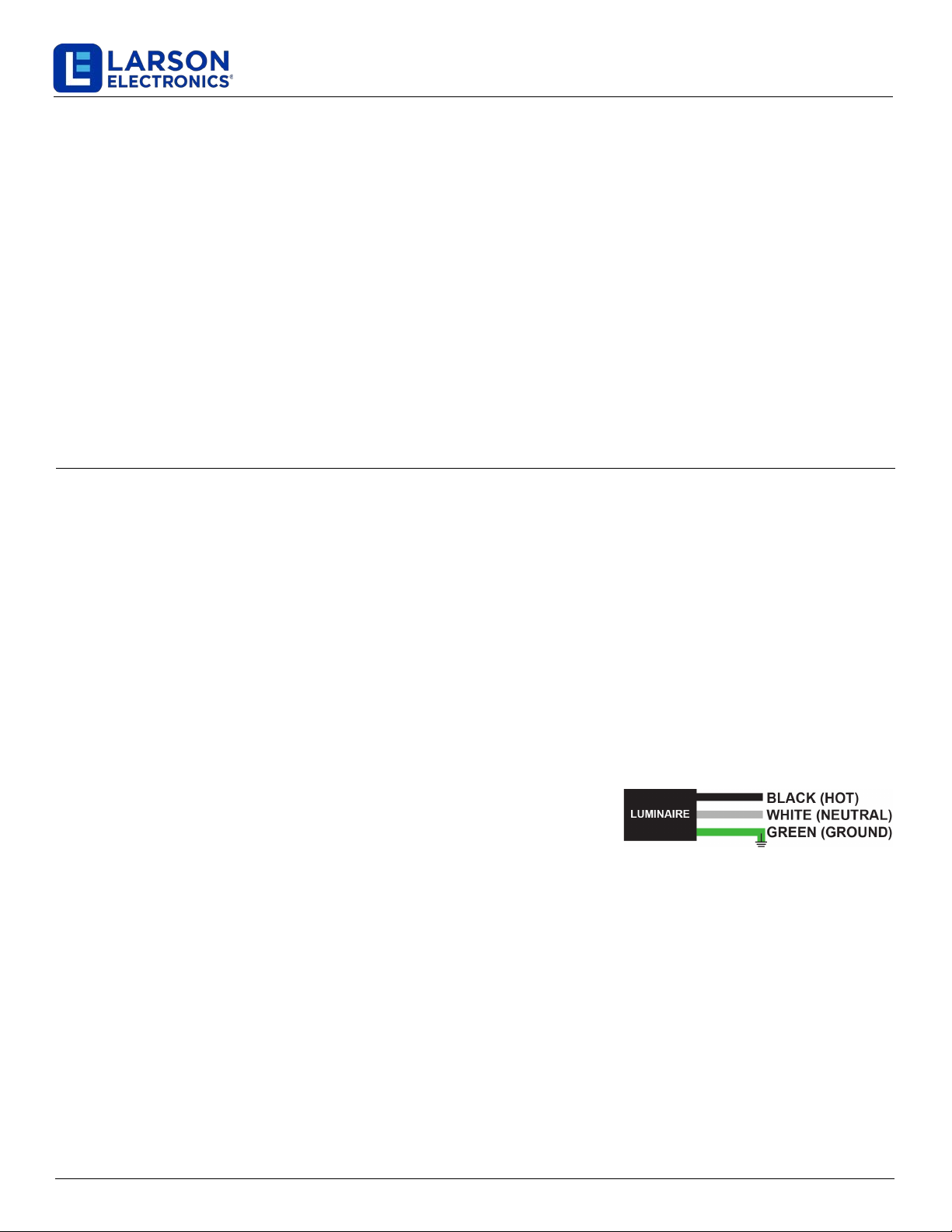

Attach supply line wires to the appropriate light fixture wires as shown

in thediagram 

Secure each pair of wires according to the diagram. Utilize a junction box or

similar device and take precautionary steps for weatherproofing all

connections if installed in a location where water may come in contact with the

unit. Ensure the unit is properly grounded and that wiring is done according to

all local and national electrical/building codes.

BRACKET MOUNTING

Standard end mounting via Unistrut. The Unistrut is attached to our standard L-bracket mounts. These L-bracket mounts

can be adjusted to create angle mounts. As illustrated in the photos above, the series of mounting holes at the top of the

bracket enable this explosion proof LED light to be attached to any wall, ceiling or floor surface. A simple through bolt can

be used to secure the light to the surface. A single junction box at one end of the light is provided for the electrical

connection.

SUSPENSION MOUNTING

Pendant mount fixtures hang from the ceiling and are suspended by rigid pipe. Each fixture features a 1/2" NPT junction box

on one end, and a 1/2” NPT bracket on the other end of the fixture. Operators bring rigid pipe down to the threaded

mounting hubs. Wiring is fed down through the rigid pipe to the junction box and tied in to the fixture’s lead wires, completing

the electrical connection. The threaded mounting bracket provides support for the opposite end of the fixture.

EPL-48-4L-LED-D-V2-100C

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

3of 5

WARNING: Do not attempt installation until you are familiar with all warnings, precautions, and procedures

outlined within this instruction sheet.

INSTALLATIONPRECAUTIONS

•Do not install fixture in any classified location where the marked operating temperature exceeds the ignition

temperature of the hazardous atmospheres.

•Consult fixture nameplate for the suitability ambient temperature shown on the nameplate.

•Refer to fixture nameplate for minimum supply wire temperature rating.

•Verify that the supply voltage agrees with fixture rating as indicated on nameplate.

•All local and national electrical/building codes must be followed when installing this lighting fixture. For

code interpretation, consult your local authority.

•Product must be used only with glass tubes intact and all cap threads fully engaged. Do not use if glass tubes

are cracked or damaged.

Caution: Only use lamp size, type and /or wattage as shown on fixture nameplate.

INSTRUCTIONS FOR INSTALLING

We strongly recommend that only a licensed electrician install this product.

WARNING: Make sure that the power is disconnected before installing. This fixture is extremely heavy and must be

mounted to a surface that can structurally support the load.

NOTE: This fixture requires a minimum of 50 inches of clearance from re-lamp end for lamp replacement. An optional

drop mounting kit that will allow for end to end row mounting is available, please consult factory.

WARNING: Do not let fixture hang on one bracket at any time. Failing to comply can result in breakage of

end casting or mounting bracket, allowing the fixture to fall, which can cause serious injury or death.

•The mounting brackets are shipped installed on the fixture.

•Install the brackets to wall or ceiling with two 3/8" bolts (not supplied) at center measurements.

•Fixture is now ready for mounting.

It is strongly suggested to use two licensed electricians to proceed with the final mounting of the fixture to avoid any

possible personnel injury or damage to the fixture as the unit weights up to 46lbs (21.0 kg) and will be slightly awkward

to hold in position and attach to brackets mounted on wall or ceiling. Depending on mounting height and scaffolding,a

hydraulic man–lift or two good quality ladders should be used.

INSTRUCTIONS FOR WIRING LAMP

•Remove the upper center screw cap on the re-lamp end (field wiring compartment).

•Install approved cable connector or conduit fitting into ½" NPT hub on field wiring compartment.

•Install a three conductor cable into the connector, allowing 3 inches of wire inside compartment for connection.

•Using approved wire connectors, splice wires as per color codes: black to black (line) white to white

(common) and green to green (ground).

•Connect 0-10V dimmer to associated wires. These are typically purple and grey. Purple is positive (+) and

grey is negative (-). Refer to dimmer instructions for connections. Please note: The dimmer switch must be

installed outside the hazardous environment or use an explosion proof dimmer switch. Do not connect high

voltage to dimmer wires!

•Replace end-cap, making sure there are no wires protruding that may be pinched causing a possible short

circuit.

WARNING: Fixture must be grounded as required per paragraph 410-21 and article 250 of the National Electric Code

and/or rule 30-500. Failure to properly ground this fixture will create an electrical shock, which can cause seriousinjury

or death.

EPL-48-4L-LED-D-V2-100C

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

4of 5

INSTRUCTIONS FOR RELAMP

Caution: Only use lamp size, type and/or wattage as shown on fixture nameplate.

1. Disconnect power to the fixture prior to servicing. FIGURE 1

2. With a wrench, remove end-cap (lamp access cover) for the lamp you wish to replace.

Rotate counter-clockwise. FIGURE 2

3. Loosen the two lamp holder bracket screws holding the old lamp.FIGURE 3 Twist and

remove the lamp holder bracket. FIGURE 4

4. Remove the old lamp and install the new lamp, seating lamp in opposite lamp holder.

FIGURE 5

5. Replace lamp holder into position on the lamp. Twist slightly to place the lamp holder

bracket under screw heads and tighten the screws. FIGURE 3

6. Reattach end-cap. Rotate clockwise. FIGURE 6

WARNING

To avoid risk of fire, explosion or electric shock, this product should be maintained by a qualified electrician only, in

accordance with all applicable codes and regulations.

To avoid electric shock: Be certain electrical power is OFF before and during maintenance.

FIGURE 1

FIGURE 2

FIGURE 3

FIGURE 4

FIGURE 5

FIGURE 6

EPL-48-4L-LED-D-V2-100C

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

5of 5

MAINTENANCE

Caution: To avoid personal injury, disconnect power to the light and allow the unit to cool down before

performing maintenance.

Warning: No user serviceable parts inside of fixture. Risk of electric shock. Removal of the lens will void

the warranty.

1. Perform visual, mechanical and electrical inspections on a regular basis. We recommend routine

checks to be made on a yearly basis. Frequency of use and environment should determine this. It is

recommended to follow an Electrical Preventive Maintenance Program as described in NFPA 70B:

Recommended practice for Electrical Equipment.

2. The lens should be cleaned periodically as needed to ensure continued photometric performance.

Clean the lens with a damp, non-abrasive, lint-free cloth. If not sufficient, use mild soap or a liquid

cleaner.

3. Inspect the cooling fins on the luminaire to ensure that they are free of any obstructions or

contamination (i.e. excessive dust build-up). Clean with a non-abrasive cloth if needed.

4. Do not operate if the lens is cracked or damaged. All fasteners should be properly seated.

USE AND CARE

Unauthorized modification may impair the function and/or safety of this device and could affect the life of the equipment.

Always check for damaged or worn out parts before using the device. Store it in a secure place out of the reach of

children when not in use.Inspect for good working condition prior to storage and before re-use.

REPLACEMENT PARTS

The EPL-48-4L-LED-D-V2-100C is designed to provide years of reliable performance. Should the need for replacement

parts arise, please contact Larson Electronics.

THESE INSTRUCTIONS MAY NOT COVER ALL DETAILS OR VARIATIONS OF THIS PRODUCT FOR YOUR EQUIPMENT OR INSTALLATION REQUIREMENTS.

SHOULD FURTHER INFORMATION NOT COVERED BY THESE INSTRUCTIONS BE REQUIRED, PLEASE CONTACT LARSON ELECTRONICS BY EMAIL AT

SALES@LARSONELECTRONICS.COM OR BY PHONE AT 1-800-369-6671 FOR FURTHER ASSISTANCE.

PLEASE VISIT LARSONELECTRONICS.COM FOR WARRANTY AND RETURN INFORMATION.

Tabla de contenidos

Otros manuales de Equipo de iluminación de Larson Electronics

Larson Electronics

Larson Electronics EMGBALL-LED3 Manual de usuario

Larson Electronics

Larson Electronics HALD-24-1X150LED-V3 Manual de usuario

Larson Electronics

Larson Electronics EPL-FL1524-LED-100 Manual de usuario

Larson Electronics

Larson Electronics WAL-HL-2000W-240V Manual de usuario

Larson Electronics

Larson Electronics EPL-50W-120x12-50 Manual de usuario

Larson Electronics

Larson Electronics RL-15-LED-CPR Manual de usuario

Larson Electronics

Larson Electronics GL-9051-F-M Manual de usuario

Larson Electronics

Larson Electronics EPL-150LED-RT-SP0010-200C Series Manual de usuario

Larson Electronics

Larson Electronics LEDLB-12E-F-M-1227 Manual de usuario

Larson Electronics

Larson Electronics EPL-LED-50W-RT-JB2 Manual de usuario

Larson Electronics

Larson Electronics IIND-DBL-36-1L-R1-120V Manual de usuario

Larson Electronics

Larson Electronics EPL-TL-2X10W-C-PA Series Manual de usuario

Larson Electronics

Larson Electronics HL-85-LED-CPR-30-TRP Manual de usuario

Larson Electronics

Larson Electronics EPL-HB-50LED-RT Manual de usuario

Larson Electronics

Larson Electronics EPL-FL1524-50-1523 Manual de usuario

Larson Electronics

Larson Electronics EPL-HB-50LED-RT-JB2-6-EPP Manual de usuario

Larson Electronics

Larson Electronics GAU-ID-36-1L-UVC-SPF Manual de usuario

Larson Electronics

Larson Electronics MMLP-1MLED-12P Manual de usuario

Larson Electronics

Larson Electronics EPL-PM-1X30LED-6XMB-10 Manual de usuario

Larson Electronics

Larson Electronics LM-25-3S-EW-THM-12VDC Manual de usuario

Larson Electronics

Larson Electronics EPLC2-PT-2X150LED-RT Manual de usuario

Larson Electronics

Larson Electronics ATX-EXPCMR-BP-HH-QXGA Manual de usuario

Larson Electronics

Larson Electronics EPL-QP-1X150RT Manual de usuario

Larson Electronics

Larson Electronics GL-29000GB Manual de usuario

Manuales populares de Equipo de iluminación de otras marcas

Brizo

Brizo 8SP-MU-4 Manual de usuario

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manual de usuario

IKEA

IKEA BJÖRKSPIREA Manual de usuario

Laserworld

Laserworld Evolution Series ES-400RGB Manual de usuario

Alien

Alien RG STAR Manual de usuario

EuroLite

EuroLite LED B-40 Manual de usuario

Qazqa

Qazqa Suplux SL 3 Black 103062 Manual de usuario

Commercial Electric

Commercial Electric 54568141 Manual de usuario

CREE LIGHTING

CREE LIGHTING 304 Series Manual de usuario

Goobay

Goobay 49867 Manual de usuario

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manual de usuario

Alkalite

Alkalite Krypton KT-81 Manual de usuario

Clas Ohlson

Clas Ohlson GU10 Manual de usuario

DTS

DTS DELTA 10 F Manual de usuario

ring

ring Solar Steplight Manual de usuario

One Stop Gardens

One Stop Gardens 57696 Instrucciones de montaje

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manual de usuario

SIREM

SIREM Swimeo A2 Manual de usuario
