LaCie 2big NAS Manual de usuario

LaCie NAS OS 4 User Manual 1

LACIE NAS OS 4 USER MANUAL

CLICK HERE TO ACCESS AN UP-TO-DATE ONLINE VERSION

of this document. You will find the most recent content as well as expandable illustrations, easier

navigation, and search capability.

LaCie 2big NAS LaCie 5big NAS Pro

LaCie NAS OS 4 User Manual 2

INTRODUCTION

Congratulations on your purchase of a LaCie professional NAS (network-attached storage device). This manual

guides you through the process of connecting the LaCie NAS device to your network and assists you in

troubleshooting any issues that might arise. If you encounter problems, check Getting Help. Note that most

problems can be resolved by resetting the product to factory conditions (see 2big NAS Reset or 5big NAS Pro

Recovery).

NOTE ON THIS USER MANUAL AND NAS OS INSTRUCTIONS

This user manual provides provides details on your LaCie NAS’s hardware. For instructions on how to use NAS

OS 4, see the Seagate NAS OS 4 user manual.

LaCie NAS OS 4 and Seagate NAS OS 4 are similar operating systems with identical operations. However, the

App Manager has limited funtionality for LaCie NAS OS devices. While Seagate NAS OS devices can download

the full range of apps, LaCie NAS OS devices only have access to Filebrowser and Sdrive.

BOX CONTENT

LaCie 2big NAS LaCie 5big NAS Pro

Product

Ethernet cable

External Power supply

Utilities CD-ROM with

software

Drive stand for upright use ––

Disk drawer key

USB Key for install and recovery ––

Cable management clip ––

Important info: Save your packaging. In the event that the drive should need to be repaired or serviced, it

must be returned in its original packaging.

Important info: Save your packaging. In the event that the drive should need to be repaired or serviced, it

must be returned in its original packaging.

LaCie NAS OS 4 User Manual 3

MINIMUM SYSTEM REQUIREMENTS

Client OS

Windows 10

■

Windows 8 (32-bit/64-bit)

■

Windows 7 (32-bit/64-bit)

■

Windows Server 2012

■

Windows Server 2008 R2

■

Windows Server 2008

■

Mac OS 10.6 and later

■

Linux 2.6 and later

■

Web browsers

Internet Explorer™ 7.0 or higher

■

Firefox™ 3.0 or higher

■

Safari™ 3.0 or higher

■

Chrome 2.0 or higher

■

Network

Computer with an Ethernet network adapter

■

Ethernet switch or router 10/100/1000 (Mb/s)

■

Important info:

Your LaCie product's performance can be affected by such external forces as network activity, hardware,

distance, and setup.

For optimal performance, use Gigabit Ethernet equipment.

LaCie NAS OS 4 User Manual 4

VIEWS OF THE PRODUCT

FRONT VIEW

LaCie 2big NAS LaCie 5big NAS Pro

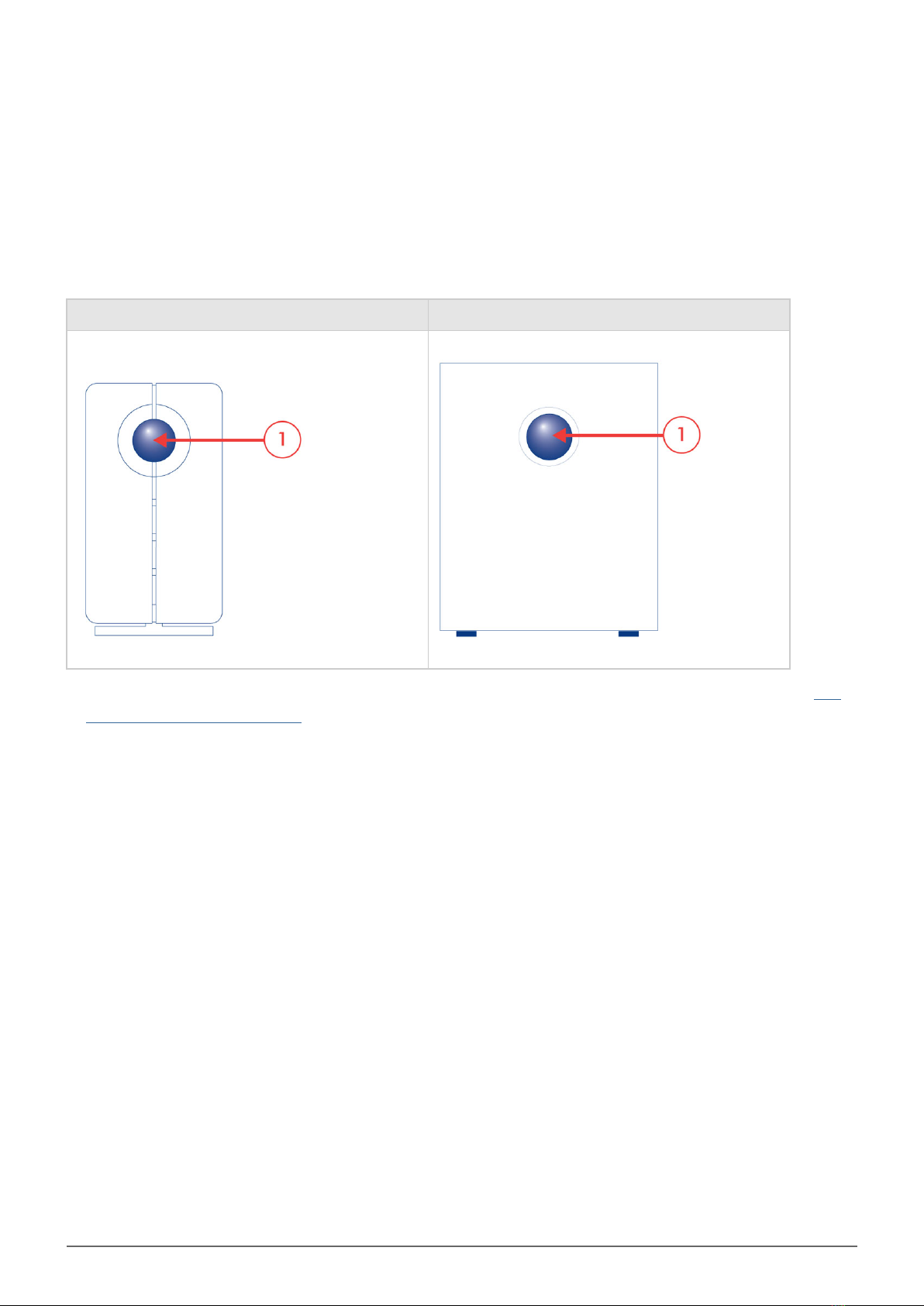

Front LED button: The LED button signals the status and health of the device. For further details, see LED1.

Behavior and Button Functions.

LaCie NAS OS 4 User Manual 5

REAR VIEW

LaCie 2big NAS

Left drive status LED (see LED Behavior and Button Functions)1.

ON/OFF2.

Gigabit Ethernet3.

USB 2.0 expansion4.

eSATA expansion5.

Right drive status LED (see LED Behavior and Button Functions)6.

Drive tray handle7.

Drive lock8.

Power connector9.

LaCie NAS OS 4 User Manual 6

LaCie 5big NAS Pro

Drive status LED (see LED Behavior and Button Functions)1.

Drive tray handle2.

Drive lock3.

USB 2.0 expansion (x2)4.

USB 3.0 expansion (x2)5.

Gigabit Ethernet (x2)6.

VGA port (for maintenance)7.

Power connector8.

Reset button (see LaCie NAS Rescue: 5big NAS Pro)9.

LaCie NAS OS 4 User Manual 7

LED BEHAVIOR AND BUTTON FUNCTIONS

GENERAL LED BEHAVIOR

The list of colors below helps you identify the general status of your NAS:

Color State

Solid blue Ready

Blinking blue Startup; shutdown; activity

Blinking red and blue RAID synchronization; software update

Blinking red Warning

Solid red Error

Front and disk LEDs

The front and rear LEDs indicate drive status and activity. This section describes the behavior of the LED

indicators. Note that even if you have turned off the front LED using Device Manager > Settings, events

triggering a red light will always cause the front LED to turn on.

LaCie NAS OS 4 User Manual 8

Front LED

Color Rear LED Color State

Blinking blue Activity LED for working disks (until

they are fully initialized)

Occurs as the device is booting

Solid blue Activity LED for working disks

Device is functioning properly and the drives are

working

Blinking blue/red

RAID synchronizing

Activity LED for working disks

Operating system update in progress

Blinking red

Solid red for non-functional disk(s)

RAID is degraded; data is intact but the array is no

longer protected should another disk fail

Activity LED for all disks Temperature alert

Fan is not spinning

The NAS is receiving power via a connected UPS

Solid red

Activity LED for working disks Temperature alert (critical level) – the product is

preparing to power off

The power supply has been cut and the UPS has run

out of reserve power; the product is preparing to shut

off

Solid red for non-functional disks

RAID has failed and data has been lost

Off for disconnected disks Disks are disconnected

LaCie NAS OS 4 User Manual 9

FRONT BUTTON

Short push

5big NAS Pro only: When the the product is operating, a short push of the on/off button will turn the 5big NAS

Pro off.

Long push

5big NAS Pro only: A long push of more than four seconds cuts the power from the 5big NAS Pro, forcing it to

shut down immediately. A long push can result in data loss and should only be used when a short push does not

work.

Factory settings/rescue

LaCie 2big NAS: The front LED button can be used in tandem with the ON/OFF switch to revert the device to its

factory settings (see Reset to Factory Conditions: 2big NAS).

LaCie 5big NAS Pro: The front LED button can be used in tandem with the reset button on the rear of the

device to launch the LaCie NAS Rescue (see LaCie NAS Rescue: 5big NAS Pro).

LaCie NAS OS 4 User Manual 10

HARD DISK HEAT MANAGEMENT

DUAL COOLING - 5BIG NAS PRO

With its dual cooling design, the LaCie 5big NAS Pro is built to protect against overheating. The 5big's solid

aluminum casing diverts and dissipates heat, keeping the drives cooler even after extended periods of activity.

Within the casing, a whisper-quiet, thermo-regulated Noctua® fan automatically adapts its speed to the internal

temperature. As a result, the fan cools the components, which is vital for long-term use.
