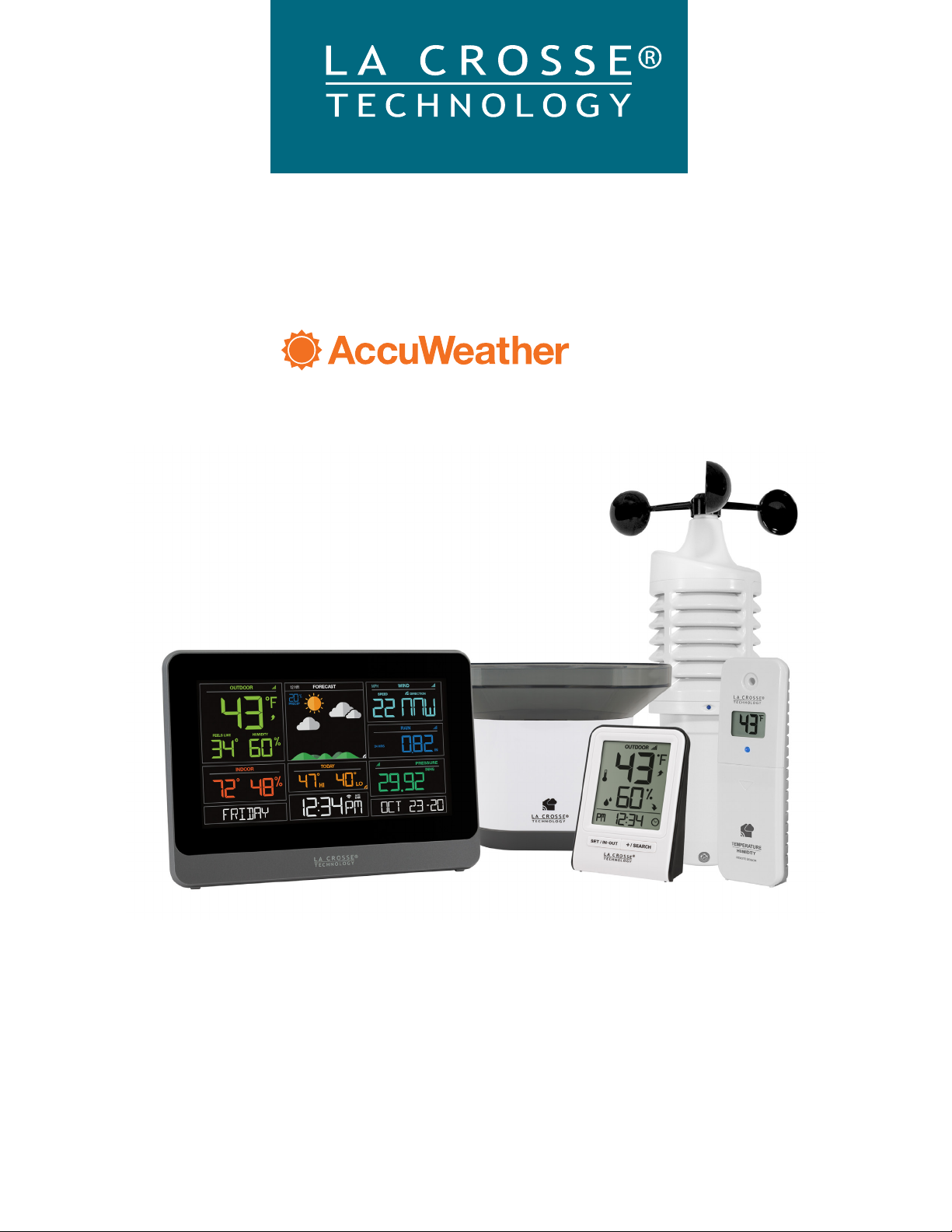

La Crosse Technology C83100v3 Manual de usuario

Page | 1Wi-Fi Professional Station

WIFI PROFESSIONAL

WEATHER STATION

WITH FORECAST

INSTRUCTION MANUAL

Welcome!

Congratulations on your new Professional Weather Station and welcome to the

La Crosse Technology family! This product was designed with you in mind by our

hometown team of weather enthusiasts based in La Crosse, Wisconsin.

Model: C83100v3

DC: 110121

Page | 2Wi-Fi Professional Station

TABLE OF CONTENTS

Wind Speed Readings & History

Rainfall Readings & History

Temperature/Humidity Readings & HI/LO

Records

Feels Like Temperature

Temperature Trend Arrows

Relative Pressure Reading

Sensor Reception Indicators

Sensor ID and Search

Delete Sensors

Low Battery Indicators

Factory Restart Station

Detailed Sensor Setup and Mounting

Bonus Station Setup

Help Us, Help You

Join the Conversation

Speciﬁcations

Care and Maintenance

Warranty and Support

FCC Statement

Canada Statement

Quick Setup

Quick Mounting Tips

Button Functions

Weather Station Icons

Connect to La Crosse View™App

Beneﬁts of Connecting to La Crosse View™

Enhanced Weather Forecasts w/La Crosse

View™

Advanced Forecast & Chance Precipitation

AccuWeather Daily Forecasts

AccuWeather Hourly Forecasts

AccuWeather HI/LO Temperatures

AccuWeather Wind Direction

Custom Data Streams

Additional Sensors can read to your app

Status Messages when Connected

Features of Your Weather Station

Adjustable Backlight

Auto Dim Backlight

Settings Menu

Extra Sensor Area

Page | 3Wi-Fi Professional Station

1. Insert 2 - C batteries into your LTV-W1 or LTV-W2 Wind Sensor.

2. Insert 2 - AA batteries into your LTV-R3 Rain Sensor.

3. Insert 2 - AA batteries into your LTV-TH2 Thermo-Hygro Sensor.

4. Insert the power cord into your V30 station. Remove the red insulation tab from the CR2032 battery

compartment found on the bottom of your station.

5. Insert batteries into your Bonus Station.

6. Download the La Crosse View™ App (App Store or Google Play)

7. Follow along with our instructional videos to connect your station to the app:

http://bit.ly/LaCrosseView_Support_Vid_01_1

http://bit.ly/LaCrosseView_Support_Vid_01_2

8. Mount your sensors in appropriate locations.

WARNING:

1. This product contains a Button Cell Battery.

2. If swallowed, it could cause severe injury or death in just 2 hours.

3. Seek medical attention immediately.

AVERTISSEMENT:

1. Cet article contient une pile bouton.

2. De graves blessures ou la mort pourraient suivre dans les deux heures

Suivant l’ingestion.

3. Demander l’aide de professionnels de la santé sur le champ.

WARNING - KEEP BATTERIES OUT OF REACH OF CHILDREN

1. Swallowing may lead to serious injury in as little as 2 hours or death, due to chemical burns and potential

perforation of the oesophagus.

2. If you suspect your child has swallowed or inserted a button battery, immediately seek urgent medical

assistance.

3. Examine devices and make sure the battery compartment is correctly secured, e.g. that the screw or

other mechanical fastener is tightened. 4. Do not use if compartment is not secure.

5. Dispose of used button batteries immediately and safely. Flat batteries can still be dangerous.

6. Tell others about the risk associated with button batteries and how to keep their children safe.

QUICK SETUP

Page | 4Wi-Fi Professional Station

THERMO-HYGRO

Keep out of direct sunlight & ensure the sensor is well-ventilated.

• We recommend mounting it on a north-facing wall under an eave or deck for best results.

WIND SPEED

Ensure the sensor is mounted vertically  an unobstructed rooftop is ideal.

• Your wind sensor should be the tallest object in the area to avoid educed wind speed values.

RAIN

Mount in an open area, preferably o the ground on a level platform.

• Clean out the bucket regularly to avoid debris; this can aect readings.

For detailed sensor setup and mounting instructions, see page 25.

Buttons located on top of Profesional Weather Station

Buttons located on the right side of Professional Weather Station

SET Hold for basic setting. Press to view Wi-Fi status.

TEMP, WIND, RAIN Press to view history.

LIGHT Press to adjust brightness. Hold to set Auto Dim.

+ or – Use + or – to adjust values in settings.

+ & – Hold both buttons to search for Wi-Fi.

SENSOR Press to view sensor ID numbers, then hold PLUS (+) to search, or hold MINUS (–) to

remove.

DAILY, HOURLY Press to see forecast. Must be connected to Wi-Fi.

RAIN & LIGHT Hold both buttons together to reset all sensor ID’s and Wi-Fi settings.

EXTRA SENSOR Press to toggle through “extra sensor” & Barometric Pressure. Hold to add Sensors.

QUICK MOUNTING TIPS

BUTTON FUNCTIONS

Page | 5Wi-Fi Professional Station

INHG

PRESSURE

Chance of

Precipitation

12 Hour

Forecast

Low Battery

Indicator

Sensor

Reception

Temperature

Trend Arrows

Forecast

Indicators

Fahreheit

Celsius

Internet

Indicator

Miles or

Kilometers

Inches of Mercury

or Hecto Pascal

Percent

Humidity

Wi-Fi

Indicator

12 HR

Auto Dim

Indicator

MPH / KMH

INHG / HPA

Inches or

Millimeters

IN / MM

Pressure

Trend Arrows

WEATHER STATION ICONS

Page | 6Wi-Fi Professional Station

MOBILE DEVICE REQUIREMENTS

iOS Requirements:

Mobile device with iOS with cellular or Wi-Fi service

Android Requirements:

Mobile device with Android OS with cellular or Wi-Fi service

GET YOUR STATION READY

Ensure your station’s Wi-Fi Indicator is ﬂashing. If it is not, press and hold the Plus (+) and Minus (–)

buttons down together until it begins ﬂashing. This tells you that your station is ready to connect.

CHECK YOUR NETWORK

Connect your mobile device (phone or tablet) to your router’s 2.4GHz Wi-Fi network. For more Wi-Fi info

visit: www.lacrossetechnology.com/router_info

DOWNLOAD

Visit the App Store or Google Play Store to download the free LaCrosse View™ app onto your mobile

device.

LAUNCH & FOLLOW

Open the LaCrosse View™ app and follow the on-screen instructions.

EXTRA SENSOR AREA ICONS:

• The Extra Sensor area of your station will default to Pressure when you ﬁrst power up.

• When you choose to add additional sensors, the Sensor Reception Indicator will show in the upper left

corner whether Press ure or Sensor reading is displayed.

• Press and release the EXTRA SENSOR button to view all additional sensors.

Low Battery

Indicator

Sensor

Reception

Inches of Mercury

or Hecto Pascal

INHG / HPA

Pressure

Trend Arrows

Auto Scroll

Pressure/Sensors

Probe

Reading

CONNECT TO LA CROSSE VIEW™APP

Page | 7Wi-Fi Professional Station

When your sensors are ready to be added, you’ll see your app’s cloud turn red. Press this Cloud Icon to

begin adding your sensors.

• Your station’s device ID can be found on

the back of the display.

• Within 15 minutes after your station

connects to the La Crosse View app, you

should receive notiﬁcations to add your

sensors. These will display in your app’s

Notiﬁcation Center.

Station Device ID

When connecting your station we highly recommend following

along with our detailed support videos, found here:

bit.ly/LaCrosseView_Support_Playlist

Page | 8Wi-Fi Professional Station

Wind Speed

Wind Direction

Rainfall Data

Indoor & Outdoor Temperature

“Feels Like” Temperature

Indoor & Outdoor Humidity

12-Hour Forecast

Barometric Pressure

Internet Time and Calendar

Advance Forecast Icons

Daily Forecast HIs & LOs

% Chance of Precipitation

Ability to Add Sensors

Data Stream Technology

Remote Monitoring

Set Alerts

View Graphs

FEATURES CONNECTEDSTANDALONE

Connecting You to Your Home Anytime, Anywhere.

BENEFITS OF CONNECTING TO LA CROSSE VIEW™

Page | 9Wi-Fi Professional Station

FORECAS T

12 HR FORE CAST

12 HR

ICE

FORE CAST

12 HR

FOG

FORE CAST

12 HR FORECAS T

12 HR FORE CAST

12 HR

FORE CAST

12 HR FORECAS T

12 HR FORE CAST

12 HR

FORE CAST

12 HR FORE CAST

12 HR

SUNNY

• Advanced Forecast Icons & Chance of Precipitation (12 Hour Forecast)

• AccuWeather Daily & Hourly Forecasts

• AccuWeather HI/LO Temperatures

• AccuWeather Wind Direction

• Custom Data Streams

CLOUDSPARTLY SUNNY

LIGHT RAIN T-STORMRAIN

LIGHT SNOW WINTRY MIXSNOW

WIND FOGICE

ENHANCED LACROSSE VIEW CONNECTED FEATURES.

ADVANCED FORECAST & CHANCE OF PRECIPITATION

Page | 10Wi-Fi Professional Station

Press the DAILY button on the side of your station to scroll through 7 days of future forecasts. You’ll see

changing forecast icons, HI/LO Temperature readings.

IMPORTANT: After viewing your Daily Forecast, the display will automatically revert back to the default 12

hour forecast after 10 seconds.

TO DAY

HI LO

FORE CA ST

12 HR

TO DAY

HI LO

FORE CA ST

12 HR

Press the HOURLY button on the side of your station to scroll through 12 hours of future forecasts. You’ll see

hourly changes in:

• Weather Icons

• Chance of Precipitation

• Temperature

• Wind Direction

IMPORTANT: After viewing your Hourly Forecast, the display will automatically revert back to the default 12

hour forecast after 10 seconds.

TO DAY

WIND

DIRECTION

FORE CA ST

12 HR

TO DAY

WIND

DIRECTION

FORE CA ST

12 HR

Note: If you press the HOURLY or DAILY button when not connected, station will say CONNECT TO WIFI.

If your station is connected, but happens to lose connection with the weather service, it will say WAIT FOR

WEATHER when your HOURLY or DAILY button is pushed.

IMPORTANT:

There may be small discrepancies between data displayed on your station and data shown through other

AccuWeather services, such as their website and/or mobile app. This is common, as there are dierences

in the timing in which forecast data is fetched by these items. Our connected weather stations will receive

forecast updates at least 4 times daily.

ACCUWEATHER DAILY FORECASTS

ACCUWEATHER HOURLY FORECAST

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Estación meteorológica de La Crosse Technology

La Crosse Technology

La Crosse Technology WS-1913U-IT Manual de usuario

La Crosse Technology

La Crosse Technology WS-9018U Manual de usuario

La Crosse Technology

La Crosse Technology Wireless 433 MHz Temperature Station... Manual de usuario

La Crosse Technology

La Crosse Technology S84193 Manual de usuario

La Crosse Technology

La Crosse Technology LTV-D1 Manual de usuario

La Crosse Technology

La Crosse Technology C79790V2-BBQ1 Guía de instalación

La Crosse Technology

La Crosse Technology 308-1416v2 Guía de instalación

La Crosse Technology

La Crosse Technology WS-9626U-IT Manual de usuario

La Crosse Technology

La Crosse Technology 308-807 Manual de usuario

La Crosse Technology

La Crosse Technology WS-7047TWC Manual de usuario

La Crosse Technology

La Crosse Technology WS-7014CH-IT Manual de usuario

La Crosse Technology

La Crosse Technology 308-1425B Manual de usuario

La Crosse Technology

La Crosse Technology WD-2513U Manual de usuario

La Crosse Technology

La Crosse Technology WS-9170U-IT Manual de usuario

La Crosse Technology

La Crosse Technology WS-2010 Manual de usuario

La Crosse Technology

La Crosse Technology 328-1414 Manual de usuario

La Crosse Technology

La Crosse Technology WS-7138U Manual de usuario

La Crosse Technology

La Crosse Technology C83349 Manual de usuario

La Crosse Technology

La Crosse Technology WS-8300U Manual de usuario

La Crosse Technology

La Crosse Technology CA85176 Manual de usuario

La Crosse Technology

La Crosse Technology 308-1425CV2 Manual de usuario

La Crosse Technology

La Crosse Technology Wireless Weather Station Manual de usuario

La Crosse Technology

La Crosse Technology T85258 Manual de usuario

La Crosse Technology

La Crosse Technology WS-9125U-IT-CA Manual de usuario

Manuales populares de Estación meteorológica de otras marcas

Auriol

Auriol AHFL 433 A1 Manual de usuario

NexSens

NexSens G2-HYDROMET Manual de usuario

Hyundai

Hyundai WS 2202 Manual de usuario

IROX

IROX HBVR761 UV-X Manual de usuario

ADE

ADE WS 1711 Manual de usuario

Auriol

Auriol z29592 Manual de usuario

Auriol

Auriol 296289 Manual de usuario

Hyundai

Hyundai WS 2266 Manual de usuario

Ventus

Ventus W177 Manual de usuario

National Geographic

National Geographic VA Colour RC Manual de usuario

Renkforce

Renkforce 1208067 Manual de usuario

Levenhuk

Levenhuk Discovery Report WA40 Manual de usuario

Instant Transmission

Instant Transmission MA 10410 Manual de usuario

Lutron Electronics

Lutron Electronics PHB-318 Manual de usuario

WAREMA

WAREMA EWFS Weather station eco Manual de usuario

TFA

TFA 30.3013.IT Manual de usuario

Alecto

Alecto WS-1200 Manual de usuario

Oregon Scientific

Oregon Scientific RMR966PA Manual de usuario
