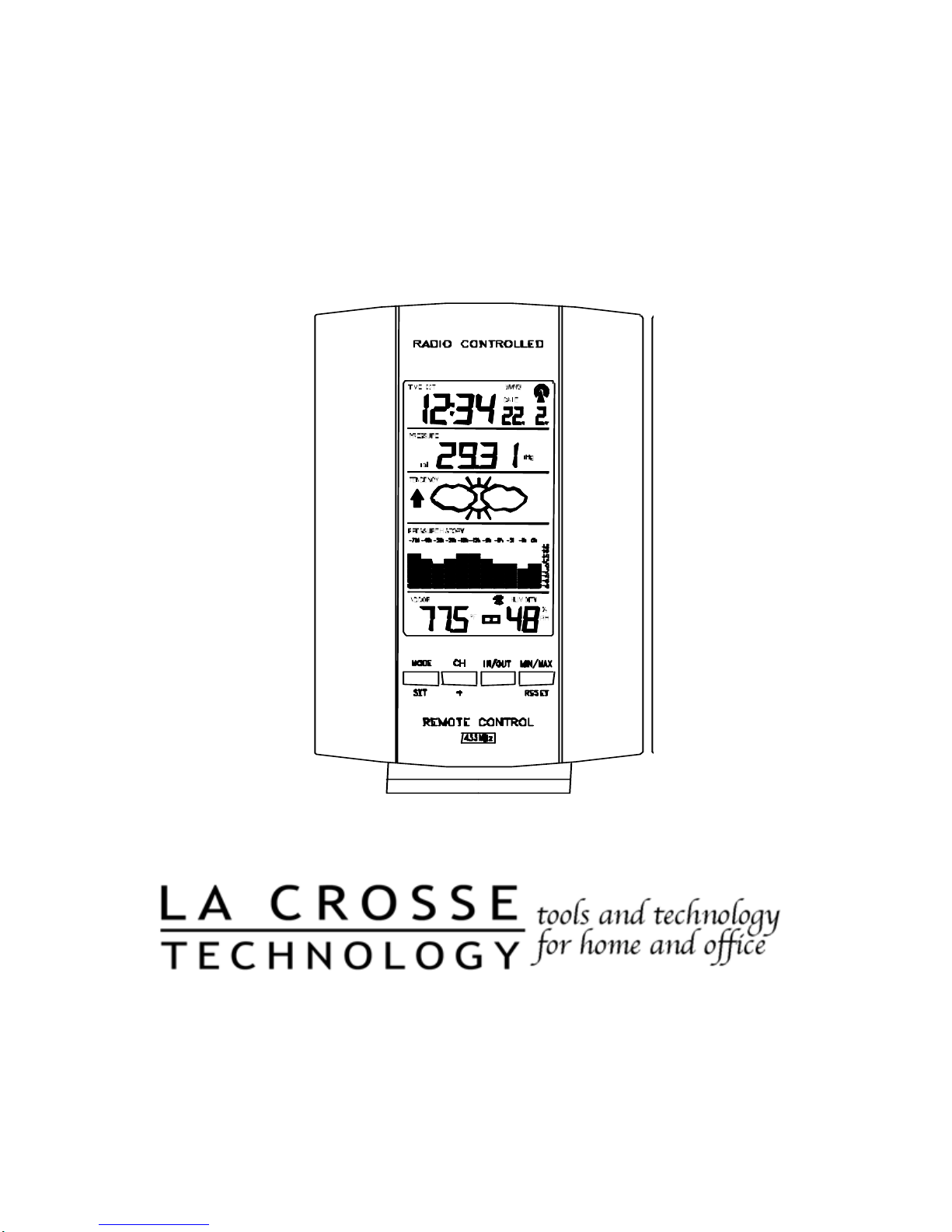

La Crosse Technology WS-7059-SU Manual de usuario

WS-7059-SU

Wireless 433 MHz

Temperature Station

Instruction Manual

TABLE OF CONTENTS

Topic Page

Inventory of Contents/Additional Equipment 3

About WWVB 4

Start Up 5

Program Mode

Time Setting Options 6-7

Programming Sequence 7

LCD Contrast 7

12 / 24 Hour Mode 8

Hour / Minute Setting 8

Time Zone Setting 9

Daylight Savings Time (DST) 9-10

Year Setting 10

Month / Date Setting 10

Degree Setting °F or °C 11

Setting the Forecast Sensitivity 11

Displaying Relative/Absolute inHg/hPa 12

Manually Setting Relative Air Pressure 13

Features

Weather Forecast 14

Weather Icons 14-15

Weather Tendency 15

Air Pressure History Bar Graph 15-16

Indoor /Outdoor Temperature/Humidity

(min/max) 16-17

Optional Remote Sensors 17

Viewing Multiple Remote Sensors 18-19

Mounting 19-20

Troubleshooting 21

Maintenance and Care 22

Specifications / Warranty Information 23-26

INVENTORY OF CONTENTS

1. Weather display unit

2. The outdoor temperature/humidity sensor (TX4U)

3. Instruction manual and warranty card

ADDITIONAL EQUIPMENT (not included)

1. Five AA 1.5V batteries.

Hint:

USE a Good Quality Alkaline Batteries and avoid Rechargeable batteries

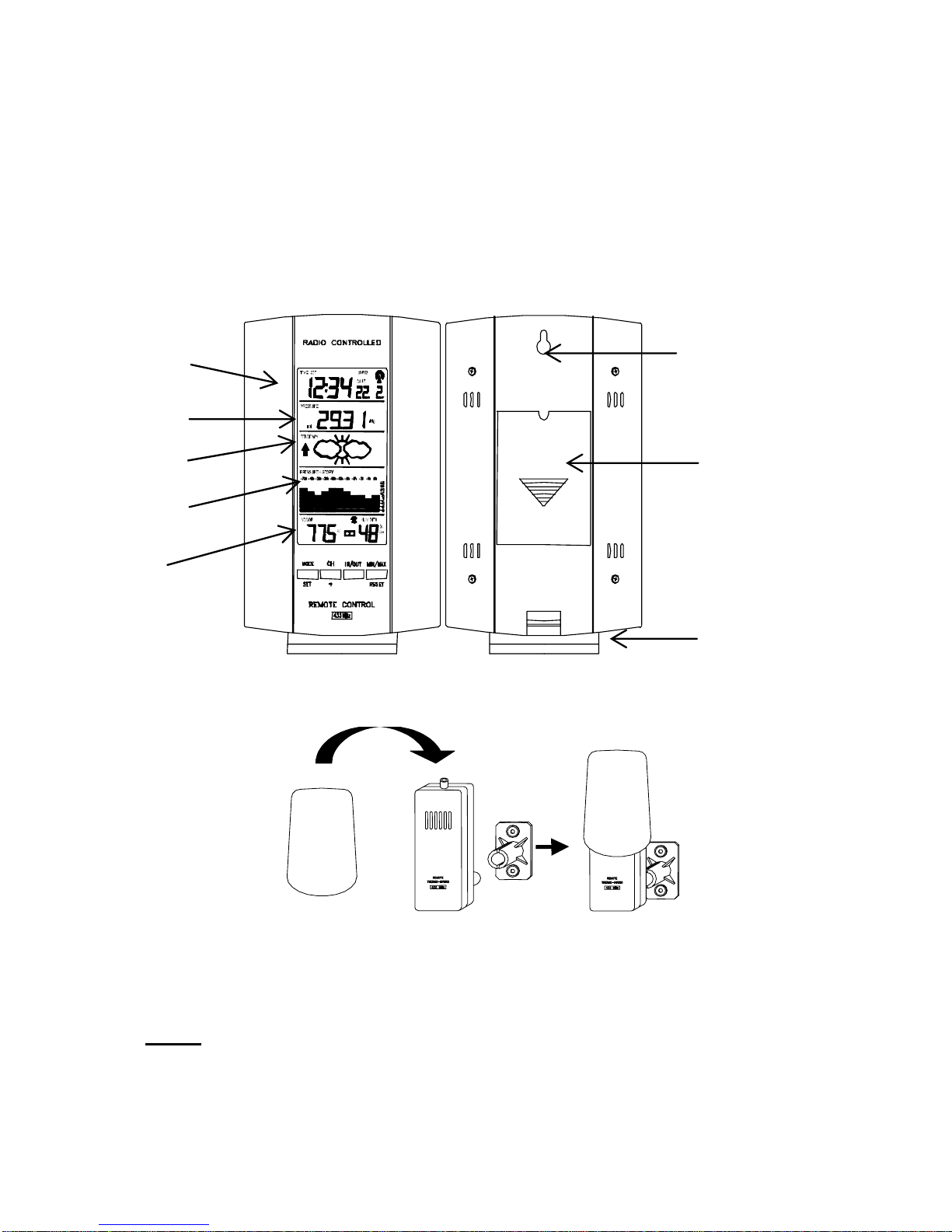

Figure 1: Weather station display unit

Hanging

Battery

Cover

Table

Time

Pressure

Tendency

Pressure

History

Indoor

Temp/Hum

Figure 2: Remote temp/hum sensor (TX4U)

ABOUT WWVB

The NIST (National Institute of Standards and

Technology—Time and Frequency Division) radio station,

WWVB, is located in Ft. Collins, Colorado and transmits the exact

time signal continuously throughout the United States at 60 kHz.

The signal can be received up to 2 000 miles away through the

internal antenna in the weather station. However, due to the nature

of the Earth’s Ionosphere, reception is very limited during daylight

hours. The weather station will search for a signal every night

when reception is best. The WWVB radio station derives its signal

from the NIST Atomic clock in Boulder, Colorado. A team of

atomic physicists continually measure every second of every day

to an accuracy of ten billionths of a second a day. These physicists

have created an international standard, measuring a second as

9,192,631,770 vibrations of a Cesium 133 atom in a vacuum. This

weather station regulates the WWVB sensor.

SET-UP GUIDE

1. Have the weather station and remote sensor 3 to 5 feet

apart.

2. Batteries out of both units for at least 10 minutes.

3. Place the batteries into the remote sensor FIRST then

place batteries into the weather station NEXT.

(All remote sensors must be started before the weather station)

4. DO NOT PRESS ANY BUTTONS FOR 10 MINUTES

In this time the weather station and sensor will start to talk to each

other and the display will show both the indoor temperature and an

outdoor temperature ALTERNATELY. If the weather station does

not display both temperatures after the 10 minutes, Please retry the

start up as stated above. After both indoor and outdoor

temperatures are displayed for 10 minutes you can place your

remote sensor outdoors and set your time.

The remote sensor should be placed in a dry, shaded area. The

remote sensor has a range of 80 feet. Any walls or objects that the

signal will have to pass through will reduce distance. An outdoor

wall or window will have 20 to 30 feet of resistance and an interior

wall would have approximately 20 feet of resistance. Your distance

plus resistance should not exceed 80 ft. in a straight line. For best

results try and keep the remote sensor on an exterior wall of the

room that you have the weather station in.

I. PROGRAM MODE

Programming Note: If 20 seconds is allowed to pass during

programming modes the unit will confirm/set the last information

entered, the display will stop flashing and return to normal time-

date readings.

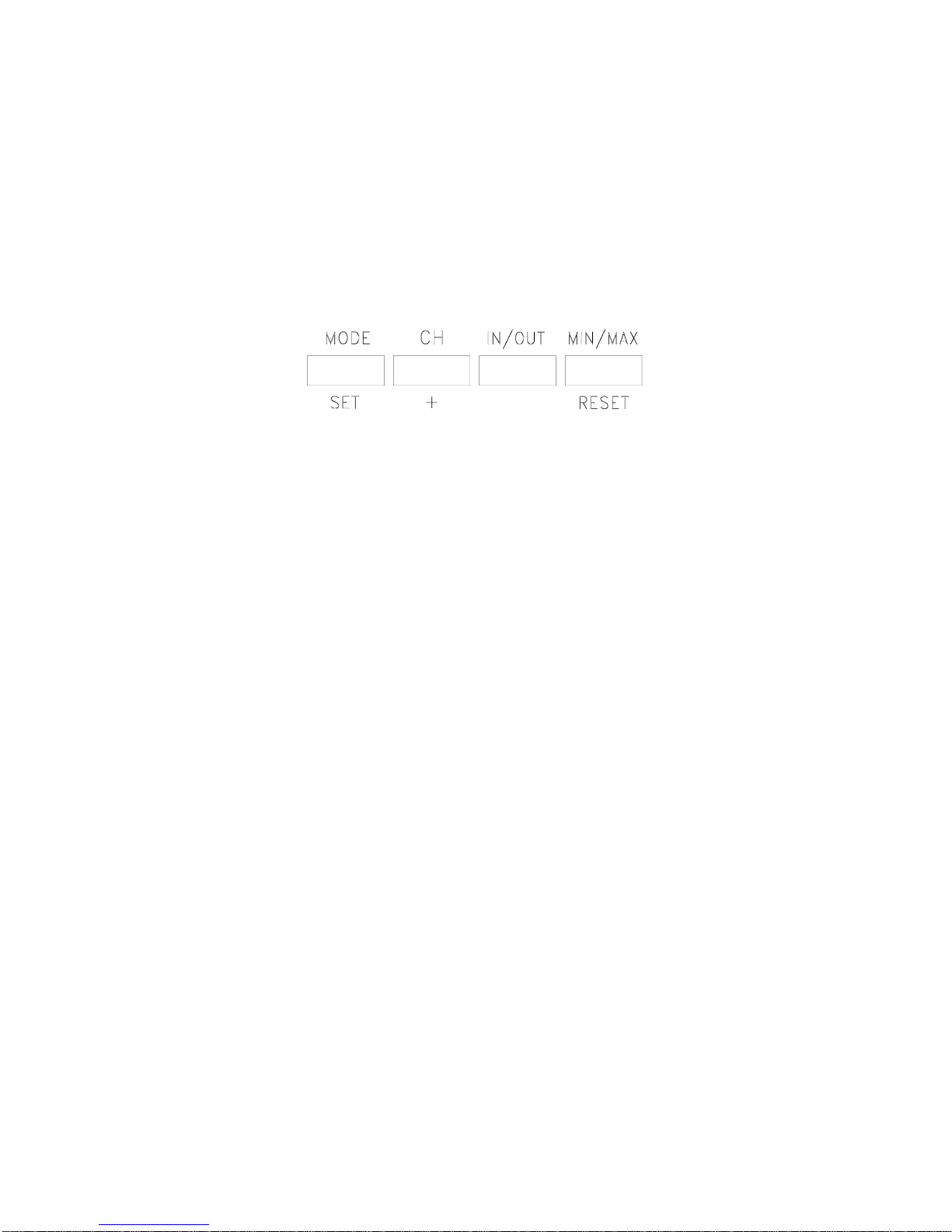

Function Keys:

NOTE: There are two methods by which the time can be set:

•Automatically via WWVB reception

•Manually (see “C” below)

WWVB (Radio controlled time)

This method requires you to do nothing but wait for

the signal (WWVB) to be received (the unit will set

to the default setting shown on the following page

once the signal is received). This usually will take

place overnight when the WWVB signal is the

strongest. To keep your time accurate the weather

station conducts a WWVB search every night. The

WWVB tower icon (appearing in the time LCD) will

be on when the signal has been received. It is not

uncommon for the signal to not be received every

night, don’t worry the quartz movement will keep

accurate time until the WWVB signal can be received

again.

Manually

This is only necessary if you do not wish to wait for

the WWVB reception. All manual set time and date

settings will be over-ridden by the reception of the

WWVB signal. In most cases all that needs to be set

different from the default (factory) settings is the

time zone (section “D” following) and the pressure

(section “K” following), which must be set to your

current pressure.

PROGRAMMING SEQUENCE Default (Factory) Setting

A. LCD Contrast LCD 5

B. 12/24-hour Mode 12h

C. Hour Setting 12: AM

D. Minute Setting :00

E. Time Zone Setting -5 (EST)

F. Daylight Saving Time ON/OFF 1 (ON)

G. Year Setting 2000

H. Month Setting 1 (January)

I. Date Setting 1

J. Degree Setting °F / °C °F

K. Weather Forecast Sensitivity 3

L. Pressure Readout rel inHg

M. Setting the Pressure 29.91

A. SETTING THE LCD CONTRAST

1. Press and hold the “MODE/SET” button for 5

seconds or until “Lcd 5” flashes in the time Lcd.

2. There are 7 Lcd contrast levels to choose from –

“Lcd 1” is the lightest and “Lcd 7” is the darkest.

3. Press the “CH/+” button to toggle through to your

desired setting.

4. Press the “MODE/SET” button to confirm and

advance to 12/24 hour time setting.

B. 12 OR 24 HOUR TIME SETTING

1. “12h” will be flashing in the time LCD.

2. Press and release the “CH/+” button to toggle

between 12h (AM/PM) and 24h (military time).

Note: in 12h mode “PM” will appear to the left of the time during

the PM hours. If the time is not within the PM hour nothing will

be displayed.

3. Press the “MODE/SET” button to confirm and

advance to the hour/ minute setting.

C. SETTING THE HOUR AND MINUTES

1. The digit representing the hour should be flashing.

2. Press and release the “CH/+” button to select the

desired hour.

Note: in 12h mode “PM” will appear to the left of the time during

the PM hours. If the time is not within the PM hour nothing will

be displayed.

3. Press the “MODE/SET” button to confirm the hour

and advance to set the minutes.

4. The digits representing the minutes should be

flashing.

5. Press and release the “CH/+” button to select the

desired minutes.

6. Press the “MODE/SET” button to confirm and

advance to the time zone setting.

D. TIME ZONE SETTING

1. –5 should be flashing in the time LCD

2. Select your appropriate time zone by pressing and

releasing the “CH/+” button. The time LCD displays

the 3 letter abbreviations for the time zones found in

North America along the very top of the display.

Follow the chart below to find the correct time zone

and the corresponding abbreviations and codes.

GMT 0

Atlantic -4

EST; Eastern -5

CST; Central -6

MST; Mountain -7

PST; Pacific -8

ALA; Alaska -9

HAW; Hawaii -10

Note: There are more time zones represented by number than there

are represented by letters. If you live in North America only the

ones in the chart above will be needed to set the correct time zone

for your location.

3. Press the “MODE/SET” button to confirm and

advance to the daylight saving time setting.

E. DAYLIGHT SAVING TIME (DST) SETTING

1. “DST” and “1” should now be flashing in the time

LCD.

Note: 1 = ON and 0 = OFF Some locations (Arizona and parts of

Indiana) do not follow Daylight Saving Time.

2. Press and release the “CH/+” button to select the

appropriate setting.

3. Press the “MODE/SET” button to confirm and

advance to the year setting.

F. SETTING THE YEAR

1. “2000” should be flashing in the time LCD.

2. Press and release the “CH/+” button to advance to the

desired year.

3. Press and release the “MODE/SET” button to

confirm and advance to the numeric month/day

setting.

G. SETTING THE MONTH/DAY

1. “1” should be flashing, representing the month

numerically (Jan=1, Feb=2, etc.).

2. Press and release the “CH/+” button to select the

desired numeric month.

3. Press and release the “MODE/SET” button to

confirm the month setting and to shift to the numeric

day setting.

4. The number representing the day should be flashing.

5. Press and release the “CH/+” button to advance to the

desired day.

6. Press and release the “MODE/SET” button to

confirm the date and to advance to °F and °C

selection.
