KTI Networks KS-115F Series Manual de usuario

-12-

Installation Guide

10/100 Fast Ethernet Switch

KS-115FSeries

P/N:750-0136-001

DOC.000112-KS115F-K

All manuals and user guides at all-guides.com

all-guides.com

-13-

tation may e reproduced in any form or y any means or used to make

any directive work (such as translation or transformation) without per-

mission from KTI Networks Inc.

KTI Networks Inc. reserves the right to revise this documentation and to

make changes in content from time to time without o ligation on the part

of KTI Networks Inc. to provide notification of such revision or change.

For more information, contact:

United States KTI Networks Inc.

P.O. BOX 631008

Houston, Texas 77263-1008

Phone: 713-2663891

Fax: 713-2663893

E-mail: [email protected]

WWW: http://www.ktinet.com/

International Fax: 886-2-26983873

E-mail: [email protected]

WWW: http://www.ktinet.com.tw/

All manuals and user guides at all-guides.com

-15-

The information contained in this document is subject to change without prior notice.

TRADEMARKS

Ethernet is a registered trademark of Xerox Corp.

This device complies with Class A Part 5 the FCC Rules. Operation is subject to the following two

conditions: ( ) This device may not cause harmful interference, and (2) this device must accept any

interference received including the interference that may cause.

CISPRACOMPLIANCE:

This device complies with EMC directive of the European Community and meets or exceeds the follow-

ing technical standard.

EN 55022 - Limits and Methods of Measurement of Radio Interference Characteristics of Information

Technology Equipment. This device complies with CISPR Class A.

WARNING: This is a Class A product. In a domestic environment this product may cause radio inter-

ference in which case the user may be required to take adequate measures.

CE NOTICE

Marking by the symbol indicates compliance of this equipment to the EMC directive of the

European Community. Such marking is indicative that this equipment meets or exceeds the following

technical standards:

EN 55022: Limits and Methods of Measurement of Radio Interference characteristics of Information

Technology Equipment.

EN 50082/ :Generic Immunity Standard -Part : Domestic Commercial and Light Industry.

EN 60555-2: Disturbances in supply systems caused by household appliances and similar electrical equip-

ment - Part 2: Harmonics.

All manuals and user guides at all-guides.com

-16-

Table of Contents

1. Introduction ................................................................................. 1

1.1 Features ................................................................................................................. 2

1.2 Specifications ....................................................................................................... 3

2. Installing the Switch ................................................................... 4

2.1 Unpacking ............................................................................................................ 4

2.2 Checking AC Power ............................................................................................ 4

2.3 nstalling the Switch ............................................................................................ 5

3. Making Network Connections ....................................................

3.1 Network Switched Ports ..................................................................................... 6

3.2 UTP Cable ............................................................................................................ 7

3.3 Fiber Cable ............................................................................................................ 8

3.4 Network Connections ......................................................................................... 9

3.5 Operating Mode ................................................................................................. 1 0

4. LED Indicators ............................................................................ 11

4.1 LED Panel .......................................................................................................... 1 1

4.2 nterpretation .................................................................................................... 1 1

All manuals and user guides at all-guides.com

-1-

1. Introduction

Driven y recent advances in desktop computing technology, todays

network applications have increased in speed, power and the a ility to

process information. To meet the demands of these more powerful appli-

cations, this afforda le switch device provides significant increase in

performance for your Ethernet or Fast Ethernet network. This 5-port Fast

Ethernet switch comes with four 10/100 TP ports and one fi er port, each

capa le of transmitting or receiving information simultaneously at full

wire speed to control and allocate the network andwidth.

The key features of this switch unit are:

Optimized Bandwidth : Com ining five 10/100M ps- ased Fast

Ethernet switched ports, the switch delivers a high network

andwidth for your Fast Ethernet network

Easy Migration : With 10BASE-T support on each port, the switch

provides a non-disruptive and smooth migration path from

Ethernet to a Fast Ethernet network.

Fiber Uplink Support : With 100BASE-FX port, the switch provides

a connectivity to a Fast Ethernet network via fi er ca le.

Easy Installation : With the functions of auto-speed-sensing and

auto-negotiation on each port, the switch supports plug-and-play

installation which eliminates configuration pro lems.

All manuals and user guides at all-guides.com

-2-

1.1 Features

Designed for resolving congestion pro lems caused y andwidth-hun-

gry devices and andwidth-intensive applications as well as a high num-

er of users, the switches not only adhere to the IEEE 802.3 10BASE-T,

802.3u 100BASE-TX and 100BASE-FX standards, ut also feature:

 Four 10/100BASE-TX auto-negotiation switched ports and one

100BASE-FX port for flexi le connections to desktop PCs, servers

and Ethernet hu s.

 The 10/100BASE-TX switched ports support:

- auto speed sensing for 100M ps or 10M ps connection

- auto configuration with auto-negotiation devices

- full-duplex or half-duplex operation

 For the fi er port, the switch series support variety of fi er connec-

tors for different application needs. The fi er connectors include

ST, SC, MT-RJ, and VF-45 types for multimode and single mode

fi er ca les.

 Supports duplex mode selector for the 100BASE-FX fi er port.

 Self learning for active MAC addresses

 Store and forward switching to ensure only good packets are forwarded

 Forwarding and filtering at full wire speed

 Supports IEEE 802.3x flow control for full-duplex operation

 Supports ack-pressure flow control for half-duplex operation

 Comprehensive LED indicators provide quick, easy to read port

and switch information

All manuals and user guides at all-guides.com

all-guides.com

-3-

1.2 Specifications

Port 1 - 4 MDI-X RJ-45 jacks for 10/100BASE-TX connectivity

Port 5 One fi er connector for 100BASE-FX connectivity

Cables 10BASE-T Cat. 3, 4, 5 UTP ca le (100 meters max.)

100BASE-TX Cat. 5 UTP ca le (100 meters max.)

100BASE-FX multimode or single mode fi er ca le

LED indicators Power status

10/100M, Link/Activity,Duplex/Collision status per port

Filtering rate 14,880 pps for Ethernet (10BASE-T)

148,800 pps for Fast Ethernet (100BASE-TX)

Forwarding rate 14,880 pps for Ethernet (10BASE-T)

148,800 pps for Fast Ethernet (100BASE-TX)

Filtering address Multicast/Broadcast/Unicast address

8K MAC addresses per unit

RAM buffers 256KB

Environment Temperature 0oC to 40oC

Relative humidity 10% to 90% non-condensing

Dimensions 144 mm x 100 mm x 26 mm (WxDxH)

5.67 x 3.94 x 1.02 inch

Power +5V 1.2A minimum

Models vs Fiber Specifications

Model Connector Fiber Cable Max. Distance

KS-115F/T ST MM*1 2Km

KS-115F/C SC MM 2 Km

KS-115F/SA SC SM*2 15 Km

KS-115F/S3 SC SM 30 Km

KS-115F/S5 SC SM 50 Km

KS-115F/JM MT-RJ MM 2 Km

KS-115F/JS MT-RJ SM 15 Km

KS-115F/VM VF-45 MM 2 Km

KS-115F/VS VF-45 SM 15 Km

*1 : Multimode fiber

*2 : Single Mode fiber

All manuals and user guides at all-guides.com

-4-

2. Installing the Switch

2.1 Unpacking

Check to see that you have everything efore you start the installation.

 Installation guide

 The switch unit

 One AC power adapter for the unit

2.2 Checking AC Power

Before you egin the installation, check the AC voltage of your area. The

AC power adapter which is used to supply the DC power for the unit should

have the AC voltage matching the commercial power voltage in your area.

The specifications of the AC power adapter are:

 AC input power: AC power voltage of your area

 DC output power: +5V VDC 1.2A min.

 DC plug type:

All manuals and user guides at all-guides.com

-5-

The DC power socket for the AC power adapter is located on the rear of

the switch as shown elow:

2.3 Installing the Switch

1. Install the switch with the AC power adapter provided.

2. Connect the power adapter ca le to the switch efore connecting

the adapter to the AC outlet.

All manuals and user guides at all-guides.com

-6-

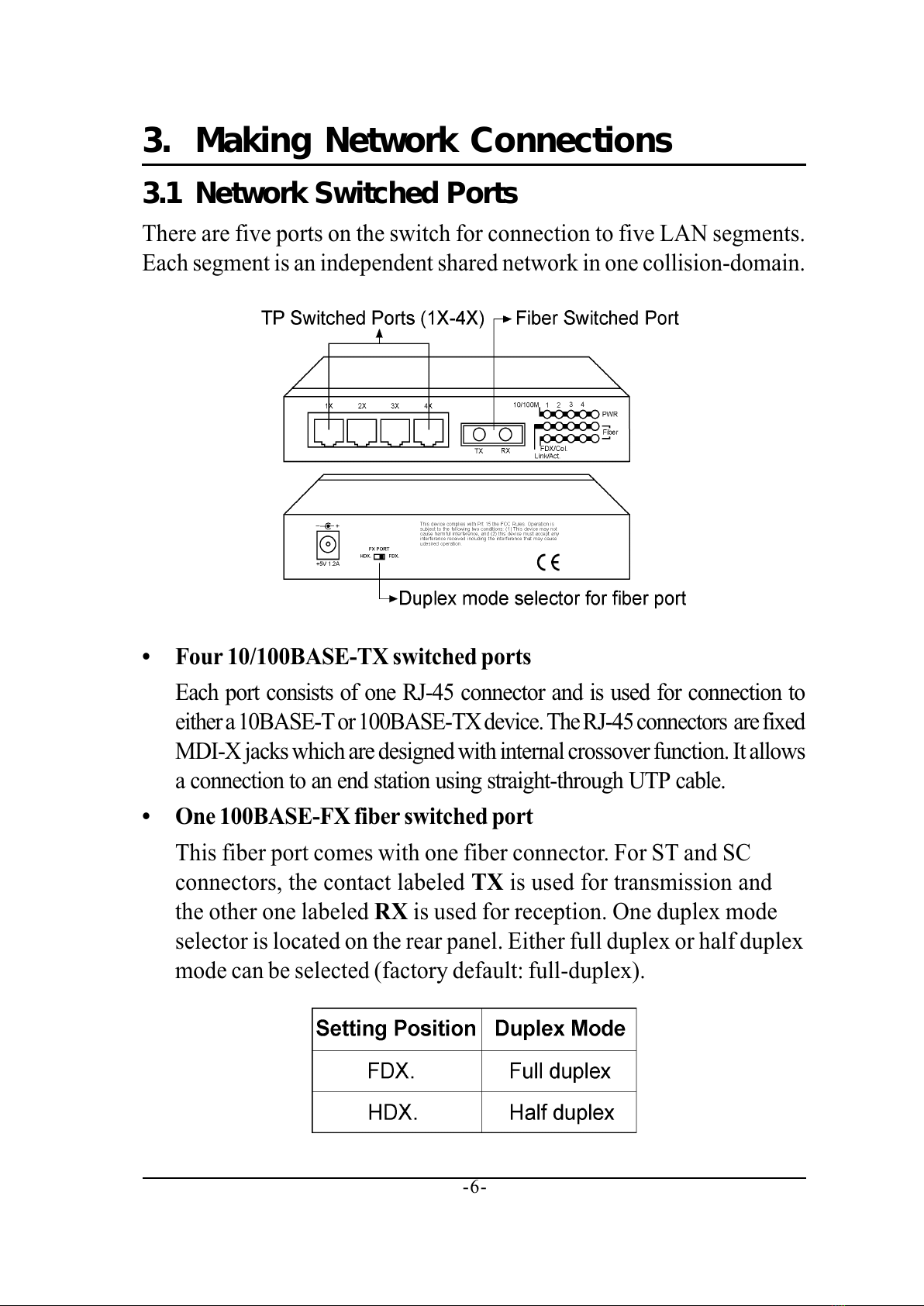

3. Making Network Connections

3.1 Network Switched Ports

There are five ports on the switch for connection to five LAN segments.

Each segment is an independent shared network in one collision-domain.

 Four 10/100BASE-TX switched ports

Each port consists of one RJ-45 connector and is used for connection to

either a 10BASE-T or 100BASE-TX device. The RJ-45 connectors are fixed

MDI-X jacks which are designed with internal crossover function. It allows

a connection to an end station using straight-through UTP ca le.

 One 100BASE-FX fiber switched port

This fi er port comes with one fi er connector. For ST and SC

connectors, the contact la eled TX is used for transmission and

the other one la eled RX is used for reception. One duplex mode

selector is located on the rear panel. Either full duplex or half duplex

mode can e selected (factory default: full-duplex).

All manuals and user guides at all-guides.com
