Kraus FVS-1007 Manual de usuario

RamusTM Single Lever

Vessel Faucet

FVS-1007

INSTALLATION MANUAL

Congratulations on the purchase of your new

Kraus plumbing fixture!

Please keep the box and packaging materials until your product is

completely installed. If you have any questions, require technical

assistance or have any problems with your product:

Please contact our Customer Service Team

1-800-775-0703 / [email protected]

Have the model number available and retain a copy of your

receipt with purchase date for reference.

If for any reason this product does not meet your expectations,

please be sure to repack this product in the original box and

packaging material to avoid damage during transit.

DO NOT RETURN TO STORE

STOP

Prior to Installation:

·Make sure you have all necessary parts by checking the diagram and

parts list. If any part is missing or damaged, please contact Kraus

Customer Service at 800-775-0703 for a replacement.

·Read all instructions and safety warnings and ensure you have all

tools, parts, and equipment necessary for a safe installation.

·Turn off the hot and cold water supply at the angle stops and turn on

the old faucet to release any built up pressure. Remove existing faucet.

Clean sink or countertop to remove any debris, plumber’s putty, or

silicone.

·Flush angle stops to release any debris prior to installation.

·Pre-drilled hole size requirement: 1 3/8" (min)

·Max countertop thickness: 1 3/8”

Care & Maintenance

* To keep the product clean & shining, follow the steps below:

1. Rinse with clean water & dry with a soft cloth

2. Do not clean with soaps, acid, polish, abrasives or harsh cleaners

3. Do not use cloth with a coarse surface

4. Unscrew the aerator and clean when necessary

* This installation manual is subject to change without further notice.

For technical assistance or replacement parts, please contact Kraus

Customer Service and one of our representatives will be happy to help:

Toll-Free: 800-775-0703 or [email protected]

ACID

STOP

Tools Required

Adjustable Wrench Phillips Screwdriver Silicone Sealant

Pipe Tape Hex Wrench

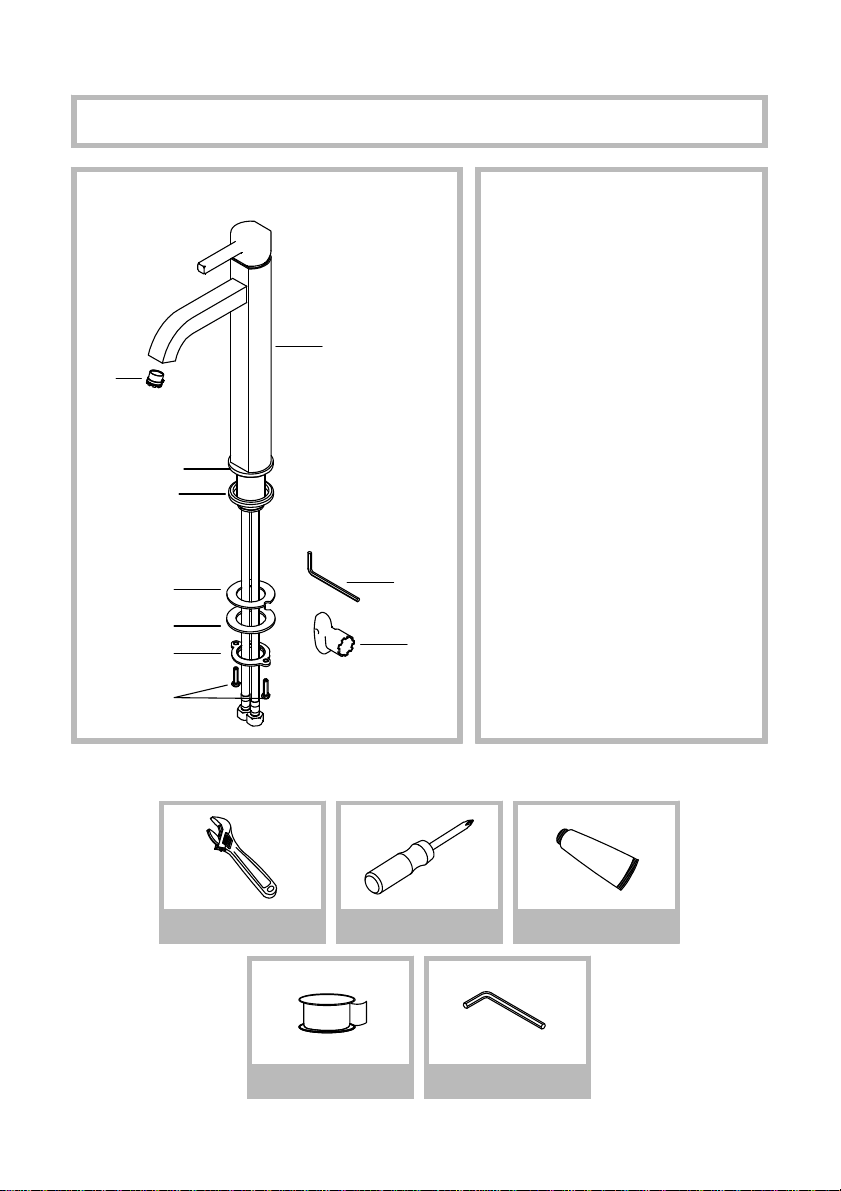

Diagram and Parts List

1. Faucet Body

2. Aerator

3. Faucet Base

A. Base Trim Ring

B. Rubber Washer

4. Mounting Hardware

A. Rubber Washer

B. Metal Washer

C. Mounting Nuts

D. Mounting Screws

5. Hex Wrench

6. Aerator Key

Installer Tip:

Shut off main water supply before installing new faucet.

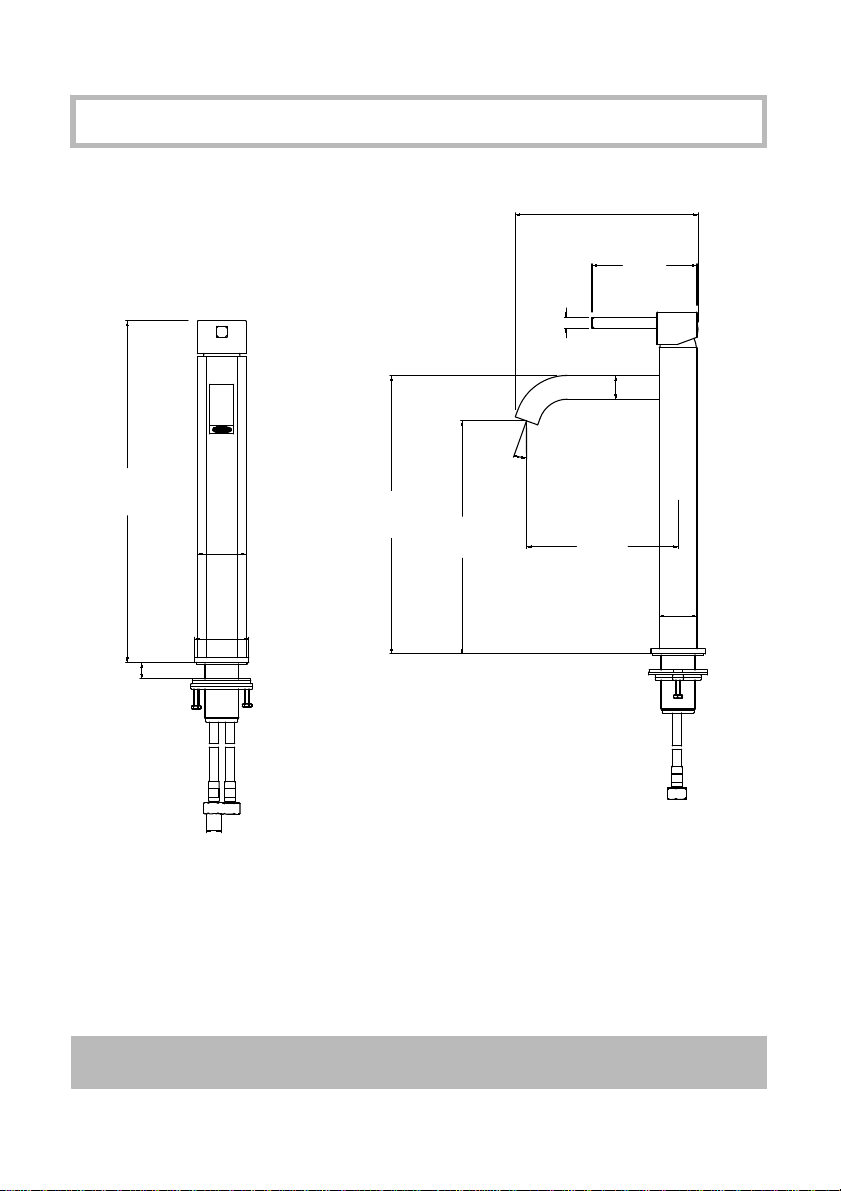

Faucet Dimensions

12 1/2"

(316mm)

Ø1 3/4"

(45mm)

Ø2"

(50mm)

1 5/8"

(42.5mm Max)

3/8" Compression

3 3/4"

(96mm)

Ø3/8"

(10mm)

1 3/8"

(35mm)

10 1/8"

(257mm)

Ø7/8"

(22mm)

8 1/4"

(211mm)

6 5/8" (168mm)

20°

5 3/4"

(146mm)

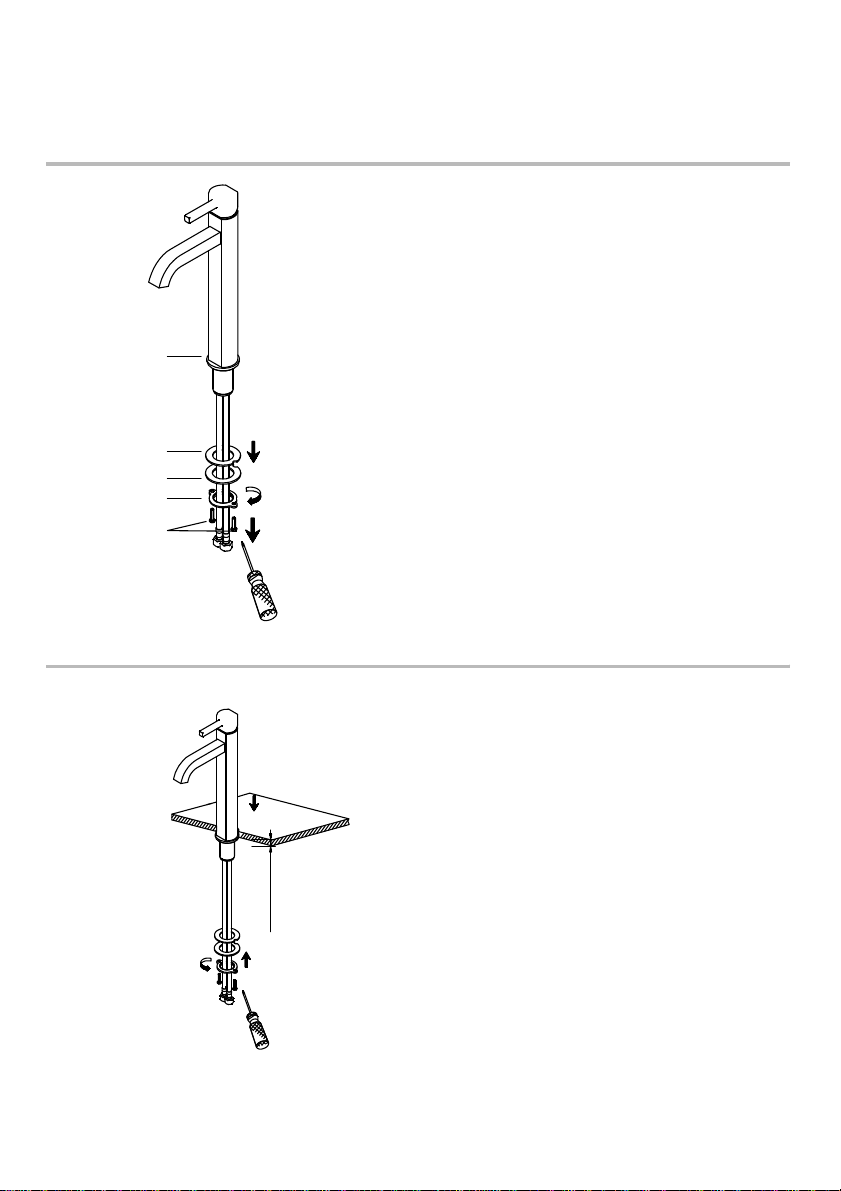

Faucet Installation Procedure

Step 2.

Install the faucet through the

1-3/8" predrilled hole in the

countertop. Attach rubber washer

(4A), metal washer (4B), mounting

nut (4C), and mounting screws

(4D) on the threaded mounting

pipe. Tighten the mounting nut

(4C) until snug. Tighten screws

(4D) on the mounting nut (4C)

with a Phillips head screwdriver

until snug.

Step 1.

Remove rubber washer (4A), metal

washer (4B), mounting nut (4C),

and mounting screws (4D). Keep

the base trim ring (3A) and rubber

washer (3B) on the base of the

faucet.

27mm ~ 41.3mm

1 1/16” ~ 1 5/8”

Step 3.

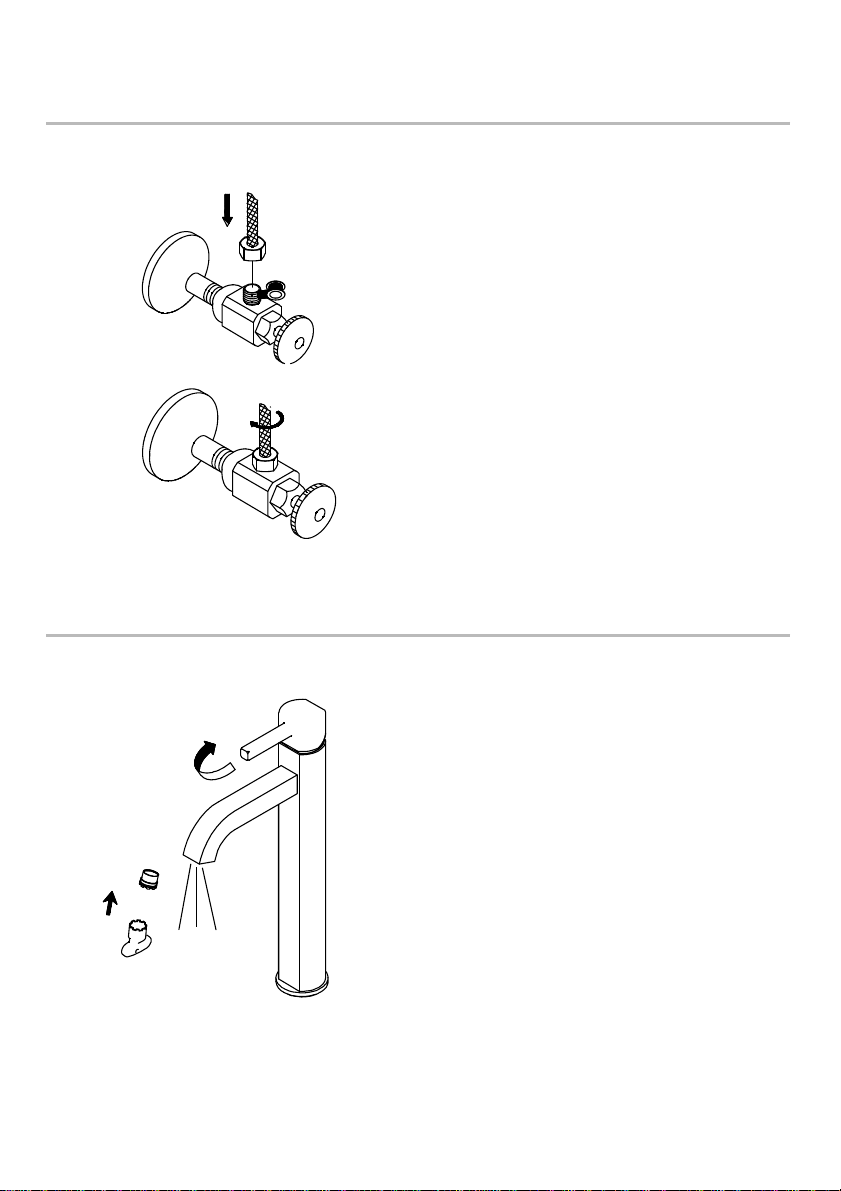

Install flex water supply lines on

the angle stops and tighten with

an adjustable wrench. Turn on

both the cold and hot main valves

Apply pipe tape (optional).

Step 4.

After installing the faucet, remove

the aerator (2) with the included

aerator key (6). Turn on the water

to remove any leftover debris,

then reassemble the aerator (2).

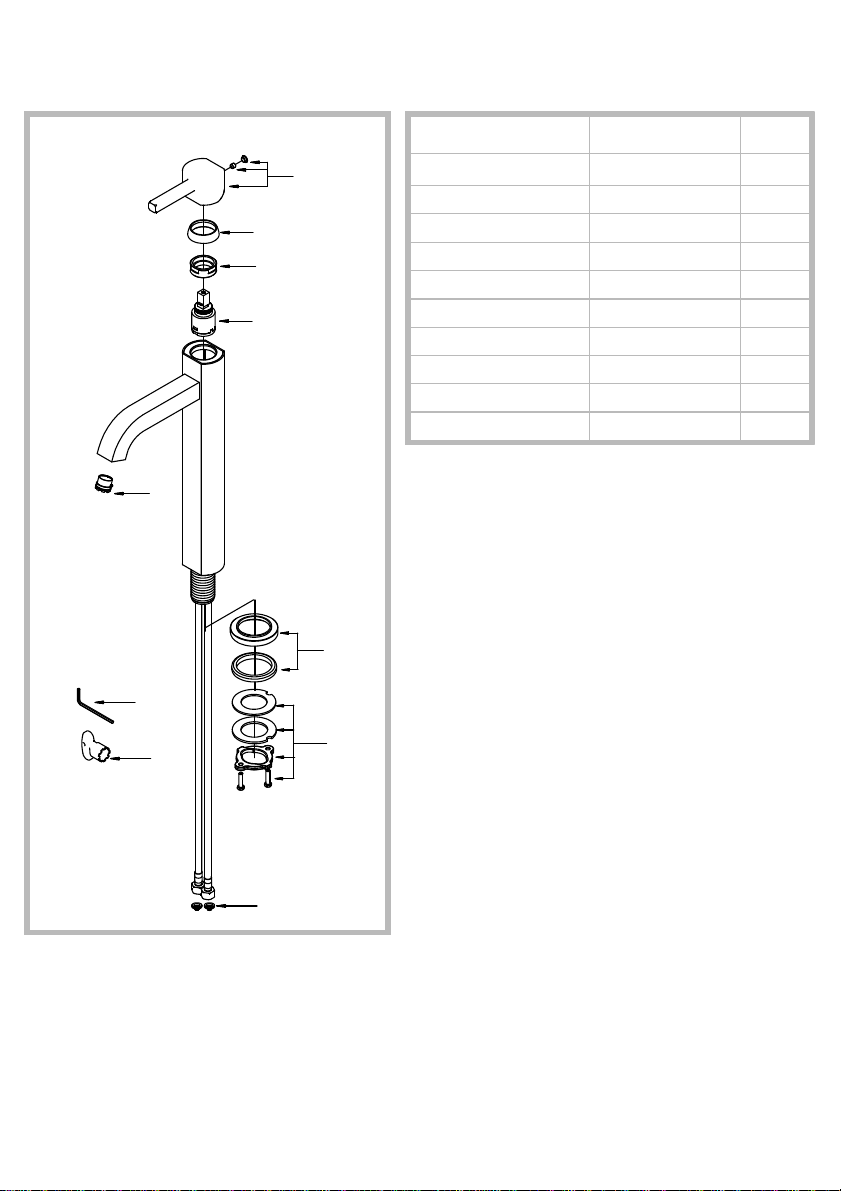

Replacement Parts

1. Metal Handle

2. Cartridge Cover

3. Locking Nut

4. Cartridge

6. Base Trim Ring

7. Mounting Hardware

8. Hex Wrench 2.5mm

9. Aerator Key

Replacement Parts List Finish/Color Part #

KP44069

KP44070

KP44071

KP44072

KP44073

KP44074

KP44075

KP44076

KP44077

KP44022

CH, SN, ORB, MB, SFS*

5. Aerator

*Denotes faucet component color options:

CH - Chrome

SN - Satin Nickel

ORB - Oil Rubbed Bronze

MB - Matte Black

SFS - Spot Free Stainless Steel

CH, SN, ORB, MB, SFS*

10. Filter Washers

Trouble-Shooting

If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps:

Leakage under the faucet

handle

Adjusting locking nut has come loose. Remove handle index button. Loosen set

screw with hex wrench. Remove handle

(by hand only). Tighten locking nut with

an adjustable wrench.

Aerator drips or has inconsistent

water flow pattern

Aerator is dirty or not

seated properly.

Unscrew aerator with aerator key and clean

out debris.

Water does not shut off

completely

Cartridge may be defective. Remove handle index button. Loosen set

screw with hex wrench. Remove handle

(by hand only). Unscrew trim cap (by hand

only). Unscrew the locking nut with an

adjustable wrench. Remove ceramic disc

cartridge. Check for cracks.

Leaking between spout and body Loose spout or damaged O-rings on

connector.

Tighten set screw under the spout.

PROBLEM CAUSE ACTION

Faucet - Lifetime Limited Warranty

Kraus USA Plumbing, LLC (“Kraus”) extends this warranty to the original purchaser for personal household use of the

Faucet when purchased from an authorized Kraus dealer and in the location of original installation. This warranty is

non-transferable.

Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal

usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.

Kraus warrants the Faucet's sprayhead assembly (including the engine, aerators, structure, restrictors, back flow

preventers, sprayer hoses, braided supply line hoses which encompasses nylon, silicon and stainless steel) of the product

to be free from defects in material and workmanship under normal usage for a period of one (1) year from the date of

purchase.

Kraus warrants the Faucet's cartridge to be free from defects in material and workmanship under normal usage for a

period of five (5) years from the date of purchase.

Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired

or replaced with a product of equal value at the option of Kraus.

Commercial Warranty

Kraus USA Plumbing, LLC (“Kraus”) warrants its Products for a period of one (1) year to commercial purchasers of

Products used in industrial, commercial and business applications.

Care and Cleaning Instructions

Certain cleaning products may cause damage to a Product's finish and use of the following on the Product will void this

warranty:

·Abrasive cleaners such as powders, bleach, ammonia, alcohol or chorine

·Abrasive pads, steel wool or wire brushes

What is Not Covered

This warranty does not cover Products that were discontinued when purchased or display Products, whether such

Products were purchased at discount outlets, unauthorized dealers, and/or sold on clearance. This warranty does not

cover any free gifts included with purchase.

This warranty does not cover damage resulting from neglect, misuse (including use for an unintended application),

abuse, carelessness, accident, hard water or mineral deposits, exposure to corrosive materials, improper maintenance,

alteration of the Product, or failure to follow care, cleaning or installation instructions enclosed with your Product. Kraus

recommends that all Kraus Products be installed by a fully licensed and insured trade professional with experience in the

installation of bathroom and/or kitchen manufactured goods.

Codes/Standards Applicable:

UPC

IAP

NSF/ANSI 372 LEAD FREE

ASME A112.18.1

1.2GPM 4.5L/min maximum

MOR&T

NSF/ANSI 372

NSF/ANSI 61
