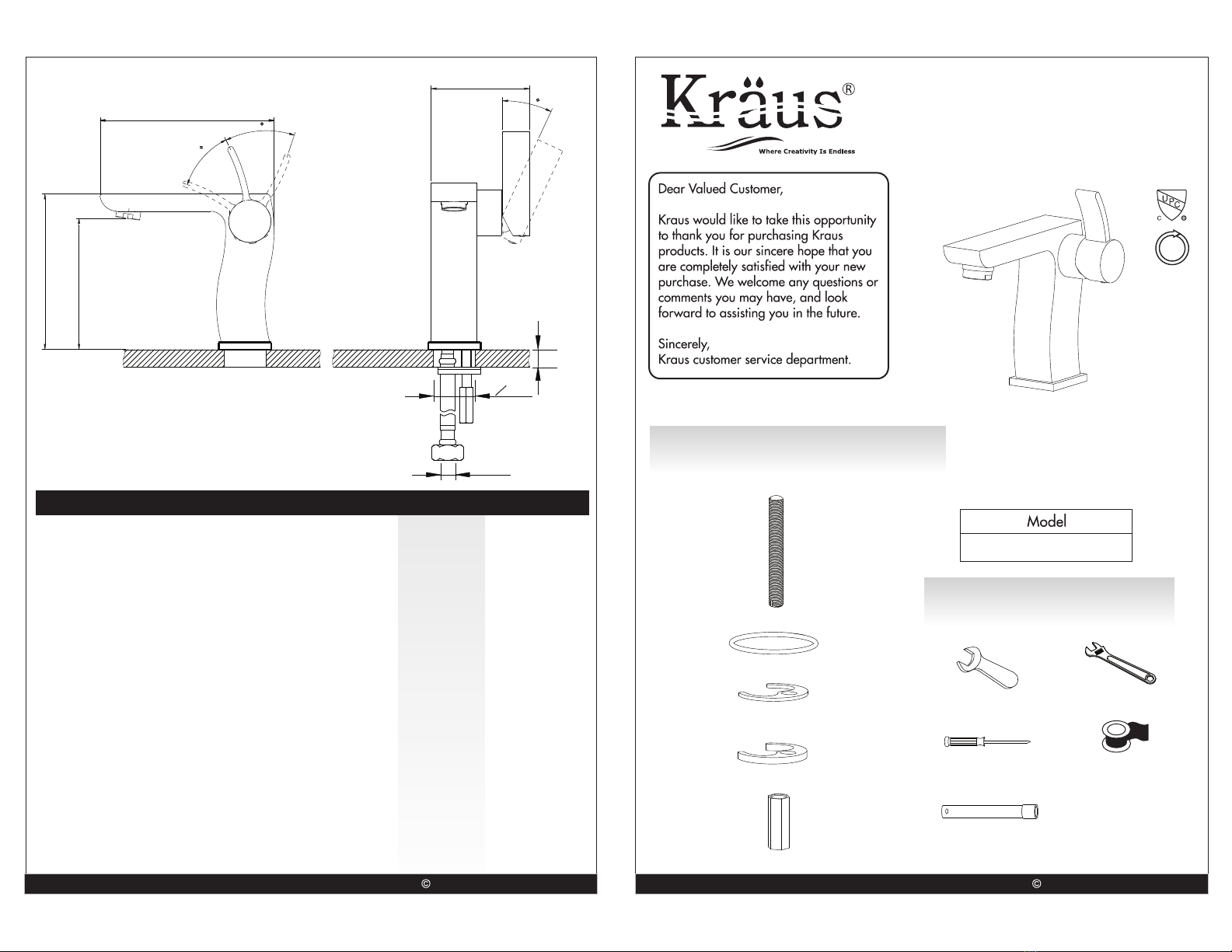

Installation Manual

Single-lever bathroom faucet

Before Your Installation

Check to make sure you have the following parts indicated below:

Tools You Will Need

Adjustable wrench

Spanner for body

(supplied)

Plpe tape

(supplied)

Phillips screwdriver

Adjustable wrench

KEF-14601

AB1953

Contact Us Toll-Free at 1-800-775-0703; or visit our website at www.kraususa.com 2008-2011 Kraus USA Inc.Contact Us Toll-Free at 1-800-775-0703; or visit our website at www.kraususa.com 2008-2011 Kraus USA Inc.

KRAUS Brand Bathroom Faucets Limited Lifetime Warranty

KRAUS is proud to offer its customers the strongest, most durable ceramic cartridges in all solid

brass Bathroom Faucets it manufactures. KRAUS guarantees all products to be free of defect in

materials and craftsmanship. All KRAUS BRAND Bathroom Faucets carry a limited lifetime warranty

from the original date of purchase.

If a product fails due to defect in material or craftsmanship during the warranty period, KRAUS will

repair or replace the items at its sole discretion. Warranty does not apply when the item has been

tampered with, misused, improperly installed, altered, or damaged due to abuse or accident.

Proof of purchase (original sales receipt) must be provided to KRAUS for all warranty claims.

Please contact one of our representatives if you need any additional details.

All KRAUS products must be installed by a licensed professional plumber or contractor to avoid any

improper use or installation.

IN NO EVENT SHALL KRAUS BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL OR

SPECIAL DAMAGES, INSTALLATION COST, LABOR, TRAVEL TIME, FREIGHT COSTS

INCURRED, LOST PROFITS, OR CONTINGENT LIABILITIES.

KRAUS USA Inc. makes no representation that its products comply with any or all local building or

plumbing codes. It is the consumer’s responsibility to determine local code compliance.

This warranty extends to the original purchaser and first

consumer.

1 3/8’’

Faucet body

Waterlines

Fixing bolt

O-ring

Rubber washer

Brass washer

Fixing nut

Replacement Parts

Keep this manual for ordering replacement parts.

Trouble - Shooting

Problem Cause Action

Leaks underneath handle

Aerator leaks or has an inconsistent

water flow pattern.

Water will not shut off completely.

Adjusting ring or cap has come loose.

Aerator is dirty or misfitted.

Dirty or worn out plastic washer in the

cartridge.

Tighten the adjusting ring or cap.

Unscrew the aerator to check rubber packing

or replace the aerator.

Remove handle and cartridge to check if ceramic

disk is damage permanently or dirty.

Re-install cartridge.

Installation

Screw waterlines 2 into the inlet pipe of faucet body 1.

Fit O-ring 4 into the bottom groove of faucet body 1.

After, screw the fixing bolt 3 into the corresponding

screw-hole of faucet body 1.

Insert waterlines 2 and fixing bolt 3 through the drilled hole

1 3/8’’ of the countertop. Put rubber washer 5 and brass

washer 6 onto the fixing bolt, screwing in the nut 7. Then

place faucet body 1 correctly and securely tighten nut 7.
