Kramer VS-44HN Manual de usuario

KRAMER ELECTRONICS LTD.

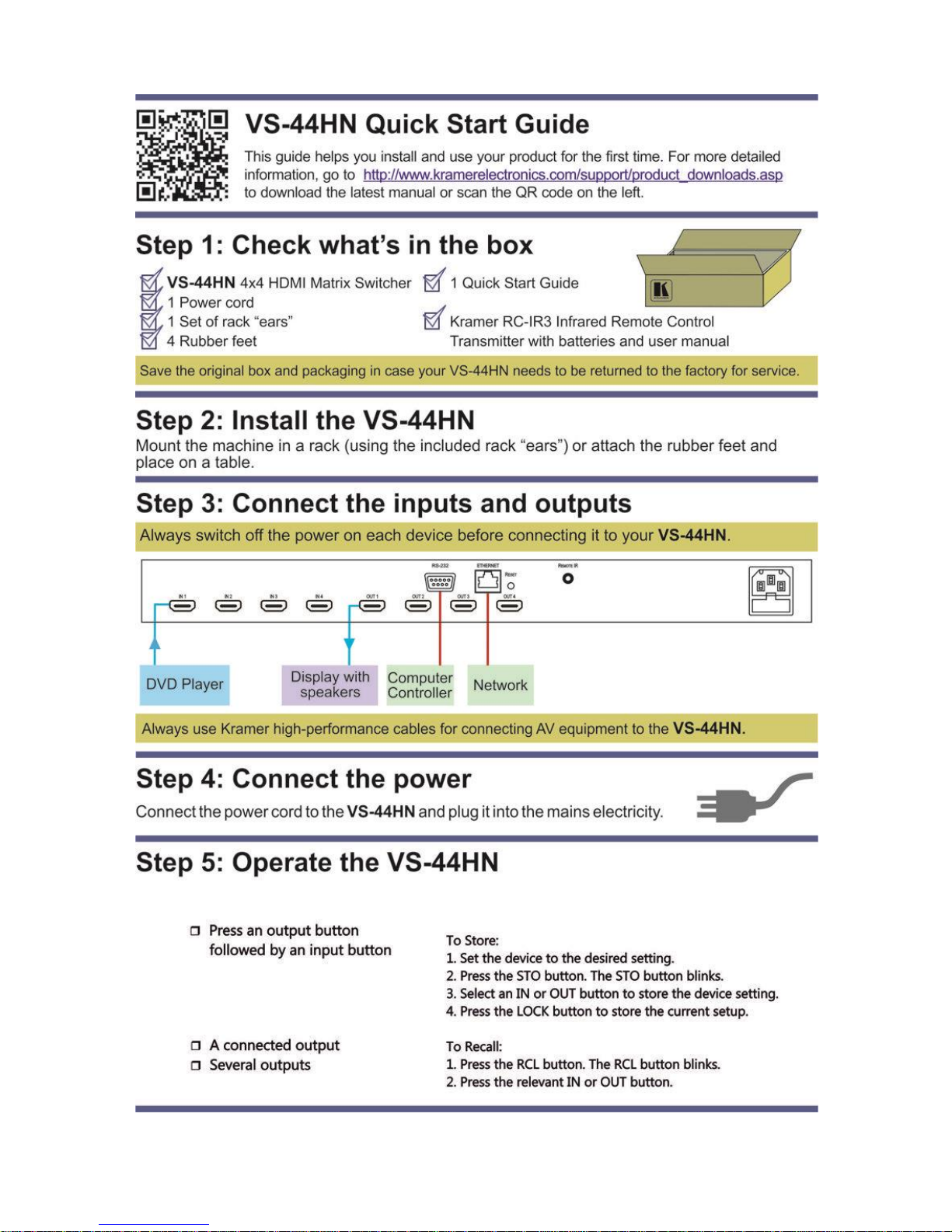

USER MANUAL

MODEL:

VS-44HN

4x4 HDMI Matrix Switcher

P/N: 2900-300161 Rev 8

VS-44HN - Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 2

2.3 Recycling Kramer Products 3

3Overview 4

3.1 Defining the VS-44HN 4x4 HDMI Matrix Switcher 5

3.2 Using the IR Transmitter 7

4Installing in a Rack 8

5Connecting the VS-44HN 4x4 HDMI Matrix Switcher 9

6Operating the VS-44HN 4x4 HDMI Matrix Switcher 11

6.1 Switching an Input to an Output 11

6.2 Acquiring the EDID 11

6.3 Storing and Recalling a Switching Setting from a Preset 13

6.4 Switching Between Protocol 2000 and Protocol 3000 14

6.5 Resetting the VS-44HN 4x4 HDMI MatrixSwitcher’s IP Parameters 14

7Connecting to the VS-44HN 15

7.1 Connecting to the VS-44HN 4x4 HDMI Matrix Switcher via RS-232 15

7.2 Connecting to the VS-44HN 4x4 HDMI Matrix Switcher via Ethernet 15

7.3 Upgrading the Firmware 19

8Technical Specifications 20

9Default Communication Parameters 21

10 Default EDID 22

11 Kramer Protocol 2000 24

12 Protocol 3000 27

12.1 Kramer Protocol 3000 Syntax 27

12.2 Kramer Protocol 3000 Commands 30

Figures

Figure 1: VS-44HN 4x4 HDMI Matrix Switcher Front Panel 5

Figure 2: VS-44HN 4x4 HDMI Matrix Switcher Rear Panel 6

Figure 3: Connecting the VS-44HN 4x4 HDMI Matrix Switcher 9

Figure 4: Store-Recall Button Configuration 13

Figure 5: Local Area Connection Properties Window 16

Figure 6: Internet Protocol Version 4 Properties Window 17

Figure 7: Internet Protocol Version 6 Properties Window 18

Figure 8: Internet Protocol Properties Window 19

VS-44HN - Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:

Sierra Video Products.

Congratulations on purchasing your Kramer VS-44HN 4x4 HDMI Matrix Switcher,

which is ideal for the following typical applications:

Conference room presentations

Advertising applications

Rental and staging

VS-44HN - Getting Started

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Go to http://www.kramerelectronics.com/support/product_downloads.asp

to check for up-to-date user manuals, application programs, and to check

if firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

Position your VS-44HN away from moisture, excessive sunlight and dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

2.2 Safety Instructions

Caution:

There are no operator serviceable parts inside the unit

Warning:

Use only the power cord that is supplied with the unit

Warning:

Do not open the unit. High voltages can cause

electrical shock! Servicing by qualified personnel only

Warning:

Disconnect the power and unplug the unit from the wall

before installing

VS-44HN - Getting Started

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

VS-44HN - Overview

3 Overview

The VS-44HN is a high quality 4x4 matrix switcher for HDMI signals. It reclocks

and equalizes the signals and can route any input to any or all outputs

simultaneously.

In particular, the VS-44HN features:

Up to 6.75Gbps data rate (2.25Gbps per graphics channel)

Suitable for resolutions up to UXGA and 1080p at 60Hz

Support for HDCP (High Definition Digital Content Protection)

HDMI Support –HDMI (3D, Deep Color, x.v.Color™, Lip Sync)

3D pass-through

Support for up to 7.1 multi-channel audio

I-EDIDPro™ Kramer Intelligent EDID Processing™ – Intelligent EDID

handling & processing algorithm ensures Plug and Play operation for HDMI

systems

Kramer reKlocking™ and Equalization Technology that rebuilds the digital

signal to travel longer distances

A lock button to prevent unwanted tampering with the buttons on the front

panel

Preset memory locations for quick access to common configurations

Support for Kramer Protocol 2000 and Protocol 3000

You can control the VS-44HN using the front panel buttons, or remotely via:

RS-232 serial commands transmitted by a PC, touch screen system or other

serial controller

The Kramer infrared remote control transmitter

A PC connected to the Ethernet port on the device via a LAN

An external remote IR receiver (optional), see Section 3.2

VS-44HN - Overview

3.1 Defining the VS-44HN 4x4 HDMI Matrix Switcher

Figure 1: VS-44HN 4x4 HDMI Matrix Switcher Front Panel

Feature

Function

IR Receiver and Indication LED

Signal receiver for the infrared remote control transmitter. LED lights yellow when receiving

an IR signal

POWER Illuminated Power Switch

Turn the device on and off

ALL Button

Press followed by an input button to connect the selected input to all outputs

For example, press ALL and then Input button # 2 to connect input # 2 to all the outputs

OFF Button

Press after pressing an output button to disconnect the selected output from the inputs.

To disconnect all the outputs, press ALL followed by OFF

SELECT Buttons

IN (1 to 4)

Press to select the input to switch after selecting an output (also used for storing machine

setups (see Section 6.3)

OUT (1 to 4)

Press to select an output to switch followed by an input (also used for storing machine

setups (see Section 6.3)

STO Button

Press to store the current switching setting to a preset (see Section 6.3)

RCL Button

Press to recall the switch setting from a preset (see Section 6.3)

LOCK Button

Press and hold to toggle the locking/release of the front panel buttons.

When storing or recalling presets, press to store or recall the preset (see Section 6.3)

EDID Button

Press to capture the EDID (see Section 6.1)

OUTPUT/INPUT 7-segment LED Display

Displays the input currently switched to the output which is marked above each input

VS-44HN –Overview

VS-44HN - Overview

VS-44HN –Overview

Figure 2: VS-44HN 4x4 HDMI Matrix Switcher Rear Panel

Feature

Function

IN HDMI Connectors (1 to 4)

Connect to up to 4 HDMI sources

OUT HDMI Connectors (1 to 4)

Connect to up to 4 HDMI acceptors

RS-232 9-pin D-sub Serial Port Connector

Connect to a PC/serial controller

ETHERNET RJ-45 Connector

Connect to a PC via a LAN

RESET Button

Press and hold while powering on the device to reset to factory default IP settings (see

Section 6.5 and Section 9)

REMOTE IR Opening

Connect to an external IR receiver for controlling the device via and IR remote

controller (see Section 3.2)

Covered by a cap. The 3.5mm jack at the end of the internal IR connection cable fits into this

opening

Mains Power Connector and Fuse

Plug in the power cord

VS-44HN - Overview

3.2 Using the IR Transmitter

You can use the RC-IR3 IR transmitter to control the machine via the built-in IR

receiver on the front panel or, instead, via an optional external IR receiver (Model:

C-A35M/IRR-50). The external IR receiver can be located up to 15 meters away

from the machine. This distance can be extended to up to 60 meters when used

with three extension cables (Model: C-A35M/A35F-50).

Before using the external IR receiver, be sure to arrange for your Kramer dealer to

insert the internal IR connection cable (for example, P/N: 505-70434010-S) with

the 3.5mm connector that fits into the REMOTE IR opening on the rear panel.

Connect the external IR receiver to the REMOTE IR 3.5mm connector.
