Kramer WP-220E Manual de usuario

Kramer Electronics, Ltd.

USER MANUAL

Model:

WP-220E

XGA/Audio/Video Line Driver

Contents

Introduction 1

Getting Started 1

Overview 1

Your WP-220E XGA/Audio/Video Line Driver 2

4.1

Your WP-220E: Available in 3 Versions 3

4.2

Your WP-220E Front Panel 4

4.3

Your WP-220E Top Side Panel 5

4.4

Your WP-220E Lower Side Panel 5

4.5

Your RGBHV Outputs 6

Using the WP-220E XGA/Audio/Video Line Driver 6

5.1

Installing the WP-220E XGA/Audio/Video Line Driver 7

5.2

Operating the WP-220E XGA/Audio/Video Line Driver 7

Technical Specifications 9

Figures

Figure 1: Your WP-220E: Available in 3 Versions 3

Figure 2: WP-220E Front Panel 4

Figure 3: WP-220E Top Side Panel 5

Figure 4: WP-220E Lower Side Panel 5

Figure 5: WP-220E RGBHV Outputs 6

Figure 6: Example of Conference Room WP-220E Installation 6

Figure 7: Connect to a Balanced Acceptor 7

Figure 8: Connect to an Unbalanced Acceptor 7

Figure 9: Connecting the WP-220E 8

Tables

Table 1: WP-220E Front Panel Features 4

Table 2: WP-220E Top Side Panel 5

Table 3: WP-220E Lower Side Panel 5

Table 4: Technical Specifications of the WP-220E XGA/Audio/Video Line Driver 9

P/N: 2900 - 0010431 A1

ADDENDUM: WP-210,WP-210E,WP-210A,WP-210AE,WP-210AL,WP-220,

WP-220E,and WP-230.

This addendum clarifies the correct color of the V sync and H sync coax cables.

The color of the coax cables with all Kramer Wall Plates, including the

WP-210, WP-210E, WP-210A, WP-210AE, WP-210AL, WP-220,

WP-220E, WP-230 will be as follows:

 For V sync (vertical sync) – black

 For H sync (horizontal sync) – yellow

1 No longer yellow

2 No longer white

Introduction

1 Introduction

Welcome to Kramer Electronics (since 1981): a world of unique, creative and

affordable solutions to the infinite range of problems that confront the video,

audio and presentation professional on a daily basis. In recent years, we have

redesigned and upgraded most of our line, making the best even better! Our

350-plus different models now appear in 8 Groups

, which are clearly defined

by function.

Congratulations on purchasing your WP-220E XGA/Audio/Video Line Driver

active wall plate

, which is ideal for graphics and audio installations in board,

conference and training rooms, as well as long distance signal distribution.

The package includes the following items:

 WP-220E XGA/Audio/Video Line Driver

 This user manual

2 Getting Started

We recommend that you:

 Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

 Review the contents of this user manual

 Use Kramer high performance high resolution cables

3 Overview

The WP-220E XGA/Audio/Video Line Driver is a wall plate adapter that

includes:

 2 video inputs (an XGA input on a standard HD-15 connector, and a

composite video input on an RCA connector)

1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:

Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;

GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors

2 Each wall plate is supplied with the required M3x4 screws

3 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com/manuals.html

4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com (click “Cables and Connectors”

in the Products section)

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your WP-220E XGA/Audio/Video Line Driver

 2 video outputs (an amplified and equalized RGBHV output on 5 BNC

connectors, and a video output 2-pin connector that connects to the coax cable

(one pin is for the composite video signal, and the other is for the Ground))

 2 unbalanced stereo audio inputs (a PC audio input on a 3.5mm mini jack,

and an audio line input on left and right RCA connectors)

 2 balanced stereo audio outputs (a PC audio output on a terminal block

connector, and an audio line output on a terminal block connector)

In particular, the WP-220E has:

 Left and right audio level controls

 EQ. control to adjust the XGA cable compensation (equalization) level

 EQ., and level controls to adjust the CV cable compensation

(equalization) level

 Video bandwidth of 500MHz, that ensures transparent operation for all

resolutions

 A standard 12 Volt DC feed

Achieving the best performance means:

 Connecting only good quality connection cables, thus avoiding

interference, deterioration in signal quality due to poor matching, and elevated

noise levels (often associated with low quality cables)

 Avoiding interference from neighboring electrical appliances and

positioning your WP-220E away from moisture, excessive sunlight and dust

4 Your WP-220E XGA/Audio/Video Line Driver

This section defines the WP-220E XGA/Audio/Video Line Driver:

 Available in 3 versions (see section 4.1)

 Front panel (see section 4.2)

 Top side panel (see section 4.3)

 Lower side panel (see section 4.4)

 RGBHV Outputs (see section 4.5)

Your WP-220E XGA/Audio/Video Line Driver

4.1 Your WP-220E: Available in 3 Versions

The Kramer WP-220E XGA/Audio/Video Line Driver is available in 3

versions—one for Belgium, one for Germany, and one for the England (and

the rest of Europe)—as Figure 1 illustrates:

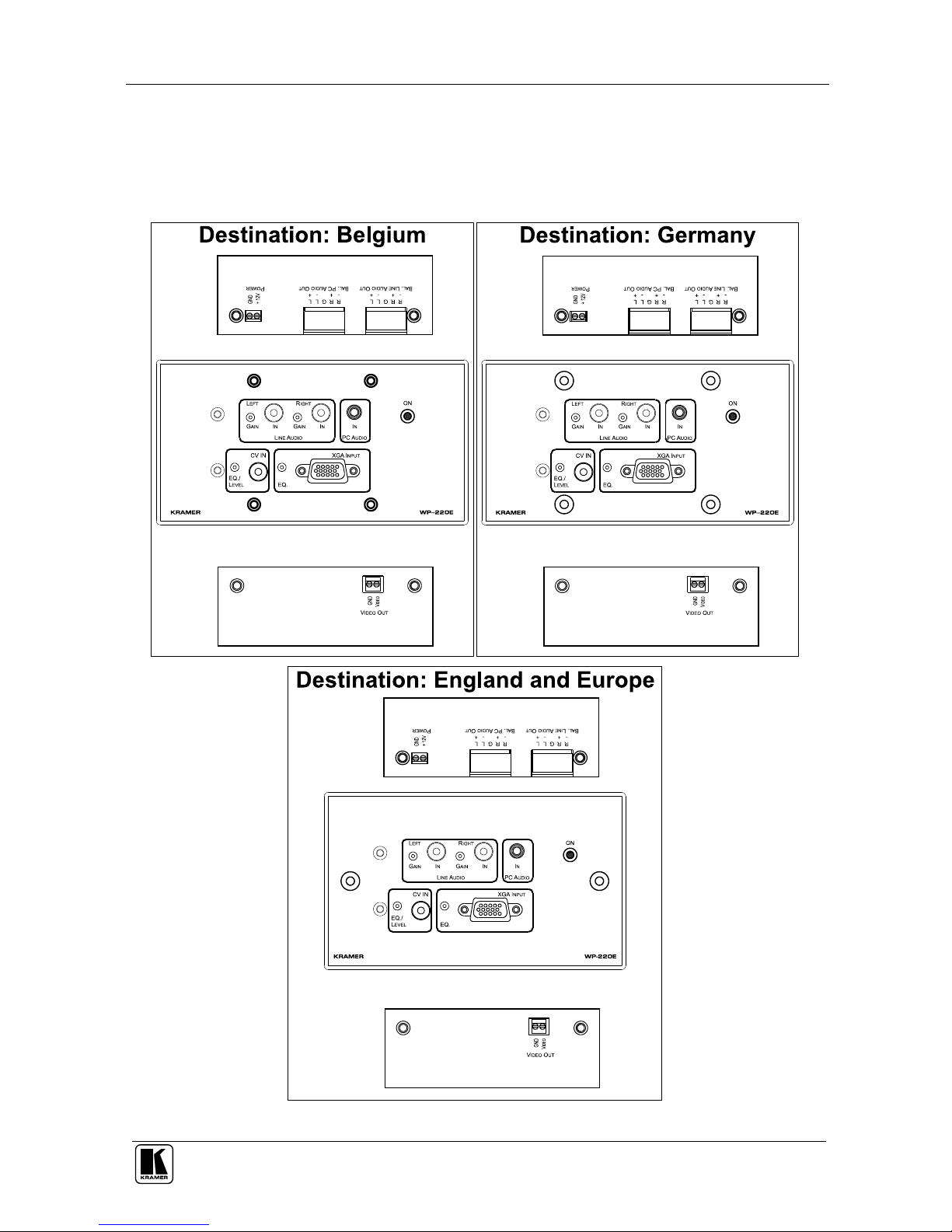

Figure 1: Your WP-220E: Available in 3 Versions

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your WP-220E XGA/Audio/Video Line Driver

4.2 Your WP-220E Front Panel

Figure 2 and Table 1 define the front panel of the WP-220E:

Figure 2: WP-220E Front Panel

Table 1: WP-220E Front Panel Features

Feature Function

1 GAIN Trimmer Adjusts

the left audio output signal level

LEFT

IN RCA Connector Connects to the unbalanced left stereo audio source

3 GAIN Trimmer Adjusts

the right audio output signal level

LINE AUDIO

RIGHT

IN RCA Connector Connects to the unbalanced right stereo audio source

5 PC AUDIO IN 3.5mm Mini Jack Connects to the unbalanced stereo audio PC source

6 Holes (2) For fastening the wall plate in place

7 ON LED Illuminates when receiving power

8 XGA

INPUT HD15F Connector Connects to the XGA

source

9 EQ.

Trimmer Adjusts

the XGA

cable compensation equalization level

CV IN RCA Connector Connects to the composite video source

EQ./ LEVEL Trimmer Adjusts

the CV cable compensation equalization level

1 Insert a screwdriver into the small hole and carefully rotate it, trimming the appropriate level

2 Can be used for any RGBHV resolution (for example, VGA, XGA, UXGA and so on)

3 Degradation and VGA/XGA signal loss can result from using long cables (due to stray capacitance), sometimes leading to a

total loss of sharpness in high-resolution signals

Your WP-220E XGA/Audio/Video Line Driver

4.3 Your WP-220E Top Side Panel

Figure 3 and Table 2 define the top side panel of the WP-220E:

Figure 3: WP-220E Top Side Panel

Table 2: WP-220E Top Side Panel

# Feature Function

1 BAL. LINE AUDIO OUT

Terminal Block Connector

Connects to the balanced stereo audio line acceptor

2 BAL. PC AUDIO OUT

Terminal Block Connector

Connects to the balanced stereo audio from the PC

3 +12V PIN Connect (+) to the connector for powering the unit

POWER

GND PIN Connect (-) to the Ground

4.4 Your WP-220E Lower Side Panel

Figure 4 and Table 3 define the lower side panel of the WP-220E:

Figure 4: WP-220E Lower Side Panel

Table 3: WP-220E Lower Side Panel

# Feature Function

1 GND PIN Connect to the composite video Ground wire

VIDEO

OUT

VIDEO PIN Connect to the composite video wire

1 Can be used for unbalanced audio. To do this, connect using the “+” and “G” terminal only (leave the “–” terminal

unconnected – see section 5.1)

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Using the WP-220E XGA/Audio/Video Line Driver

4.5 Your RGBHV Outputs

Figure 5 defines the 5 RGBHV BNC output connectors

of the WP-220E

which connect to the pre-installed wiring in the wall box opening that

connects to the XGA acceptor:

Figure 5: WP-220E RGBHV Outputs

5 Using the WP-220E XGA/Audio/Video Line Driver

You can use your WP-220E, for example, in a conference room, as the

example in Figure 6 illustrates:

Figure 6: Example of Conference Room WP-220E Installation

For details of how to:

 Install your WP-220E XGA/Audio/Video Line Driver, see section 5.1

 Operate your WP-220E XGA/Audio/Video Line Driver, see section 5.2

1 The WP-220E could be used for component HDTV by connecting YPbPr in place of GBR, and not connecting H and V

Using the WP-220E XGA/Audio/Video Line Driver

5.1 Installing the WP-220E XGA/Audio/Video Line Driver

To install your WP-220E XGA/Audio/Video Line Driver:

1. Connect the 5 BNC output connectors (each is color-coded: red (R), green

(G), blue (B), yellow (Vertical Sync), and white (Horizontal Sync)) to the

pre-installed wiring in the wall box opening that connects to the XGA

acceptor (for example, a projector).

2. Connect the balanced line / PC audio out terminal block connectors (for

example, to power amplifiers) as one of the following:

Figure 7: Connect to a Balanced Acceptor

Figure 8: Connect to an Unbalanced Acceptor

3. Connect your 12V DC power supply to the POWER pins

, taking care that

polarity is correct.

4. Connect the wires of the coax cable to the VIDEO OUT pins

, taking care

that polarity is correct.

5. Insert the WP-220E directly into the wall box opening, and then mount

the front panel securely using the screws.

5.2 Operating the WP-220E XGA/Audio/Video Line Driver

To operate your WP-220E XGA/Audio/Video Line Driver:

1. Connect an XGA

source (for example, a laptop’s graphics card) to the

Input HD15F connector and to the AUDIO Input 3.5mm mini jack, for

example, using a Kramer C-GMA/GMA cable (VGA HD15M +Audio

jack to VGA HD15M +Audio jack)

1 Connect the wire labeled “+” to the +12V pin, and the wire labeled “–” to the GND pin

2 Connect the composite video wire to the VIDEO pin, and the Ground wire to the GND pin (see Figure 9)

3 Can be used for any RGBHV resolution (for example, VGA, XGA, UXGA and so on)

4 Not supplied. The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com (click “Cables

and Connectors” in the Products section)
