USER MANUAL

Wall Plate Models:

SV-301

SV-302

SV-303

SV-304

SV-305

Contents

Introduction 1

Getting Started 1

Overview 2

Defining the Wall Plates (for the United States) 3

4.1

SV-301 and SV-302 (for the United States) 3

4.2

SV-303, SV-304, and SV-305 (for the United States) 4

Defining the Wall Plates (for Europe) 6

5.1

SV-301 and SV-302 (for Europe) 6

5.2

SV-303, SV-304, and SV-305 (for Europe) 7

Wiring the Rear Panel Connectors 9

6.1

Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors 9

6.2

Wiring the CAT 5 LINE IN / LINE OUT Terminal Block Connectors 10

Summary of Recommended Cables 11

Tables

Table 1: Defining the SV-301 and SV-302 (for the U.S.) 3

Table 2: Defining the SV-303, SV-304 and SV-305 (for the U.S.) 4

Table 3: Defining the SV-303, SV-304, SV-305 Rear (for the U.S.) 5

Table 4: Enclosing a Wall Plate (for the U.S.) in its Plastic Frame 5

Table 5: Defining the SV-301 (for England and Europe) 6

Table 6: Defining the SV-302 (for England and Europe) 6

Table 7: Defining the SV-303 (for England and Europe) 7

Table 8: Defining the SV-304 (for Europe) 7

Table 9: Defining the SV-305 (for Europe) 8

Table 10: CAT 5 PINOUT (for the USA) 9

Table 11: Terminal Block Connector PINOUT (for Europe) 10

Table 12: Cables for use with the SV-301/SV-302/SV-303/SV-304/SV-305 11

Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range

of problems that confront the video, audio, presentation, and broadcasting

professional on a daily basis. In recent years, we have redesigned and upgraded

most of our line, making the best even better! Our 1,000-plus different models

now appear in 11 groups

that are clearly defined by function.

Congratulations on purchasing your Kramer SV-301, SV-302, SV-303, SV-304,

and/or SV-305 wall plate device. Each is designed to work as an integral part of

Kramer’s A/V SummitView™ Standard Kit and the SummitView™ Essentials

Kit or as a standalone product controlled via a room controller—RC-63DL,

RC-62P,RC-62L,RC-63AL,RC-63AP, or RC-63DP

—in a multimedia

classroom or conference room.

The packageincludes:

One of the following items: SV-301, SV-302, SV-303, SV-304, or SV-305

This user manual

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original boxes and packaging

materials for possible future shipment

Review the contents of this user manual

Use Kramer high performance high resolution cables

, as recommended in

section 7

1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems; GROUP 4:

Format/Standards Converters; GROUP 5: Twisted-Pair Solutions; GROUP 6: Specialty AV Products; GROUP 7: Scan

Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and

Rack Adapters; GROUP 11: Sierra Products

2 Download the user manual at: http://www.kramerelectronics.com

3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Overview

3 Overview

This user manual describes the:

SV-301 and SV-302—provided as the default wall plate devices with the

SummitView™ Standard Kit and the SummitView™ Essentials Kit and

described in that user manual, as well as in sections 4.1 (the U.S. version)

and 5.1 (the European version)

SV-303, SV-304 and SV-305 in sections 4.2 (the U.S. version) and 5.2 (the

European version)

To achieve the best performance:

Connect only good quality connection cables, thus avoiding interference,

deterioration in signal quality due to poor matching, and elevated noise-

levels (often associated with low quality cables)

Avoid interference from neighboring electrical appliances and position your

Kramer Wall Plate away from moisture, excessive sunlight and dust

Caution – No operator-serviceable parts inside unit.

Warning – Use only the Kramer Electronics input power

wall adapter that is provided with this unit

Warning – Disconnect power and unplug unit from wall

before installing or removing device or servicing unit.

1 For example: model number AD2512C, part number 2535-000251

Defining the Wall Plates (for the United States)

4 Defining the Wall Plates (for the United States)

Section 4.1 defines the SV-301 and SV-302, and section 4.2 defines the

SV-303, SV-304 and SV-305.

4.1 SV-301 and SV-302 (for the United States)

Table 1 defines the front and rear views of the SV-301 and SV-302:

Table 1: Defining the SV-301 and SV-302 (for the U.S.)

SV-301: 2 RJ-45 CAT5

Connectors

SV-302 1 RJ-45 CAT5

Connector

# Feature Function

1 ON LED Lights in RED when

receiving power (when no

signal is detected); lights in

GREEN when receiving a

signal

2 COMPUTER

IN 15-pin HD

Connector

Connect to the computer

graphics source

3 AUDIO IN

3.5mm Mini

Plug

Connects to the audio

source

# Feature Function

1 L AUDIO

IN RCA

Connector

Connect to the left analog

audio source

2 ON LED Lights in RED when receiving

power (when no signal is

detected); lights in GREEN

when receiving a signal

3 R AUDIO

IN RCA

Connector

Connect to the right analog

audio source

4 VIDEO IN

RCA

Connector

Connect to the composite video

source

5 IR OUT

3.5mm

Mini Plug

Connect to a machine via an IR

Emitter

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Defining the Wall Plates (for the United States)

4.2 SV-303, SV-304, and SV-305 (for the United States)

Table 2 and Table 3 define the front and rear views of the SV-303, SV-304 and

SV-305, respectively:

Table 2: Defining the SV-303, SV-304 and SV-305 (for the U.S.)

SV-303: SV-304: SV-305:

Feature Function

1 L AUDIO

IN RCA

Connector

Connect to the

left analog

audio source

2 ON LED Lights in RED

when receiving

power (when

no signal is

detected); lights

in GREEN

when receiving

a signal

3 R AUDIO

IN RCA

Connector

Connect to the

right analog

audio source

4 s-VIDEO IN

Connector

Connect to the

s-Video source

5 IR OUT

3.5mm

Mini Plug

Connect to a

machine via

an IR Emitter

Feature Function

1 Y

2 PB

COMPONENT

VIDEO IN RCA

Connector

Connect to

the

component

video

source

4 ON LED Lights in

RED when

receiving

power (when

no signal is

detected);

lights in

GREEN

when

receiving a

signal

5 S/PDIF IN

RCA

Connector

Connect to

the digital

audio

source

6 IR OUT

3.5mm Mini

Plug

Connect to

a machine

via an IR

Emitter

Feature Function

1 Y

2 PB

COMPONENT

VIDEO IN RCA

Connectors

Connect to

the

component

video

source

4 ON LED Lights in RED

when receiving

power (when no

signal is

detected); lights

in GREEN when

receiving a

signal

5 R AUDIO

IN RCA

Connector

Connect to the

right analog

audio source

6 L AUDIO

IN RCA

Connector

Connect to the

left analog audio

source

7 IR OUT

3.5mm

Mini Plug

Connect to a

machine via an

IR Emitter

Defining the Wall Plates (for the United States)

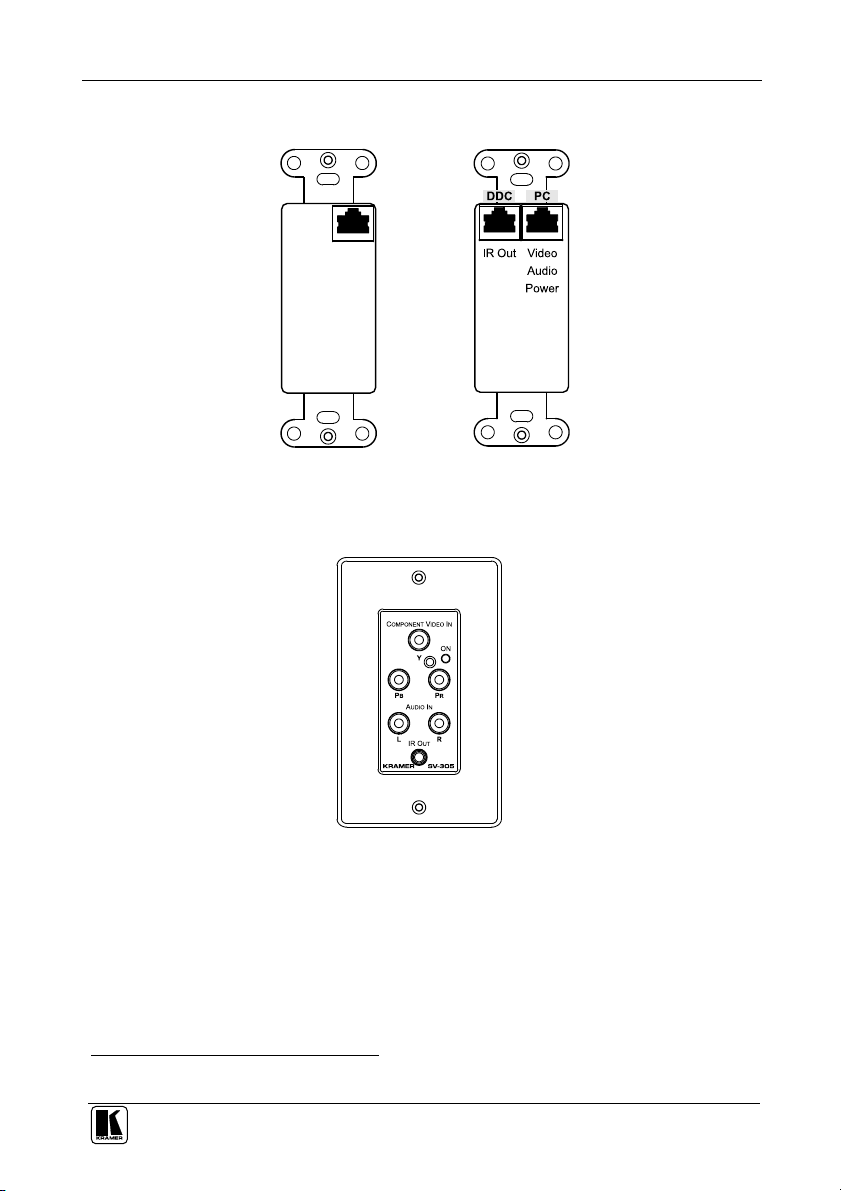

Table 3: Defining the SV-303, SV-304, SV-305 Rear (for the U.S.)

SV-303: SV-304 and SV-305:

1 RJ-45 CAT5 Connector 2 RJ-45 CAT5 Connectors

Table 4 defines the SV-305, as an example, in its plastic frame:

Table 4: Enclosing a Wall Plate (for the U.S.) in its Plastic Frame

1 Each model that is designed specifically for the US market fits inside a plastic frame

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Defining the Wall Plates (for Europe)

5 Defining the Wall Plates (for Europe)

Section 5.1 defines the SV-301 and SV-302, and section 5.2 defines the

SV-303, SV-304 and SV-305.

5.1 SV-301 and SV-302 (for Europe)

The SV-301 and SV-302 are 1 Gang wall plate inserts. The SV-301 has two

terminal block connectors at the rear and the SV-302 has one.

Table 5: Defining the SV-301 (for England and Europe)

Feature Function

1 ON LED Lights in RED when

receiving power (when no

signal is detected); lights

in GREEN when receiving

a signal

2 COMPUTER IN

15-pin HD

Connector

Connect to the computer

graphics source

3 AUDIO IN 3.5mm

Mini Plug

Connects to the audio

source

Table 6: Defining the SV-302 (for England and Europe)

Feature Function

1 ON LED Lights in RED when receiving

power (when no signal is

detected); lights in GREEN

when receiving a signal

2 L AUDIO IN

RCA Connector

Connect to the left analog

audio source

3 R AUDIO IN

RCA Connector

Connect to the right analog

audio source

4 VIDEO IN RCA

Connector

Connect to the composite video

source

5 IR OUT 3.5mm

Mini Plug

Connect to a machine via an

IR Emitter

1 When mounting in Belgium and Germany, use the standard WP Adapter

Defining the Wall Plates (for Europe)

5.2 SV-303, SV-304, and SV-305 (for Europe)

The SV-303 is a 1 Gang wall plate insert with one RJ-45 CAT5 connector at

the rear. The SV-304 and SV-305 are 2 Gang wall plate inserts with two RJ-45

CAT 5 connectors at the rear (available in a single version for Europe).

Table 7: Defining the SV-303 (for England and Europe)

Feature Function

1 ON LED Lights in RED when receiving

power (when no signal is

detected); lights in GREEN

when receiving a signal

2 L AUDIO IN

RCA Connector

Connect to the left analog

audio source

3 R AUDIO IN

RCA Connector

Connect to the right analog

audio source

4 s-VIDEO IN 4p

Connector

Connect to the s-Video source

5 IR OUT 3.5mm

Mini Plug

Connector

Connect to a machine via an

IR Emitter

Table 8: Defining the SV-304 (for Europe)

Feature Function

1 ON LED Lights in RED when receiving power (when no signal

is detected); lights in GREEN when receiving a signal

2 Y

3 PB

COMPONENT VIDEO

IN RCA Connectors

Connect to the component video source

5 S/PDIF IN RCA Connector Connect to the digital audio source

6 IR OUT 3.5mm Mini Plug Connect to a machine via an IR Emitter

1 When mounting in Belgium and Germany, use the standard WP Adapter

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Defining the Wall Plates (for Europe)

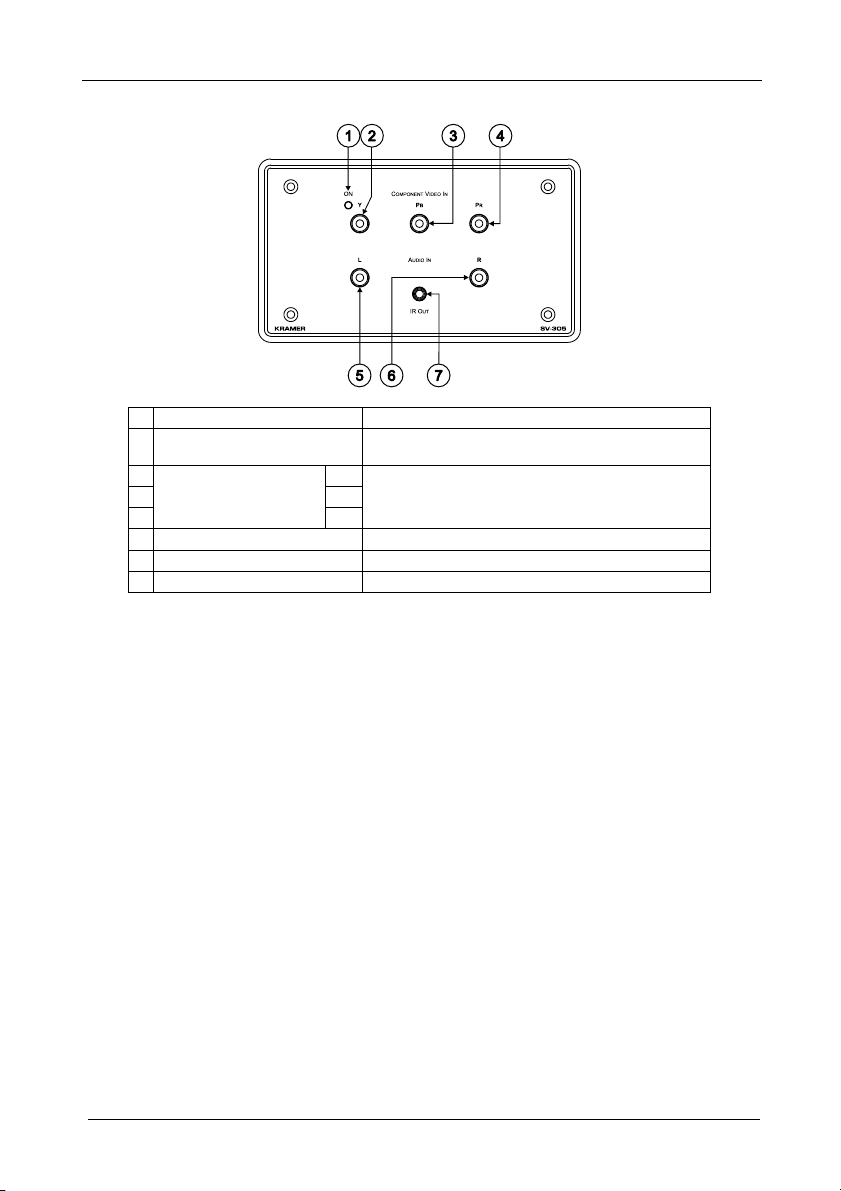

Table 9: Defining the SV-305 (for Europe)

Feature Function

1 ON LED Lights in RED when receiving power (when no signal

is detected); lights in GREEN when receiving a signal

2 Y

3 PB

COMPONENT VIDEO IN

RCA Connectors

Connect to the component video source

5 L AUDIO IN RCA Connector Connect to the left analog audio source

6 R AUDIO IN RCA Connector Connect to the right analog audio source

7 IR OUT 3.5mm Mini Plug Connect to a machine via an IR Emitter

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cables y conectores de Kramer

Kramer

Kramer UTBUS-1XL Manual de usuario

Kramer

Kramer RTBUS-21 Manual de usuario

Kramer

Kramer C-FODM/FODM-33 Manual de usuario

Kramer

Kramer WP-209 Manual de usuario

Kramer

Kramer UTBUS-2XL Manual de usuario

Kramer

Kramer RTBUS-24 Manual de usuario

Kramer

Kramer TBUS-4 Manual de usuario

Kramer

Kramer WSP-1 Manual de usuario

Kramer

Kramer WP-220 Manual de usuario

Kramer

Kramer TBUS-3 Manual de usuario

Kramer

Kramer CRS-AOCH/CLR/60 Manual de servicio

Kramer

Kramer RTBUS-28XL Manual de usuario

Kramer

Kramer WP-210 Manual de usuario

Kramer

Kramer WAV-6UAB Manual de usuario

Kramer

Kramer KRT-4-LAN Manual de usuario

Kramer

Kramer WP-230 Manual de usuario

Kramer

Kramer WP-210A Manual de usuario

Kramer

Kramer WP-210E Manual de usuario

Kramer

Kramer 612T Manual de usuario

Kramer

Kramer K-Able Box Manual de usuario

Kramer

Kramer TBUS-100XL Manual de usuario

Kramer

Kramer 612T Manual de usuario

Kramer

Kramer VM-10H2 Manual de usuario

Kramer

Kramer MODULAR TBUS-1A Manual de usuario

Manuales populares de Cables y conectores de otras marcas

Philips

Philips SWA6310 Manual de usuario

StarTech.com

StarTech.com CRJ4550PK Manual de usuario

Nohau

Nohau EMUL-IP2K-PC Manual de usuario

Foxun

Foxun SX-SP144E-HD4K2K Manual de usuario

Philips

Philips SWA3305W Manual de usuario

opticis

opticis Stretch DVIM1-1P0x Manual de usuario

Volkswagen

Volkswagen VAS 6558A Manual de usuario

NEXIBO

NEXIBO N-13 Manual de usuario

CYP

CYP PU-1H3HBTL Manual de usuario

Allen-Bradley

Allen-Bradley 1784-u2dhp Manual de usuario

Global Caché

Global Caché Flex Link Blaster Manual de usuario

Hauppauge

Hauppauge USB-Live2 Manual de usuario

Fenix

Fenix MPSV 15 Manual de usuario

BEGA

BEGA 71 085 Manual de usuario

Tesla

Tesla HPWC Manual de usuario

GAMERON

GAMERON LUXURY TV CABLE Manual de usuario

molex

molex Milli-Grid Dual row 87568 Series Manual de usuario

Burndy

Burndy Continental Industries thermOweld CRE-7 Manual de usuario
