USER MANUAL

MODEL:

RTBUS-21xl

Round Table Connection Bus

P/N: 2900-300439 Rev 2

RTBUS-21xl – Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 2

2.3 Recycling Kramer Products 3

3Overview 4

4Defining the RTBUS-21xl 5

4.1 Power Socket Options 7

4.2 The RTBUS-21xl Connecting Surface 8

5Installing the RTBUS-21xl 9

5.1 Drilling a Hole in the Table 9

5.2 Installing the Power Socket 10

5.3 Mounting the RTBUS-21xl in the Table 11

5.4 Connecting the Cables and Wires 12

6Using the RTBUS-21xl 13

7Technical Specifications 14

Figures

Figure 1: RTBUS-21xl Top View 5

Figure 2: RTBUS-21xl Connecting Surface 8

Figure 3: RTBUS-21xl Universal Power Socket Housing 10

Figure 4: Connecting the Cables 12

Figure 5: RTBUS-21xl Boardroom Installation 13

RTBUS-21xl - Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 14 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11:

Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and

GROUP 14: Collaboration.

Thank you for purchasing the Kramer RTBUS-21xl Round Table Connection Bus,

which is ideal for using in boardrooms, conference and training rooms!

RTBUS-21xl - Getting Started

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Go to http://www.kramerelectronics.com/support/product_downloads.asp

to check for up-to-date user manuals, application programs, and to check if

firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

Position your Kramer RTBUS-21xl away from moisture, excessive sunlight

and dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

2.2 Safety Instructions

Warning:

Do not open the unit. High voltages can cause

electrical shock! Servicing by qualified personnel only

RTBUS-21xl - Getting Started

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

RTBUS-21xl - Overview

3 Overview

The RTBUS-21xl is an elegant furniture-mounted, round connection bus. The

RTBUS-21xl features a pneumatic mechanism for pneumatic lifting and smooth

closing of its lid. It is easily installed into a table or podium top, and its interface

enables you to connect any equipment to systems installed in a room via the

following pass-through connectors:

1 PC on a 15-pin HD connector

1 stereo audio on a 3.5mm connector

1 HDMI connector

1Ethernet port on an RJ-45 connector

C14 power socket

The RTBUS-21xl supports HDMI with Deep Color, x.v.Color™, Lip Sync, HDMI

Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, and CEC.

Suitable for any of the following power sockets: for the USA, the UK, Germany

(the Europlug), Belgium-France, Switzerland, Italy, Australia, Brazil, Israel, South

Africa or “Universal” for use anywhere (see compatibility restrictions in

Section 4.1)

Order the power sockets separately from Kramer Electronics

We offer the RTBUS-21xl in either a black anodized or a brushed clear aluminum

surface.

RTBUS-21xl - Defining the RTBUS-21xl

4 Defining the RTBUS-21xl

Figure 1: RTBUS-21xl Top View

RTBUS-21xl - Defining the RTBUS-21xl

Feature

Function

Black anodized or brushed

aluminum semi-automatic lid

Covers the connecting surface, leaving the table surface

neat and tidy

Outer Rim

Fits over the table surface

Pneumatic Mechanism

Enables automatic lifting and smooth closing of the lid

Connecting Surface

See Figure 2

IEC socket

Connect to an IEC power cord (can be purchased

separately)

Power Socket Opening

Screw Holes (8)

For installing/replacing the power socket

The four inner screw holes are used to install the Italian

power socket and the four outer screw holes are used for

the other power socket types

Power Socket Opening

Suitable for various power sockets (see Section 4.1)

Rubber Protectors

Protect the table surface when mounting the unit (2)

Mounting Screws

For securing the RTBUS-21xl to the table (2)

Locking Butterfly Nuts

Tighten to lock the mounting butterfly screw (2)

Mounting Butterfly Nuts

Tighten to secure the unit to the table surface (2)

Mounting Brackets (2 units)

Place in the bracket slits after inserting the enclosure into

the table –for securing the unit to the table surface

Mounting Bracket Slits (two

sets on each side)

Insert the mounting brackets to the slits when installing

the RTBUS-21xl (see Section 5.3).

RTBUS-21xl - Defining the RTBUS-21xl

4.1 Power Socket Options

A choice of power sockets is available for purchase in several versions, including

power sockets for the USA, Brazil, Germany (the Europlug), UK, Switzerland,

Belgium-France, Italy, South Africa, Israel and Australia. A “Universal” socket for

general use is also available (see the compatibility restrictions in the table below).

Note that the photos below are for illustration purposes only.

Power Socket

Type

Power Specs

Description

Universal:

TS-201U (80-000043)

100-240V AC, 50/60Hz, 5A

Maximum 5A per power

outlet

Fully compatible with power plugs in the

UK, India, Italy and Denmark, as well as

with the 2-prong Europlug.

Partially compatible (if the polarity is

reversed) with plugs in China, Switzerland,

Israel and the USA. The universal socket

does not supply grounding to plugs in Central

Europe and France and so you should order

country specific sockets instead.

Not compatible with South African plugs.

Power Socket

Type

Power Specs

Power

Socket Type

Power Specs

USA:

TS-201US (80-000046)

100-125V AC, 50/60Hz, 5A

Maximum 5A per power

outlet

Italy:

TS-201IT (80-000047)

100-240V AC, 50/60Hz, 5A

Maximum 5A per power

outlet

Germany and EU:

TS-201DE (80-000044)

100-240V AC, 50/60Hz, 5A

Maximum 5A per power

outlet

Australia:

TS-201AU (80-000050)

100-240V AC, 50/60Hz, 5A

Maximum 5A per power

outlet

Belgium and

France:

TS-201FR (80-000045)

100-240V AC, 50/60Hz, 5A

Maximum 5A per power

outlet

Israel:

TS-201IL (80-000053)

100-240V AC, 50/60Hz, 5A

Maximum 5A per power

outlet

South Africa

TS-201ZA (80-000052)

100-240V AC, 50/60Hz, 5A

Maximum 5A per power

outlet

Brazil

TS-201BR (80-000051)

100-240V AC, 50/60Hz, 5A

Maximum 5A per power

outlet

Switzerland

TS-201CH (80-000049)

100-240V AC, 50/60Hz, 5A

Maximum 5A per power

outlet

England

TS-201GB (80-000048)

100-240V AC, 50/60Hz, 5A

Maximum 5A per power

outlet

Otros manuales para RTBUS-21

Tabla de contenidos

Otros manuales de Cables y conectores de Kramer

Kramer

Kramer RTBUS-28XL Manual de usuario

Kramer

Kramer VM-10H2 Manual de usuario

Kramer

Kramer WP-210E Manual de usuario

Kramer

Kramer RTBUS-24 Manual de usuario

Kramer

Kramer KRT-4-LAN Manual de usuario

Kramer

Kramer 6010 Manual de usuario

Kramer

Kramer TBUS-100XL Manual de usuario

Kramer

Kramer TBUS-3 Manual de usuario

Kramer

Kramer CLS-AOCH/xl Manual de usuario

Kramer

Kramer UTBUS-1XL Manual de usuario

Kramer

Kramer WP-220E Manual de usuario

Kramer

Kramer C-FODM/FODM-33 Manual de usuario

Kramer

Kramer UTBUS-2XL Manual de usuario

Kramer

Kramer MODULAR TBUS-1Axl Manual de usuario

Kramer

Kramer WP-210A Manual de usuario

Kramer

Kramer RTBUS-27xl Manual de usuario

Kramer

Kramer T6F-09 Manual de usuario

Kramer

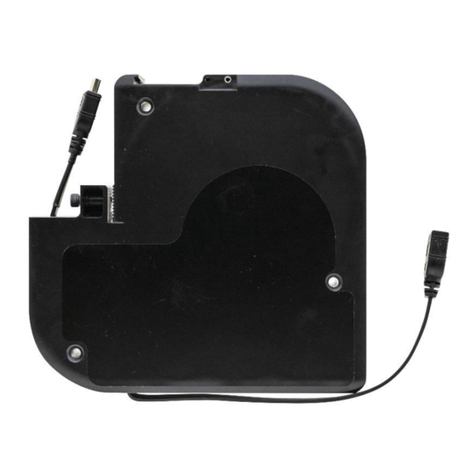

Kramer KRT-3 Manual de usuario
