INSTALLATION MANUAL

A797-9601-01

Applied Machines: /

Be sure to correctly follow the procedures in order as explained in this Installation Manual.

If you do not follow the procedure in order, the image trouble may occur.

1. Outline of installation procedures

When installing the main body and associated options as a system, follow the order shown on the upper.

Caution:

• Lifting the main body in an awkward position or transporting it in a poorly balanced position could result in

personal injury. When transporting the main body, assign an adequate number of persons to the job and

ensure that each person can take a good position of not being excessively loaded.

(mass: approx. 72 kg (158-3/4 lb))

Note:

• For the detailed installation procedures for each option, follow the instructions given in the corresponding

installation manual and perform the procedures correctly.

• When placing the main body on the floor, make sure to use the paper feed cabinet or the desk to secure

the performance and the quality of the product.

• To use this machine, install the reverse automatic document feeder or the original cover.

• Once the Power Switch is turned ON, do not turn OFF it until the installation work has been completed.

Machine

MK-734

KH-102

HD-522*

AU-102

AU-201S

PC-214 PC-414 DK-514PC-114

PK-519

FK-513

MK-748

UK-211

MK-602 FS-533

KP-101

SP-501

HT-509

DF-628 OC-514

RU-514

PK-520

FS-534JS-506 FS-534SD

MK-735

WT-506

EK-608 EK-609

UK-212

CU-101

MK-603

*: Varies depending on the

applicable marketing area

E-2

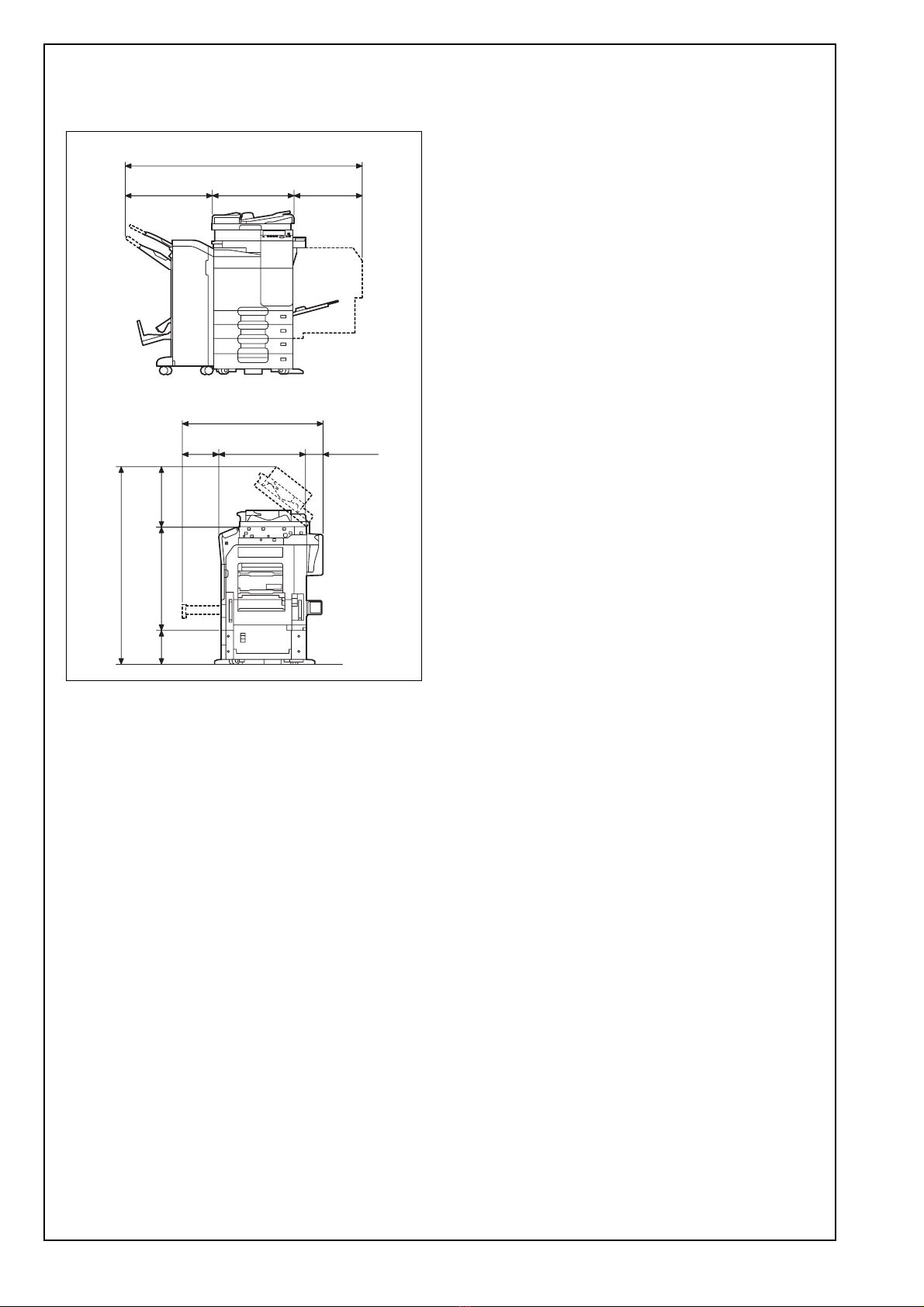

2. Installation space (unit: mm (inch))

bizhub C287 + DF-628 + PC-214 + FS-534

+ MK-748/CU-101

3. Pre-installation check items

(1) Select a level and stable place for installing the

machine.

(2) Be sure to use a power source of the voltage and

frequency indicated in the product specifications.

Ensure that the current carrying capacity of the

power outlet is at least equal to the current listed

in the product specifications.

(3) Power the machine directly from a dedicated

power outlet. (Do not use an extension cord.)

(4) Do not plug or unplug the power cord with wet or

dirty hands, otherwise you may get an electric

shock.

(5) Avoid a hot and humid environment, or a place

exposed to direct sunlight.

(6) Avoid a dusty location, or a place near volatile

and flammable substances.

(7) Avoid a poorly ventilated place.

4. Notes on using touch panel

Be sure to instruct users on the following points.

• Pressing the touch panel hard may cause dam-

age.

• Do not strongly press the panel or press it using

the sharp tip of mechanical pencils.

585

(23-1/16)

493

(19-7/16)

1724

(67-7/8)

646

(25-7/16)

1216

(47-7/8)

430

(16-15/16)

660

(26)

1561

(61-7/16)

528

(20-13/16)

779

(30-11/16)

254

(10)

126

(4-15/16)

E-3

5. Accessory parts

* Varies depending on the applicable marketing

area.

* Power supply: 120V 12A, 220-240V 8A

Note:

This manual provides the illustrations of the acces-

sory parts and machine that may be slightly differ-

ent in shape from yours. In that case, instead of

the illustrations, use the appearance of your

machine to follow the installation procedure. This

does not cause any significant change or problem

with the procedure.

6. Installing the main body and the Paper

Feed Cabinet (or the Desk)

(1) Take the main body and the Paper Feed Cabinet

(or the Desk) out from its packaging.

Caution:

Main body mass: approx. 72 kg (158-3/4 lb)

Make available collective manpower of an appro-

priate size for transporting the main body.

Note:

Remove the main body, holding it by the locations

on the left side and the handles on the right side

as shown in the illustration and keeping it level.

(2) Refer to the installation manual for the Paper

Feed Cabinet (or the Desk) and follow the

“Installation Procedures.”

Note:

If installing the Heater HT-509 and the Power Sup-

ply BOX MK-734, install them at the same time as

the installation of the Paper Feed Cabinet (or the

Desk).

No. Name Q’ty

1. User’s guide holder 1

2. Quick start guide 1

3. Installation manual 1 set

4. User’s guide CD 1

5. CD-ROM 1 set

6. Paper size label 1

7. Panel sheet 1

8. Blank label 1

9. Power cord * 1

10. Connector cover 1

11. Duct cover 1

12. Screw 1

13. Stylus pen 1

14. Waste toner box 1

Keep this bag away from babies and

children. Do not use in cribs, beds,

carriages, or playpens.

The thin film may cling to nose and

mouth and prevent breathing. This bag is

not a toy.

If a power cord is not supplied, use only

the power cord that meets the following

conditions.

Failure to do this could result in a fire or

electrical shock.

• The power cord has voltage and current rating

appropriate for the rating plate on this machine.

• The power cord meets regulatory requirements

for the area.

• The power cord is provided with grounding

pin/terminal.

When holding the transportation handles,

be careful not to catch your fingers in the

machine.

E-4

7. Removing protective tape, packing and

other shipping materials

(1) Remove the protective tape and the protective

materials.

(2) Open the right door and remove the locking

materials.

Note:

• After removing the locking materials, make sure

that the transfer roller assy is secured in place.

In the case of <NG>, press the transfer roller

assy into place so that it is secured as shown in

<OK>.

• Save the locking materials removed in this and

subsequent steps of (11) and (15) for later use

when transporting the machine.

(3) Remove the protective sheet as shown in the

illustration.

< OK > < NG >

E-5

(4) Move the fusing adjustment lever down to the

printing position (bottom).

(5) Close the right door.

(6) Remove the protective film from the control

panel.

(7) Slide out the tray 1.

(8) Remove the protective tape from the inside of

the tray 1 and remove accessory parts.

(9) Slide out the tray 2.

(10) Remove the protective tape from the inside of

the tray 2 and remove accessory parts.

(11) Remove the locking material at the left side of

the scanner unit.

(12) Affix the supplied blank label.

(13) Open the front door.

E-6

(14) Remove the protective tape.

(15) Remove the locking materials from the four

places.

(16) Release the lever of the drum unit (K).

(17) Slightly slide the drum unit (K) out and remove

the protective tape and protective material.

(18) Slide the drum unit (K) into the machine.

(19) Lock the drum unit (K) with the lever.

(20) Install the supplied waste toner box.

Note:

• Push the areas indicated by the “ ” marks to

set the waste toner box to the machine.

• Check the levers on the left and right sides that

it is securely locked.

8. Installing the toner cartridge

Note:

Since a toner cartridge is not supplied with the

machine, purchase one (of different colors) sepa-

rately.

(1) Shake the toner cartridge up and down and left

to right 5 to 10 times respectively.

Note:

Shake the cartridge adequately. Otherwise, it may

cause trouble.

E-7

(2) Insert the toner cartridge into the machine.

Note:

• Make sure that the color is same between

inserting port and the toner cartridge.

• Make sure that the blue label position of the

toner cartridge is matched with the one of the

machine side.

(3) Push the toner cartridge all the way in and rotate

it clockwise to lock it.

Note:

Make sure that the toner cartridge is pushed all the

way in.

(4) Using the same procedure, install the toner car-

tridges for other colors of toner.

(5) Close the front door.

9. Installing other options

To install other options, refer to the installation man-

ual for each option and follow the “Installation Proce-

dures.”

10. Mounting the accessory parts

(1) Set the stylus pen in the place shown in the illus-

tration.

(2) Attach the supplied connector cover to the

machine. (One supplied screw)

(3) Attach the supplied duct cover.

E-8

11. Connecting the power cord

(1) Connect the power cord.

Note:

This may not be performed depending on the

applicable marketing area.

(2) Plug the power cord into the power outlet.

12. Starting the machine

Turn ON the power switch on the right side of the

main body.

13. Date & Time Setting/Time Zone Setting

(Service Mode)

(1) Display the Service Mode screen.

(For details of how to display the Service Mode

screen, see the service manual.)

(2) Display the Date & Time Setting/Time Zone Set-

ting screen.

(To display the Date & Time Setting/Time Zone

Setting screen, press Stop →3 on the control

panel.)

(3) Do not input date and time but touch “Entry” of

the Date & Time Setting.

(4) Input the time zone using up/down keys or direct

keys.

(5) Touch “Entry” of the Time Zone Setting.

(6) Touch “Apply.”

(7) Touch “OK.”

(8) Touch “Next.”

14. Serial number input

Note:

Serial number input is, if necessary, needed only

for the optional devices installed in “9. Installing

other options.”

(1) Touch the item you want to enter and input the

serial number.

(2) Touch “END.”

(3) For other devices, enter their serial number in

the same way.

(4) Touch “END.”

(5) Touch “Next.”

15. Unit change

Note:

This function allows the user to select the type of

message that will appear when the replacement

time arrives for each of the different units.

(1) Select the appropriate message type for each

unit.

(2) Touch “Service.”

Use the appropriate power cord.

Failure to do this could result in a fire or

electrical shock.

E-9

16. Performing Non-Image Area Erase

Check

Note:

Perform the below at the site where customer

uses the machine.

(1) Select the Non-Image Area Erase Check func-

tion as follows:

Machine →Non-Image Area Erase Check.

(2) Open fully the reverse automatic document

feeder or the original cover if loaded.

Note:

• Do NOT place a document on the document

glass.

• Clean the document glass if dirty.

(3) Press the Start key.

(4) Make sure that “Result” is “OK.”

Note:

If “Result” is “NG1” or “NG2”, review the place and

direction of installation, or take measures to block

the light source (by covering it, etc.), then perform

installation checking again.

(If a fluorescent light or other bright light sources

exist right above the machine, the light source can

hinder installation checking and cause operation

errors in the Non-Image Area Erase Check. For

detailed information, see the service manual.)

(5) Touch “OK.”

17. Configuring other options

(1) If any of the following options are installed, refer

to the “Configuration procedures” of the installa-

tion manual for each option and configure the

option(s).

• Reverse Automatic Document Feeder DF-628

• Stamp Unit SP-501

•FaxKitFK-513

• Punch Kit PK-520/PK-519

• Local Interface Kit EK-609

• Upgrade Kit UK-212/UK-211

• Paper Feed Cabinet PC-414

• Hard Disk HD-522

(Do not perform this procedure for options

already installed as standard equipment.)

• Authentication Unit AU-201S/AU-102

• Clean Unit CU-101

•NetworkFax

(2) Exit from the Service Mode and return to the ini-

tial screen.

18. Connecting the network cable

(1) Connect the main body and networking equip-

ment (HUB) using the network cable.

Note:

The following shows the recommended network

cables that correspond to each communication

speed.

• 10BaseT/100BaseTX: Category 5

• 1000BaseT: Category 5E, Category 6

Networkport

LED1

LED2

E-10

(2) Check LEDs for lighting conditions.

LED1:

Should light up steadily if the link network con-

nection has been made.

LED2:

Should blink according to the communications

status of the ACT network.

19. Network setting

Make the TCP/IP address setting for the network.

Note:

Consult the network administrator for the setting

value to be entered and make settings as

required.

(1) Select the function to be used as follows:

Menu →Utility →Administrator Settings →Enter

the Administrator Password →Network Settings

→TCP/IP Settings →IPv4 Settings.

(2) Touch “Manual Input” of IP Application Method

and make the following settings.

IP Address: IP address of the controller

Subnet Mask: Subnet mask of the network, to

which the machine is connected

Default Gateway: IP address of the default gate-

way

(3) Touch “OK.”

(4) Touch “OK” after the “TCP/IP Settings” screen is

displayed.

(5) Select the function to be used as follows:

Forward →Forward →Detail Settings →PING

Confirmation, and make the operation check of

TCP/IP.

20. Restarting the machine

Turn the power switch on the right side of the main

body OFF and ON again after 10 or more seconds

have passed.

21. Adjusting each option

If any of the following options are installed, adjust

each option as necessary. (Refer to the “Adjustment

procedures” of the installation manual for each

option.)

• Paper Feed Cabinet PC-414/PC-214/PC-114

• Reverse Automatic Document Feeder DF-628

• Finisher FS-534SD

• Punch Kit PK-520/PK-519

22. Affixing the paper size label

Affix the paper size labels that correspond to the

sizes of paper used in each tray.

See the User’s Guide CD for instructions on setting

paper in each tray and configuring the paper types.

23. Installing the user’s guide holder

Install the user’s guide holder.

24. Affixing the panel sheet

Affix the supplied panel sheet to the surface of the

operation panel.

Note:

• The panel sheet is affixed on customer request.

• The panel sheet must be kept by the customer.

Note:

After completing all the steps, take a sample

copy in color mode, and confirm the image. If

image troubles occur, first turn OFF and ON the

Main Power Switch, and then redo the steps

from E-8 “13. Date & Time Setting/Time Zone

Setting (Service Mode)” to E-8 “15. Unit change.”

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Impresora de Konica Minolta

Konica Minolta

Konica Minolta Color Care IQ-501 Manual de usuario

Konica Minolta

Konica Minolta Magicolor 5450 Manual de usuario

Konica Minolta

Konica Minolta magicolor 2430 DL Guía de inicio rápido

Konica Minolta

Konica Minolta bizhub 20 Instrucciones originales

Konica Minolta

Konica Minolta bizhub PRESS C6000 Manual

Konica Minolta

Konica Minolta PagePro 1350W Manual de usuario

Konica Minolta

Konica Minolta Magicolor 2350 EN Manual de usuario

Konica Minolta

Konica Minolta magicolor 1650EN Instrucciones de montaje

Konica Minolta

Konica Minolta 2230 Manual de usuario

Konica Minolta

Konica Minolta Magicolor 2550 Manual

Konica Minolta

Konica Minolta bizhub PRESS C70hc Instrucciones originales

Konica Minolta

Konica Minolta magicolor 4750EN/4750DN Manual de usuario

Konica Minolta

Konica Minolta bizhub PRESS C6000 Manual

Konica Minolta

Konica Minolta Magicolor 5430 DL Manual de usuario

Konica Minolta

Konica Minolta PagePro 1300W Manual de usuario

Konica Minolta

Konica Minolta PagePro 1250W. Manual de usuario

Konica Minolta

Konica Minolta bizhub 4000P Manual de usuario

Konica Minolta

Konica Minolta bizhub PRO 951 Manual de instalación

Konica Minolta

Konica Minolta magicolor 1600W Manual de usuario

Konica Minolta

Konica Minolta magicolor 7450 II Manual de usuario

Konica Minolta

Konica Minolta PAGEPRO 4650EN Manual de usuario

Konica Minolta

Konica Minolta magicolor 4750EN/4750DN Manual de usuario

Konica Minolta

Konica Minolta magicolor 8650 Manual de usuario

Konica Minolta

Konica Minolta bizhub 40p Manual de usuario

Manuales populares de Impresora de otras marcas

Lexmark

Lexmark 1400 Series Manual

Canon

Canon i70 Series Manual de usuario

Evolis

Evolis Elypso Manual de usuario

Kyocera

Kyocera FS-9530DN Manual de usuario

Canon

Canon LASER SHOT LBP-1210 Manual de usuario

Samsung

Samsung BIXOLON SRP-350plusF Manual de usuario

Canon

Canon PIXMA PRO-1 Series Manual de usuario

Canon

Canon PIXMA G3560 Guía de configuración

Dell

Dell Color Laser Printer 2130cn Manual de usuario

Tektronix

Tektronix Phaser 840 Manual de usuario

Epson

Epson ET-7750 Instrucciones de funcionamiento

Canon

Canon CLBR 460ps Manual de usuario

Eltron

Eltron P210 Guide Manual de usuario

Ricoh

Ricoh MD-P1 Manual de usuario

Epson

Epson SC-F7100 series Manual de usuario

Epson

Epson Stylus C40UX Manual de usuario

Canon

Canon imagePASS-A2 Manual de usuario

Canon

Canon S820D Manual de usuario

Konica Minolta bizhub C287 Manual de usuario

Manuales populares de Impresora de otras marcas
