Kohler K-1106 Manual de usuario

Installation Guide

ProFlex™ Series Bath Whirlpool

K-1106, K-1106-H, K-1126,

K-1126-H, K-1131, K-1131-H,

K-1139, K-1139-H, K-1144,

K-1144-H, K-1146, K-1146-H,

K-1148, K-1148-H, K-1154-CC,

K-1154, K-1154-H, K-1154-HC,

K-1157, K-1157-H, K-1192,

K-1192-H, K-1194, K-1194-H,

K-1196, K-1196-H, K-1198,

K-1198-H, K-1201, K-1201-H,

K-1209, K-1209-H, K-1221,

K-1221-H, K-1224, K-1224-H,

K-1226, K-1226-H, K-12441B,

K-1244, K-1246, K-1246-H,

K-1231, K-1231-H, K-1239,

K-1239-H, K-1244-H, K-1248,

K-1248-H, K-1257, K-1257-H,

K-1263, K-1263-H, K-1266,

K-1266-H, K-1337, K-1337-H,

K-1458, K-1458-H

Mproduct numbers are for Mexico (i.e. K-12345M)

Los números de productos seguidos de Mcorresponden a México

(Ej. K-12345M)

Français, page “Français-1”

Español, página “Español-1”

1010564-2-B

Important Information

WARNING: When using electrical products, basic precautions should always be followed, including

the following:

DANGER: Risk of electric shock. Connect only to a circuit protected by a Ground-Fault

Circuit-Interrupter (GFCI).

Building materials and wiring should be routed away from the pump body and other heat-producing

components of the unit.

Install to permit access for servicing.

Grounding is required. The unit should be installed by a qualiﬁed service representative, and grounded.

WARNING: Risk of electric shock. A licensed electrician should make all electrical connections.

WARNING: Risk of electric shock. Disconnect power before servicing.

WARNING: Risk of injury or property damage. Please read all instructions thoroughly before

beginning installation, including the following requirements.

NOTICE: Follow all local plumbing and electrical codes.

Product Information

Electrical Requirements

The installation must have a Class A Ground-Fault Circuit-Interrupter (GFCI). The GFCI protects against

line-to-ground shock hazard. Use a 120 V, 15 A, 60 Hz dedicated service for the whirlpool.

“H” models require a separate 120 V, 15 A, 60 Hz dedicated service for the in-line heater.

Product Notices

WARNING: Unauthorized modiﬁcation may cause unsafe operation and poor performance of the

whirlpool. Do not relocate the whirlpool pump, or make other modiﬁcations to the whirlpool system,

as this could adversely affect the performance and safe operation of the whirlpool. Kohler Co. shall not

be liable under its warranty or otherwise for personal injury or damage caused by any such

unauthorized modiﬁcation.

Factory-Assembled Features

Factory installed components include pump with power supply cord and air switch transmitter. No

installation is needed.

“H” models are also supplied with a factory assembled, in-line heater.

An optional timer kit is available for this product.

The whirlpool pump and piping are factory-assembled.

Connections and Service Access

Before installation, ensure proper access to the ﬁnal connections.

1010564-2-B 2 Kohler Co.

Product Information (cont.)

NOTICE: Provide unrestricted service access to the pump. You must provide access for servicing the

pump and controls. The access must be located immediately next to the pump. Study the roughing-in

information packed with the whirlpool.

Table of Contents

Important Information .............................................................. 2

Product Information ............................................................... 2

Electrical Requirements .......................................................... 2

Product Notices ................................................................ 2

Factory-Assembled Features ...................................................... 2

Connections and Service Access ................................................... 2

Thank You For Choosing Kohler Company .............................................. 4

Tools and Materials ............................................................... 4

Before You Begin ................................................................. 4

Prepare the Site ................................................................. 5

Prepare the Whirlpool ............................................................. 5

Secure the Unit — Models With Support Blocks .......................................... 6

Option Using a Cement or Mortar Bed ............................................... 6

Option Using Construction Adhesive ................................................. 6

Option Using Silicone Sealant ..................................................... 7

Secure the Unit — Models With Whirlpool Base .......................................... 8

Option Using a Cement or Mortar Bed ............................................... 8

Option Using Construction Adhesive ................................................. 8

Option Using Silicone Sealant ..................................................... 8

Cut the Pump Banding Straps — Models With Support Blocks ............................... 9

Install the Plumbing ............................................................... 9

Install a Rim-Mounted Faucet ....................................................... 10

Make Electrical Connections ........................................................ 11

Pump Wiring ................................................................. 11

In-Line Heater Wiring ........................................................... 11

Test Run the Whirlpool ............................................................ 11

Complete the Finished Deck ........................................................ 12

Clean-Up After Installation ......................................................... 12

Conﬁrm Proper Operation .......................................................... 13

Fill the Whirlpool .............................................................. 13

Operating Sequence ........................................................... 13

Troubleshooting Procedure ......................................................... 14

Remove the Factory Installed Jets ................................................. 14

Reinstall the Jets .............................................................. 14

Troubleshooting Guide .......................................................... 14

Kohler Co. 3 1010564-2-B

Thank You For Choosing Kohler Company

We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before

you start your installation. If you encounter any installation or performance problems, please don’t hesitate

to contact us. Our phone numbers and website are listed on the back cover. Thanks again for choosing

Kohler Company.

Tools and Materials

Before You Begin

CAUTION: Risk of product damage. Do not lift the whirlpool by the piping or pump, or use the

piping or pump for structural support of the whirlpool.

We recommend this whirlpool for drop-in installation.

Inspect the whirlpool for damage before you begin installation.

You must install this whirlpool to an adequately supported, level subﬂoor.

Conﬁrm adequate mounting and connection space for the faucet speciﬁed for your installation.

Pencil

Safety Glasses Level

Silicone Sealant Measuring Tape

Pipe Wrench

Plus:

Conventional woodworking tools

and materials or conventional

bricklaying tools and materials

Drop cloth

Construction adhesive (optional)

Cement or mortar (optional)

2x4’s or 2x6’s

1010564-2-B 4 Kohler Co.

1. Prepare the Site

NOTICE: Unless otherwise speciﬁed, ﬂoor support under the whirlpool must provide for a minimum of

80 lbs./square foot (390 Kg./square meter) loading.

NOTICE: Do not support the whirlpool by the rim.

Make sure the ﬂooring offers adequate support for your whirlpool, and verify that the subﬂoor is ﬂat and

level.

The whirlpool should be installed in a drop-in installation. Construct 2x4 or 2x6 stud framing designed for

your particular installation. Provide for a 1/16” (2mm) gap between the bottom of the whirlpool rim and

the stud framing. Frame the ﬂoor, or construct a frame for a raised installation in accordance with the

roughing-in information packed with the whirlpool.

Carefully lay out and cut the rough deck material. Use the cut-out template if one is provided, or refer to

the roughing-in cut-out information.

Position the plumbing according to the roughing-in information packed. Cap the supplies, and check for

leaks.

2. Prepare the Whirlpool

Install the drain to the whirlpool according to the drain manufacturer’s instructions. Do not connect the

trap at this time.

Position a clean drop cloth or similar material in the bottom of the whirlpool. Be careful not to scratch the

surface of the whirlpool.

Position

the rough

plumbing

Frame the floor

according to the

roughing-in

information

Verify that the

subfloor offers

adequate support,

and is flat and level

Provide a 1/16"

(2mm) gap

between the

whirlpool rim

and framing.

Construct 2x4

or 2x6 stud

framing according

to the roughing-in

information

Kohler Co. 5 1010564-2-B

3. Secure the Unit — Models With Support Blocks

CAUTION: Risk of product damage. Do not lift the whirlpool by the piping or pump, or use the

piping or pump for structural support of the whirlpool.

CAUTION: Risk of product damage. Do not support the whirlpool by the rim.

Choose the installation option that best applies to your particular installation. Follow the appropriate

instructions.

If the subﬂoor is not level, shim the whirlpool support blocks as necessary.

Option Using a Cement or Mortar Bed

NOTE: Do not use gypsum cement or drywall compound for this application, as they will not provide an

acceptable, durable bond.

NOTE: The pump support bracket (when the pump banding straps are cut) and support blocks must

rest directly on the subﬂoor.

Spread a 2” (5cm) thick layer of cement or mortar on the subﬂoor where the whirlpool will be set. This

will help secure, level, and support the unit. Clear all the material away from the pump support bracket

and support block locations.

Position a piece of plastic drop cloth material on top of the cement or mortar bed. With help, carefully lift

the whirlpool into place, and make sure the pump support bracket and support blocks do not rest in the

bed material.

Insert the drain tailpiece into the trap. Make sure the whirlpool is level and resting on all support blocks.

Remove the protective tape from the rim. Apply a continuous bead of high-quality silicone sealant around

the entire rim of the whirlpool.

Option Using Construction Adhesive

Apply a generous amount of high-quality construction adhesive to the bottom of the support blocks. With

help, carefully lift the whirlpool into position.

Insert the drain tailpiece into the trap. Make sure the whirlpool is level and resting on all support blocks.

Remove the protective tape from the rim. Apply a continuous bead of high-quality silicone sealant around

the entire rim of the whirlpool.

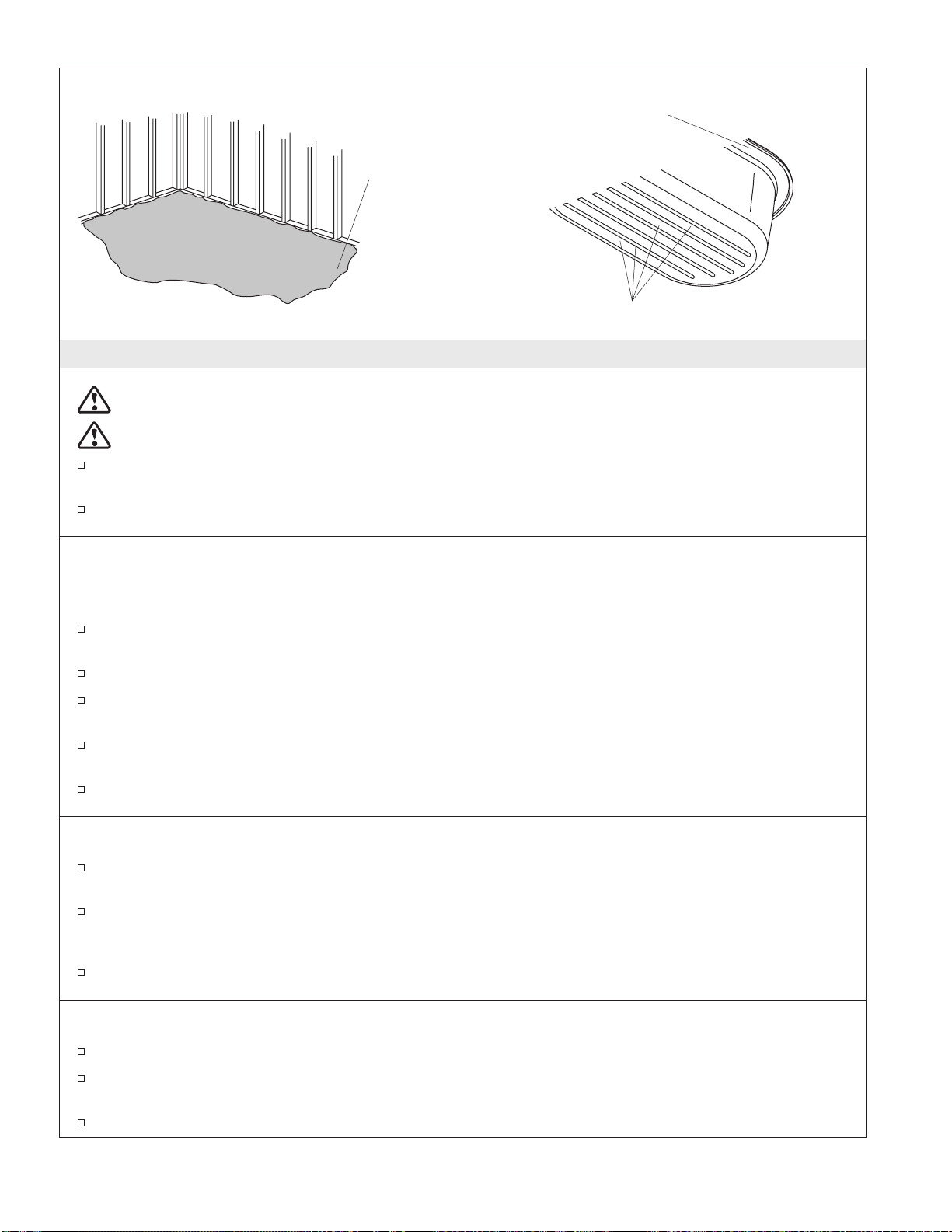

Clear spaces

for support

blocks

Spread a 2" (5cm)

layer of cement or

mortar bed materia

Clear space

for pump

Apply a bead of

silicone sealant

around the entire

rim

Apply construction

adhesive to the

support blocks

1010564-2-B 6 Kohler Co.

Secure the Unit — Models With Support Blocks (cont.)

Option Using Silicone Sealant

With help, carefully lift the whirlpool into position.

Insert the drain tailpiece into the trap. Make sure the whirlpool is level and resting on all support blocks.

Remove the protective tape from the rim. Apply a continuous bead of high-quality silicone sealant around

the entire rim of the whirlpool.

Kohler Co. 7 1010564-2-B

4. Secure the Unit — Models With Whirlpool Base

CAUTION: Risk of product damage. Do not lift the whirlpool by the piping or pump, or use the

piping or pump for structural support of the whirlpool.

CAUTION: Risk of product damage. Do not support the whirlpool by the rim.

Choose the installation option that best applies to your particular installation. Follow the appropriate

instructions.

If the subﬂoor is not level, shim the whirlpool base as necessary.

Option Using a Cement or Mortar Bed

NOTE: Do not use gypsum cement or drywall compound for this application, as they will not provide an

acceptable, durable bond.

Spread a 2” (5cm) thick layer of cement or mortar on the subﬂoor where the whirlpool will be set. This

will help secure, level, and support the unit.

With help, carefully lift the whirlpool into place.

Insert the drain tailpiece into the trap. Make sure the whirlpool is level. Use screws or lag bolts to secure

the whirlpool base to the ﬂoor. Drill small pilot holes through the whirlpool base as needed.

Position a piece of plastic drop cloth material on top of the cement or mortar bed. With help, carefully lift

the whirlpool into place.

Apply a continuous bead of high-quality silicone sealant around the entire rim of the whirlpool.

Option Using Construction Adhesive

Apply a generous amount of high-quality construction adhesive to the bottom of the whirlpool base. With

help, carefully lift the whirlpool into position.

Insert the drain tailpiece into the trap. Make sure the whirlpool is level and resting on all support blocks.

Use screws or lag bolts to secure the whirlpool base to the ﬂoor. Drill small pilot holes through the

whirlpool base as needed.

Apply a continuous bead of high-quality silicone sealant around the entire rim of the whirlpool.

Option Using Silicone Sealant

With help, carefully lift the whirlpool into position.

Insert the drain tailpiece into the trap. Make sure the whirlpool is level. Use screws or lag bolts to secure

the whirlpool base to the ﬂoor. Drill small pilot holes through the whirlpool base as needed.

Apply a continuous bead of high-quality silicone sealant around the entire rim of the whirlpool.

Spread a 2"

(5cm) layer

of cement o

mortar bed

material

Apply a bead of

silicone sealant

around the entire

rim

Apply construction

1010564-2-B 8 Kohler Co.

5. Cut the Pump Banding Straps — Models With Support Blocks

NOTE: For models with a whirlpool base, proceed to the next section.

IMPORTANT! This step is necessary to make your Kohler whirlpool operate more quietly.

NOTE: Do not raise the pump higher than it was before you cut the pump banding straps. If the pump is

raised too high, it will not prime properly.

Use tin snips to cut the two pump banding straps. When the banding straps are cut, the pump support

bracket and pump will drop about 1/2” (1.3cm) until they rest on the subﬂoor. If the pump drops more

than 1/2” (1.3cm), shim under the pump support bracket so there is a 1/2” (1.3cm) gap between the pump

and bracket to allow for proper drainage.

To minimize whirlpool noise and vibration, be sure the pump is not in direct contact with the shipping

bracket after the pump banding straps are cut.

Secure the pump support bracket to the subﬂoor with screws or lag bolts (not provided).

6. Install the Plumbing

CAUTION: Risk of property damage. Ensure a watertight seal on the whirlpool drain.

Connect the drain to the trap according to the drain manufacturer’s instructions.

NOTICE: An access panel will simplify future maintenance.

Install the faucet valving according to the faucet manufacturer’s instructions. Do not install the faucet trim

until instructed. Open the hot and cold water supplies, and check the supply connections for leakage.

Run water into the whirlpool, and check the drain connections for leakage.

Kohler Co. 9 1010564-2-B

7. Install a Rim-Mounted Faucet

Measure and cut a piece of 1/2″exterior grade plywood 4″(10.2cm) x 11-1/2″(29.2cm) for the K-1226, or

4″(10.2cm) x 15-1/2″(39.4cm) for the K-1231.

The faucet should be located in the center of the ﬂat area of the rim. Refer to the faucet manufacturer’s

instructions. Use a pencil to mark the faucet centerlines for drilling.

NOTE: The K-1226 will accept faucets with 4″centers, and the K-1231 will accept faucets with 4″or 6″

centers.

CAUTION: Risk of product damage. Position a thin piece of cardboard on the ﬁnished surface of the

whirlpool before clamping the plywood in place. Make sure the clamps do not make direct contact

with the ﬁnished surface of the whirlpool.

Set a thin piece of cardboard on the ﬁnished surface of the whirlpool rim. Position the plywood on the

bottom of the rim, and carefully clamp the plywood in place. Make sure the clamps are in contact with the

cardboard, not the ﬁnished surface of the whirlpool.

Carefully drill the faucet holes to the size required by the faucet manufacturer. Remove the clamps and

cardboard.

Install the faucet to the rim and plywood according to the faucet manufacturer’s instructions.

Open the hot and cold water supplies, and check the supply connections for leakage.

Run water into the whirlpool, and check the drain connections for leakage.

Measure, cut, and drill a piece o

1/2” exterior grade plywood 4”

(10.2cm) x 11-1/2” (29.2cm) for

the K-1226, or 4” (10.2cm) x

15-1/2” (39.4cm) for the K-1331

4” 4”

Whirlpool Rim

Install the faucet to the ri

and plywood according to

the faucet manufacturer’s

instructions

1010564-2-B 10 Kohler Co.

Otros manuales para K-1106

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Bañera de Kohler

Kohler

Kohler Mariposa K-1257-W1 Manual de usuario

Kohler

Kohler Memoirs K-723 Guía de inicio rápido

Kohler

Kohler Hourglass K-1209-LA Guía de inicio rápido

Kohler

Kohler K-1375 Instrucciones de montaje

Kohler

Kohler K-1418-HC Instrucciones de montaje

Kohler

Kohler PRELUDE K-8266T Manual de usuario

Kohler

Kohler K-513-H2 Guía de inicio rápido

Kohler

Kohler K-1143 Instrucciones de montaje

Kohler

Kohler K-1151 Manual de usuario

Kohler

Kohler K-1123-LA-0 Manual de usuario

Kohler

Kohler K-1259 Guía de inicio rápido

Kohler

Kohler Mariposa K-1257-GHRAW Manual de usuario

Kohler

Kohler Archer K-2595-G Manual de usuario

Kohler

Kohler Underscore K-1167-RH2-33 Instrucciones de montaje

Kohler

Kohler Maestro K-842-V-AB Manual de usuario

Kohler

Kohler K-1365 Instrucciones de montaje

Kohler

Kohler 1237791-2-G Instrucciones de montaje

Kohler

Kohler Maestro K-842-H Manual de usuario

Kohler

Kohler VOLUTE K-20610T Manual de usuario

Kohler

Kohler K-11344 Manual de usuario

Kohler

Kohler Mariposa BubbleMassage K-1224-GRA Manual de usuario

Kohler

Kohler Iron Works Tellieur K-727 Instrucciones de montaje

Kohler

Kohler Underscore K-1822-GVB Manual de usuario

Kohler

Kohler K-156 Instrucciones de montaje

Manuales populares de Bañera de otras marcas

Agua

Agua BARTOLI-66 Manual de usuario

PAA

PAA PRELUDE Manual de usuario

BETTE

BETTE SILHOUETTE Manual de usuario

American Standard

American Standard Whirlpool/Bathing Pool 2748.XXXW Manual de usuario

Oliveri

Oliveri Naples Manual de usuario

Lyons

Lyons Elite ETLxx663219 Series Manual de usuario

Woodbridge

Woodbridge BJ500 Instrucciones de montaje

Whirlpool

Whirlpool Ariel ARL-702 Manual de usuario

TEIKO

TEIKO EXCELLENT DUO Manual de usuario

American Standard

American Standard Colony 5-1/2' x 32" Manual de usuario

American Standard

American Standard 3052OD.X0X Guía de inicio rápido

agape

agape MARSIGLIA AVAS1075 Manual de usuario

Kallista

Kallista P50045-G5 Instrucciones de montaje

Ariel

Ariel AM Series Manual de usuario

Agua

Agua BAHLI-60 Manual de usuario

DURAVIT

DURAVIT XViu 700443 Manual de usuario

American Standard

American Standard Colony 2740 Series Manual de usuario

Rapsel

Rapsel OFURO Manual
