KOBE CX1842GS-8 Guía de solución de problemas

KOBE Brand Range Hood

Model No. CX1830GS-8 (30”)

CX1836GS-8 (36”)

CX1842GS-8 (42”)

CX-183 SERIES – 4” HEIGHT STAND ALONE

“GLASS CANOPY WITH LED SCREEN”

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS ....................................................................................... 1



COMPONENTS OF PACKAGE..................................................................................................... 3



INSTALLATION ............................................................................................................................. 4



Preparations before Installation.................................................................................................. 4



Hood Installation......................................................................................................................... 5



Wiring to Power Supply.............................................................................................................. 7



Recirculating Conversion ........................................................................................................... 7



Ductwork Installation .................................................................................................................. 8



Duct Cover Installation ............................................................................................................... 8



Final Assembly........................................................................................................................... 8



OPERATING INSTRUCTION ........................................................................................................ 9



MAINTENANCE........................................................................................................................... 11



SPECIFICATIONS....................................................................................................................... 13



MEASUREMENTS & DIAGRAMS ............................................................................................... 14



PART LIST................................................................................................................................... 15



CIRCUIT DIAGRAM..................................................................................................................... 17



TROUBLE SHOOTING................................................................................................................18



DISCLAIMER............................................................................................................................... 19



WARRANTY ................................................................................................................................ 20



PRODUCT REGISTRATION ....................................................................................................... 22



- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN

ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,

OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance with all

applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden

utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE

PANEL.

b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air properly,

make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl spaces

or garages.

NOTE - This warranty is invalid without an authorized agent’s receipt or if unit is

damaged due to misuse, poor installation, improper use, mistreatment,

negligence or any other circumstances beyond the control of KOBE

RANGE HOODS authorized agents. Any repair carried out without the

supervision of KOBE RANGE HOODS authorized agents will

automatically void the warranty.

- KOBE RANGE HOODS will not be held responsible for any damages to

personal property or real estate or any bodily injuries whether caused

directly or indirectly by the range hood.

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE TOP

GREASE FIRE:

- Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease should

not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.

- Always turn hood ON when cooking.

- Use high settings on cooking range ONLY when necessary.

- Do not leave cooking range unattended when cooking.

- Always use cookware and utensils appropriate for the type and amount of food prepared.

- Use this unit only in the manner intended by the manufacturer.

- Before servicing, switch power off at service panel and lock service panel (if possible) to prevent power

from switching on accidentally.

Clean ventilating fan frequently.

What to Do In The Event Of a Range Top Grease Fire

• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.

KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go

out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.

• NEVER PICK UP A BURNING PAN – You May Get Burned.

• DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.

• Use an extinguisher ONLY if:

a) You have a Class A, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

Extinguish any open flame.

Do not try to turn on the lights or any type of appliance.

Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and Fire

Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and vapors.

2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion and

exhausting of gases through the flue (chimney) to prevent back drafting.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as those published by

the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and

Air Conditioning Engineers (ASHRAE), and code authorities.

4) Activating any switch on may cause ignition or an explosion.

5) Due to the size and weight of this hood, two people installation is recommended.

ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.

Disconnect appliance from electric power before servicing. If equipped,

the fluorescent light bulb contains small amounts of mercury, which must

be recycled or disposed of according to Local, State, and Federal Codes.

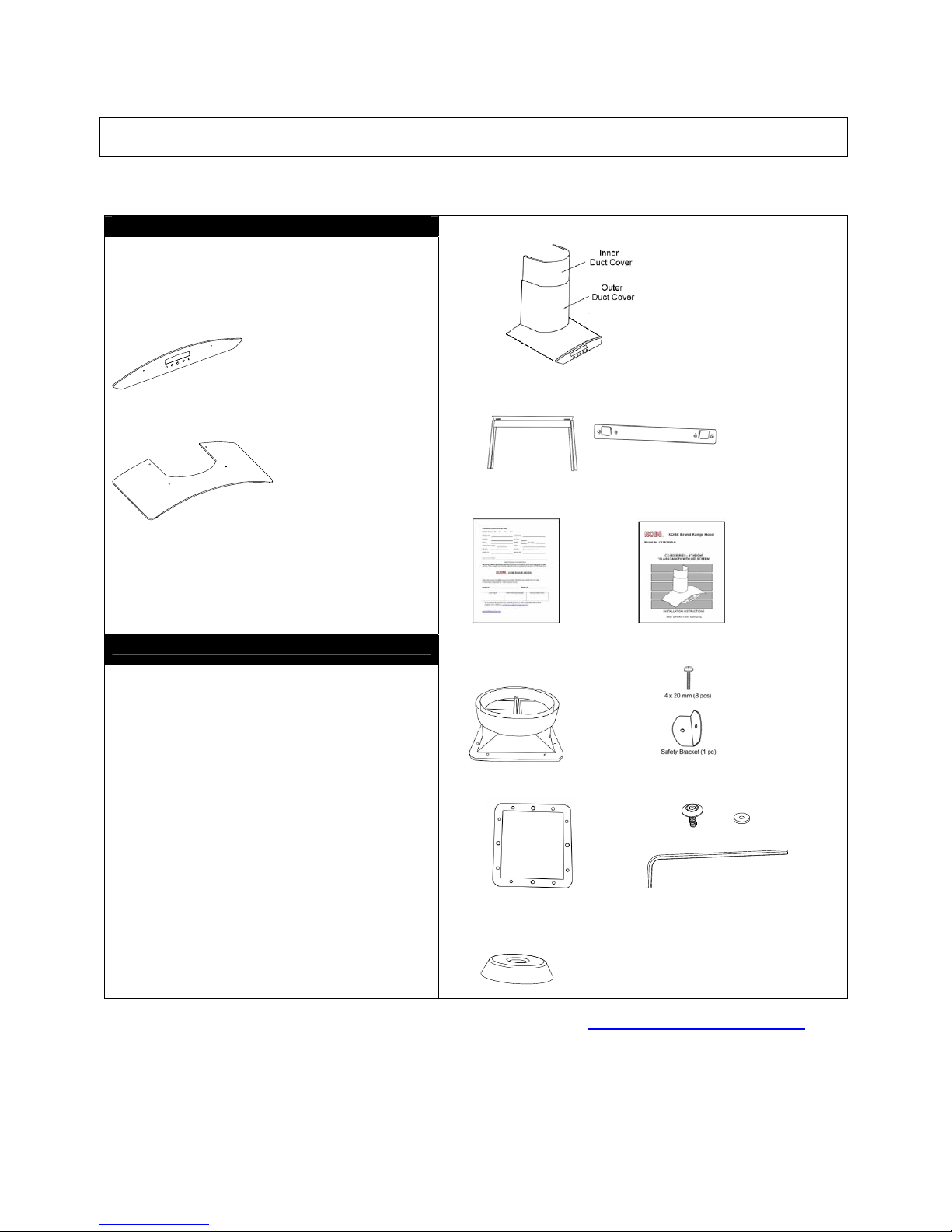

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

Range Hood Box (Box 1 of 2)

{A} LED Screen And Control Panel

{B} Glass Canopy

{A}

{B}

Box 2 of 2

{C} KOBE Range Hood with Two-Piece

Duct Cover

{D} Duct Cover-Mounting Bracket

{E} Hood-Mounting Bracket

{F} Warranty Registration Card

{G} Instructions Manual

{H} Plastic Damper

{I} Screws Package

{J} Rubber Seal

{K} Glass Canopy Screws Set

{L} Oil Container

{C}

{D} {E}

{F} {G}

{H} {I}

{J} {K}

{L}

FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.KOBERangeHoods.com OR

CONTACT KOBE RANGE HOODS AT (877) 289-5623.

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

Calculation before Installation

To calculate installation, please refer to Table 1. (All calculation in inches.)

SAFETY WARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF

REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD MAY

OCCUR.

Preparations before Installation

NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM

ENTERING THE VENT OPENING.

- Decide the location of the venting pipe from the hood to the outside. Refer to Figure 1.

- A straight, short venting run will allow the hood to perform more efficiently.

- Try to avoid as many transitions, elbows, and long run as possible. This may reduce the

performance of the hood.

- Use duct tape to seal the joints between pipe sections.

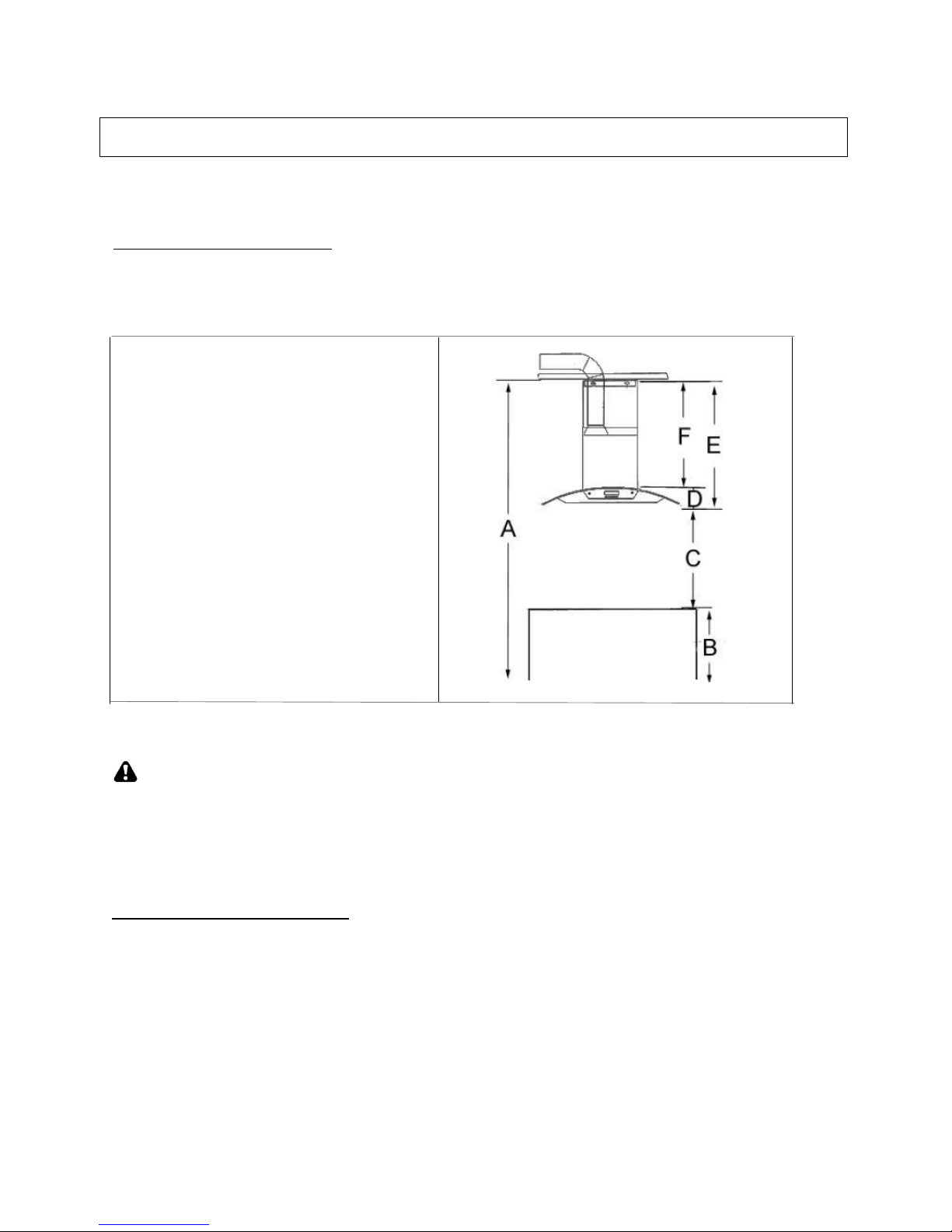

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter

Top (Standard: 36”)

C = Preferred Height of Counter Top to

Hood Bottom (Recommended 27”

to 30”)

D = Height of Hood

E = Height of the Hood

Installation [A – (B + C)]

F = Height of Duct Cover [E – D]

- If necessary, prepare back wall frame with cross framing lumber for secure installation.

Using references in Table 1 and measurements on page 14, decide the level of the

lumber. Refer to Figure 2.

- Important: peel protective film off the duct cover and the hood (if any).

Hood Installation

CAUTION: If required to move the cooking range to install the hood,

turn off the power in an electric range at the main electrical box.

SHUT OFF THE GAS BEFORE MOVING A GAS RANGE.

1.Peel protective film off duct cover and hood, if any. Pull out duct

cover (inner and outer) from range hood. Shown in Figure 3

2.Align glass canopy to hood body. Shown in Figure 4. Attach the glass canopy to body

with four hexagon screws and four spacers (provided). Tighten with hexagon wrench

(provided). Shown in Figure 5

3.Attach the LED screen and control panel with two hexagon

screws and two spacers (provided). Tighten with hexagon

wrench (provided). Shown in Figure 6

Figure 1 Figure 2

Figure 3

Figure 4 Figure 5

Figure 6

4.Place rubber seal on hood venting area; make sure the openings on rubber seal are aligned

with openings in vent area. Shown in Figure 7. Align plastic damper on rubber seal and

attach to hood using eight 4x20 mm screws (provided). Refer to Figure 8

5.If necessary, remove the two rubber stands at the back of the

hood. For a more secure installation, KOBE recommends not

removing the rubber stands.

6.Using references in Table 1 and Measurement & Diagrams on

page 14, mark the leveling line for hood-mounting bracket.

Secure hood-mounting bracket to wall with screws (not provided).

Refer to Figure 9.

7.Align hood to the hood-mounting bracket on the wall and hook

hood into place as shown in Figure 10 & 11. CAUTION: MAKE

SURE THE HOOD IS SECURE BEFORE RELEASING.

8.For safety purposes, install the safety bracket (provided) with one

screw (not provided) to the wall as shown in Figure 12.

Figure 12

Figure 9

Figure7 Figure 8

Figure 10 Figure 11

Wiring to Power Supply

SAFETY WARNING

RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST BE PROPERLY GROUNDED.

MAKE SURE THIS IS DONE BY SPECIALIZED ELECTRICIAN IN ACCORDANCE WITH ALL

APPLICABLE NATIONAL AND LOCAL ELECTRICAL CODES. BEFORE CONNECTING

WIRES, SWITCH POWER OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO

PREVENT POWER FROM BEING SWITCHED ON ACCIDENTALLY.

9.Connect three wires (black, white and green) to house wires.

10.Connect according to color: black to black, white to white, and green to green and cap with

wire connectors.

11.Test the operation of the hood before moving on to the next step. Make sure power is

supplied to the hood.

12.If venting outside, skip to Step 19, Ductwork Installation.

Recirculating Conversion

Requires Purchase of Recirculating Kit Model No. RD-0183.

13.For the recirculating installation, replace the duct

cover-mounting bracket with the T-Box. Using references in

Table 1 and Measurement & Diagrams on page 14 to mark the

leveling line for the T-Box. Secure the T-Box with 3 screws (not

provided) to the wall. Use duct tape to seal joints from plastic

damper to T-Box. (Recirculating Duct Cover will hook onto

T-Box.) Refer to Figure 13.

14.Measure the distance from the top of the plastic damper to the ceiling and prepare a 7” round

metal duct pipe with 4” shorter than measured distance.

15.Use the prepared 7” round metal duct pipe to connect the T-Box to the plastic damper. Use

duct tape to make all joints secure and air tight. Make sure pipe is in the groove of the plastic

damper. Refer to Figure 14

16.Remove stainless steel filters and install the carbon filters. (Refer to Figure 20)

17.Re-attach the stainless steel filters.

18.Skip to Step 21, Duct Cover Installation

Figure 13

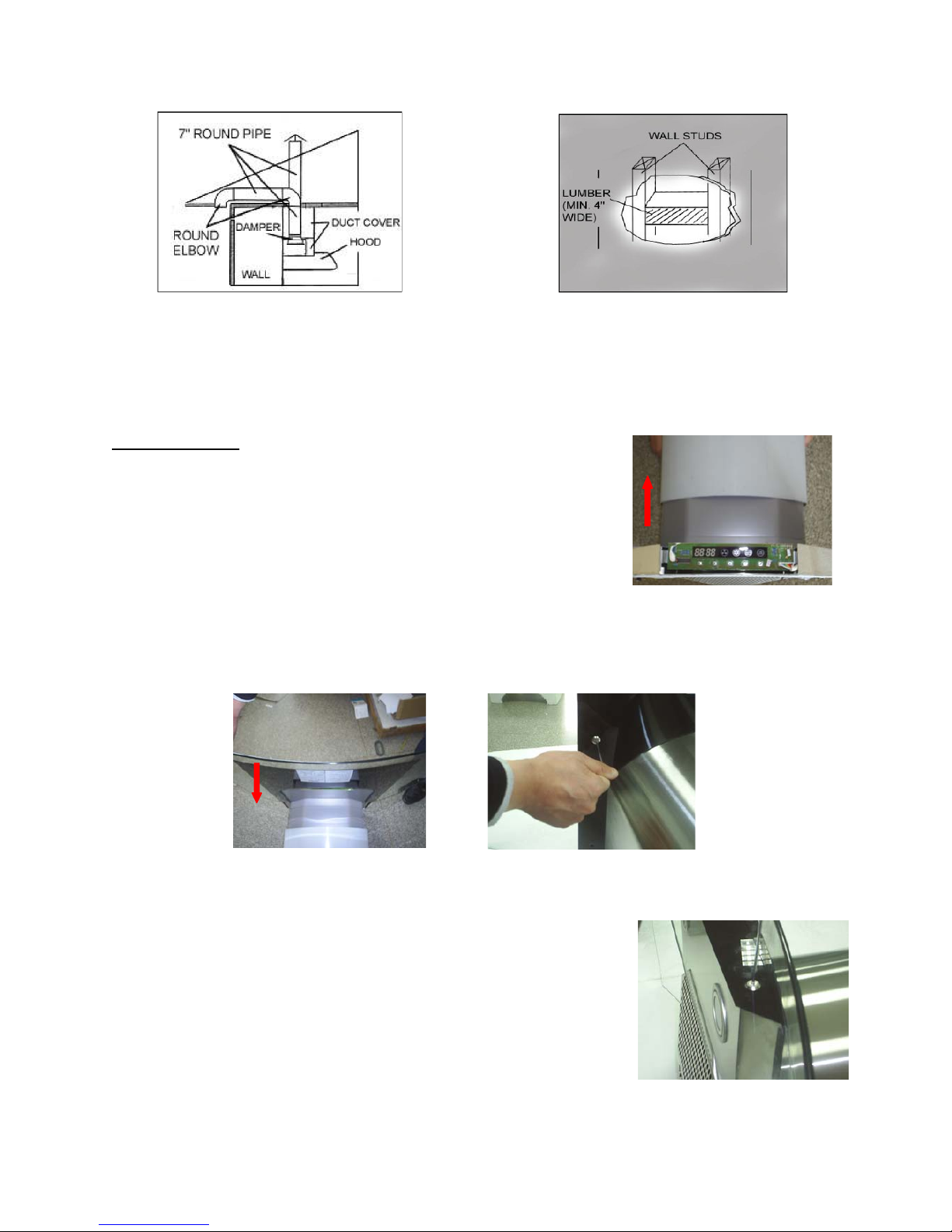

Ductwork Installation

19.Use 7” round aluminum or steel pipe to connect the plastic

damper on the hood to the ductwork above.

20.Use duct tape to make all joints secure and air tight. Make

sure pipe is in the groove of the plastic damper. Refer to

Figure 14.

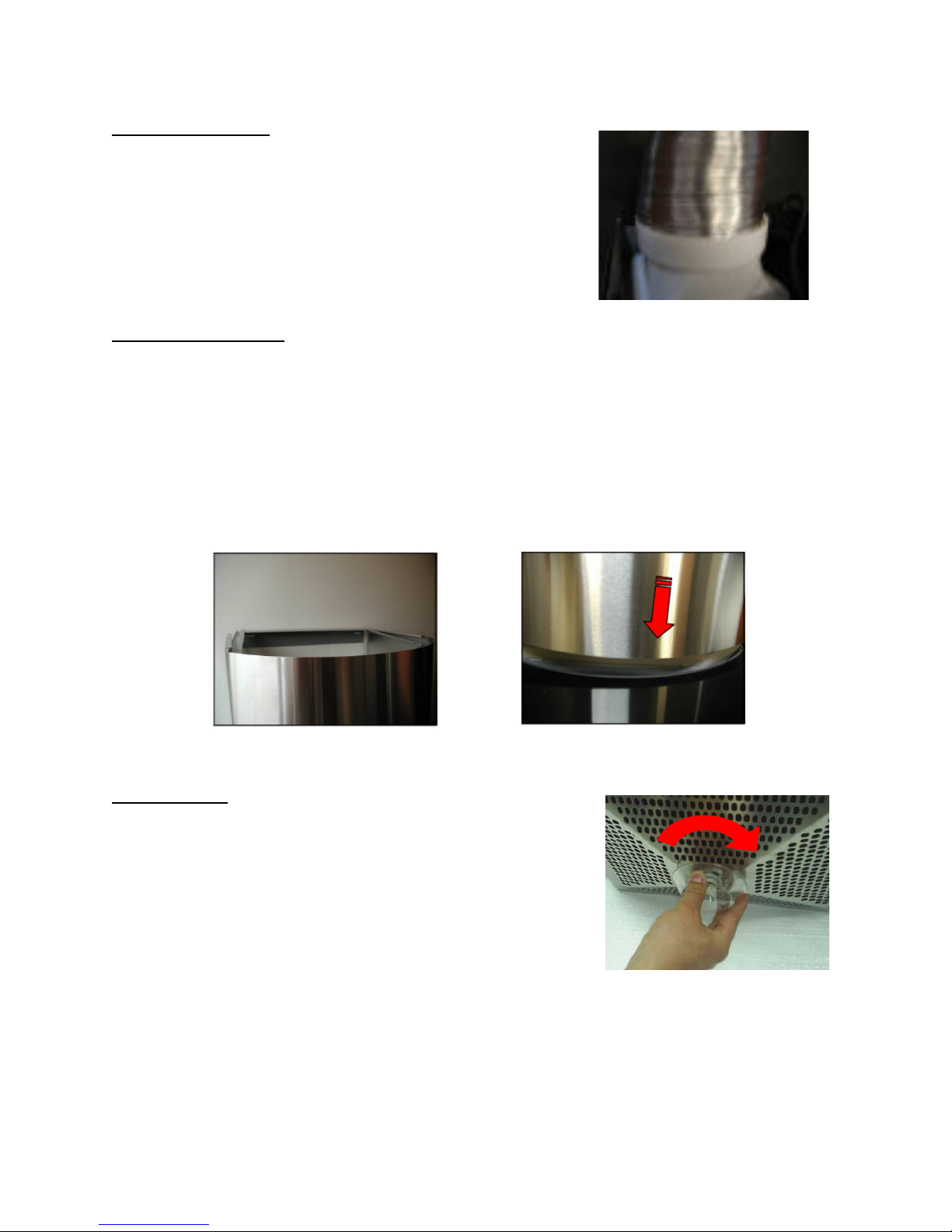

Duct Cover Installation

21.(SKIP STEP 22 and 23 IF USING THE RECIRCULATING CONVERSION KIT. YOU WILL

NOT NEED THE DUCT COVER-MOUNTING BRACKET.) Using references in Table 1 and

measurements on page 14, mark the leveling point for duct cover-mounting bracket.

22.Secure the duct cover-mounting bracket to the wall with two screws (not provided). Refer to

Figure 15. Make sure all screws are tightened.

23.Hook the inner duct cover onto the duct cover-mounting bracket and release the outer duct

cover to fit onto the hood as shown in Figure 15 and 16.

Final Assembly

24.Rotate the oil container clockwise to install it. Shown in Figure

17.

25.Turn power ON in control panel. Check all lights and fan

operation.

26.Make sure to leave this manual for the homeowner.

Figure 15 Figure 16

Figure 14

Figure 17

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Campana de ventilación de KOBE

KOBE

KOBE Brillia CHX91 SQB-2 Series Guía de solución de problemas

KOBE

KOBE ISX2130SQB-2 Guía de solución de problemas

KOBE

KOBE IS2136SQB Guía de solución de problemas

KOBE

KOBE CH27 SQB-5 Series Guía de solución de problemas

KOBE

KOBE CH2730SQ3 Series Guía de solución de problemas

KOBE

KOBE IN2630SQB-700-2 Guía de solución de problemas

KOBE

KOBE IN26 SQB-650-5 Series Guía de solución de problemas

KOBE

KOBE RA0230SQB Guía de solución de problemas

KOBE

KOBE RA92 SQB-1 Manual de usuario

KOBE

KOBE INX2830SQH-700-1 Guía de solución de problemas

KOBE

KOBE CHX9136SQB-1 Guía de solución de problemas

KOBE

KOBE INX29 SQBF-500-1 Series Manual de uso y cuidado

KOBE

KOBE INX26 SQB-700-3 Series Guía de solución de problemas

KOBE

KOBE INX2730SQB-700-1Brillia Series Guía de solución de problemas

KOBE

KOBE CH2230SQ-1 Guía de solución de problemas

KOBE

KOBE CH8036SQ Guía de solución de problemas

KOBE

KOBE RA9436SQF Guía de solución de problemas

KOBE

KOBE RAX9530SQB-1 Guía de solución de problemas

KOBE

KOBE IN-027 Series Guía de solución de problemas

KOBE

KOBE PREMIUM IN2630SQB-700 Guía de solución de problemas

KOBE

KOBE Brillia CHX9130SQB-2 Guía de solución de problemas

KOBE

KOBE CHX79 Manual de usuario

KOBE

KOBE CH2230SQ Guía de solución de problemas

KOBE

KOBE RA2830SB Guía de solución de problemas

Manuales populares de Campana de ventilación de otras marcas

emmeti

emmeti RECUPA MED A-140 Guía

Nibe

Nibe F135 Manual de usuario

Kuppersberg

Kuppersberg INTRO 60 Instrucciones de instalación y mantenimiento

Zephyr

Zephyr Spruce AK9834BS Guía de instalación

Hisense

Hisense MH6INBG Manual de usuario

Miele

Miele DA 1255 Manual de usuario

Broan

Broan 46000 Manual de usuario

GE Profile PV977 Instrucciones originales

FALMEC

FALMEC FFRIA24W5FS Manual de usuario

Whirlpool

Whirlpool RH2600XL-1 SERIES Manual de usuario

Küppersbusch

Küppersbusch DX ISLA Manual de usuario

ETNA

ETNA AV360RVS Manual de usuario

JUNO

JUNO JDF603E6 Manual de usuario

Miele

Miele DA 6708 D Manual de usuario

Tricity Bendix

Tricity Bendix LE 150 Manual

AEG

AEG X68163BV1 Manual de usuario

AEG

AEG 125 D Manual de usuario

Smeg

Smeg KSEV97X Manual de usuario
