KOBE RA3830SQD Guía de solución de problemas

KOBE Brand Range Hood

Model No. RA3830SQD

RA3836SQD

RA-038 SERIES – 5” HEIGHT

“RECIRCULATING HOOD”

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

Important Safety Instructions……………………………………………………………….

Components of Package……………………………………………………………………

Installation……………………………………………………………………………………

Under the Cabinet Installation………………………………..……..………………….

Stand Alone Installation…………………………………………………………………

Operating Instructions.…………………………………...…………………………………

Maintenance………………………………………………………………………………….

Specifications…………………………………………………….……..…………………...

Measurements & Diagrams…………………………………………………………...……

Parts List…………………………………………………………………..………………….

Circuit Diagram………………………………………………………………...…………….

Disclaimer…………………………………………………………………………………….

Warranty…………………………………………………………………...…………………

Product Registration………………………………………………………...………………

- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN

ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES.

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,

OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance

with all applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or

other hidden utilities.

3) Before servicing or cleaning unit, SWITCH POWER OFF AT SERVICE PANEL.

4) Clean fan, filter, if any, and grease laden surfaces frequently.

NOTE

- This warranty is invalid without an authorized agent’s

receipt or if unit is damaged due to misuse, poor

installation, improper use, mistreatment, negligence or

any other circumstances beyond the control of KOBE

RANGE HOODS authorized agents. Any repair carried

out without the supervision of KOBE RANGE HOODS

authorized agents will automatically void the warranty.

- KOBE RANGE HOODS will not be held responsible for

any damages to personal property or real estate or any

bodily injuries whether caused directly or indirectly by

the range hood.

WARNING – TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE

TOP GREASE FIRE:

Keep fan, filter, if any, and grease-laden surfaces clean.

Always turn hood ON when cooking at high heat.

Use high settings on cooking range ONLY when necessary. Heat the oil slowly on low to

medium setting.

Do not leave cooking range unattended when cooking.

Always use cookware and utensils appropriate for the type and amount of food prepared.

Use this unit only in the manner intended by the manufacturer.

Before servicing, switch power off at service panel and lock service panel (if possible) to

prevent power from switching on accidentally.

Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan, filter

and oil containers.

What to Do In The Event Of a Range Top Grease Fire

-SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, and then turn off the

burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If

the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE

DEPARTMENT or 911.

- NEVER PICK UP A BURNING PAN – You may get burned.

-DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.

- Use an extinguisher ONLY if:

a) You have a Class A, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

- Extinguish any open flame.

- Do not try to turn on the lights or any type of appliance.

-Open all doors and windows to disperse the gas. If you still smell gas, call the Gas

Company and Fire department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials

and vapors.

2) To reduce the risk of fire, use only metal ductwork.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as those

published by the National Fire Protection Association (NFPA), and the American Society for

Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4) Activating any switch may cause ignition or an explosion.

ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.

Disconnect appliance from electric power before servicing.

If equipped, the fluorescent light bulb contains small amounts of mercury,

which must be recycled or disposed of according to Local, State, and

Federal Codes.

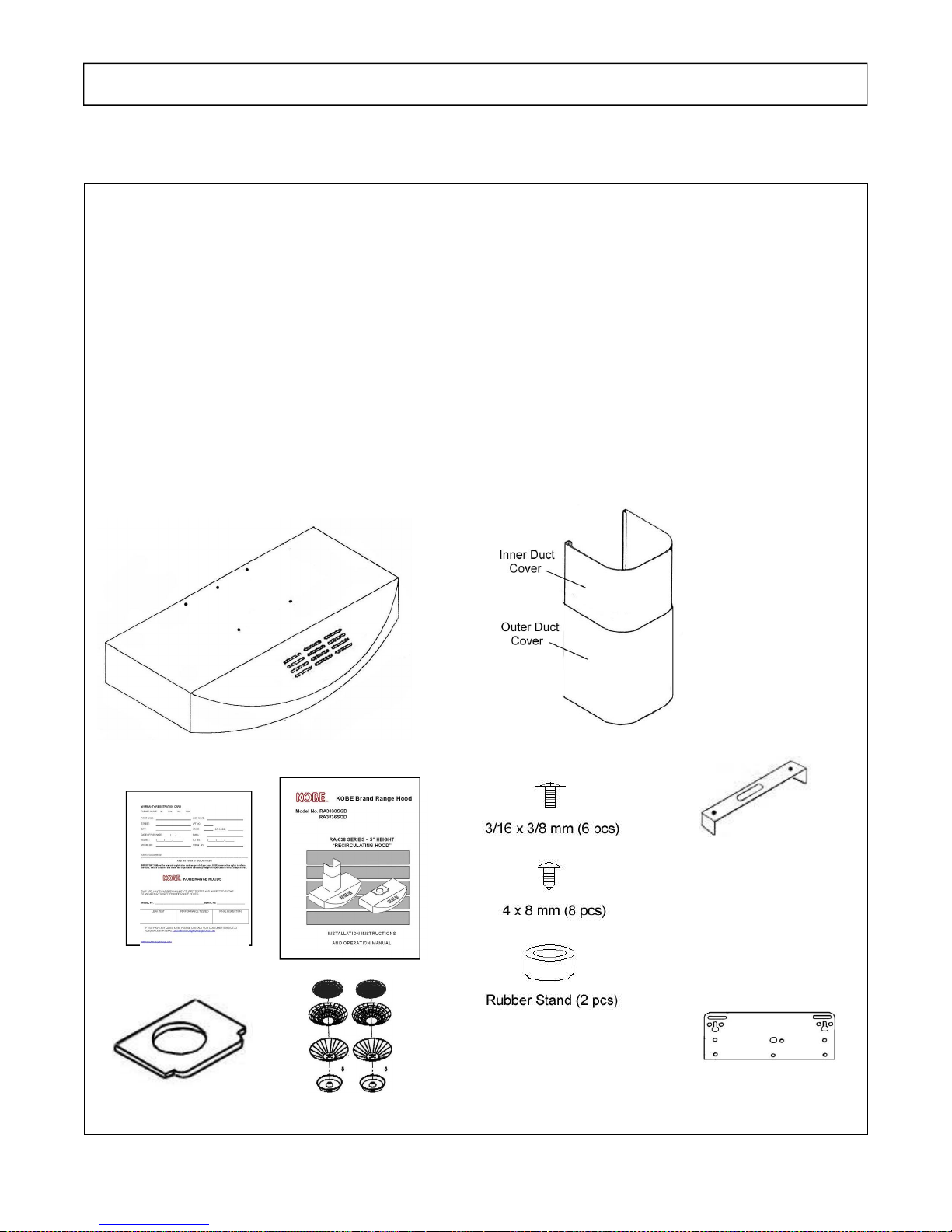

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

Range Hood Box Duct Cover Box (Sold Separately)

{A} KOBE Range Hood

{B} Warranty Registration Card

{C} Instructions Manual

{D} Plastic Plate

{E} Charcoal Filter Set

(Model No. RH-CF01)

- Charcoal Filter x 2

- Mesh Filter x 2

- Safety Screen x 2

- Oil Container x 2

- Screw x 2

{A}

{B} {C}

{D} {E}

***Only used with purchase

of duct cover. ***Attached to hood

{F} KOBE Duct Cover (Model No. RA1020DC)

{G} Screws Package

{H} Duct Cover-Mounting Bracket

{I} Hood-Mounting Bracket

{F}

{G} {H}

{I}

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

Calculation before Installation

Calculate the length of the installation, before installing the hood. (All calculation is measure in

inches.)

- FOR UNDER THE CABINET -

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36”)

C = Preferred Height of Counter Top

to Hood Bottom (Re

commended

27” to 30”)

D = Height of Hood

E = Height of the Cabinet

- FOR STAND ALONE (WITH OPTIONAL DUCT COVER) -

TABLE 2

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36”)

C = Preferred Height of Counter Top

to Hood

Bottom (Recommended

27” to 30”)

D = Height of Hood

E = Height of Duct Cover [F – D]

F = Height of the Hood Installation

[A – (B+C)]

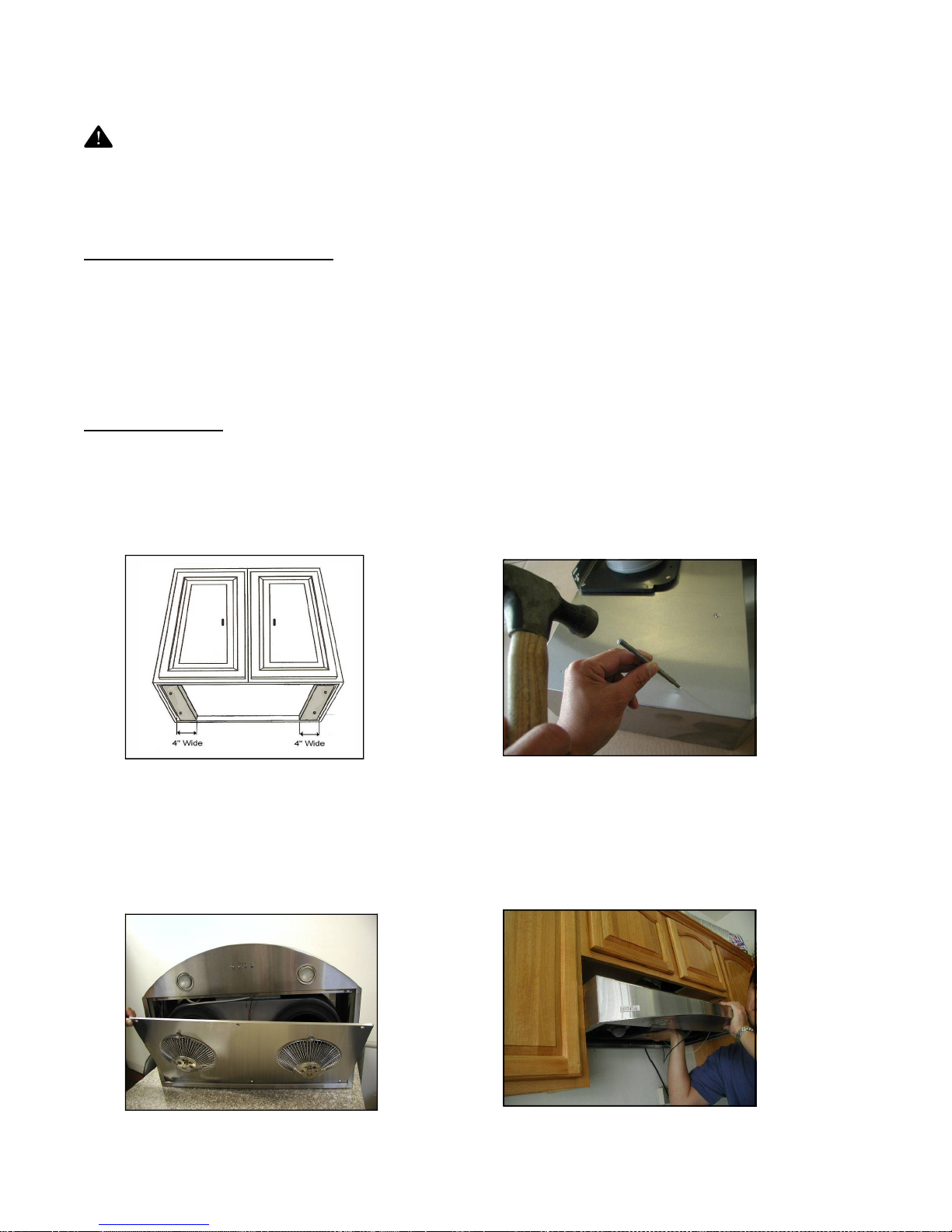

UNDER THE CABINET INSTALLATION

SAFETY W ARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF IT

IS NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING, OR

SERVICING.

Preparation before Installation

- Temporarily wire the hood to test for proper operation before installing.

- Peel protective film off the hood (if any).

- For installing under the cabinet with recessed bottom, attach 4-inch wide wood filler

strips (not included) on each side. Refer to Figure 1.

- Measure and create access opening for electrical wires under the cabinet.

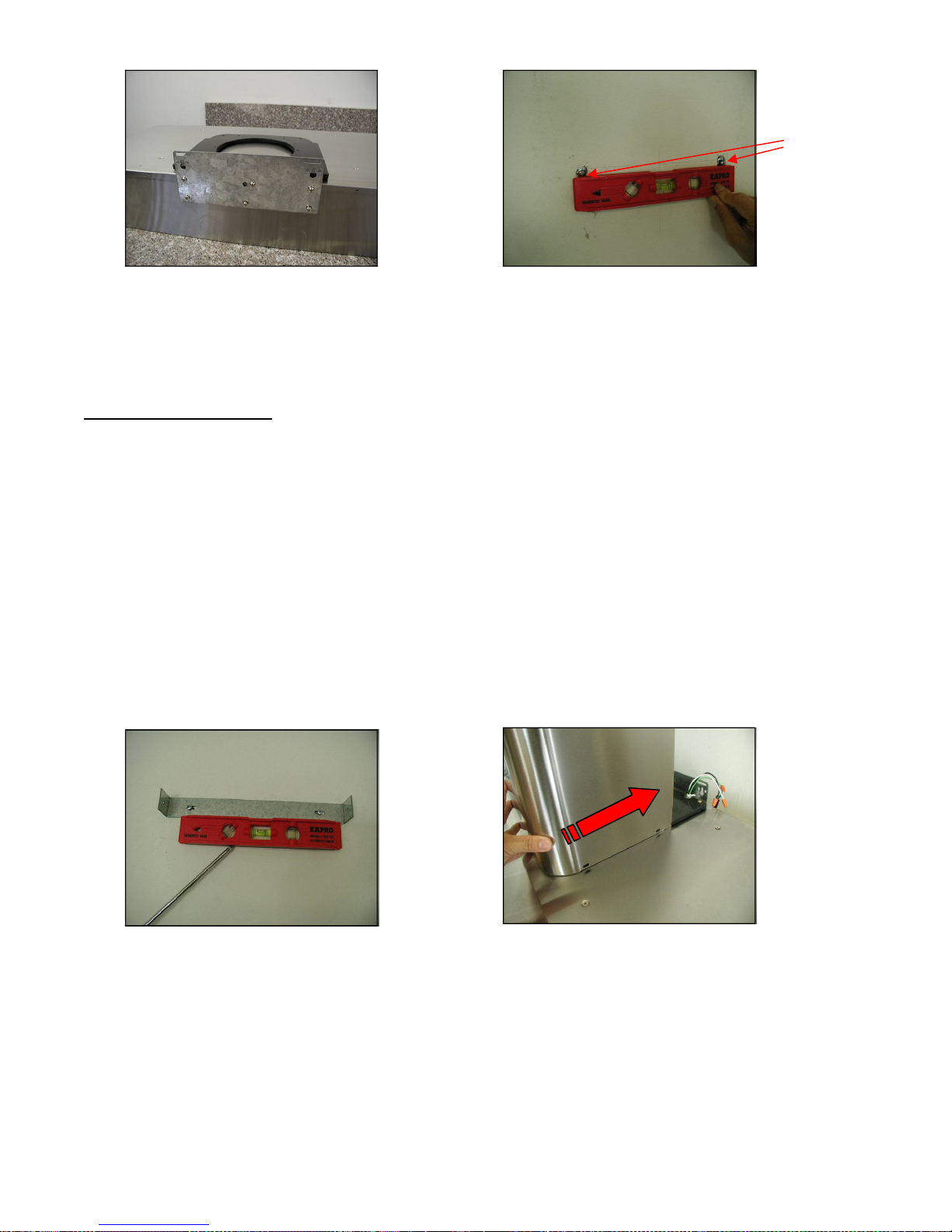

Hood Installation

CAUTION: If required to move the cooking range to install the hood, turn off the power on an

electric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS

RANGE.

1. Puncture the knockout holes. Refer to Figure 2.

Figure 1 Figure 2

2. Unscrew the six screws on the bottom casing. Remove the bottom casing as shown in

Figure 3. If necessary, arrange the electrical wire to run through the 1” diameter hole on

the hood.

3. Use calculation on Table 1 and measurements on page 14 as references. Center the hood

in place beneath the cabinet and flush with the front of the cabinet. Refer to Figure 4.

Figure 3 Figure 4

4. Draw electrical wires through cabinet access opening.

5. Place screws (not provided) into the exact center of each knockout hole. Make sure all

screws are in place before tightening screws. CAUTION: MAKE SURE THE HOOD IS

SECURE BEFORE RELEASING.

6. Connect the electrical wires. Refer to “Wiring to Power Supply.” If necessary to hide the

electrical wire connections, push wires back into the wiring box. Access the wire

connections underneath the hood by removing the bottom casing from the six screws.

Before reattaching the bottom casing, make sure wires do not slip between motors,

impellers, or any moving parts to prevent any damage. NOTE: Be careful when using

electrical screwdriver, damage to the hood may occur.

Wiring to Power Supply

SAFETY W ARNING

RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST BE PROPERLY GROUNDED.

MAKE SURE THIS IS DONE BY SPECIALIZED ELECTRICIAN IN ACCORDANCE WITH ALL

APPLICABLE NATIONAL AND LOCAL ELECTRICAL CODES. BEFORE CONNECTING

WIRES, SWITCH POWER OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO

PREVENT POWER FROM BEING SWITCHED ON ACCIDENTALLY.

- Connect three wires (black, white and green) to house wires and cap with wire connectors.

- Connect according to color: black to black, white to white, and green to green.

- Test the operation of the hood before moving on to next step. Make sure power is supplied

to the hood.

Final Assembly

7. Turn power ON in control panel. Check all lights and fan operation.

8. Make sure to leave this manual for the homeowner.

STAND ALONE INSTALLATION

***This installation only applies with the purchase of an optional duct cover (Model No. RA1020DC).

SAFETY W ARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF IT

IS NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING OR

SERVICING.

Preparation before installation

- Temporarily wire the hood to test for proper operation before installing.

- Peel protective film off the hood and the duct cover (if any).

- If necessary, prepare back wall frame with cross framing lumber for secure installation.

Using references on Table 2 and measurements on page 14, decide the level of the

lumber. Refer to Figure 5.

Hood Installation

CAUTION: If required to move the cooking range to install the hood, turn off the power on an

electric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS

RANGE.

1. Remove the five screws at the center of the hood top. Use the five screws to attach the

plastic plate onto the hood as shown in Figure 6. NOTE: Disregard the hole through the

plastic plate.

2. If necessary, attach two rubber stands (provided) with two (4x8 mm) screws (provided) to

the back of the hood.

Figure 5 Figure 6

3. Attach the hood-mounting bracket to the back of the hood with six (3/16 x 3/8 mm) screws

(provided) as shown in Figure 7.

4. Use the references on Table 2 and the measurements on page 14 to decide the level of

the hood. Position two mounting screws (not provided) on the wall, leaving 1/8” away

from the wall. Refer to Figure 8.

Figure 7 Figure 8

5. Align hood-mounting bracket to the two screws on the wall and hook hood into place.

Tighten screws to secure hood to the wall. CAUTION: MAKE SURE THE HOOD IS

SECURE BEFORE RELEASING.

Duct Cover Installation

6. Mark the position of the duct cover-mounting bracket. Use reference Efrom Table 2 and

measurements on page14. Attach and secure duct cover-mounting bracket with two

screws (not provided). Refer to Figure 9. NOTE: Inner duct cover will cover the duct

cover-mounting bracket.

7. Connect electrical wires. Refer to “Wiring to Power Supply.” If necessary to hide the

electrical wire connections, push wires back into the wiring box. Access the wire

connections underneath the hood by removing the bottom casing. Before reattaching the

bottom casing, make sure wires do not slip between motors, impellers, or any moving

parts to prevent any damage. NOTE: Be careful when using electrical screwdriver,

damage to the hood may occur.

8. Slide the inner duct cover up 2 inches before sliding entire duct cover onto the hood.

Refer to Figure 10.

Figure 9 Figure 10

9. Adjust the height of the inner duct cover to the duct cover-mounting bracket. Secure

inner duct cover with two (4x8 mm) screws (provided) as shown in Figure 11.

Mounting

Screws

Otros manuales para RA3830SQD

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Campana de ventilación de KOBE

KOBE

KOBE IN2636SQB-1200 Guía de solución de problemas

KOBE

KOBE CH-30 Series Guía de solución de problemas

KOBE

KOBE CH9630SQB Guía de solución de problemas

KOBE

KOBE CH0030SQB-1 Guía de solución de problemas

KOBE

KOBE IS2136SQB Guía de solución de problemas

KOBE

KOBE RA9230SQB-DC30-1 Guía de solución de problemas

KOBE

KOBE RA38 Series Guía de solución de problemas

KOBE

KOBE CH0130SQB Guía de solución de problemas

KOBE

KOBE RAX21 SQB-X Series Guía de solución de problemas

KOBE

KOBE AMZ-CHX2030SQB-40 Guía de solución de problemas

KOBE

KOBE INX2636SQB-700-3 Manual de usuario

KOBE

KOBE Brillia RAX9430SQB-1 Guía de solución de problemas

KOBE

KOBE Deluxe Series Guía de solución de problemas

KOBE

KOBE RA0230SQB-DC48-1 Guía de solución de problemas

KOBE

KOBE RA92 Series Guía de solución de problemas

KOBE

KOBE INX29 SQBF-500-1 Series Manual de uso y cuidado

KOBE

KOBE CH7930SQ Guía de solución de problemas

KOBE

KOBE CH91 SQB-5 Series Guía de solución de problemas

KOBE

KOBE INX29 SQBF-500-2 Series Guía de solución de problemas

KOBE

KOBE IN26 SQB-1100-5A Series Guía de solución de problemas

KOBE

KOBE IS2436GSB Manual de usuario

KOBE

KOBE CH2230SQ Guía de solución de problemas

KOBE

KOBE RA0230SQB-DC-5 Guía de solución de problemas

KOBE

KOBE CX1842GS-8 Guía de solución de problemas

Manuales populares de Campana de ventilación de otras marcas

emmeti

emmeti RECUPA MED A-140 Guía

Nibe

Nibe F135 Manual de usuario

Kuppersberg

Kuppersberg INTRO 60 Instrucciones de instalación y mantenimiento

Zephyr

Zephyr Spruce AK9834BS Guía de instalación

Hisense

Hisense MH6INBG Manual de usuario

Miele

Miele DA 1255 Manual de usuario

Broan

Broan 46000 Manual de usuario

GE Profile PV977 Instrucciones originales

FALMEC

FALMEC FFRIA24W5FS Manual de usuario

Whirlpool

Whirlpool RH2600XL-1 SERIES Manual de usuario

Küppersbusch

Küppersbusch DX ISLA Manual de usuario

ETNA

ETNA AV360RVS Manual de usuario

JUNO

JUNO JDF603E6 Manual de usuario

Miele

Miele DA 6708 D Manual de usuario

Tricity Bendix

Tricity Bendix LE 150 Manual

AEG

AEG X68163BV1 Manual de usuario

AEG

AEG 125 D Manual de usuario

Smeg

Smeg KSEV97X Manual de usuario
