KOBE IS2336SQB-1 Guía de solución de problemas

KOBE Brand Range Hood

Model No.

IS2336SQB-1 (36”)

IS2342SQB-1 (42”)

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

READ BEFORE INSTALLATION

1. Carefully check all contents of packages.

2. Thoroughly inspect the unit for any shipping damages, cosmetic damages

or defects.

3. Have a certified contractor/electrician test the unit before installation.

IF THERE IS ANY PROBLEM:

1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL

PACKAGING MATERIAL.

2. Have your original invoice as proof of purchase and product serial number

ready.

3. Contact your merchant for product replacement due to shipping damages,

cosmetic damages or defects.

. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to

[email protected] .

NO RETURN, NO REFUND, NO EXCHANGE IF:

1. PRODUCT HAS BEEN INSTALLED

2. KNOCK-OUT HOLES HAVE BEEN PUNCTURED

3. MISSING ORIGINAL PACKAGING MATERIAL

AND/OR PARTS

IMPORTANT

READ THIS FIRST

[ENGLISH]

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS.................................................................................... 2

COMPONENTS OF PACKAGE.................................................................................................. 4

INSTALLATION.......................................................................................................................... 5

OPERATING INSTRUCTION....................................................................................................10

MAINTENANCE........................................................................................................................13

SPECIFICATIONS....................................................................................................................13

MEASUREMENTS & DIAGRAMS.............................................................................................13

PARTS LIST..............................................................................................................................16

CIRCUIT DIAGRAM..................................................................................................................18

TROUBLE SHOOTING.............................................................................................................19

WARRANTY .............................................................................................................................20

PRODUCT REGISTRATION.....................................................................................................22

- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

A L L W I R I N G M U S T B E D O N E B Y A P R O F E S S I O N A L A N D I N

A C C O R D A N C E W I T H N A T I O N A L A N D L O C A L E L E C T R I C A L C O D E S

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING

: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,

OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance with all

applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden

utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE

PANEL.

b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air properly,

make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl spaces or

garages.

NOTE

This warranty is invalid without an authorized agent’s receipt or if unit is

damaged due to misuse, poor installation, improper use, mistreatment,

negligence or any other circumstances beyond the control of KOBE

RANGE HOODS authorized agents. Any repair carried out without the

supervision of KOBE RANGE HOODS authorized agents will

automatically void the warranty.

KOBE RANGE HOODS will not be held responsible for any damages to

personal property or real estate or any bodily injuries whether caused

directly or indirectly by the range hood.

WARNING

: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A

RANGE TOP GREASE FIRE:

1. Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease

should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.

2. Always turn hood ON when cooking.

3. Use high settings on cooking range ONLY when necessary.

4. Do not leave cooking range unattended when cooking.

5. Always use cookware and utensils appropriate for the type and amount of food prepared.

6. Use this unit only in the manner intended by the manufacturer.

7. Before servicing, switch power off at service panel and lock service panel (if possible) to prevent

power from switching on accidentally.

8. Clean ventilating fan frequently.

What to Do In The Event Of a Range Top Grease Fire

• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.

KEEP FLAMMABLE OR COMBUSTIBLE MATERIALAWAY FROM FLAMES. If the flames do not go

out immediately, EVACUATE THE AREAAND CALLTHE FIRE DEPARTMENT or 911.

• NEVER PICK UP A BURNING PAN – You May Get Burned.

• DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.

• Use an extinguisher ONLY if:

a) You have a ClassA, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

Extinguish any open flame.

Do not try to turn on the lights or any type of appliance.

Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and

Fire Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and vapors.

2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion and

exhausting of gases through the flue (chimney) to prevent back drafting.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as those published

by the National Fire Protection Association (NFPA), and the American Society for Heating,

Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4) Activating any switch on may cause ignition or an explosion.

5) Due to the size and weight of this hood, two people installation is recommended.

ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.

Disconnect appliance from electric power before servicing. If equipped,

the fluorescent light bulb contains small amounts of mercury, which

must be recycled or disposed of according to Local, State, and Federal

Codes.

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

Range Hood Box (Box 1 of 2)

{A} KOBE Range Hood

{B} Baffle Filters

{C} Warranty Registration Card

{D} Mounting Template

{E} Quick Reference Guide

{A}

{

}

Pre-installed

{C} {D} {E}

Duct Cover Box (Sold Separately) Box 2 of 2

{F} Telescopic Stack

{G} Two-Piece Duct Cover

{H} Screw Package

{F} {G} {H}

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

Calculation before Installation

To calculate installation, please refer to TABLE 1. (All calculation in inches.)

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36”)

C = Preferred Height of Counter Top

to Hood Bottom (Recommended

30” to 36”)

D = Height of Hood

E = Height of the Hood Installation

[A – (B+C)]

F = Height of Duct Cover

[E – D]

SAFETY WARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF

REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE:BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD

MAY OCCUR.

Preparations of Ductwork and Location

NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT

OPENING.

- Decide the location of the venting pipe from the hood to the outside. Refer to Figure 1.

- A straight, short venting run will allow the hood to perform more efficiently.

- Try to avoid as many transitions, elbows, and long run as possible. This may reduce the

performance of the hood.

-Use duct tape to seal the joints between pipe sections.

Figure 1

Telescopic Stack Installation

Note: Duct cover with telescopic stack sold separately.

1. Mark centerlines of cook top or range on ceiling above. Use centerlines marked on ceiling to

position the mounting template as shown in Figure 2.

2. Remove and save template. Cut and remove ceiling drywall. Install 2” x 4” cross framing lumber

(not provided) between ceiling joists. Refer to Figure 3. Consult a professional if you have

difficulty or your installation is unique.

3. Finish the ceiling surface. Be sure to mark the location of the ceiling joists and cross framing, or

replace the mounting template in the position of the ceiling joists & cross framing.

4. Attach the telescopic stack to the ceiling and securely fasten to the joists and cross framing with

eight screws (not provided) as shown in Figure 3. Make sure screws are driven into center of

joists and cross framing for maximum support.

5. Adjust the telescopic stack using reference Fcalculated in Table 1 and measurements on page

15-16. Tighten from the side with eight (4x8 mm) screws (provided) as shown in Figure 4.

Figure 2

Figure 3

Figure 4

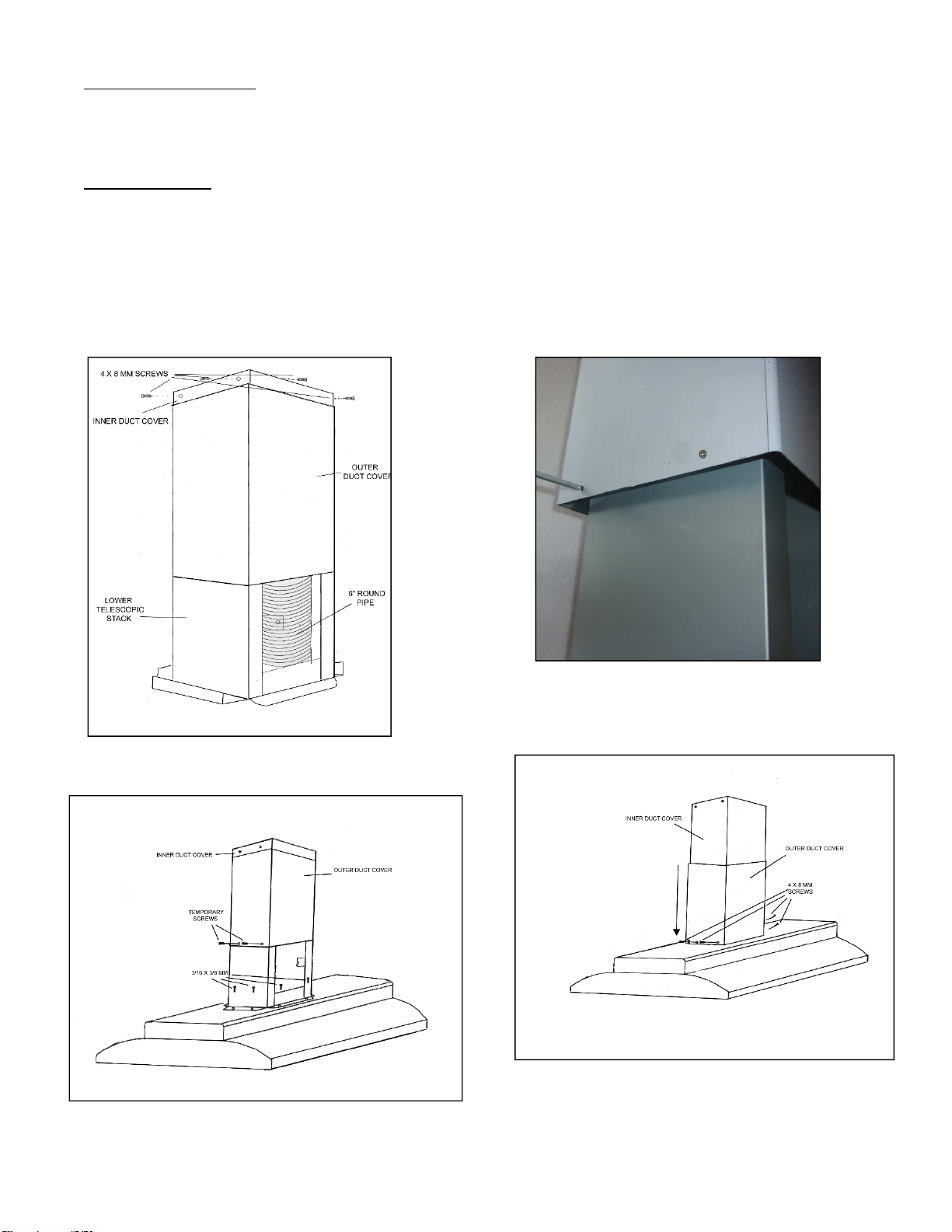

Duct Cover Installation

6. Slide the inner duct cover up and secure with four (4x8 mm) screws (provided) to the upper

telescopic stack. Refer to Figure 5.

Hood Installation

7. Slide outer duct cover up and place 4 temporary screws to hold the duct cover. Refer to Figure 6.

8. Install the hood using eight (3/16x3/8 mm) screws (provided) to secure hood to telescopic stack.

Make sure to tighten screws securely. Refer to Figure 7.

Figure 5 Figure 6

Figure 8

Figure 7
