KOBE CH22 SQB-5 Series Guía de solución de problemas

KOBE Range Hoods

Deluxe Series

CH22 SQB-5 Series

Model No.

Under Cabinet:

CH2230SQB-5 (30”)

CH2236SQB-5 (36”)

Wall Mount:

CH2230SQB-WM-5 (30”)

CH2236SQB-WM-5 (36”)

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

IMPORTANT

READ THIS FIRST

READ BEFORE INSTALLATION

1. Carefully check all contents of packages.

2. Thoroughly inspect the unit for any shipping damages, cosmetic

damages or defects.

3. Have a certified contractor/electrician test the unit before installation.

IF THERE IS ANY PROBLEM:

1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL

PACKAGING MATERIAL.

2. Have your original invoice as proof of purchase and product serial

number ready.

3. Contact your merchant for product replacement due to shipping

damages, cosmetic damages or defects.

4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to

[email protected] .

NO RETURN, NO REFUND, NO EXCHANGE IF:

1. PRODUCT HAS BEEN INSTALLED

2. KNOCK-OUT HOLES HAVE BEEN PUNCTURED

3. MISSING ORIGINAL PACKAGING MATERIAL

AND/OR PARTS

[ENGLISH]

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS.................................................................................... 1

COMPONENTS OF PACKAGE.................................................................................................. 3

INSTALLATION.......................................................................................................................... 4

OPERATING INSTRUCTIONS..................................................................................................13

MAINTENANCE........................................................................................................................15

SPECIFICATIONS ....................................................................................................................16

MEASUREMENTS & DIAGRAMS.............................................................................................17

PARTS LIST..............................................................................................................................19

CIRCUIT DIAGRAM..................................................................................................................21

TROUBLE SHOOTING.............................................................................................................22

WARRANTY .............................................................................................................................23

WARRANTY INFORMATION FORM.........................................................................................25

- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL W IRI N G MUST BE DO NE BY A PRO FESSIO NAL A N D IN

ACCO RD ANCE W ITH NAT IONAL A ND LOCAL E LEC T RICAL CO DES

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING

: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,

OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance with all

applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden

utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE

PANEL.

b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air properly,

make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl spaces or

garages.

NOTE - This warranty is void without an authorized agent’s receipt or if unit is

damaged due to misuse, poor installation, improper use, mistreatment,

negligence or any other circumstances beyond the control of KOBE

RANGE HOODS authorized agents. Any repair carried out without the

supervision of KOBE RANGE HOODS authorized agents will

automatically void the warranty.

- KOBE RANGE HOODS will not be held responsible for any damages to

personal property or real estate or any bodily injuries whether caused

directly or indirectly by the range hood.

WARNING

: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF ARANGE

TOP GREASE FIRE:

1. Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease

should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.

2. Always turn hood ON when cooking.

3. Use high settings on cooking range ONLY when necessary.

4. Do not leave cooking range unattended when cooking.

5. Always use cookware and utensils appropriate for the type and amount of food prepared.

6. Use this unit only in the manner intended by the manufacturer.

7. Before servicing, switch power off at service panel and lock service panel (if possible) to prevent

power from switching on accidentally.

8. Clean ventilating fan frequently.

What to Do In The Event Of a Range Top Grease Fire

• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.

KEEP FLAMMABLE OR COMBUSTIBLE MATERIALAWAY FROM FLAMES. If the flames do not go

out immediately, EVACUATE THE AREAAND CALLTHE FIRE DEPARTMENT or 911.

• NEVER PICK UPA BURNING PAN – You May Get Burned.

• DO NOT USE WATER, including wet dishcloths or towels – a steam blast will result.

• Use an extinguisher ONLY if:

a) You have a Class A, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

Extinguish any open flame.

Do not try to turn on the lights or any type of appliance.

Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and

Fire Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and vapors.

2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion and

exhausting of gases through the flue (chimney) to prevent back drafting.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as thosepublished

by the National Fire Protection Association (NFPA), and the American Society for Heating,

Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4) Activating any switch on may cause ignition or an explosion.

5) Due to the size and weight of this hood, installation by 2 persons is recommended.

ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.

Disconnect appliance from electric power before servicing. If equipped,

the fluorescent light bulb contains small amounts of mercury, which must

be recycled or disposed of according to Local, State, and Federal Codes.

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

CH22

SQB

Series

Range Hood Box

Duct Cover Box

(Included in Wall Mount Hood ONLY)

CH1120DC-1

{A} KOBE Range

Hood

{B} Warranty Registration Card

{C} Quick Reference Guide

{D} 3-1/4” x 10” Exhaust

{E} Top Vent Cover

{F} 6” Round Plastic Collar

{G} Baffle Filters x 2 (30” hood)

x 3 (36” hood)

{H} Stainless Steel Spacer x 2 (30” hood)

{I} Wire Cap x 3

{J} Screws Package (for Under Cabinet only)

{A}

{B} {C}

{D} {E}

{F} {G}

{H} {I}

{J}

{K}

Adjustable Duct Cover

{L} Screws Package

{M} Hood-Mounting Bracket

{N} Duct Cover Support x 2

{O} Duct Cover-Mounting Bracket

{P} Screws Package (for Wall Mount only)

{K}

{L} {M}

{N}

{O}

{P}

FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com OR

CONTACT KOBE RANGE HOODS AT (626) 775-8880.

PCS

3/16” x 3/8” (6 PCS)

4 x 6mm

PCS)

Knob attached to baffle filter

Spacer attached

to hood (30” only)

Wire caps (3)

M4 x 3/4" (4)

M4 x 1

1/4” (4)

M4 x 1

1/2” (5)

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

Calculation before Installation

To calculate installation, please refer to TABLE 1 and TABLE 2. (All calculation in inches.)

- FOR UNDER THE CABINET -

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36")

C = Preferred Height of Counter Top to

Hood Bottom (Minimum 26"to 30")

D = Height of Hood

E = Height of the Cabinet

- FOR WALL MOUNT (WITH OPTIONAL DUCT COVER) -

TABLE 2

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36")

C = Preferred Height of Counter Top to

Hood Bottom (Minimum 26"to 30")

D = Height of Hood

E = Height of Duct Cover [F – D]

F = Height of the Hood Installation

[A – (B+C)]

SAFETY WARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF

REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD MAY

OCCUR.

Installation Contents

UNDER CABINET

WALL MOUNT

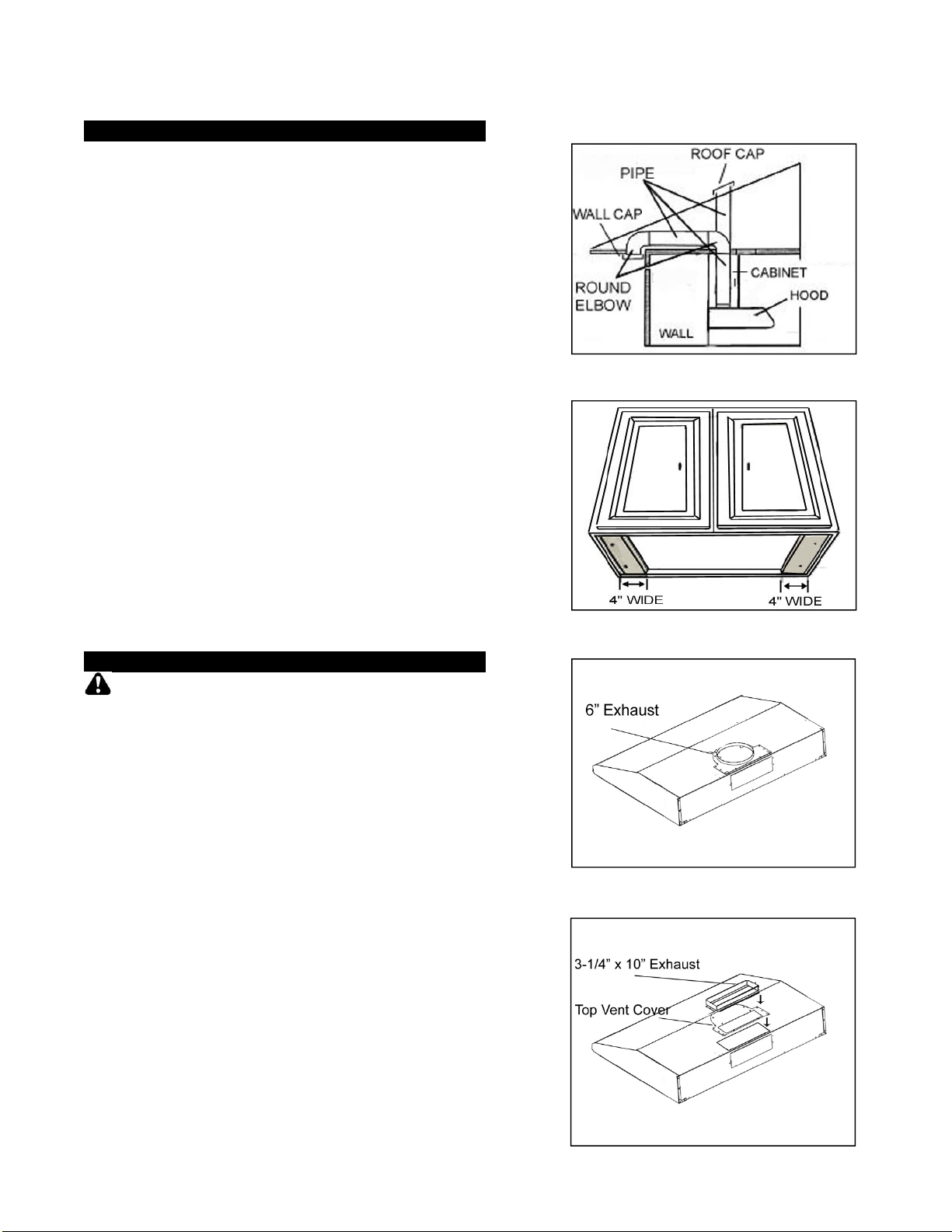

UNDER CABINET INSTALLATION

Preparation before Installation

NOTE: TO AVOID DAMAGE TO YOUR HOOD,

PREVENT DEBRIS FROM ENTERING

THE VENT OPENING.

Decide the location of the vening pipe from the

hood to the outside. (Figure 1)

A straight, short vent run will allow the hood to

perform more efficiently.

Try to avoid as many transitions, elbows, and

long run as possible. This may reduce the

performance of the hood.

Temporarily wire the hood to test for proper

operation before installing. If the hood does not

operate, check the circuit breaker or house fuse.

If the hood is still not working, disconnect power

supply and check the continuity of all wire

connections.

Peel protective film off the hood (if any).

Use duct tape to seal joints between pipe

sections.

For installing under the cabinet with recessed

bottom, attach 4-inch wide wood filter strips (not

included) on each side (Figure 2)

Using reference on Page 17 to measure and

create access opening for electrical wires and

exhaust under the cabinet.

Vent option installation

CAUTION: USE HAND TOOLS ONLY. DO

NOT OVER TIGHTEN SCREWS. IT MAY CAUSE

DAMAGE TO THE HOOD.

1. Choose the require vent option. Some

installation screws are already pre-attached to

hood.

2. For 6” Round vent installation only:

The 6” exhaust is already attached. (Figure

3) Align and secure the 6” Round Plastic

Collar {F} to two screws on hood.

3. For Top 3-1/4” x 10” vent installation only:

Remove attached 6” exhaust and discard.

(Figure 3) Keep 13 screws to install 3-1/4” x

10” exhaust & ven cover.

Align and secure Top Vent Cover {E} and 3-

1/4” x 10” Exhaust {D} using 14 screws (13

screws taken from 6” exhaust. (Figure 4)

4. For Rear 3-1/4” x 10” vent installation only:

Remove attached 6” exhaust and discard.

Remove duct knockout from back of the hood

and discard. (Figure 5) Unscrew 3-1/4” x 10”

Vent Cover from rear exhaust (located inside

hood); keep screws to install 3-1/4” x 10”

exhaust.

Figure 1

Figure 2

Figure 3

Figure 4

Align and secure Top Vent Cover {E} and 3-

1/4” x 10” Vent Cover (removed from rear

exhaust) using 14 screws (13 screws taken

from 6” exhaust). (Figure 5)

Attach the 3-1/4” x 10” Exhaust {D} to rear

exhaust (located inside hood) using 10

screws taken from rear vent cover. (Figure 6)

Hood Installation

CAUTION: If moving the cooking range is

necessary to install the hood, turn off the power

in an electric range at the main electrical box.

SHUT OFF THE GAS BEFORE MOVING A GAS

RANGE. And use a protective covering to

protect cooktop and/or countertop from

damage.

5. Remove the bottom casing or baffle filters /

stainless steel spaces if necessary; arrange the

electrical wires to run through the 1” diameter

hole on the top or the rear of the hood.

6. Using references onTable 1 andmeasurements

on page 17, center the hood in place beneath

the cabinet and flush with the front of the

cabinet.

7. Draw electrical wires through cabinet access

opening.

8. Use electrical drill to remove the knockout holes

on top of the range hood.

9. Place screws (provided) into the exact center of

each knockout hole. Make sure all screws are

in place before tightening screws.

CAUTION: MAKE SURE THE HOOD IS

SECURE BEFORE RELEASING.

Wiring to Power Supply

CAUTION: If moving the cooking range is

necessary to install the hood, turn off the power

in an electric range at the main electrical box.

SHUT OFF THE GAS BEFORE MOVING A GAS

RANGE. RISK OF ELECTRICAL SHOCK.

THIS RANGE HOOD MUST BE PROPERLY

GROUNDED. MAKE SURE THIS IS DONE BY

QUALIFIED ELECTRICIAL IN ACCORDANCE

WITH ALL APPLICABLE NATIONALAND LOCAL

ELECTRICAL CODES. BEFORE CONNECTING

WIRES, SWITCH POWER OFF AT SERVICE

PANEL AND LOCK SERVICE PANEL TO

PREVENT POWER FROM BEING SWITCHED ON

ACCIDENTALLY.

If hood is operating normally, connect three

wires (black, white and green) to house

wires and cap with wire connectors.

Store wires in the wiring box.

Figure 5

Figure 6

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Campana de ventilación de KOBE

KOBE

KOBE Brillia INX27 SQB-700-2 Series Guía de solución de problemas

KOBE

KOBE CH00 SQB-5 Series Guía de solución de problemas

KOBE

KOBE CH2230SQ Guía de solución de problemas

KOBE

KOBE CH7930SQ Guía de solución de problemas

KOBE

KOBE IN26 SQB-1100-5A Series Guía de solución de problemas

KOBE

KOBE CH0130SQB (30") Manual de usuario

KOBE

KOBE RA02 SQB-1 Manual de uso y cuidado

KOBE

KOBE CHX7930SQB-1 Manual de usuario

KOBE

KOBE CH91 SQB-1 Series Guía de solución de problemas

KOBE

KOBE RA9230SQB-1 Guía de solución de problemas

KOBE

KOBE CH2230SQ Guía de solución de problemas

KOBE

KOBE IN2642SQB-1200-1 Guía de solución de problemas

KOBE

KOBE CH-30 Series Guía de solución de problemas

KOBE

KOBE CX1830GS-8 Guía de solución de problemas

KOBE

KOBE SQB-650-5A Series Guía de solución de problemas

KOBE

KOBE IS2436GSB Manual de usuario

KOBE

KOBE CH8136SQB Guía de solución de problemas

KOBE

KOBE CH0130SQB Manual de usuario

KOBE

KOBE OVS-ISX2430GSQB-40 Guía de solución de problemas

KOBE

KOBE RA9230SQB Guía de solución de problemas

KOBE

KOBE RA3830SQB-WM-1 Guía de solución de problemas

KOBE

KOBE OVS-CHX2030SQB-40 Guía de solución de problemas

KOBE

KOBE RA3836SQB-1 Guía de solución de problemas

KOBE

KOBE CH2730SQB Guía de solución de problemas

Manuales populares de Campana de ventilación de otras marcas

emmeti

emmeti RECUPA MED A-140 Guía

Nibe

Nibe F135 Manual de usuario

Kuppersberg

Kuppersberg INTRO 60 Instrucciones de instalación y mantenimiento

Zephyr

Zephyr Spruce AK9834BS Guía de instalación

Hisense

Hisense MH6INBG Manual de usuario

Miele

Miele DA 1255 Manual de usuario

Broan

Broan 46000 Manual de usuario

GE Profile PV977 Instrucciones originales

FALMEC

FALMEC FFRIA24W5FS Manual de usuario

Whirlpool

Whirlpool RH2600XL-1 SERIES Manual de usuario

Küppersbusch

Küppersbusch DX ISLA Manual de usuario

ETNA

ETNA AV360RVS Manual de usuario

JUNO

JUNO JDF603E6 Manual de usuario

Miele

Miele DA 6708 D Manual de usuario

Tricity Bendix

Tricity Bendix LE 150 Manual

AEG

AEG X68163BV1 Manual de usuario

AEG

AEG 125 D Manual de usuario

Smeg

Smeg KSEV97X Manual de usuario
