KOBE CH-30 Series Guía de solución de problemas

KOBE Brand Range Hood

Model No.

CH-30 Series

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

[ENGLISH]

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS .................................................................................... 1

COMPONENTS OF PACKAGE.................................................................................................. 3

INSTALLATION.......................................................................................................................... 4

OPERATION INSTRUCTIONS................................................................................................... 9

MAINTENANCE........................................................................................................................10

SPECIFICATIONS ....................................................................................................................11

MEASUREMENTS & DIAGRAMS.............................................................................................12

PARTS LIST..............................................................................................................................14

CIRCUIT DIAGRAM..................................................................................................................17

TROUBLE SHOOTING .............................................................................................................14

DISCLAIMER............................................................................................................................19

WARRANTY .............................................................................................................................20

PRODUCT REGISTRATION.....................................................................................................22

- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN

ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance with all

applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden

utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE

PANEL.

b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air

properly, make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl

spaces or garages.

NOT E - This warranty is invalid without an authorized agent’s receipt or if unit is

damaged due to misuse, poor installation, improper use, mistreatment,

negligence or any other circumstances beyond the control of KOBE

RANGE HOODS authorized agents.

- KOBE RANGE HOODS will not be held responsible for any damages to

personal property or real estate or any bodily injuries whether caused

directly or indirectly by the range hood.

WARNING: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE

TOP GREASE FIRE:

1. Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease

should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.

2. Always turn hood ON when cooking.

3. Use high settings on cooking range ONLY when necessary.

4. Do not leave cooking range unattended when cooking.

5. Always use cookware and utensils appropriate for the type and amount of food prepared.

6. Use this unit only in the manner intended by the manufacturer.

7. Before servicing, switch power off at service panel and lock service panel (if possible) to prevent

power from switching on accidentally.

8. Clean ventilating fan frequently.

What to Do In The Event Of a Range Top Grease Fire

• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.

KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not

go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.

• NEVER PICK UP A BURNING PAN – You May Get Burned.

• DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.

• Use an extinguisher ONLY if:

a) You have a Class A, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

- Extinguish any open flame.

- Do not try to turn on the lights or any type of appliance.

- Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and

Fire Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and

vapors.

2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion

and exhausting of gases through the flue (chimney) to prevent back drafting.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as those

published by the National Fire Protection Association (NFPA), and the American Society for

Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4) Activating any switch on may cause ignition or an explosion.

5) Due to the size and weight of this hood, two people installation is recommended.

ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.

Disconnect appliance from electric power before servicing. If equipped,

the fluorescent light bulb contains small amounts of mercury, which

must be recycled or disposed of according to Local, State, and Federal

Codes.

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

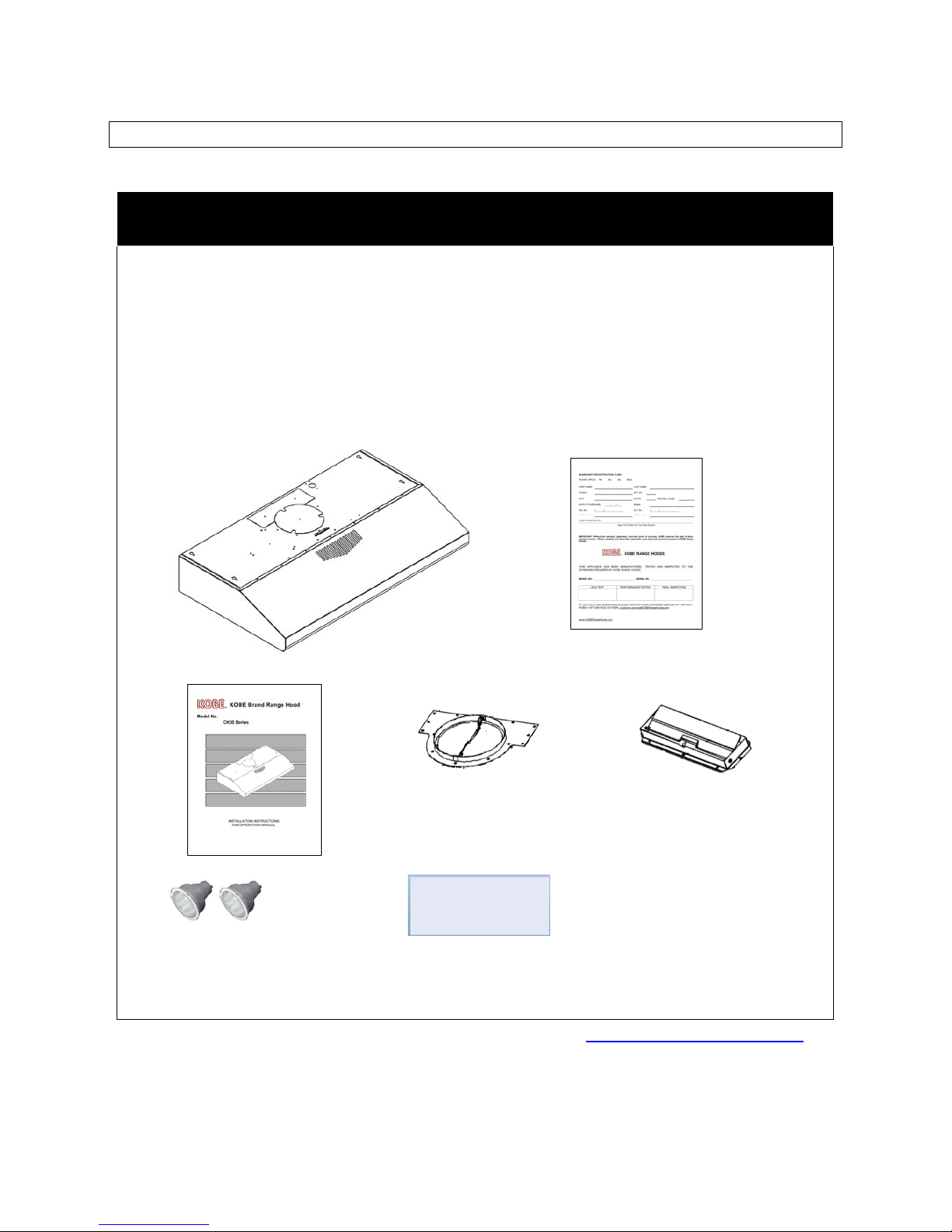

Range Hood Box

{A} KOBE Range Hood – 1

{B} Warranty Registration Card – 1

{C} Instruction Manual – 1

{D} Round Exhaust Plate with damper – 1

{E} Rectangular Exhaust Plate with damper – 1

{F} Light bulb – 2

{G} Parametric Panel – 1

{A} {B}

{C} {D} {E}

{F} {G}

FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.KOBERangeHoods.com OR

CONTACT KOBE RANGE HOODS AT (626) 775-8880.

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

Calculation before Installation

To calculate installation, please refer to TABLE 1. (All calculation in inches.)

- FOR UNDER THE CABINET -

TABLE 1

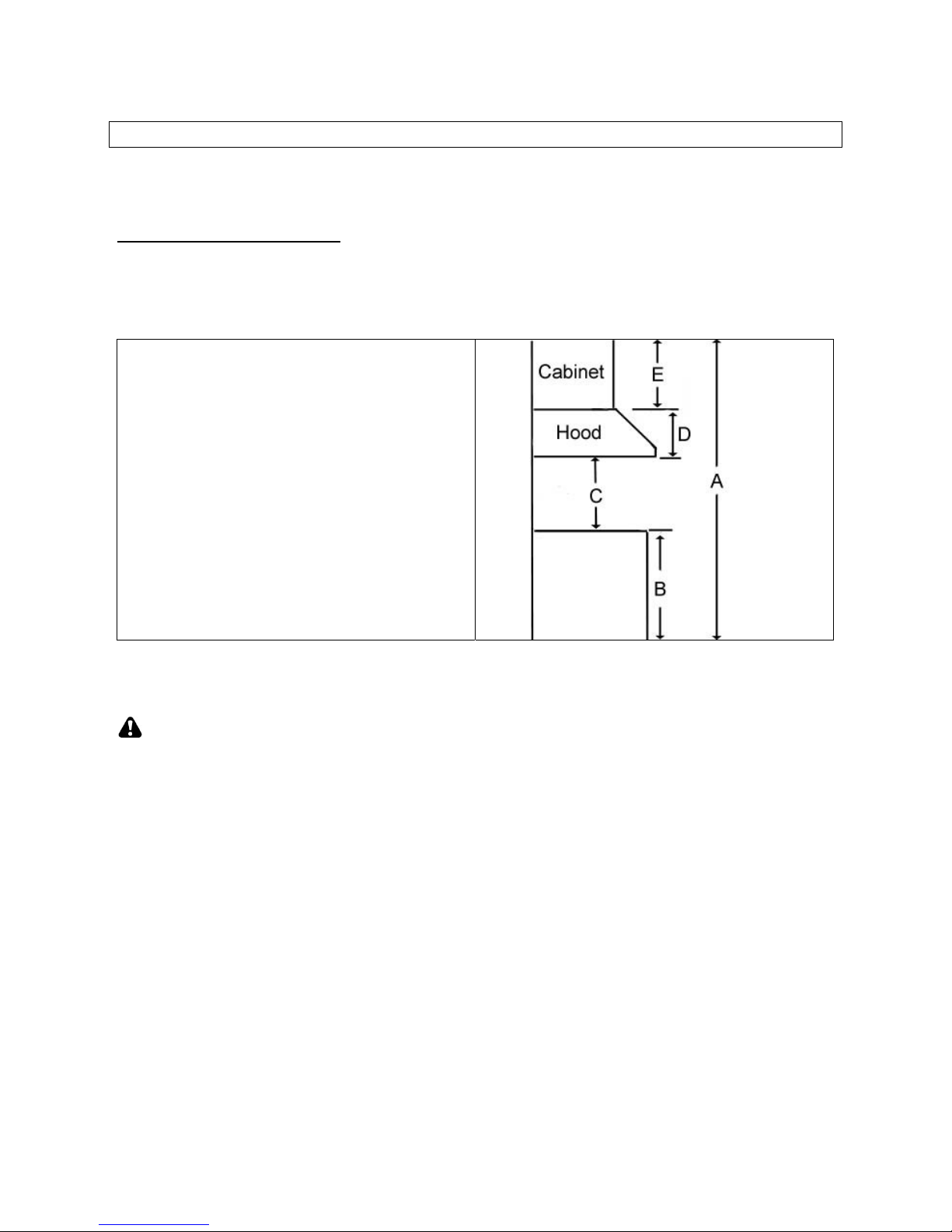

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36”)

C = Preferred Height of Counter Top to Hood

Bottom (Recommended 27” to 30”)

D = Height of Hood

E = Height of the Cabinet

SAFETY WARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF

REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD

MAY OCCUR.

Preparation before Installation

NOTE: TO AVOID DAMAGE TO YOUR HOOD,

PREVENT DEBRIS FROM

ENTERING THE VENT OPENING.

•

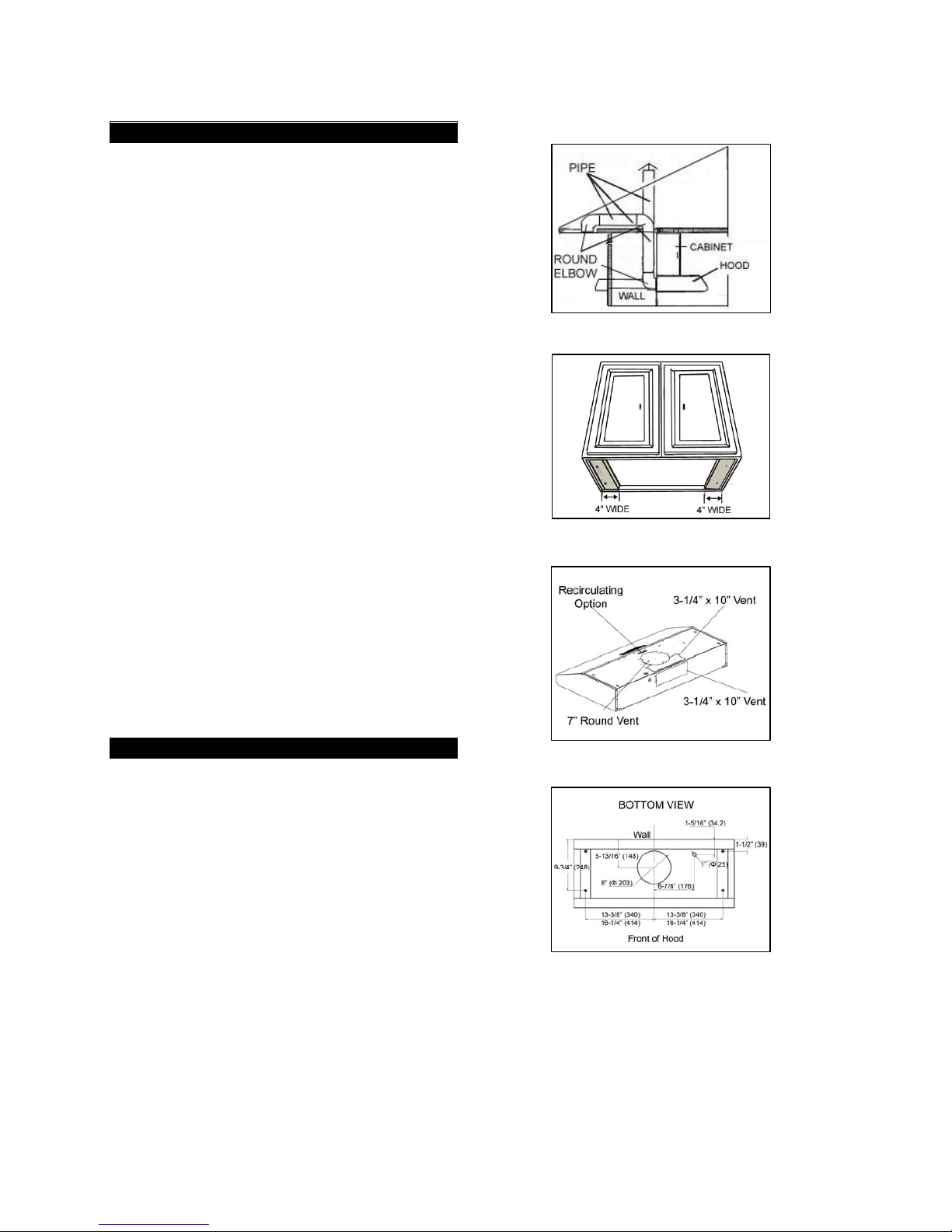

Decide the location of the venting pipe

from the hood to the outside. Refer to

Figure 1.

•

A straight, short venting run will allow

the hood to perform more efficiently.

•

Try to avoid as many transitions,

elbows, and long run as possible. This

may reduce the performance of the

hood.

•

Temporarily wire the hood to test for

proper operation before installing.

•

Important: Peel protective film off

the hood (if any).

•

For installing under the cabinet with

recessed bottom, attach 4-inch wide

wood filler strips (not included) on each

side. Refer to Figure 2.

•

Using reference on Page 13 and 14 to

measure and create access opening for

electrical wires and exhaust under the

cabinet {refer to Vent Option Installation

on 7}. Refer to Figure 3.

•

Using reference on Page 13 and 14 to

position the mounting screws (not

included) underneath the cabinet. Refer

to Figure 4.

Install Lights before mounting hood

To install the light fixture:

-Insert the light fixture into the socket

and turn it clockwise to secure the

light fixture.

Figure 1

Figure 2

Figure 3

Figure 4

Vent option installation

1. Choose the require vent option.

NOTE: If the hood is to be installed as

ductless application, please do not remove

any duct knockout located at the top or the

back of the hood.

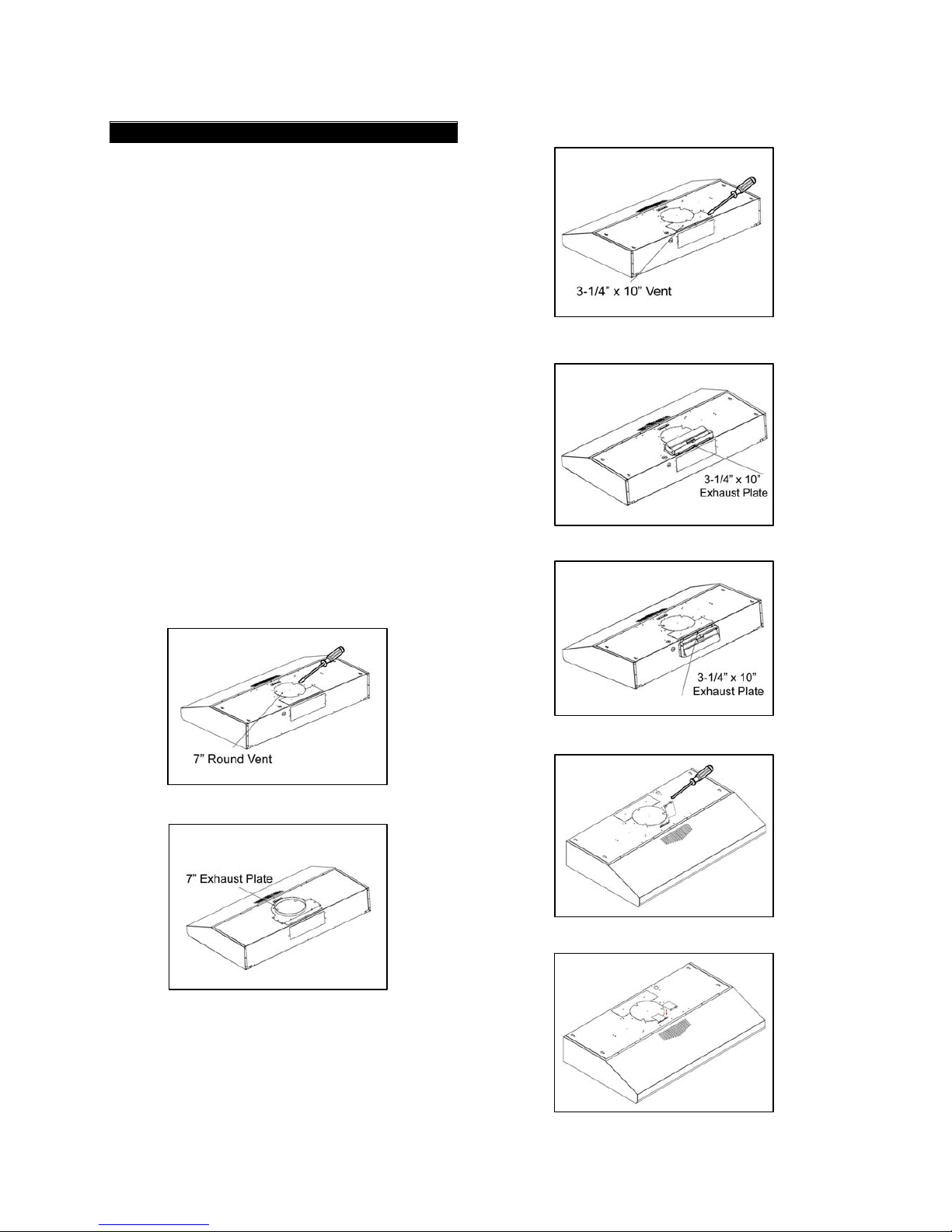

2. For 7” Round vent installation only:

-Using a flat-head screwdriver to remove

the 7” duct knockout. (Refer to Figure 5)

-Attached the 7” exhaust plate using 8

screws (provided). Refer to Figure 6.

3. For 3-1/4” x 10” vent installation only:

-Using a flat-head screwdriver to remove

the top OR the rear 3-1/4” x 10” duct

knockout. (Refer to Figure 7)

-Attached the 3-1/4” x 10” exhaust plate

using 6 screws (provided). Refer to

Figure 8 for Top Vent OR Figure 9 for

Rear Vent.

4. For ductless installation only.

-Remove the recirculating plate located

at the top of the hood, refer to Figure 10.

-Reinstall the recirculating plate

horizontally as shown in Figure 11.

Figure 5

Figure 6

Figure 7

Figure 8

Figure 9

Figure 10

Figure 11

Wiring to Power Supply

SAFETY WARNING

RISK OF ELECTRICAL SHOCK. THIS

RANGE HOOD MUST BE PROPERLY

GROUNDED. MAKE SURE THIS IS DONE

BY SPECIALIZED ELECTRICIAN IN

ACCORDANCE WITH ALL APPLICABLE

NATIONAL AND LOCAL ELECTRICAL

CODES. BEFORE CONNECTING WIRES,

SWITCH POWER OFF AT SERVICE PANEL

AND LOCK SERVICE PANEL TO PREVENT

POWER FROM BEING SWITCHED ON

ACCIDENTALLY.

5. Connect the electrical wires.

-Connect three wires (black, white and

green) to house wires and cap with wire

connectors. Connect according to color:

black to black, white to white, and green

to green.

Hood Installation

CAUTION: If required to move the

cooking range to install the

hood, turn off the power on an electric range

at the main electrical box. SHUT OFF

THE GAS BEFORE MOVING A

GAS RANGE.

6. Align screws with the mounting holes on top

of the range hood, and push toward the wall

to secure the unit in place. Refer to Figure

12 and Figure 13.

Figure 12

Figure 13

Final Assembly

7. To install the parametric panel:

-Align the parametric panel at the

back of the unit. Refer to Figure 14.

-Push the unit upward, and slide the

parametric panel forward into the

notch to secure the panel. Refer to

Figure 15.

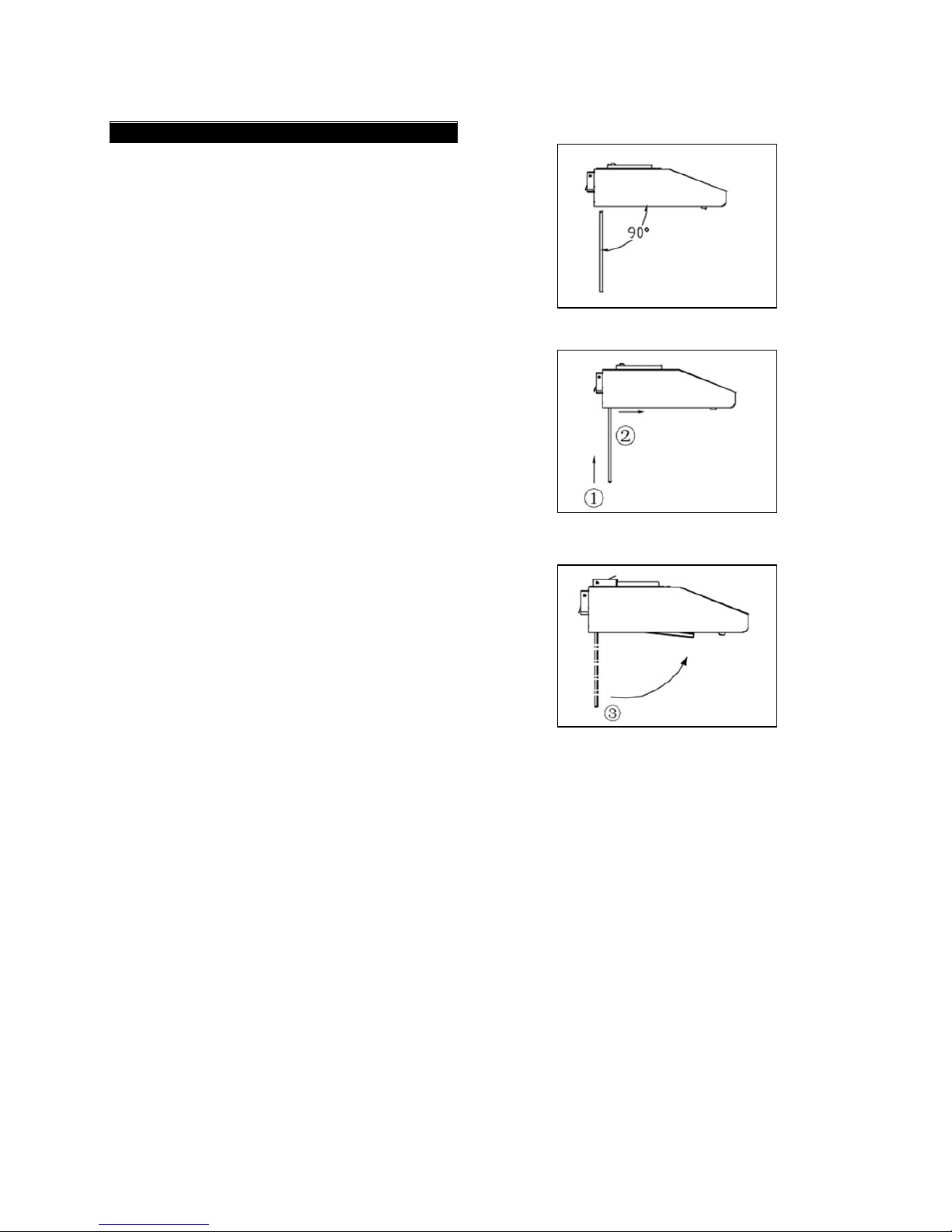

-Flip the parametric panel upward

until it clicks into place. Refer to

Figure 16.

CAUTION: MAKE SURE THE PARAMETRIC

PANEL IS SECURE BEFORE RELEASING.

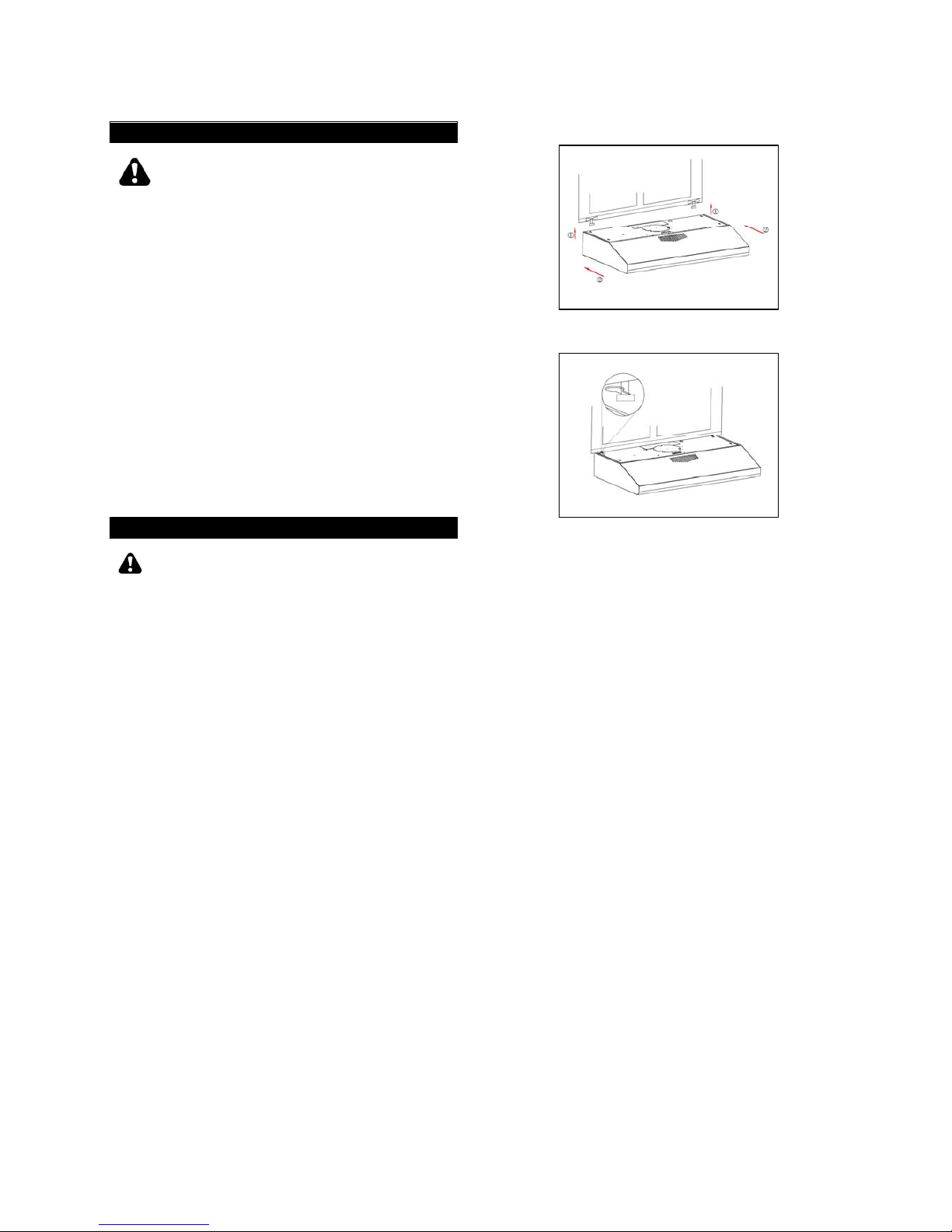

8. Turn power ON in control panel. Check all

light and fan operation.

9. Make sure to leave this manual for the

homeowner.

Figure 14

Figure 15

Figure 16

Tabla de contenidos

Otros manuales de Campana de ventilación de KOBE

KOBE

KOBE CH0130SQB (30") Manual de usuario

KOBE

KOBE CH00 SQB-5 Series Guía de solución de problemas

KOBE

KOBE IS2336SQB-1 Guía de solución de problemas

KOBE

KOBE IN2636SQB-1200 Guía de solución de problemas

KOBE

KOBE INX2830SQH-700-1 Guía de solución de problemas

KOBE

KOBE CH0036SQB Guía de solución de problemas

KOBE

KOBE IN2730SF Guía de solución de problemas

KOBE

KOBE RA92 SQB-1 Manual de usuario

KOBE

KOBE RA9236SQ Guía de solución de problemas

KOBE

KOBE CH-20 Series Guía de solución de problemas

KOBE

KOBE AMZ-CHX2030SQB-40 Guía de solución de problemas

KOBE

KOBE OVS-ISX2430GSQB-40 Guía de solución de problemas

KOBE

KOBE CH9130SQB Guía de solución de problemas

KOBE

KOBE IN2636SQB-1 Guía de solución de problemas

KOBE

KOBE INX29 SQBF-500-1 Series Manual de uso y cuidado

KOBE

KOBE CH0042SQB-1 Guía de solución de problemas

KOBE

KOBE IN28 SQP Series Guía de solución de problemas

KOBE

KOBE CHX30 Series Guía de solución de problemas

KOBE

KOBE INX28 SQ-700-2 Series Guía de solución de problemas

KOBE

KOBE RA0230SQB Guía de solución de problemas

KOBE

KOBE CH0030SQB-1 Guía de solución de problemas

KOBE

KOBE CH9630SQB Guía de solución de problemas

KOBE

KOBE RA3830SQD Guía de solución de problemas

KOBE

KOBE CH2230SQ Guía de solución de problemas

Manuales populares de Campana de ventilación de otras marcas

emmeti

emmeti RECUPA MED A-140 Guía

Nibe

Nibe F135 Manual de usuario

Kuppersberg

Kuppersberg INTRO 60 Instrucciones de instalación y mantenimiento

Zephyr

Zephyr Spruce AK9834BS Guía de instalación

Hisense

Hisense MH6INBG Manual de usuario

Miele

Miele DA 1255 Manual de usuario

Broan

Broan 46000 Manual de usuario

GE Profile PV977 Instrucciones originales

FALMEC

FALMEC FFRIA24W5FS Manual de usuario

Whirlpool

Whirlpool RH2600XL-1 SERIES Manual de usuario

Küppersbusch

Küppersbusch DX ISLA Manual de usuario

ETNA

ETNA AV360RVS Manual de usuario

JUNO

JUNO JDF603E6 Manual de usuario

Miele

Miele DA 6708 D Manual de usuario

Tricity Bendix

Tricity Bendix LE 150 Manual

AEG

AEG X68163BV1 Manual de usuario

AEG

AEG 125 D Manual de usuario

Smeg

Smeg KSEV97X Manual de usuario
