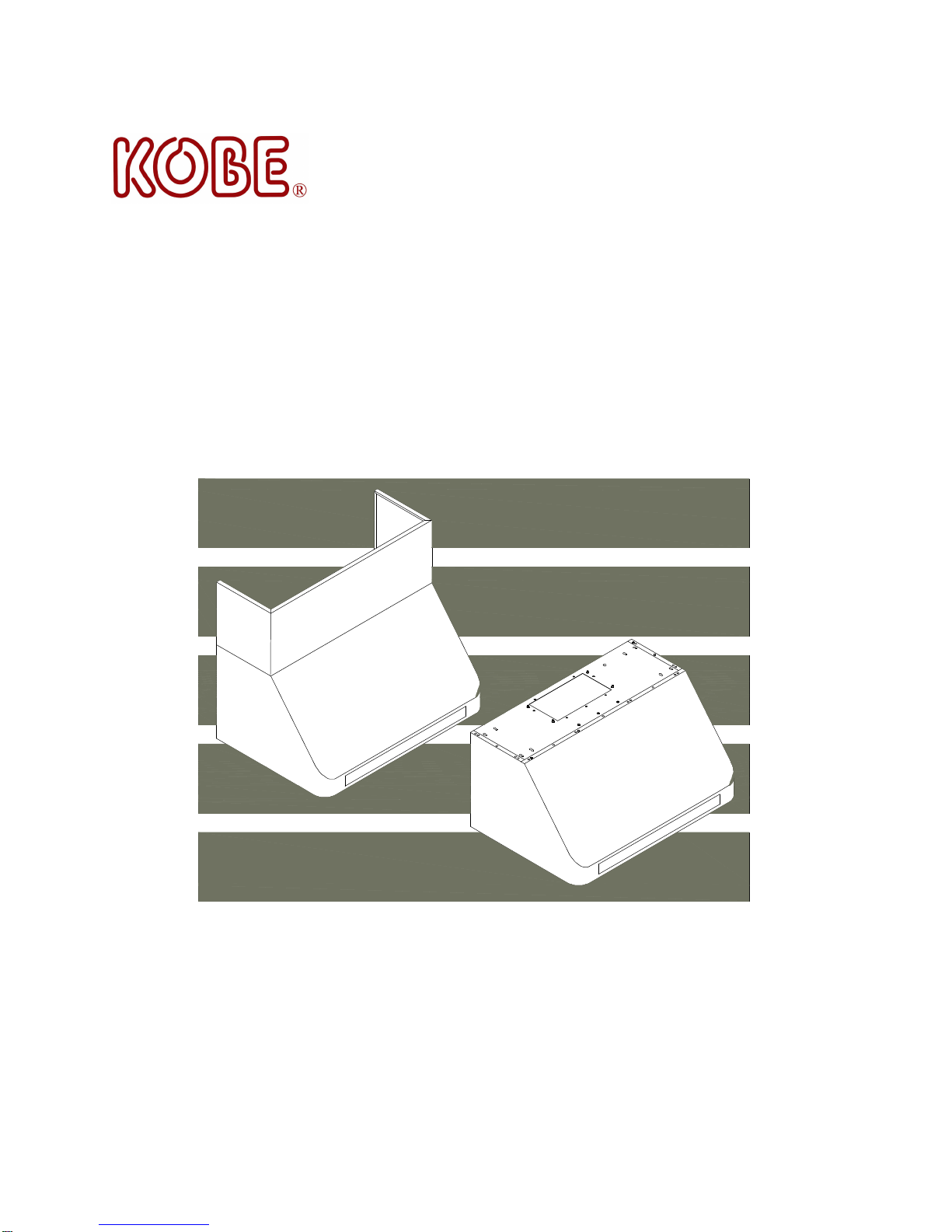

KOBE CH0130SQB Manual de usuario

KOBE Brand Range Hood

Model No.: CH0130SQB (30'')

CH0136SQB (36'')

CH0142SQB (42'')

CH0148SQB (48'')

CH-101 SERIES – 18'' HEIGHT

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS.........................ERROR! BOOKMARK NOT DEFINED.

COMPONENTS OF PACKAGE ................................................................................................. 3

INSTALLATION ......................................................................................................................... 4

UNDER

THE

CABINET

INSTALLATION.................................................................................6

STAND

ALONE

INSTALLATION.............................................................................................9

OPERATING INSTRUCTIONS ................................................................................................ 12

MAINTENANCE..............................................................ERROR! BOOKMARK NOT DEFINED.

SPECIFICATIONS................................................................................................................... 16

MEASUREMENTS & DIAGRAMS............................................................................................ 17

PARTS LIST............................................................................................................................ 22

CIRCUIT DIAGRAM................................................................................................................. 27

DISCLAIMER........................................................................................................................... 29

WARRANTY............................................................................................................................ 30

PRODUCT REGISTRATION.................................................................................................... 32

- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

AL L W IRING MUST B E DONE BY A PR OF ES S IONA L A ND IN

ACCORDA NCE W ITH NATIONA L A ND LO CA L ELECT RICA L CO DE S.

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance

with all applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or

other hidden utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT

SERVICE PANEL.

b) Clean grease laden surfaces frequently. To reduce the risk of fire and to disperse air

properly, make sure to vent air outside. DO NOT vent exhaust air into wall spaces,

attics, crawl spaces or garages.

NOTE

This warranty is invalid without an authorized agent’s receipt

or if unit is damaged due to misuse, poor installation,

improper use, mistreatment, negligence or any other

circumstances beyond the control of KOBE RANGE HOODS

authorized agents. Any repair carried out without the

supervision of KOBE RANGE HOODS authorized agents will

automatically void the warranty.

KOBE RANGE HOODS will not be held responsible for any

damages to personal property or real estate or any bodily

injuries whether caused directly or indirectly by the range

hood.

WARNING: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A

RANGE TOP GREASE FIRE:

- Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean.

Grease should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil

container.

- Always turn hood ON when cooking at high heat.

- Use high settings on cooking range ONLY when necessary.

- Do not leave cooking range unattended when cooking.

- Always use cookware and utensils appropriate for the type and amount of food prepared.

- Use this unit only in the manner intended by the manufacturer.

- Before servicing, switch power off at service panel and lock service panel (if possible) to

prevent power from switching on accidentally.

- Clean ventilating fan frequently.

What to Do In The Event Of a Range Top Grease Fire

• SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, and then turn off the

burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If

the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE

DEPARTMENT or 911.

• NEVER PICK UP ABURNING PAN – You May Get Burned.

• DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.

• Use an extinguisher ONLY if:

a) You have a Class A, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

•

Extinguish any open flame.

•

Do not try to turn on the lights or any type of appliance.

•

Open all doors and windows to disperse the gas. If you still smell gas, call the Gas

Company and Fire Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials

and vapors.

2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper

combustion and exhausting of gases through the flue (chimney) to prevent back drafting.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as those

published by the National Fire Protection Association (NFPA), and the American Society for

Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4) Activating any switch on may cause ignition or an explosion.

5) Due to the size and weight of this hood, two people installation is recommended.

ELECTRICAL SHOCK HAZARD

–

Can result in serious injury or death.

Disconnect appliance from electric power before servicing. If

equipped, the fluorescent light bulb contains small amounts of

mercury, which must be recycled or disposed of according to Local,

State, and Federal Codes.

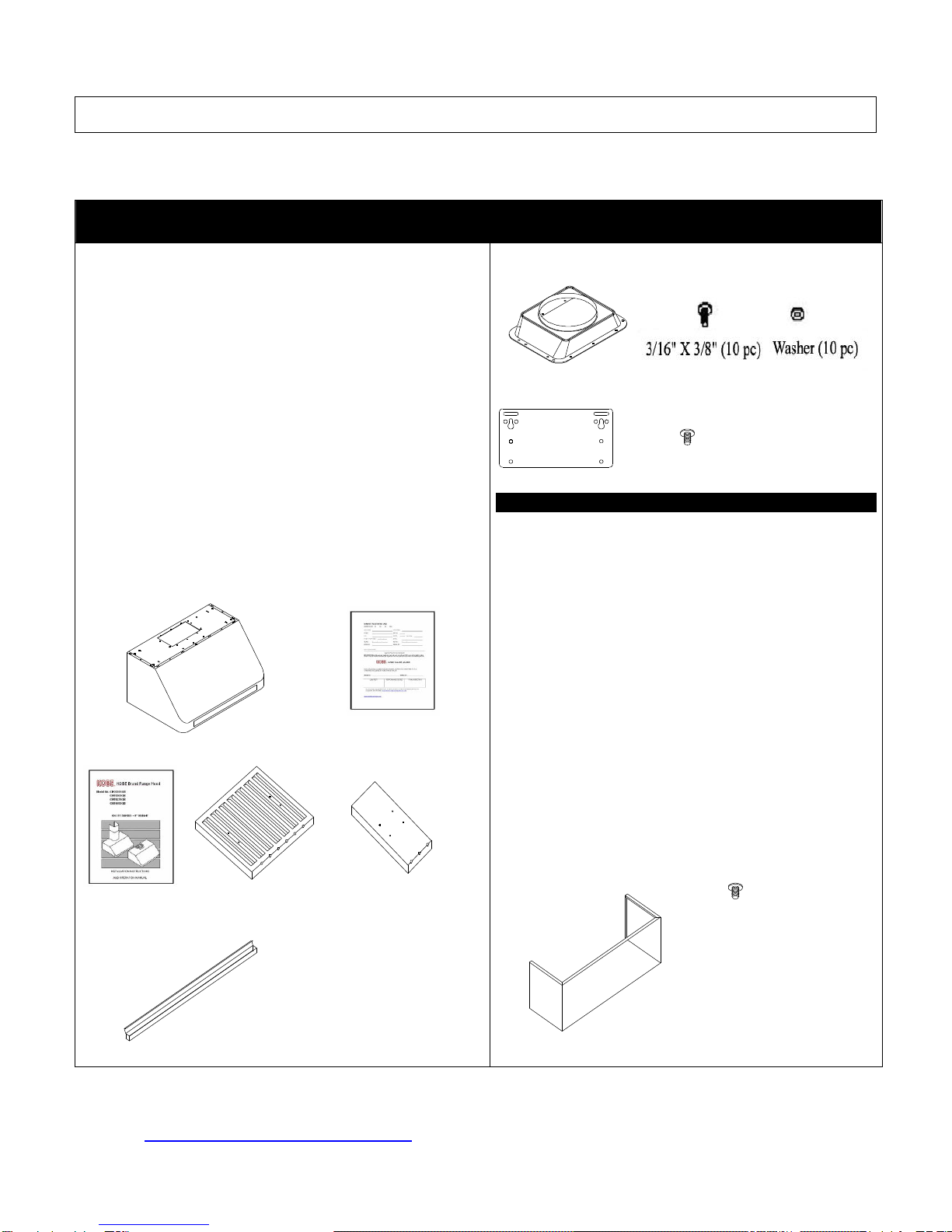

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

OPTIONAL RECIRCULATING KIT ALSO AVAILABLE.

FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE

WWW.KOBERANGEHOODS.COM OR CONTACT KOBE RANGE HOODS AT (626) 350-1355.

RANGE HOOD BOX

KOBE Range Hood – 1

Warranty Registration Card –1

Instructions Manual – 1

Baffle Filter

-2 (30”, 36”, 42”)

-3 (48”)

Stainless Steel Spacer

-0 (30”)

-1 (36”)

-2 (42”, 48”)

Oil Tunnel – 1

Ducting Transition – 1

Screw Package for Transition – 1

Hood-Mounting Bracket-2

Screw Package for Hood-Mounting Bracket –1

















3/16" X 3/8" (8 pc)

DUCT COVER KIT (Sold Separately)

Option Of:

Model No. CH0030DC-12 for 30” hood

KOBE Duct Cover – 1

Screw Package for Duct Cover - 1

Model No. CH0036DC-12 for 36” hood

KOBE Duct Cover – 1

Screw Package for Duct Cover - 1

Model No. CH0042DC-12 for 42” hood

KOBE Duct Cover – 1

Screw Package for Duct Cover - 1

Model No. CH0048DC-12 for 48” hood

KOBE Duct Cover – 1

Screw Package for Duct Cover - 1

3/16" X 3/8" (8 pc)

INSTALLATION

PLEASE READ ENTIRE INSTRUCTION BEFORE PROCEEDING

Calculation before Installation

To calculate installation, please refer to Table 1. (All calculation in inches.)

- FOR UNDER THE CABINET -

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36”)

C = Preferred Height of Counter Top to Hood

Bottom (Recommended 27” to 30”)

[(A – B) – (D + E)]

D = Height of Hood

E = Height of the Cabinet

- FOR STAND ALONE (WITH OPTIONAL DUCT COVER) -

TABLE 2

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36”)

C = Preferred Height of Counter Top to Hood

Bottom (Recommended 27” to 30”)

[(A – B) – (D + E)]

D = Height of Hood

E = Height of the Cabinet

SAFETY WARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF IT IS

NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE

HOOD MAY OCCUR.

Installation Table of Contents

UNDER

THE

CABINET

INSTALLATION................................................................................6

Preparation Before Installation................................................................................................6

Hood Installation ........................................................................................................................6

Ductwork Installation.................................................................................................................7

Wiring to Power Supply.............................................................................................................7

Final Assembly ...........................................................................................................................7

STAND

ALONE

INSTALLATION ...........................................................................................9

Preparation Before Installation................................................................................................9

Hood Preparation Before Installation.....................................................................................9

Hood Installation ........................................................................................................................9

Wiring to Power Supply...........................................................................................................10

Duct Cover Installation............................................................................................................11

Final Assembly .........................................................................................................................11

UNDER THE CABINET INSTALLATION

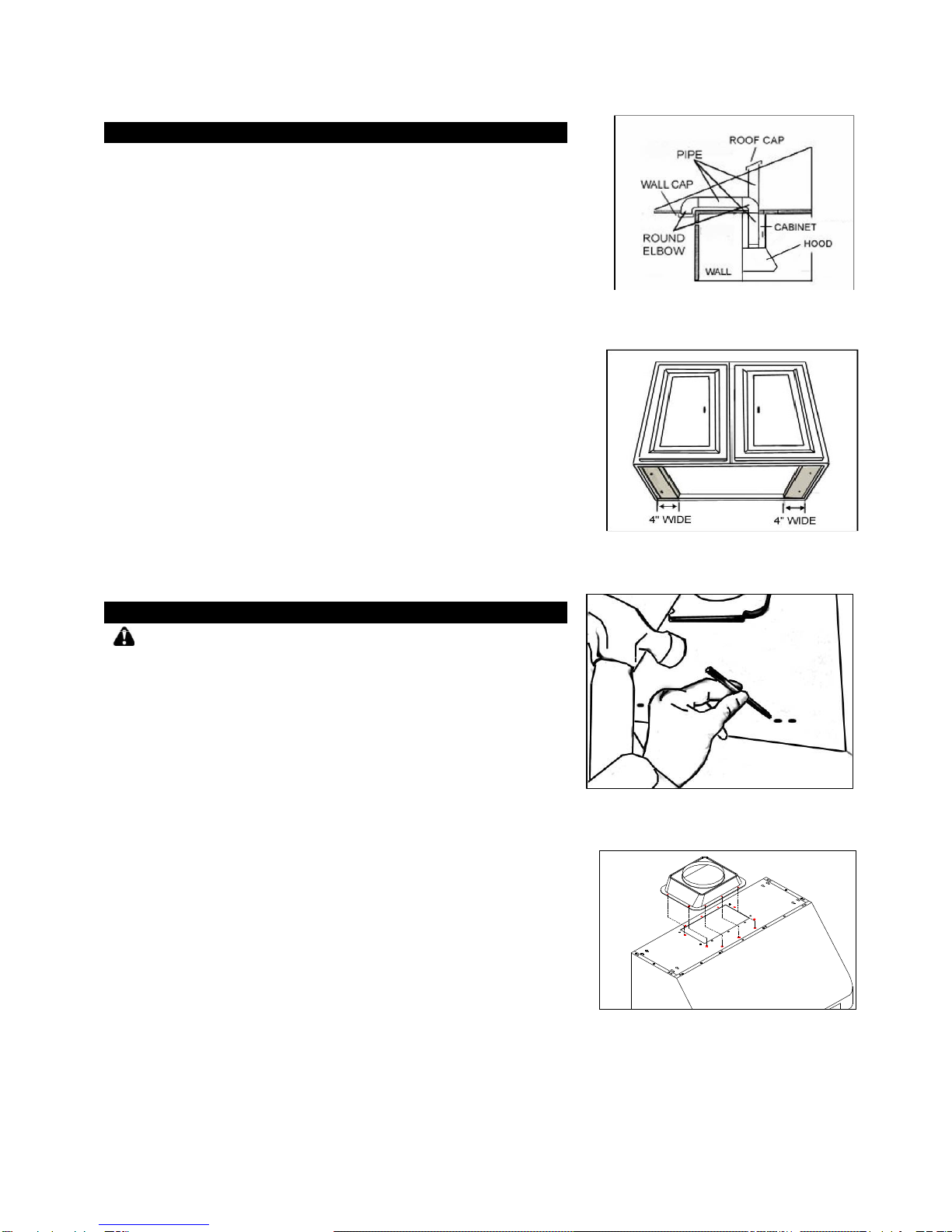

Preparation Before Installation

NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT

DEBRIS FROM ENTERING THE VENT

OPENING.

•Decide the location of the venting pipe from the hood to

the outside. Refer to Figure 1.

•A straight, short vent run will allow the hood to

perform more efficiently.

•Try to avoid as many transitions, elbows, and long runs

as possible. This may reduce the performance of the

hood.

•Temporarily wire the hood to test for proper

operation before installing.

•NOTE: Peel protective film off the hood and parts (if

any).

•To install hood under a cabinet with recessed

bottom, attach 4-inch wide wood filler strips (not

included) on each side. Refer to Figure 2.

•Using references in Table 1 and Measurements and

Diagrams on pages 17-18, create access opening for

electrical wires and ducting transition under the

cabinet.

Hood Installation

CAUTION: If moving the cooking range is necessary

to install the hood, turn off the power in an electric

range at the main electrical box. SHUT OFF THE GAS

BEFORE MOVING A GAS RANGE.

1. Puncture the knockout holes (for mounting under the

cabinet) on the hood as shown in Figure 3.

2. Attach ducting transition to hood exhaust with ten

(3/16” x 3/8”) screws (provided). Shown in Figure 4.

3. Draw electrical wires through cabinet access opening.

4. Center the hood beneath the cabinet and flush with the

front of the cabinet.

5. From the bottom of the hood, place mounting screw

(not provided) through each knockout hole and secure

to cabinet bottom. Once all mounting screws are in

place, finish tightening screws until secure. CAUTION:

MAKE SURE HOOD IS SECURE BEFORE

RELEASING.

6. For safety purpose, extra knockout holes on the back of

the hood are provided for a more secure installation.

Knock out as many holes as needed and secure with

screws (not provided) from the inside of hood.

Figure 1

Figure 2

Figure 3

Figure 4

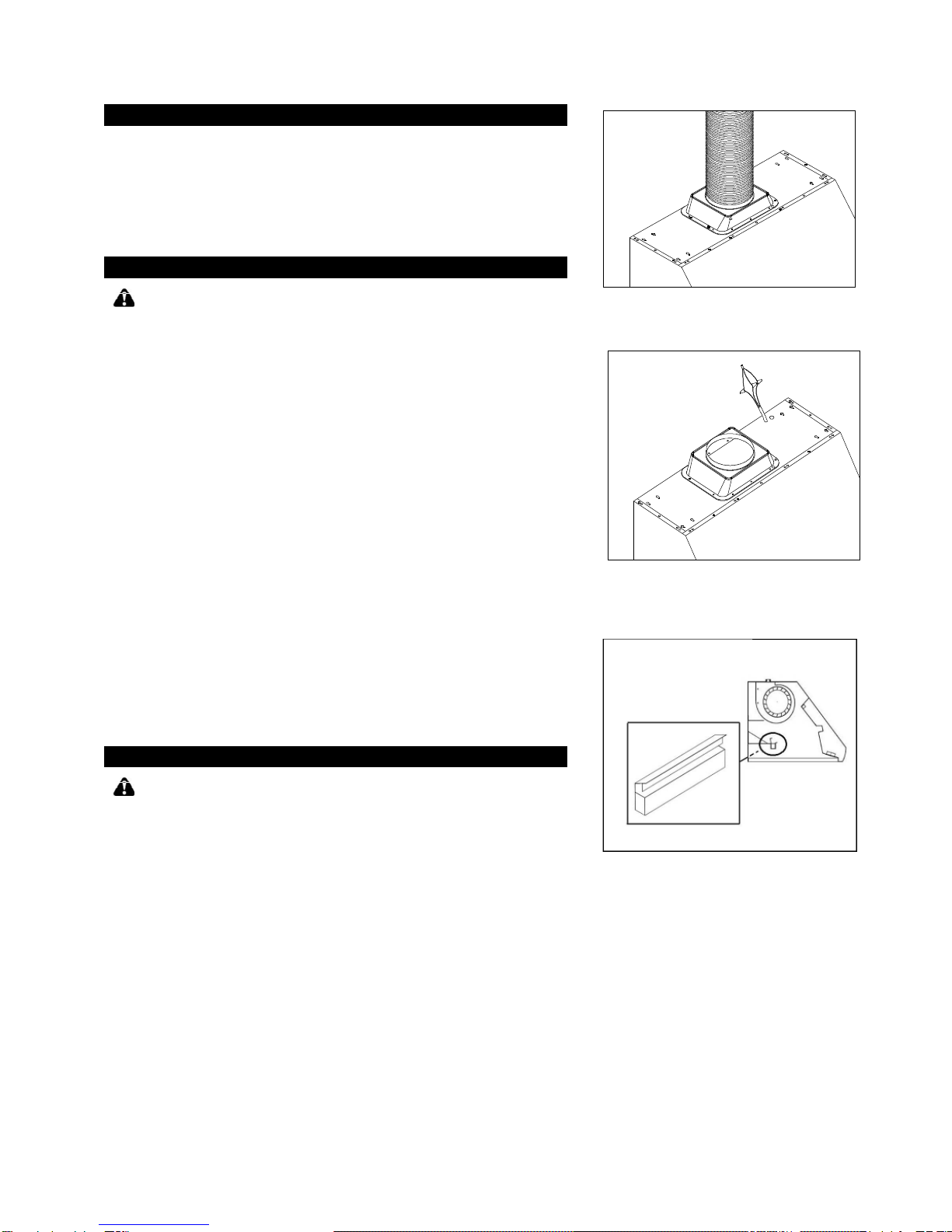

Ductwork Installation

7. Use 8” aluminum or steel pipe (follow building codes in

your area) to connect the ducting transition on the hood

to the ductwork above. Use duct tape to seal and

secure joints as shown in Figure 5.

Wiring to Power Supply

SAFETY WARNING

TO PREVENT THE RISK OF ELECTRICAL SHOCK OR

INJURY, ALL RANGE HOODS SHOULD BE PROPERLY

GROUNDED AND INSTALLED BY A TRAINED

PROFESSIONAL WHO IS KNOWLEDGEABLE ABOUT

APPLICABLE NATIONAL AND LOCAL ELECTRICAL

CODES.

BEFORE CONNECTING WIRES, SWITCH POWER OFF

AT SERVICE PANEL TO PREVENT POWER FROM

BEING SWITCHED ON ACCIDENTALLY.

8. Connect electrical wires.

- Connect three wires (black, white and green) to

house wires and cap with wire connectors.

Connect wires according to their colors (i.e. black to

black, white to white, and green to green). See

Figure 6.

- Prevent wires from slipping between motor and any

moving parts by securing in electrical box.

Final Assembly

CAUTION: Install heating lamps last.

9. Drop Oil Tunnel into support structure. Refer to

Figure 7.

10. Angle baffle filter toward back of hood . Refer to

Figure 8.

11. Push baffle filter up until almost level.

12. Slide forward into recess at front of hood.

13. Lower baffle filter and slide back until it fits into

resting position .

14. Repeat for all baffle filters and spacers. Refer to

Measurements and Diagrams on page 21 for baffle

filter and stainless spacer arrangement.

Figure 5

Figure 6

Figure 7

Otros manuales para CH0130SQB

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Campana de ventilación de KOBE

KOBE

KOBE CH00 SQB-1 Manual de usuario

KOBE

KOBE CH2230SQ Guía de solución de problemas

KOBE

KOBE RA-094 Guía de solución de problemas

KOBE

KOBE Brillia RAX9430SQB-1 Guía de solución de problemas

KOBE

KOBE IN2636SQB-1200 Guía de solución de problemas

KOBE

KOBE ISX2130SQB-2 Guía de solución de problemas

KOBE

KOBE CH3830SQB-1 Guía de solución de problemas

KOBE

KOBE IN2642SQB-1200-1 Guía de solución de problemas

KOBE

KOBE RA2230SQB-1 Guía de solución de problemas

KOBE

KOBE SQB-650-5A Series Guía de solución de problemas

KOBE

KOBE IN2730SF-1 Guía de solución de problemas

KOBE

KOBE IN28 SQB Series Guía de solución de problemas

KOBE

KOBE CH2230SQB-1 Guía de solución de problemas

KOBE

KOBE CH8136SQ Guía de solución de problemas

KOBE

KOBE Brillia CHX81 SQB-2 Series Guía de solución de problemas

KOBE

KOBE CH7930SQ Guía de solución de problemas

KOBE

KOBE Brillia CHX7930SQB-WM-1 Manual de operación y mantenimiento

KOBE

KOBE OVS-ISX2130SQB-40 Guía de solución de problemas

KOBE

KOBE IS2136SQB Guía de solución de problemas

KOBE

KOBE CH8136SQ Guía de solución de problemas

KOBE

KOBE IN2636SQB-1 Guía de solución de problemas

KOBE

KOBE Brillia RAX9430SQB-1 Guía de solución de problemas

KOBE

KOBE ISX2136SQB-1 Guía de solución de problemas

KOBE

KOBE RA2830SB Guía de solución de problemas

Manuales populares de Campana de ventilación de otras marcas

emmeti

emmeti RECUPA MED A-140 Guía

Nibe

Nibe F135 Manual de usuario

Kuppersberg

Kuppersberg INTRO 60 Instrucciones de instalación y mantenimiento

Zephyr

Zephyr Spruce AK9834BS Guía de instalación

Hisense

Hisense MH6INBG Manual de usuario

Miele

Miele DA 1255 Manual de usuario

Broan

Broan 46000 Manual de usuario

GE Profile PV977 Instrucciones originales

FALMEC

FALMEC FFRIA24W5FS Manual de usuario

Whirlpool

Whirlpool RH2600XL-1 SERIES Manual de usuario

Küppersbusch

Küppersbusch DX ISLA Manual de usuario

ETNA

ETNA AV360RVS Manual de usuario

JUNO

JUNO JDF603E6 Manual de usuario

Miele

Miele DA 6708 D Manual de usuario

Tricity Bendix

Tricity Bendix LE 150 Manual

AEG

AEG X68163BV1 Manual de usuario

AEG

AEG 125 D Manual de usuario

Smeg

Smeg KSEV97X Manual de usuario
