ENGLISH

www.kleintools.com

Instruction

Manual

For Professionals...Since 1857

CL1100

•

DATA HOLD

•

BACKLIGHT

•

WORKLIGHT

•

BAR GRAPH

•

MAX

MIN

•

3-3/4 DIGIT

3999 COUNT LCD

•

AUTO /MANUAL

RANGE

•

NON CONTACT

VOLTAGE TESTER

•

TEMPERATURE

All manuals and user guides at all-guides.com

all-guides.com

ENGLISH

CL1100

Instruction Manual

GENERAL SPECIFICATIONS

The Klein Tools CL1100 is an auto-ranging clamp meter. It measures

AC / DC voltage, AC / DC current, resistance, capacitance, frequency, duty

cycle, and temperature. It can also test non-contact voltage, diodes, and

continuity.

•

Operating Altitude:

2000 meters

•

Humidity:

80% max

•

Operating Temperature:

0°C / 32°F to 45°C / 113°F

•

Storage Temperature:

0°C / 32°F to 60°C / 140°F

•

Accuracy Temperature:

18°C / 64°F to 28°C / 82°F

•

Temperature Coefﬁcient:

0.1*(speciﬁ ed accuracy) / °C

•

Dimensions:

8.875" x 3.375" x 1.5"

•

Weight:

10.7oz.

•

Calibration:

Accurate for one year

•

CAT Rating:

CAT III 600V

•

Accuracy:

± (% of reading + # of least signiﬁ cant digits)

WARNINGS

To ensure safe operation and service of the tester, follow these instructions.

Failure to observe these warnings can result in severe injury or death.

•

Before each use, verify meter operation by measuring

a known voltage or current.

•

Never use the meter on a circuit with voltages that exceed the

category based rating of this meter.

•

Do not use the meter during electrical storms, or in wet weather.

•

Do not use the meter or test leads if they appear to be damaged.

•

Ensure meter leads are fully seated, and keep ﬁ ngers away from

the metal probe contacts when making measurements.

•

Do not open the meter to replace batteries while the probes

are connected.

•

Use caution when working with voltages above 60V DC,

or 25V AC RMS. Such voltages pose a shock hazard.

•

To avoid false readings that can lead to electrical shock,

replace batteries if a low battery indicator appears.

•

Unless measuring voltage or current, shut off and lock out

power before measuring resistance or capacitance.

•

Always adhere to local and national safety codes. Use individual

protective equipment to prevent shock and arc blast injury where

hazardous live conductors are exposed.

SYMBOLS

AC Alternating Current Warning or Caution

DC Direct Current Dangerous levels

DC/AC Voltage or Current Double Insulated Class II

Ground Safe for disconnect

from live conductors

AC Source

All manuals and user guides at all-guides.com

FEATURE DETAILS

A. Use CAT III rated leads or higher.

Do not attempt to measure more than 1000V DC or 750V AC or 2000µA.

B. Keep hands below line when measuring high current levels.

C. Auto Power-Off (Apo)

•

Device will power off after 30 minutes non-use.

•

Turn the dial or press a button to wake.

•

Disabled during Max / Min function.

•

Holding Select button while turning on disables Auto Power-Off.

D. Select Functionality Button

•

Switch between AC and DC.

•

Switch between

and

•

Switch between ˚F and ˚C.

E. Hold /Backlight /Worklight

•

Press to hold the current input on the display.

•

Press again to return to live reading.

•

Press for 2 seconds to enable / disable lights.

•

Using lights drains the battery signiﬁ cantly.

F. Auto /Manual Range

•

Press repeatedly to cycle through manual ranges.

•

Press for 2 seconds to return to auto ranging mode.

•

is displayed on LCD only during auto ranging mode.

G. Max /Min Hold

•

Press to enter Max / Min mode; the largest and smallest values

will be saved while in this mode.

•

Press repeatedly to alternate between the maximum and minimum readings.

•

Press for 2 seconds to return to live reading and clear the stored

maximum and minimum values.

H. I. Battery Replacement

•

When

indicator is displayed on the LCD, batteries must be replaced.

•

Remove the back screw and replace 2 x AAA batteries.

All manuals and user guides at all-guides.com

600V

400V

CATIII

600V

400V

CATIII

PRESIONE

CA CC

0 10 20 4030

1. AC Current (large):

400A

Features:

2. AC /DC Current (small):

2000µA

Features:

MAX/MINRANGEHOLD

J. Magnetic Back

•

Attach instrument to metal for hands-free use.

K. Bar Graph

•

The bar graph shows an approximate analog representation

of a measurement.

•

The bar graph responds much faster than the digital display.

•

The scale of the bar graph is zero to the maximum reading of

the selected range.

L. Temperature Input Jack

•

Input jack for K-type thermocouple probe.

M. Temperature Switch

•

Move the switch down to measure temperature, and up to

measure all other functions that require standard test leads. Test

leads

must

be removed before using the temperature function.

N. Temperature Adjustment

•

Remove battery cover.

•

Place temperature probe in distilled

water with stirred crushed ice

(a standard for 0°C and 32°F).

•

Use a ﬁ ne tip screwdriver to adjust

the screw recessed in the bottom

right corner of the battery cavity as

shown until the display reads 32°F.

FUNCTION INSTRUCTIONS

•

Select AC or DC current source.

•

Current above 2000µA will damage instrument.

MAX/MINRANGEHOLD

•

Center wire in guides for best accuracy.

•

Opposing currents cancel

(use line-splitter when necessary)

All manuals and user guides at all-guides.com

PRESS

0 10 20 4030

Apo

0 10 20 4030

Apro

PRESS

Duty

Cycle

0 10 20 4030

Apo

0 10 20 4030

Apo

Diode / Continuity Features:

Continued on Reverse

•

Select AC or DC voltage source.

4. Frequency (Hz) /Duty Cycle

(See Feature Details)

Features:

HOLD

•

Select

,or

setting.

•

Frequencies greater than 500 kHz will display “0.000Hz”.

5. Capacitance:

4000µF

Features:

HOLD

•

Safely discharge capacitor before measurement.

•

Reading may take up to 60 seconds for large capacitors.

6. Resistance:

40M

Ω

Features:

MAX/MINRANGEHOLD

•

Do not

measure resistance on a live circuit.

7. Diode / Continuity

3. AC /DC Voltage:

750V AC or 1000V DC

Features:

MAX/MINRANGEHOLD

All manuals and user guides at all-guides.com

ENGLISH

SYMBOLS USED ON LCD

AC Measurement DC Measurement

Negative DC Value

Auto Range Active

.L.

Overload: Range Exceeded

Apo

Auto Power-Off Active

Low Battery

HOLD

Hold Active

MIN

Minimum Reading

Maximum Reading

Duty Cycle Mode Frequency Mode

Voltage Measurement

Current in Amps

Ω

Resistance in Ohms Diode Test

Capacitance in Farads Continuity Test

Nano 10

-9

Micro 10

-6

Milli 10

-3

Kilo 10

Mega 10

°C

Degrees Celsius

°F

Degrees Fahrenheit

PRESS

and

HOLD

600V

400V

CATIII

CL1000

PRESS

and

HOLD

8. Non Contact Voltage (NCV): > 25V AC

9. Temperature

Features:

HOLD MAX/MIN REL

•

Do not

apply voltage to thermocouple.

•

Fahrenheit range: -22° to 752°F

•

Celsius range: -30° to 400°C

°F°C

0 10 20 4030

Apo

0 10 20 4030

Apo

Display shows:

•

Forward voltage drop if forward biased.

•

“O.L.” if reverse biased.

Diode

Features:

HOLD MAX/MIN

•

Display shows resistance.

•

Buzzer sounds if less than 30

Ω.

Continuity

Features:

HOLD MAX/MIN

All manuals and user guides at all-guides.com

all-guides.com

ELECTRICAL SPECIFICATIONS

DC Voltage Measurement

Range Resolution Accuracy

400mV

400V

0.1mV

0.1V

± (0.5% + 4 digits)

1000V

± (0.8% + 10 digits)

Overload Protection:

1000V

AC Voltage Measurement

Range Resolution Accuracy

400mV

750V

0.1mV

± (2.0% + 5 digits)

Overload Protection:

750V RMS

Frequency Response:

40 to 400 Hz

Minimum Voltage for Frequency Measurement:

200mV

Response:

Averaging

DC Current Measurement

Range Resolution Accuracy

400µA

0.1µA

± (1.2% + 3 digits)

2000µA

1µA

Overload Protection:

• Voltage:

600V RMS

• Current:

2000µA

AC Current Measurement

Range Resolution Accuracy

400µA

0.1µA

± (2.0% + 5 digits)

2000µA

1µA

± (1.5% + 5 digits)

40A

0.01A

± (2.9% + 15 digits)

400A

0.1A

± (1.9% + 8 digits)

Overload Protection:

• Voltage:

600V RMS

• Current:

2000µA

Frequency:

45 to 400Hz

Minimum Current for Frequency Measurement:

400µA or 20A

Response:

Averaging

Resistance Measurement

Range Resolution Accuracy

400

Ω

˜ 4M

Ω

0.1

Ω

0.001M

˜ 0.001M

Ω

± (1.0% + 4 digits)

40M

Ω

0.01M

Ω

± (2.0% + 4 digits)

Overload Protection:

600V RMS

Capacitance Measurement

Range Resolution Accuracy

40nF

4000µF

˜ 4000µF

0.01nF

1µF

˜ 1µF

± (3.5% + 6 digits)

Overload Protection:

600V RMS

Frequency Measurement

Range Resolution Accuracy

99.99Hz

499.9kHz

˜ 499.9kHz

0.01Hz

0.1kHz

˜ 0.1kHz

± (0.1% + 4 digits)

Overload Protection:

600V RMS

Sensitivity:

1.8V RMS

All manuals and user guides at all-guides.com

CUSTOMER SERVICE

KLEIN TOOLS, INC.

450 Bond Street

Lincolnshire, IL 60069

1-877-775-5346

www.kleintools.com

139660

WARRANTY

See www.kleintools.com, contact Klein Tools at 1-877-775-5346, or visit a

distributor for warranty information.

CLEANING

Turn instrument off and disconnect test leads. Clean the instrument by using

a damp cloth. Do not use abrasive cleaners or solvents.

STORAGE

Remove the batteries when instrument is not in use for a prolonged period of

time. Do not expose to high temperatures or humidity. After a period of storage

in extreme conditions exceeding the limits mentioned in the Speciﬁ cations

section, allow the instrument to return to normal operating conditions before

using it.

DISPOSAL /RECYCLE

Caution:

This symbol indicates that equipment and its accessories

shall be subject to a separate collection and correct disposal.



Duty Cycle Measurement

Range Resolution Accuracy

0.1

99.9%

˜ 99.9%

0.1%

± (0.2% per kHz + 0.1% + 5 digits)

Overload Protection:

600V RMS

Diode Test

Overload Protection Range Test Current Open Circuit Voltage

600V RMS

2.0V

Appx. 0.25mA

1.6V DC

Continuity Test

Overload Protection Open Circuit Voltage

600V RMS

0.44V

Temperature Measurement

Range Resolution Accuracy

-22°~14°F (-30°~-10°C)

0.1°F (0.1°C)

±5.4

F (±3.0

15°~752°F (-9°~400°C)

0.1°F (0.1°C)

±(1.0% + [3.6

F or 2.0

C])

Overload Protection:

30V RMS

Non Contact Voltage Detector

On Voltage

Appx. 25V AC

All manuals and user guides at all-guides.com

www.kleintools.com

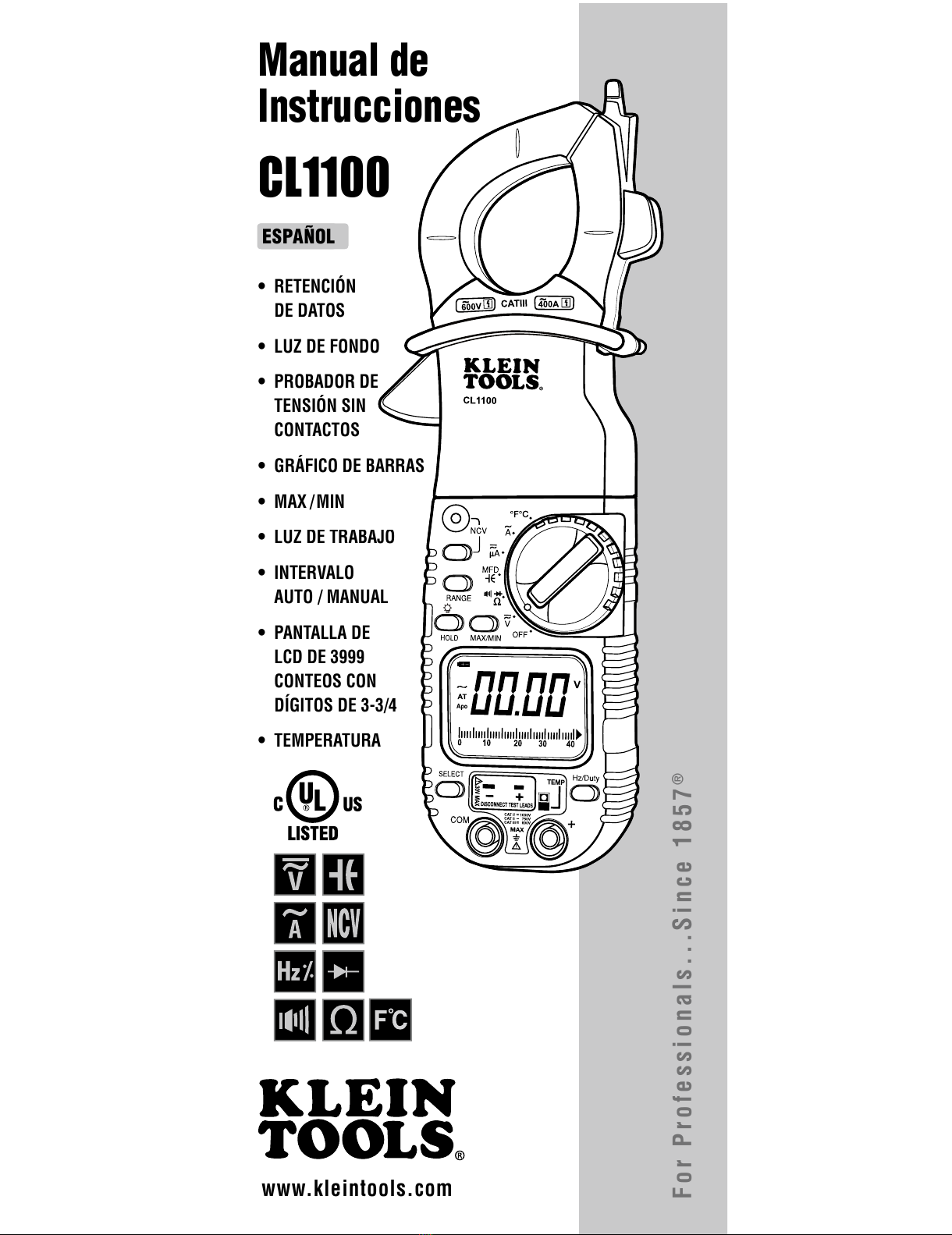

Manual de

Instrucciones

For Professionals...Since 1857

CL1100

•

RETENCIÓN

DE DATOS

•

LUZ DE FONDO

•

PROBADOR DE

TENSIÓN SIN

CONTACTOS

•

GRÁFICO DE BARRAS

•

MAX

MIN

•

LUZ DE TRABAJO

•

INTERVALO

AUTO / MANUAL

•

PANTALLA DE

LCD DE 3999

CONTEOS CON

DÍGITOS DE 3-3/4

•

TEMPERATURA

ESPAÑOL

All manuals and user guides at all-guides.com

ESPAÑOL

CL1100

Manual de Instrucciones

ESPECIFICACIONES GENERALES

El CL1000 de Klein Tools es un multímetro de pinza con determinación

automática del intervalo. Mide tensión de CA / CC, corriente CA / CC,

resistencia, capacitancia, frecuencia y ciclo de servicio. También puede

probar tensión, diodos y continuidad sin contactos.

•

Altitud de funcionamiento:

2000 metros

•

Humedad:

80% máx

•

Temperatura de funcionamiento:

0°C / 32°F a 45°C / 113°F

•

Temperatura de almacenamiento:

0°C / 32°F a 60°C / 140°F

•

Temperatura de precisión:

18°C / 64°F a 28°C / 82°F

•

Coeﬁciente de temperatura:

0,1*(precisión especiﬁ cada) / °C

•

Dimensiones:

8,875 x 3,375 x 1,5 pulgadas

•

Peso:

10,7 onzas

•

Calibración:

Precisa durante un año

•

Caliﬁcación CAT:

CAT III 600V

•

Precisión:

± (% de la lectura + No. de dígitos menos signiﬁ cativos)

ADVERTENCIAS

Para asegurar un funcionamiento y servicio seguros del probador, siga

estas instrucciones. Si no se hace caso de estas advertencias, el resultado

puede ser lesiones graves o muerte.

•

Antes de cada uso, veriﬁ que el funcionamiento del multímetro midiendo una

tensión o una corriente conocida.

•

No utilice nunca el multímetro en un circuito con tensiones que excedan

la capacidad nominal basada en la categoría de este multímetro.

•

No utilice el multímetro durante tormentas eléctricas ni en tiempo mojado.

•

No utilice el multímetro ni los conductores de prueba si parecen estar

dañados.

•

Asegúrese de que los conductores de prueba del multímetro estén

completamente asentados y mantenga los dedos alejados de los contactos

metálicos de los conductores de prueba cuando haga mediciones.

•

No abra el multímetro para reemplazar las pilas mientras los conductores

de prueba estén conectados.

•

Tenga precaución cuando trabaje con tensiones superiores a 60 V CC, o 25 V

CA de valor eﬁ caz (RMS). Dichas tensiones presentan un peligro de descarga.

•

Para evitar lecturas falsas que pueden llevar a descargas eléctricas, reemplace

las pilas si aparece un indicador de pila baja.

•

A menos que mida tensión o corriente, apague y bloquee el suministro

eléctrico antes de medir resistencia o capacitancia.

•

Cumpla siempre con los códigos de seguridad locales y nacionales. Utilice

equipo de protección individual para evitar las descargas eléctricas y las

lesiones por intensas corrientes de arco donde los conductores con corriente

peligrosos estén al descubierto.

SÍMBOLOS`

CA Corriente alterna Advertencia o precaución

CC Corriente continua Niveles peligrosos

Tensión o corriente CC/CA Con aislamiento

doble de Clase II

Conexión a tierra Seguro para desconectar

de conductores con

corriente

Fuente de CA

All manuals and user guides at all-guides.com

Otros manuales para CL1100

Tabla de contenidos

Idiomas:

Otros manuales de Instrumento de medición de Klein Tools

Klein Tools

Klein Tools CL310 Manual de usuario

Klein Tools

Klein Tools CL800 Manual de usuario

Klein Tools

Klein Tools CL310 Manual de usuario

Klein Tools

Klein Tools CL360 Manual de usuario

Klein Tools

Klein Tools Coax Explorer 2 Manual de usuario

Klein Tools

Klein Tools VDV512-110 Manual de usuario

Klein Tools

Klein Tools RT390 Manual de usuario

Klein Tools

Klein Tools CL120VP Manual de usuario

Klein Tools

Klein Tools CL700 Manual de usuario

Klein Tools

Klein Tools 93LDM100C Manual de usuario

Klein Tools

Klein Tools 935DAF Manual de usuario

Klein Tools

Klein Tools 501-915 Manual de usuario

Klein Tools

Klein Tools 93LDM65 Manual de usuario

Klein Tools

Klein Tools CL700 Manual de usuario

Klein Tools

Klein Tools CL390 Manual de usuario

Klein Tools

Klein Tools 501-915 Manual de usuario

Klein Tools

Klein Tools CL900 Manual de usuario

Klein Tools

Klein Tools VDV500-123 Probe-Pro Manual de usuario

Klein Tools

Klein Tools CL600 Manual de usuario

Klein Tools

Klein Tools ET140 Manual de usuario

Klein Tools

Klein Tools VDV500-705 Manual de usuario

Klein Tools

Klein Tools CL110 Manual de usuario

Klein Tools

Klein Tools CL450 Manual de usuario

Klein Tools

Klein Tools ET450 Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
