KitchenAid KST4054 Manual de usuario

KST4054

INSTRUCTIONS

INSTRUCCIONES

USA: 1.800.541.6390

Canada: 1.800.807.6777

WELCOME TO THE WORLD OF KITCHENAID.

We’re committed to helping you

create a lifetime of delicious meals

for family and friends. To help ensure

the longevity and performance of your

appliance, keep this guide handy. It will

empower you with the best way to

use and care for your product. Your

satisfaction is our #1 goal.

Remember to register your product

online at www.kitchenaid.com or

by mail using the enclosed

Product Registration Card.

KitchenAid.com

KitchenAid.ca

English

STIR TOWER ACCESSORY INSTRUCTIONS

STIR TOWER ACCESSORY SAFETY .................................................................. 4

Important safeguards.......................................................................................... 5

Electrical requirements ...................................................................................... 5

PARTS AND FEATURES........................................................................................ 6

SELECTING STIR SPEEDS.................................................................................... 6

USING THE STIR TOWER

Before rst use ................................................................................................... 7

Attaching the Stir Tower to the Multi-Cooker (sold separately)........................ 7

Installing the stirring attachments....................................................................... 8

Cooking with the Stir Tower .............................................................................. 8

Tips and Tricks.................................................................................................... 9

CARE AND CLEANING

Cleaning the Stir Tower...................................................................................... 9

TROUBLESHOOTING......................................................................................... 10

WARRANTY AND SERVICE............................................................................... 11

TABLE OF CONTENTS

PROOF OF PURCHASE & PRODUCT REGISTRATION

Model Number _______________________________________________________________________

Serial Number _______________________________________________________________________

Date Purchased ______________________________________________________________________

Store Name _________________________________________________________________________

Always keep a copy of the itemized sales receipt showing the date of purchase of your Stir

Tower. Proof of purchase will assure you of in-warranty service. Before you use your Stir

Tower, please ll out and mail your product registration card packed with the unit, or register

online at www.kitchenaid.com. This card will enable us to contact you in the unlikely event of

a product safety notication and assist us in complying with the provisions of the Consumer

Product Safety Act. The completion and submission of product registration information is

not required to obtain your product warranty. Please complete the following for your

personal records:

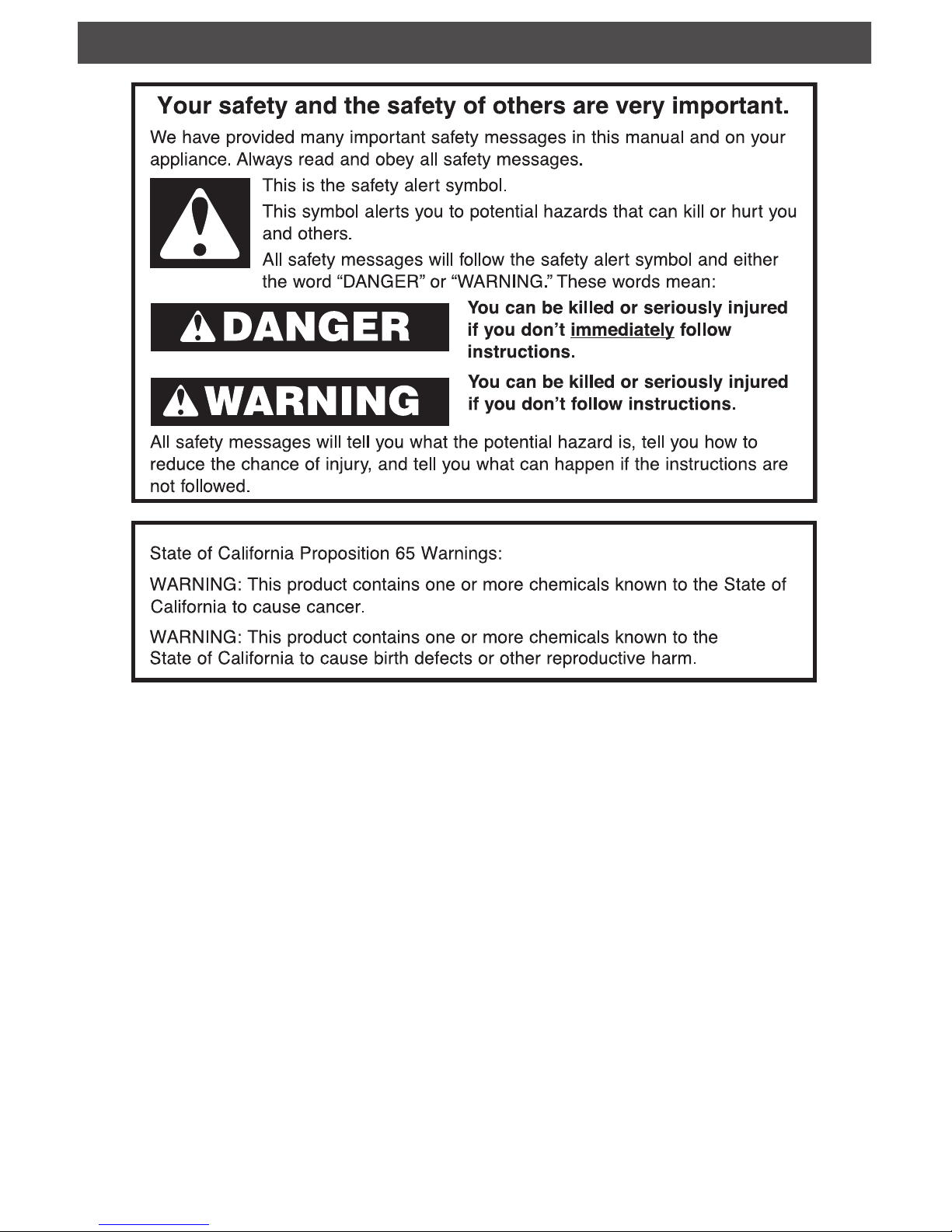

STIR TOWER SAFETY

English

STIR TOWER SAFETYSTIR TOWER SAFETY

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be

followed to reduce the risk of fire, electric shock, and/or injury to persons

including the following:

1. Read all instructions.

2. Do not touch hot surfaces. Use potholders or oven mitts when handling the

cooking bowl, lid, or attachments.

3. To avoid electrical shock do not immerse cord, plugs, or the Multi-Cooker

base in water or other liquid.

4. Close supervision is necessary when any appliance is used by or near children.

5. Disconnect from Multi-Cooker when not in use and before cleaning. Allow to

cool before putting on or taking off parts.

6. Do not operate any appliance with a damaged cord or plug or after the

appliance malfunctions or has been damaged in any manner. Return

appliance to the nearest Authorized Service Facility for examination,

repair, or adjustment.

7. The use of accessory attachments not recommended by KitchenAid may

cause injuries.

8. Do not use outdoors.

9. Do not place on or near a hot gas or electric burner, or in a heated oven.

10. Extreme caution must be used when moving an appliance containing hot oil

or other hot liquids.

11. Do not use appliance for other than intended use.

12. To disconnect, set all controls to “OFF,” then separate from Multi-Cooker.

SAVE THESE INSTRUCTIONS

Electrical requirements

Voltage: 120 VAC

Frequency: 60 Hz

Wattage: 50 Watts

NOTE: This Stir Tower is designed for use

only with the KitchenAid®Multi-Cooker.

This product is designed for household use only.

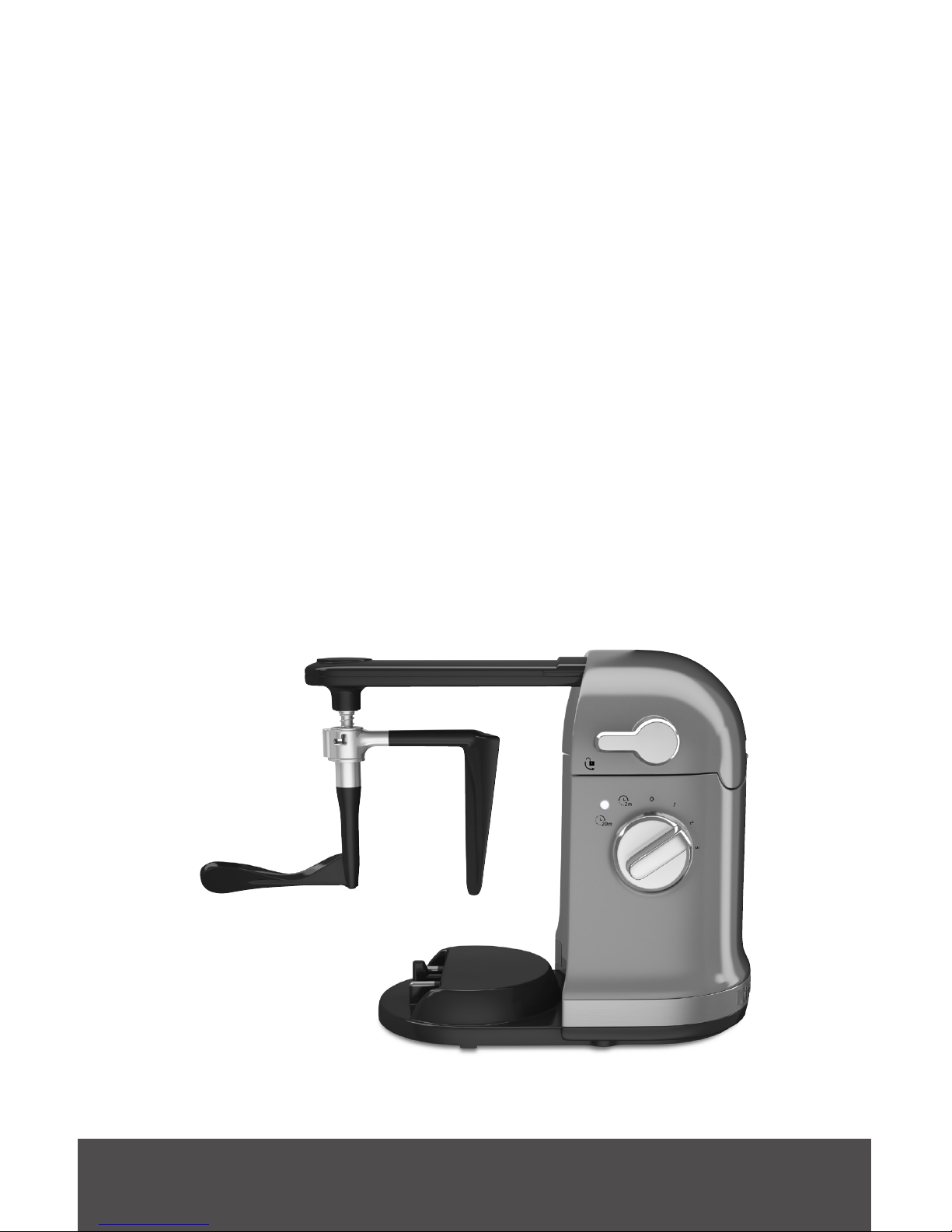

PARTS AND FEATURES

Parts and accessories

Power ON

indicator

Side scraper

attachment

Constant

stir speeds

Intermittent

stir modes

Flip-and-stir

wand

Your Stir Tower features 3 stir speeds and 2 intermittent stir modes. The power ON

indicator will be lit whenever the Stir Tower is on, including in intermittent modes.

Setting Speed RPMs Duration Optimal for:

O OFF –– –– ––

1LOW 20 Constant ON Risotto, soups, stir-fry

2 MEDIUM 45 Constant ON Hot cereals, sauces

3 HIGH 75 Constant ON Puddings, yogurt

2-Minute

Intermittent

LOW 20 ON for 15

seconds every

2 minutes

Searing and sauteeing

20-Minute

Intermittent

LOW 20 ON for 1 minute

every 20 minutes

Slow cooking and stews

Stir arm Stir arm

lift release

Easy-connect

power port

SELECTING STIR SPEEDS

STIR SPEED SELECTOR

English

PARTS AND FEATURES USING THE STIR TOWER

SELECTING STIR SPEEDS

Before rst use

1. Remove all packaging materials, if present.

2. Wash the Side Scraper and Flip-and-stir

wand attachments ain hot, sudsy water.

Dry thoroughly.

Attaching the Stir Tower to the Multi-Cooker (sold separately)

4Raise the stir arm by pressing down on

the release lever.

2Place the stir tower on a sturdy, level

surface such as a countertop, with

enough space for the Multi-Cooker.

Align the pins on the Stir Tower shaft

with the slots on the

flip-and-stir

wand

. Press the

wand

up and rotate

counterclockwise to lock into place.

1If using both attachments: Align the tab

on the top of the flip-and-stir wand with

the groove on the side scraper and slide

into place.

Use the ip-and-stir wand by itself when

cooking foods with larger pieces or when

sautéeing and frying in smaller quantities.

Add the side scraper blade when preparing

soups, stews, and sauces to help circulate

ingredients thoroughly.

USING THE STIR TOWER

Cooking with the Stir Tower

2Once the cooking mode is set and

started (see Multi-Cooker instructions),

select the desired stir speed or

intermittent stir mode. Power on

indicator will light.

1Add ingredients to the cooking pot, align

the cut-out in the Multi-Cooker lid with

the stir arm and cover the cooking pot.

NOTE: For additional information on how to add ingredients and select cooking modes, see the

instructions included with your Multi-Cooker, or visit www.KitchenAid.com/quickstart.

6Place the cooking pot in the

Multi-Cooker, aligning the notch in

the cooking pot with the stir arm.

5With the lid removed, align the back of

the Multi-Cooker with the front of the

Stir Tower. Lower the Multi-Cooker

onto the easy connect power port on

the Stir Tower base.

7Lower the stir arm until it locks into

place.

English

USING THE STIR TOWER USING THE STIR TOWER

3When cooking has finished, set the Stir

Tower to O (Off) and remove the lid

from the pot using a hot pad or oven

mitt. NOTE: The sitr arm can become

hot to the touch when cooking.

4Press down on the release lever and

raise the stir arm before removing the

cooking pot.

Cleaning your Stir Tower

Remove the Stir Tower from the Multi-Cooker

before cleaning.

• Allow Stir Tower and accessories

to cool completely before cleaning.

• Do not use abrasive cleaners or metal

scouring pads. They could scratch

the surface.

• Stir Tower arm features a nonstick ceramic

coating for easy cleaning.

• Wipe the outside of the Stir Tower with a

clean, damp cloth and dry thoroughly.

NOTE: The ip-and-stir wand and

side scraper are dishwasher durable,

but handwashing in hot, soapy water is

recommended.

Tips and tricks

• For most food preparation, use the ip-

and-stir wand only for best performance.

When preparing larger quantities (near the

MAX FILL line), or for foods like soups and

stews, add the side scraper to help mix and

circulate foods.

• For stirring risotto (Arborio) rice, it is

recommended to stir at least 2–4 cups

(380–760 g) of rice to get the best ipping

and stirring performance

• Flip-and-stir wand is designed to stir/ip/

incorporate 3–4 cups (0.75–1.0 L) of

ingredients at a time.

• Use of the Stir Tower is not recommended

when preparing smaller quantities of lighter

or delicate ingredients such as mushrooms.

• The ip-and-stir wand is ideal for preparing

foods ingredients such as onions, carrots,

broccoli, potatoes (cubed), meatballs (2-3

oz./40-60 g each), small to medium shrimp,

and sliced or cubed meats and poultry.

CARE AND CLEANING

• Stir Tower not turning on:

The Stir Tower is powered by the Multi-

Cooker. Be sure that the Multi-Cooker is

plugged into a grounded 3 prong outlet

and seated properly on the easy-connect

power port.

• Food not being stirred, or sticking to

side of pot:

For most cooking, use only the ip-and-stir

wand.

For larger quantities or for foods like soups

and stews, use both stirring attachments

together.

• Motor shutting off:

The stirring motor has built-in thermal

overload protection. If food is too thick

or heavy, try selecting a slower speed, or

prepare a smaller quantity.

• Stir arm won’t lock into place:

If the stir arm does not go all the way

down, rotate the attachments slightly

before lowering the arm.

Be sure that the stir arm is aligned with

the pouring spout.

• If the problem cannot be corrected:

See the “KitchenAid Warranty and Service”

sections. Do not return the Multi-Cooker

to the retailer – retailers do not provide

service.

TROUBLESHOOTING

If your Stir Tower malfunctions or fails to operate

Replacement parts

The following parts are available to order as extra or replacement parts for the

Stir Tower accessory:

Part Name Part Number

Scraping Blade W10726707

Flipping Wand W10726709

Otros manuales para KST4054

Tabla de contenidos

Idiomas:

Otros manuales de Electrodoméstico de cocina de KitchenAid

KitchenAid

KitchenAid 5KSMCB5N Manual de usuario

KitchenAid

KitchenAid KHIP365510 Manual de usuario

KitchenAid

KitchenAid 5KSMMGA Manual de usuario

KitchenAid

KitchenAid 780-0018 Hoja de información del producto

KitchenAid

KitchenAid 5KSMFGAG Manual de usuario

KitchenAid

KitchenAid 5KSM5SSBCE Manual de usuario

KitchenAid

KitchenAid EPS-10 Manual de usuario

KitchenAid

KitchenAid 5KSM5SSB Manual de usuario

KitchenAid

KitchenAid KSMSFTA Manual de usuario

KitchenAid

KitchenAid FVSFGA Manual de usuario

KitchenAid

KitchenAid KSM2SCA Manual de usuario

KitchenAid

KitchenAid YKHMS2040 Manual de usuario

KitchenAid

KitchenAid KSM60SPX Manual de usuario

KitchenAid

KitchenAid KST4054 Manual de usuario

KitchenAid

KitchenAid KESMK4 Manual de usuario

KitchenAid

KitchenAid KMC4244 Manual de usuario

KitchenAid

KitchenAid 5K45 Series Manual de usuario

KitchenAid

KitchenAid KBCS24LSBS00 Manual de usuario

KitchenAid

KitchenAid KSMMGA Manual de usuario

KitchenAid

KitchenAid 5KSB13 Series Manual de usuario

KitchenAid

KitchenAid KSS1121 Manual de usuario

KitchenAid

KitchenAid 5KSM2CB5B Series Manual de usuario

KitchenAid

KitchenAid Mockmill Manual de usuario

KitchenAid

KitchenAid Professional 600 RKP26M1XBY Manual de usuario

Manuales populares de Electrodoméstico de cocina de otras marcas

Tayama

Tayama TYG-35AF Manual de usuario

AEG

AEG 43172V-MN Manual de usuario

REBER

REBER Professional 40 Guía del usuario

North American

North American BB12482G / TR-F-04-B-NCT-1 Manual de usuario

Presto

Presto fountain popper Manual de usuario

Westmark

Westmark 1035 2260 Manual de usuario

Zanussi

Zanussi ZCG64396XA Manual de usuario

HOFFEN

HOFFEN SM-9302M Manual de usuario

Philips

Philips HD3133 Manual de usuario

Ronco

Ronco Beef Jerky Manual de usuario

Hendi

Hendi 470411 Manual de usuario

Livoo

Livoo MEN386 Manual de usuario

Vogue

Vogue D446 Manual de usuario

croydon

croydon WR-10313-700 Manual de usuario

ADE

ADE AUTOMATIC-L Manual de usuario

Chefman

Chefman RJ43-SQ Series Manual de usuario

Vacmaster

Vacmaster VP680 Manual de usuario

Jetmaster

Jetmaster 900HG Manual de usuario
