K8 Bluetooth Mechanical Keyboard

2

Keychron K8 Bluetooth Mechanical Keyboard x 1

Type-C Cable * 1

Manual * 1

Quick Start Guide * 1

Extra Keycaps Set * 1

IN THE BOX:

Quick Start Guide

If you are a Windows user, please find the appropriate keycaps in the box,

then follow the instructions below to find and replace the following keycaps.

Mac / Windows

3

4

Press fn + 1 (for 4 seconds) and pair with

device named Keychron K8

Switch toggle to Bluetooth

Switch toggle to Cable

5

3

For RGB version - Press fn + right arrow /

4

For Windows: Press fn + X + L (for 4 seconds) to switch

Keyboard

6

6 6.5

For Mac - Karabiner For Windows - SharpKeys

Karabiner SharpKeys

Remap keys Linux’s Setting

We have a Linux user group on facebook. Please search

“Keychron Linux Group” on facebook. So you can

better experience with our keyboard.

We don’t have an oicial software to remap the keys yet.

But you can use these two software to get the job done.

(Except the light eect key)

Disable Auto Sleep Mode

5Press fn + S + O (for 4 seconds) to disable the Auto Sleep Mode.

The keyboard goes to Auto Sleep Mode in 10 minutes

7

7

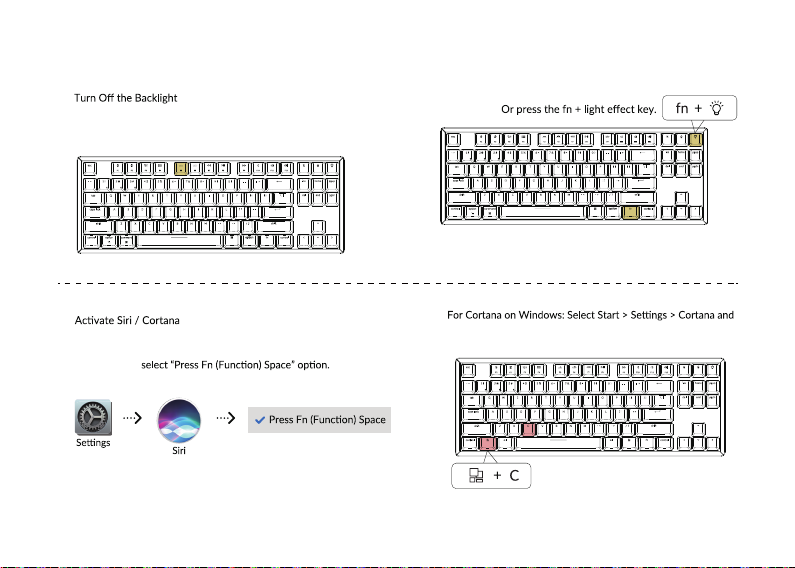

If you are on the Mac, the default is to press F5 key.

If you are on the Windows, the default is to press fn + F5 key.

8

For Siri on Mac: Go to System preferences> Siri >

select the shortcut by pressing Windows key + C key.

*Siri key only works on MacOS and does not work on iOS.

*Windows Cortana is only available for Windows 10 and above OS. Cortana is only

available in certain countries / regions and might not work everywhere.

8

K8 BLUETOOTH MECHANICAL KEYBOARD SPECIFICATIONS

Number of keys: 87

Switch type: Mechanical / Optical Switch

Battery: 4000mAh

Working time: Around 70 hours with the backlight on.

Charging time: Around 3 hours

Charging port: USB Type-C

Mode: Bluetooth/Wired

Bluetooth operating distance: Within 10 meters (open space)

Name of Bluetooth device: Keychron K8

Operating Environment: -10 to 50°c

Technical specifications can be subjected to change without notice we apologize for any

inconvenience caused

9

K8 BLUETOOTH MECHANICAL KEYBOARD OVERVIEW

Mac

Windows

4

5

6

1

2

3

4

5

6

Chargingindicator

Bluetoothindicatov

CapsLockindicator

Chargingport

Win/AndroidMac/iOS(OSToggleSwitch)

BTOFFCable(ModeToggleSwitch)

10

LED Location

Battery indicator

Bluetooth indicator

Function

Charging

Bluetooth

Status

Low battery - Blinking Red

Charging - Static Red

Fully charged - Static Green

Pairing - Fast Blinking

Paired - Light Off

Switching - Slow Blinking

*The Keychron keyboard is compatible with all USB ports. Please use a 5V 2A adapter or USB 3.0 for

the best performance. The Keychron K8 can be charged in Bluetooth/on/off mode.

** This product supports up to 5V charging voltage and 2A charging current. We are not responsible

for any problems caused by improper charging.

3

LED STATUS OVERVIEW
