Kenwood CK 404 FS Manual de usuario

Instructions for use

Installation advice

DUAL FUEL

DOUBLE OVEN COOKER

CK 404 FS

Read the instructions carefully before installing and using the appliance.

CAUTION: this appIiance must only be installed in a permanently ventilated room in

compliance with the applicable regulations.

Dear Customer,

Thank you for purchasing a Kenwood Dual Fuel Cooker

The safety precautions and recommendations in these

instructions are for your own safety and that of others. They will

also provide a means by which to make full use of the features

offered by your appliance.

Please keep this booklet in a safe place. It may be useful in the

future, either to yourself or to others in the event that doubts

should arise relating to its operation.

This appliance must be used only for its intended purpose, that

is for the domestic cooking of foodstuffs. Any other form of

usage is to be considered as inappropriate and therefore

dangerous.

The manufacturer declines all responsibility in the event of

damage caused by improper, incorrect or illogical use of the

appliance.

Important:

This appliance is designed and manufactured solely for the cooking of domestic

(household) food and is not suitable for any non domestic application and therefore

should not be used in a commercial environment.

The appliance guarantee will be void if the appliance is used within a non domestic

environment i.e. a semi commercial, commercial or communal environment.

CONTENTS

Page Number

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Important Safeguards & Recommendations . . . . . . . . . . . . . . . . . . . . 4

Cooking Hob . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Use of cooking hob . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 9

Fan main oven. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 13

Conventional oven. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 - 15

Cooking guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

120 minutes timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Cleaning & maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 - 24

Advice For The Installer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 - 30

Gas section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 - 36

Electrical section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 - 38

Guarantee. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

After Sales Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

The CE marking confirms that the appliance conforms to the following EU directives:

- Safety requirements of EU Directive “Gas” 2009/142/EC;

- Safety requirements of EU Directive “ ow Voltage” 2006/95/EC;

- Protection requirements of EU Directive “EMC” 2004/108/EC;

- Requirements of EU Directive 93/68/EEC.

IMPO TANT INFO MATION FO CO ECT DISPOSAL OF THE P ODUCT IN

ACCO DANCE WITH EC DI ECTIVE 2002/96/EC.

At the end of its working life, the product must not be disposed of as

urban waste. It must be taken to a special local authority differentiated

waste collection centre or to a dealer providing this service.

Disposing of a household appliance separately avoids possible nega-

tive consequences for the environment and health deriving from inap-

propriate disposal and enables the constituent materials to be recov-

ered to obtain significant savings in energy and resources. As a

reminder of the need to dispose of household appliances separately,

the product is marked with a crossed-out wheeled dustbin.

IMPO TANT SAFEGUA DS AND ECOMMENDATIONS

After having unpacked the appliance, check to ensure that it is not damaged and that the

oven doors close correctly. In case of doubt, do not use it and consult your supplier or a pro-

fessionally qualified technician.

Packing elements (i.e. plastic bags, polystyrene foam, nails, packing straps, etc.) should not

be left around within easy reach of children, as these may cause serious injuries.

•

Do not attempt to modify the technical characteristics of the appliance as this may cause

danger to users.

•

Do not carry out cleaning or maintenance operations on the appliance without having pre-

viously disconnected it from the electric power supply.

•

If you should decide not to use this appliance any longer (or decide to substitute an older

model), before disposing of it, it is recommended that it be made inoperative in an appro-

priate manner in accordance to health and environmental protection regulations, ensuring

in particular that all potentially hazardous parts be made harmless, especially in relation to

children who could play with unused appliances.

•

After use, ensure that the knobs are in off position.

•

Keep children away from the appliance during use.

•

Household appliances are not intended to be played with by children. Young children

should be supervised to ensure that they do not play with the appliance.

•

Children, or persons with a disability which limits their ability to use the appliance, should

have a responsible person to instruct them in its use.

The instructor should be satisfied that they can use the appliance without danger to them

selves or their surroundings.

•

During and after use of the cooker, certain parts will become very hot. Do not touch hot

parts.

•

Some appliances are supplied with a protective film on steel and aluminium parts.

This film must be removed before using the appliance.

•

WARNING

When correctly installed, your product meets all safety requirements laid down for this

type of product category. However special care should be taken around the rear or the

underneath of the appliance as these areas are not designed or intended to be touched

and may contain sharp or rough edges, that may cause injury.

•

Fire risk! Do not store flammable material in the ovens or in the storage compartment.

•

Make sure that electrical cables connecting other appliances in the proximity of the cooker

cannot come into contact with the hob or become entrapped in the oven door/s.

•

Do not line the oven walls with aluminium foil. Do not place baking trays or the drip tray on

the base of the oven chamber.

•

The manufacturer declines all liability for injury to persons or damage to property caused

by incorrect or improper use of the appliance.

•

The various components of the appliance are recyclable. Dispose of them in accordance

with the regulations in force in your country. If the appliance is to be scrapped, remove the

power cord.

•

Always use oven gloves when removing the shelves and food trays from the oven whilst

hot.

•

Do not hang towels, dishcloths or other items on the appliance or its handle/s – as this

could be a fire hazard.

•

Clean the oven regularly and do not allow fat or oils to build up in the oven base or tray.

Remove spillages as soon as they occur.

•

Do not stand on the cooker or on the open oven door/s.

•

Always stand back from the appliance when opening the oven door/s to allow steam and

hot air to escape before removing the food.

•

This appliance is for domestic use only.

•

WARNING: Taking care NOT to lift the cooker by the door handle/s.

• Safe food handling: leave food in the oven for as short a time as possible before and

after cooking. This is to avoid contamination by organisms which may cause food poi-

soning. Take particular care during warmer weather.

FI ST USE THE OVENS

It is advised to follow these instructions:

– Furnish the interior of the oven as described at chapter “Cleaning and mainte-

nance”.

– Empty the oven and close the door. Heat the oven at the maximum temperature

setting for around two hours to eliminate the odour of grease and fumes from the

manufacturing process. Make sure that the kitchen is well ventilated and do not

remain in the room during this process.

– Clean the interior of the oven with cloth soaked in water and detergent (neutral) then

dry carefully.

Fig. 1.1

GAS BU NE S

1. Auxiliary burner (A) 1,00 kW

2. Semi-rapid burner (SR) 1,75 kW

3. Rapid burner (R) 3,00 kW

4. Triple-ring burner (TR) 3,50 kW

1 - COOKING HOB

Note:

The electric ignition is incorporated in the knobs.

The appliance has a safety valve system fitted, the flow of gas will be stopped if and

when the flame should accidentally go out.

Fig. 2.1

87 54 321611

CONT OL PANEL - Controls description

1. Front right burner control knob

2. Rear right burner control knob

3. Central burner control knob

4. Rear left burner control knob

5. Front left burner control knob

6. Fan oven switch knob (main left oven)

7. Fan oven thermostat knob (main left oven)

8. 120 minutes timer control knob

9. Conventional oven temperature knob (right small oven)

10. Conventional oven switch knob (right small oven)

Pilot lamps:

11. Fan oven temperature indicator light

12. Conventional oven temperature indicator light

2 - CONT OL PANEL

10 912

Please note: This appliance incorporates a safety cooling fan which you will hear oper-

ating whenever the oven or grill are in use.

This fan may continue to run for several minutes after the appliance has been switched

off.

This fan is to reduce the external temperature of the appliance and cool the internal

components.

3 - USE OF COOKING HOB

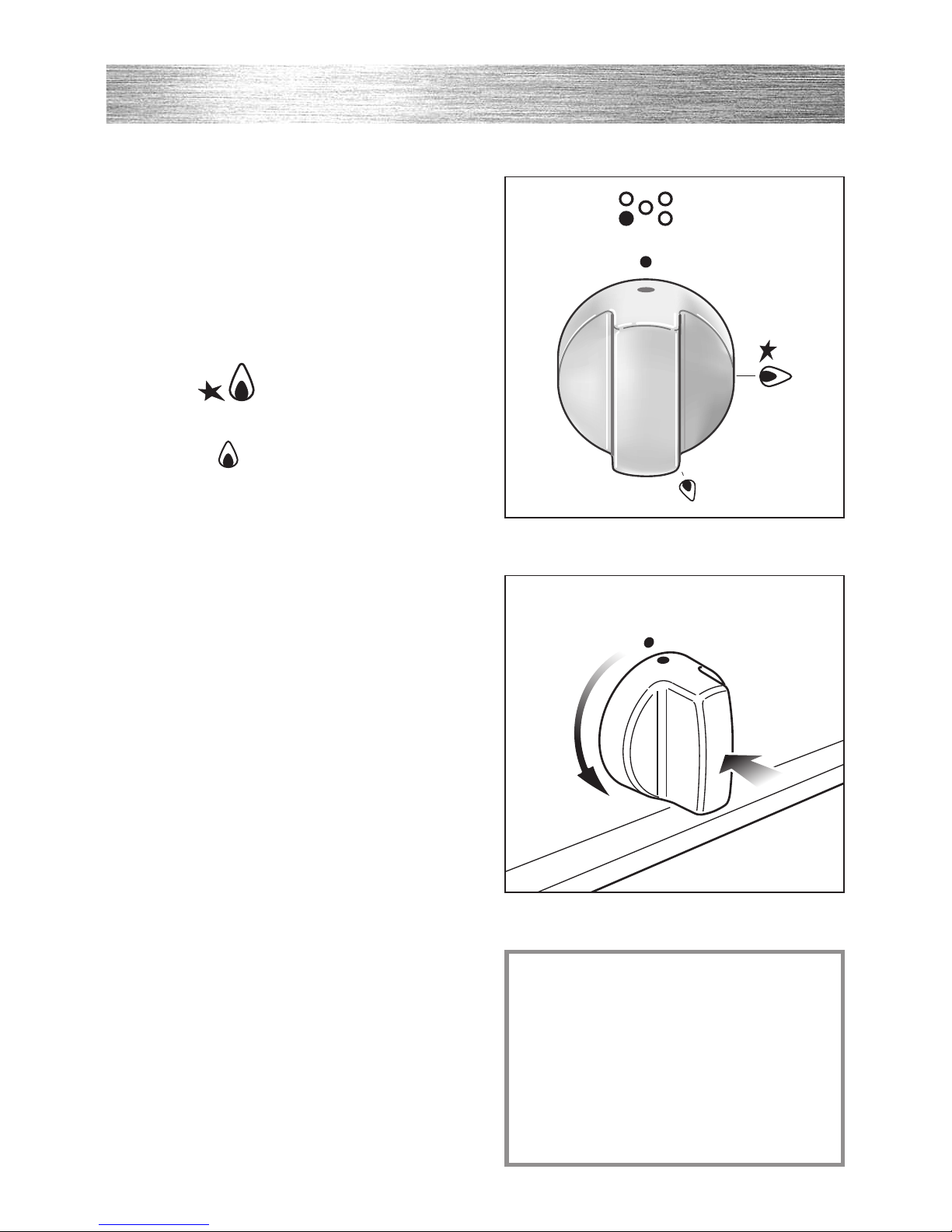

Fig. 3.1

Fig. 3.2

GAS BU NE S

Each burner is controlled by a gas tap

which opens and closes the gas supply.

ine the control knob symbol up with the

indicator on the control panel (fig. 3.1) to

obtain:

– symbol ●: off

– symbol : full on

(maximum rate)

– symbol : minimum rate

- The maximum setting permits rapid

boiling of liquids, whereas the mini-

mum setting allows slower warming of

food or maintaining simmering condi-

tions of liquids.

- To reduce the gas flow to minimum,

rotate the knob anti-clockwise to point

the indicator towards the small flame

symbol.

- Other intermediate operating can be

achieved by positioning the control

knob indicator between the maximum

and minimum setting, but not between

the maximum and off positions.

N.B. When the cooker is not being

used, set the gas knobs to their

closed positions and also close the

cock valve on the gas bottle or the

main gas supply line.

Caution!

the cooking hob becomes very hot

during operation.

Keep children well out of reach.

CHOICE OF THE BU NE

On the control panel, near each knob,

there is a diagram that indicates which

burner is controlled by that knob.

Select the burner that is most suitable

for the diameter and capacity of the pan

to be used.

As an indication, the burners and the

pans must be used in the following way:

It is important that the base diameter of

the pot is at least the same diameter as

the burner ring to obtain an efficient

heat transfer.

Always position pans centrally over the

burners.

Adjust the size of the flame so that it

does not lick up the side of the pan.

Position pan handles so that they

cannot be accidentally knocked.

Fig. 3.3

BURNERS POT DIAMETER

Auxiliary 12 - 14 cm

Semi-rapid 16 - 24 cm

Rapid 24 - 26 cm

Triple-ring 26 - 28 cm

do not use pans with concave

or convex bases (fig. 3.3)

DEEP FAT F YING

For safety purposes when deep fat fry-

ing, do not fill the pan more than one

third full of oil.

DO NOT cover the pan with a lid and

DO NOT leave the pan unattended.

In the unfortunate event of a fire, leave

the pan where it is and turn off the con-

trol knobs.

Place a damp cloth or lid over the pan to

smother the flames. eave the pan to

cool for at least 30minutes before mov-

ing the pan.

DO NOT USE WATER ON THE FIRE.

LIGHTING GAS BU NE S FITTED

WITH SAFETY VALVE DEVICE

To ignite the burner, the following

instructions are to be followed:

1) Press in the corresponding knob and

turn counter-clockwise (fig. 3.2) to

the full flame position marked by the

symbol (fig. 3.1) and hold the

knob in until the flame has been lit.

In the case of a mains failure light the

burner with a match or lighted taper.

2) Wait for about ten seconds after the

gas burner has been lit before letting

go of the knob (valve activation

delay).

3) Adjust the gas valve to the desired

position.

If the burner flame should go out for

some reason, the safety valve will auto-

matically stop the gas flow.

To re-light the burner, return the knob to

the closed ●position, wait for at least

1 minute and then repeat the lighting

procedure.

If your local gas supply makes it difficult

to light the burner with the knob set to

maximum, set the knob to minimum and

repeat the operation.

4 - FAN MAIN OVEN

OPE ATING P INCIPLES

Heating and cooking in the FAN oven

are obtained in the following ways:

a. by forced convection

A fan sucks in the air contained in the

oven muffle, which sends it through

the circular heating element and then

sends it back through the muffle.

Before the hot air is sucked back

again by the fan to repeat the

described cycle, it envelops the food

in the oven, provoking a complete and

rapid cooking. It is possible to cook

several dishes simultaneously.

b. by radiation

The heat is irradiated by the infra red

grill element.

c. by ventilation

The food is defrosted by using the fan

only function without heat.

GENE AL FEATU ES

With your new Fan oven it is possible to

cook a variety of food using the 2 differ-

ent cooking functions.

The 2 positions, thermostatically con-

trolled, are obtained by 2 heating ele-

ments.

– Grill element 2000 W

– Circular element 2500 W

NOTE:

Upon first use, it is advisable to operate

the oven at the maximum temperature

(thermostat knob on position 250) for 60

minutes in the position and for

another 15 minutes in the mode in

order to eliminate any traces of grease

from the electrical resistances.

WARNING:

The door is hot, use the handle.

ATTENTION - MOST IMPORTANT

Pay special attention not to touch the

hot heating element inside the oven

cavity.

Attention: the oven door becomes

very hot during operation.

Keep children away.

Tabla de contenidos

Otros manuales de Estufa de Kenwood

Kenwood

Kenwood CK 405 Instrucciones de instalación y funcionamiento

Kenwood

Kenwood KDG606S19 Guía rápida

Kenwood

Kenwood KDOI60X20 Manual de servicio

Kenwood

Kenwood CK 230 FS Manual de usuario

Kenwood

Kenwood CK 940 Manual de usuario

Kenwood

Kenwood CK 405 Instrucciones de instalación y funcionamiento

Kenwood

Kenwood CK 304 G Manual de usuario

Kenwood

Kenwood CK 234 DF Series Manual de usuario

Kenwood

Kenwood CK 487 Instrucciones de instalación y funcionamiento

Kenwood

Kenwood KTG506S19 Manual de servicio

Kenwood

Kenwood CK 231 DF Manual de usuario

Kenwood

Kenwood CK 600 Instrucciones de instalación y funcionamiento

Kenwood

Kenwood CK 240 Instrucciones de instalación y funcionamiento

Kenwood

Kenwood CK 232 DFA Instrucciones de instalación y funcionamiento

Kenwood

Kenwood KDC606B19 Manual de servicio

Kenwood

Kenwood CK 440 FFD Manual de usuario

Kenwood

Kenwood CP665 Manual de usuario

Kenwood

Kenwood KDC506S19 Manual de servicio

Kenwood

Kenwood CK 315 A Instrucciones de instalación y funcionamiento

Kenwood

Kenwood CK 414 Manual de usuario

Kenwood

Kenwood CK 305 Manual de usuario

Kenwood

Kenwood CK 404 G Manual de usuario

Kenwood

Kenwood CK 408 Manual de usuario

Kenwood

Kenwood CK 307 Series Manual de usuario

Manuales populares de Estufa de otras marcas

Modena

Modena FC 7645 SGM Manual del propietario

Electrolux

Electrolux Insight EKG6049 Manual de usuario

Stanley

Stanley Donard 60 Manual de usuario

Bartscher

Bartscher 201TC Manual de usuario

Parkinson Cowan

Parkinson Cowan 50 GR/BU Manual de usuario

Siemens

Siemens HK9P00020U Manual de usuario

Creda

Creda S150E Guía

Creda

Creda HB48309 Manual de usuario

Bosch

Bosch HCE743220F Manual de usuario

Tricity Bendix

Tricity Bendix SE545P Manual de usuario

NEFF

NEFF E1461A2/01 Manual de usuario

Zanussi

Zanussi ZCM 700 X Manual de usuario

Smeg

Smeg SNL61MA9 Manual de usuario

RiverGrille

RiverGrille TF2002501-RG Manual de usuario

Vollrath

Vollrath 69504F Manual de usuario

Tricity Bendix

Tricity Bendix CSIE500 Manual de usuario

AEG

AEG Competence 5731 V Manual de usuario

Euromaid

Euromaid ES60 Manual de usuario
