Juniper SRX4100 Guía de configuración

The SRX4100 Services Gateway is a high-performance, scalable mid-range

services gateway that consolidates security, next-generation ﬁrewall, and

advanced threat prevention capabilities to provide secure connectivity. The

services gateway is suited for small to medium enterprises and data centers.

The SRX4100 Services Gateway comes with 64 GB of DDR4 memory and two

240-GB solid-state drives (SSDs) in RAID1 conﬁguration. The SRX4100 Services

Gateway is available in both AC and DC models.

How to Set Up Your SRX4100 Services Gateway

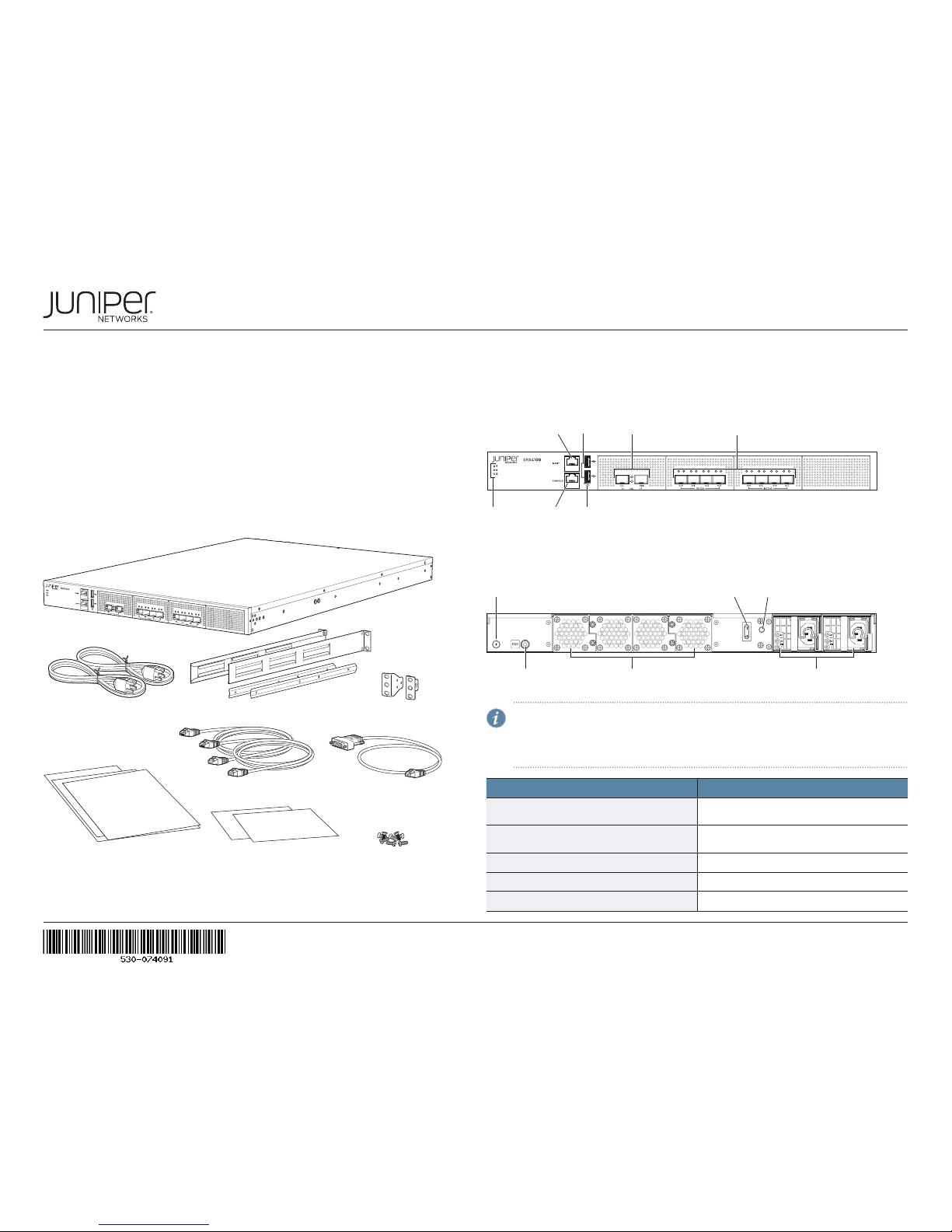

Package Contents

Back Panel

Front Panel

g005226

LED

1G/10G SFP+

HA ports

1G/10G SFP+

ports

Console Reset

buttonport

Management

port

USB 2.0

ports

g005227

ALARM OFF

Grounding

point

ESD

point

Fans Power supply slots

Power

switch

Alarm

o

Speciﬁcation Value

Dimensions (H x W x D) 1.75 in. x 17.48 in. x 25 in.

(4.45 cm x 44.40 cm x 63.50 cm)

Chassis weight 29 lb (13.15 kg)-with two AC power supplies

28.8 lb (13.06 kg)-with two DC power supplies

Average power consumption 200 W

Maximum thermal output 1500 BTU/hour

Relative humidity 5% to 90%, noncondensing

NOTE: The SRX4100 Services Gateway shipment package contains a

packing list. Check the parts in the shipment against the items on the

packing list. If anything is missing or damaged, contact your Juniper

Networks customer service representative.

g005225

SRX4100

Warranty and Registration

Information

DB9-to-RJ-45 cable

Screws

• End User License Agreement

• Safety Guide

• Quick Start Guide

Mounting brackets

AC power cables

RJ-45 cables

Mounting ears

How to Set Up Your SRX4100 Services Gateway 2

Factory-Default Settings

Interfaces

Interface IP Address

fxp0 192.168.1.1/24

Services

SSH

HTTPS

NETCONF over SSH

Initial Conﬁguration Process

g043458

Install Device

in a Rack

Connect

the Grounding

Cable

Conﬁgure Root

Authentication

Connect

to the

Console Port

Power On

the Device

Install the Device in a Rack

1. Attach the mounting ears to the front of the chassis, using the screws

provided. Then, attach the ﬁxed brackets to the rear of the device, using the

screws provided.

g005271

NOTE: Ensure that the rear of the device is supported throughout the

process of mounting the device into the rack.

2. Slide the device into the rack, and secure the mounting ears to the rack, using

the screws provided.

g005272

3. Slide the adjustable brackets into the ﬁxed brackets attached to the rear of

the device

g005273

4. Secure the adjustable brackets to the rack, using the screws provided.

g005274

How to Set Up Your SRX4100 Services Gateway 3

Connect the Grounding Cable

1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist,

and connect the strap to the ESD point on the chassis.

2. Connect one end of the grounding cable to a proper earth ground, such as the

rack in which the services gateway is mounted.

3. Place the grounding cable lug over the grounding point on the rear of the

chassis.

g005229

Grounding point

on the chassis

Grounding

lug

Grounding

screw

NOTE: The device should be permanently connected to ground during

normal operation. A licensed electrician must attach a cable lug to the

grounding cable. A cable with an incorrectly attached lug can damage

the device.

4. Secure the grounding cable lug to the grounding point with the screw.

Power On the Device

1. If you are using the AC model, perform the following steps:

a. Insert the coupler end of the power cord into the AC power cord inlet on

the AC power supply faceplate. Push the power cord retainer onto the

power cord.

g00523

b. Insert the power cord plug into an AC power source outlet.

c. Turn on the power to the AC power receptacle.

d. Repeat steps a through c for the second AC power supply.

e. Verify that the AC and DC LEDs on each power supply are lit green.

2. If you are using the DC model, perform the following steps:

WARNING: Before performing the following procedure, ensure that

there is no power in the DC circuit. To ensure that all power is cut o,

locate the circuit breaker on the panel board that services the DC circuit,

switch the circuit breaker to the OFF (0) position, and tape the switch

handle of the circuit breaker in the OFF position.

a. Ensure that the voltage across the DC power source cable leads is 0 V and

that the cable leads do not become active while you are connecting DC

power.

How to Set Up Your SRX4100 Services Gateway 4

b. Verify that the DC power cables are correctly labeled before making

connections to the power supply. In a typical power distribution scheme

where the return is connected to chassis ground at the battery plant, you

can use a multimeter to verify the resistance of the -48V and RTN DC

cables to chassis ground:

•The cable with very high resistance (indicating an open circuit) to chassis

ground will be connected to the V- (input) DC power input terminal.

•The cable with very low resistance (indicating a closed circuit) to chassis

ground will be connected to the V+ (return) DC power input terminal.

c. Remove the clear plastic cover from the terminal studs on the faceplate.

d. Remove the screws on the terminals by using a Phillips (+) screwdriver,

number 2.

e. Secure each positive (+) DC source power cable lug to a RTN (return)

terminal. Secure each negative (–) DC source power cable lug to a -48V

(input) terminal.

f. Tighten the screws on the power supply terminals until snug using the

screwdriver. Do not overtighten.

g00523

g. Replace the clear plastic cover over the terminal studs on the faceplate.

h. Remove the tape from the switch handle of the circuit breaker on the panel

board that services the DC circuit, and switch the circuit breaker to the ON

(|) position.

i. Verify that the IN and OUT LEDs on the power supply are lit green and are

on steadily.

3. Wait until the Status LED on the front panel of the services gateway is solid

green before proceeding to the next step.

g005228

Power

atus

SSD

Connect to the Console Port

1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist,

and connect the strap to the ESD point on the chassis.

2. Plug the RJ-45 end of the DB9-to-RJ-45 cable into the Console port on your

services gateway.

g00523

DB9-to-RJ-45 cable

Console port

Serial port

3. Connect the other end of the cable to the serial port on the management

device. Use the following values to conﬁgure the serial port:

Baud rate—9600; Parity—N; Data bits—8; Stop bits—1; Flow control—None.

How to Set Up Your SRX4100 Services Gateway 5

Conﬁgure Root Authentication

Before you can use J-Web to conﬁgure your device, you must access the CLI to

conﬁgure root authentication.

1. Log in to the device as root. When the device is powered on with the factory-

default conﬁguration, you do not need to enter a password.

2. At the (%) prompt, type cli to start the CLI and press Enter. The prompt

changes to an angle bracket (>) when you enter the CLI operational mode.

root%cli

root>

3. At the (>) prompt, type conﬁgure and press Enter. The prompt changes from

> to # when you enter conﬁguration mode.

root> congure

Entering conguration mode

[edit]

root#

4. Set the root authentication password by entering a cleartext password, an

encrypted password, or an SSH public key string (DSA or RSA).

root# set system root-authentication plain-text-

password

New password: password

Retype new password: password

5. Conﬁgure the route for the management interface (optional, required only if

you do not connect the MGMT port directly to the management device).

root# set routing-options static route <destination

prex> next-hop <gateway>

6. Commit the conﬁguration changes.

root# commit

7. Connect the MGMT port on the device to the Ethernet port on the

management device using an RJ-45 cable.

8. Conﬁgure an IP address on the 192.168.1.0/24 subnetwork for the

management device. By default, the management interface is conﬁgured with

the 192.168.1.1/24 IP address. If you need to change the IP address, perform

the following steps or else proceed to Step 9.

a. Delete the default management interface IP address.

root# delete interface fxp0 unit 0 family inet

address 192.168.1.1/24

b. Conﬁgure a new IP address for the management interface.

root# set interfaces fxp0 unit 0 family inet address

address/prex-length

c. Commit the conﬁguration changes.

root# commit

d. Conﬁgure an IP address for the management device. Ensure that the IP

address is on the same subnetwork as the management interface (fxp0).

9. Launch a Web browser from the management device and access the services

gateway using the URL https://192.168.1.1.

If you changed the management interface IP address in Step 8, then use the

URL https://<management IP address> to access the services gateway.

NOTE: As the system-generated certiﬁcate is not trusted by default, an

alert is displayed. You can ignore this alert and proceed to access the

services gateway.

The J-Web login page is displayed. This indicates that you have successfully

completed the initial conﬁguration and that your SRX4100 Services Gateway

is ready for use.

Juniper Networks, Junos, Steel-Belted Radius, NetScreen, and ScreenOS are registered trademarks of Juniper Networks, Inc. in the United States and other countries. The Juniper Networks Logo, the Junos logo, and JunosE are trademarks of Juniper

Networks, Inc. All other trademarks, service marks, registered trademarks, or registered service marks are the property of their respective owners. Juniper Networks assumes no responsibility for any inaccuracies in this document. Juniper Networks

reserves the right to change, modify, transfer, or otherwise revise this publication without notice. Part Number: 530-074091 Rev. 01, December 2016.

10. Log in as root and proceed with conﬁguring the settings based on your

requirements.

Power O the Device

To power o the device, press the Power switch on the rear of the device. After

powering o the device, wait at least 60 seconds before turning it back on.

Reset the Conﬁguration

Pressing and holding the RESET button for 5 seconds or more deletes all

conﬁgurations (backup conﬁgurations and rescue conﬁguration) on the device,

and loads and commits the factory conﬁguration.

Next Steps

For information on conﬁguring features on your services gateway, refer to the

following:

•Junos OS Documentation/Feature Conﬁguration

http://www.juniper.net/techpubs/en_US/release-independent/junos/

information-products/pathway-pages/srx-series/product/index.html

•Getting Started Knowledge Base Article

https://kb.juniper.net/InfoCenter/index?page=content&id=KB15694

Reference

Technical Support

http://www.juniper.net/support/requesting-support.html

SRX4100 Services Gateway Hardware Guide

http://www.juniper.net/techpubs/en_US/release-independent/junos/

information-products/pathway-pages/hardware/srx4100/index.html

Supported Transceivers

https://pathﬁnder.juniper.net/hct/product/#prd=SRX4100

Otros manuales para SRX4100

Tabla de contenidos

Otros manuales de Puerta de Juniper

Juniper

Juniper SRX240 Series Manual de usuario

Juniper

Juniper SRX 5800 Manual de usuario

Juniper

Juniper SRX 1400 SERVICES GATEWAY - Instrucciones de montaje

Juniper

Juniper SRX340 Instrucciones de instalación

Juniper

Juniper SRX 210 Manual de usuario

Juniper

Juniper SRX100 Instrucciones de instalación

Juniper

Juniper SRX240 Series Manual de usuario

Juniper

Juniper SRX345 Guía de configuración

Juniper

Juniper SRX-4600 Manual de usuario

Juniper

Juniper PowerConnect J-SRX210 Manual de usuario

Juniper

Juniper SRX340 Instrucciones de instalación

Juniper

Juniper SRX300 Series Guía de configuración

Juniper

Juniper SRX3400 Manual de usuario

Juniper

Juniper SRX345 Instrucciones de instalación

Juniper

Juniper SRX300 Series Manual de usuario

Juniper

Juniper SRX 210 Manual de usuario

Juniper

Juniper SSG5 Manual de usuario

Juniper

Juniper SRX220 Instrucciones de instalación

Juniper

Juniper SRX Series Manual de usuario

Juniper

Juniper SRX300 Series Instrucciones de instalación

Juniper

Juniper SRX650 Manual de usuario

Juniper

Juniper SRX650 Instrucciones de instalación

Juniper

Juniper SRX100 Manual de usuario

Juniper

Juniper SRX5600 Instrucciones de instalación

Manuales populares de Puerta de otras marcas

LST

LST M500RFE-AS Manual de usuario

Kinnex

Kinnex Media Gateway Manual de usuario

2N Telekomunikace

2N Telekomunikace 2N StarGate Manual de usuario

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manual de usuario

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manual de usuario

Telsey

Telsey CPVA 500 - SIP Manual de usuario

RTA

RTA 460A-NNA4 Hoja de especificaciones

Shaw

Shaw Gateway HDPVR Manual de usuario

ABB

ABB VSN900 Guía de inicio rápido

Commander

Commander Pulse Manual de usuario

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manual de usuario

NETGEAR

NETGEAR C6300BD Manual de usuario

Amit

Amit CDW531AM Manual de usuario

HMS

HMS Netbiter EasyConnect EC150 Manual de usuario

Huawei

Huawei EchoLife HG620 Manual de usuario

AT&T

AT&T U-verse 3801 Manual de uso y cuidado

Logic IO

Logic IO RTCU MX2 turbo Manual de usuario

Suttle

Suttle MediaMAX MXM-521 Manual de usuario
