SRX5800 Services Gateway Getting Started

Guide

December 2013

Part Number: 530-055498

Revision 01

This document describes how to install the SRX5800 Services Gateway.

Contents About This Guide | 3

Step 1: Prepare the Site for SRX5800 Services Gateway Installation | 4

Rack-Mounting Requirements | 4

Tools Required to Unpack and Prepare the SRX5800 Services Gateway for Installation | 6

Step 2: Install the Mounting Hardware | 6

Install the Mounting Hardware in a Four-Post Rack or Cabinet | 6

Install the Mounting Hardware in an Open-Frame Rack | 8

Step 3: Install the Services Gateway | 9

Remove Components | 9

Install the Services Gateway | 11

Reinstall Components | 12

Step 4: Connect the Grounding Cable | 13

Step 5: Connect External Devices and Network Cables | 14

Connect to a Network for Out-of-Band Management | 15

Connect a Management Console | 15

Connect the Network Cables | 15

Step 6: Connect Power Cables | 17

Connect Power to an AC-Powered Services Gateway | 17

Connect Power to a DC-Powered Services Gateway | 21

Step 7: Perform the Initial Software Configuration | 25

Enter Configuration Mode | 26

Configure User Accounts and Passwords | 26

Configure System Attributes | 27

Commit the Configuration | 28

Safety Warnings | 31

SRX5800 Services Gateway Compliance Statements for EMC Requirements | 34

Canada | 34

European Community | 35

Japan | 35

United States | 35

SRX Series Documentation and Release Notes | 35

Requesting Technical Support | 36

Revision History | 37

About This Guide

This guide contains information that you need to install and configure the SRX5800 Services Gateway

quickly. For complete installation instructions, see the SRX5800 Services Gateway Hardware Documentation

at www.juniper.net/documentation/.

WARNING: This guide contains a summary of safety warnings in “Safety Warnings” on

page 31. For a complete list of warnings for this services gateway, including translations,

see the SRX5800 Services Gateway Hardware Documentation at

www.juniper.net/documentation/.

The SRX5800 Services Gateway is a high-performance, highly scalable, carrier-class security device with

multiprocessor architecture. The services gateway is 16 rack units (RU) tall. Three services gateways can

be stacked in a single floor-to-ceiling rack, for increased port density per unit of floor space. The services

gateway provides 14 slots that can be populated with up to 12 Services Processing Cards (SPCs) and

interface cards and two Switch Control Boards (SCBs) in nonredundant fabric configurations. The interface

cards can be any of the following types:

•I/O cards (IOCs) have fixed ports on their front panels.

•Flex I/O cards (Flex IOCs) have two slots on their front panels for smaller cards called port modules that

add additional ports to the services gateway.

•Modular Port Concentrators (MPCs) have two slots on their front panels for smaller cards called Modular

Interface Cards (MICs) that add additional ports to the services gateway.

The SRX5800 Services Gateway provides redundancy and resiliency. The hardware system is fully redundant,

including power supplies and SCBs.

By installing various combinations of interface cards and SPCs, you can tailor both the number of ports

and the maximum services processing capacity to suit your network. Table 1 on page 3 describes the

minimum system configuration for the SRX5800 Services Gateway.

Table 1: Minimum System Configuration

MinimumComponent

1SPC

1Interface card (IOC, Flex IOC, or MPC)

1SCB

Table 1: Minimum System Configuration (continued)

MinimumComponent

1Routing Engine

For detailed information about the cards supported by the services gateway, see the SRX5400, SRX5600,

and SRX5800 Services Gateway Card Reference at www.juniper.net/documentation/.

The services gateway is shipped in a cardboard box strapped securely to a wooden pallet. Plastic straps

secure the top and bottom in place. The services gateway chassis is bolted to this pallet. A printed copy

of this document and a cardboard accessory box are also included in the shipping container.

Step 1: Prepare the Site for SRX5800 Services

Gateway Installation

IN THIS SECTION

Rack-Mounting Requirements | 4

Tools Required to Unpack and Prepare the SRX5800 Services Gateway for Installation | 6

Rack-Mounting Requirements

•You can install the services gateway in a four-post rack or cabinet or an open-frame rack.

•The rack rails must be spaced widely enough to accommodate the services gateway chassis’s external

dimensions: 27.75 in. (70.5 cm) high, 23.0 in. (58.4 cm) to 27.7 in. (70.6 cm) deep (depending on power

supply type), and 17.37 in. (44.11 cm) wide. The outer edges of the mounting brackets extend the width

to 19 in. (48.3 cm). See Figure 1 on page 5.

Figure 1: SRX5800 Services Gateway Rack Clearance and Chassis Dimensions

•The rack must be strong enough to support the weight of the fully configured services gateway, up to

400 lb (180 kg). If you stack three fully configured services gateways in one rack, it must be capable of

supporting about 1,200 lb (542 kg).

•For service personnel to remove and install hardware components, there must be adequate space at the

front and back of the services gateway. Allow at least 30 in. (76.2 cm) in front of the services gateway

and 24 in. (61 cm) behind the services gateway.

•The rack or cabinet must have an adequate supply of cooling air.

•Ensure that the cabinet allows the chassis hot exhaust air to exit from the cabinet without recirculating

into the services gateway.

•The services gateway must be installed into a rack that is secured to the building structure.

•Mount the services gateway at the bottom of the rack if it is the only unit in the rack.

•When you are mounting the services gateway in a partially filled rack, load the rack from the bottom to

the top, with the heaviest component at the bottom of the rack.

Tools Required to Unpack and Prepare the SRX5800 Services Gateway for

Installation

To unpack the services gateway and prepare for installation, you need the following tools:

•A mechanical lift—recommended

•Phillips (+) screwdrivers, numbers 1 and 2

•2.5 mm flat-blade (–) screwdriver

•7/16-in. torque-controlled driver or socket wrench

•1/2-in. or 13-mm open-end or socket wrench to remove bracket bolts from the shipping pallet

•Electrostatic discharge wrist strap

•Antistatic mat

Proceed to “Step 2: Install the Mounting Hardware” on page 6.

Step 2: Install the Mounting Hardware

IN THIS SECTION

Install the Mounting Hardware in a Four-Post Rack or Cabinet | 6

Install the Mounting Hardware in an Open-Frame Rack | 8

Install the Mounting Hardware in a Four-Post Rack or Cabinet

To install the mounting shelf as shown in Figure 2 on page 7:

1. On the front rack rails, install cage nuts in the holes specified in the SRX5800 Services Gateway Hardware

Guide for the large shelf.

2. On the front of each front rack rail, partially insert a mounting screw into the hole containing the lowest

cage nut.

3. Install the large shelf on the front rack rails. Rest the bottom slot of each ear on a mounting screw.

4. Partially insert a mounting screw into the top hole in each ear of the large shelf.

5. Tighten all the screws completely.

6. On the rear rack rails, install cage nuts in the holes specified in the SRX5800 Services Gateway Hardware

Guide for the small shelf.

7. On the back of each rear rack rail, partially insert a mounting screw into the hole containing the lowest

cage nut.

8. Install the small shelf on the back rack rails. Rest the bottom slot of each ear on a mounting screw. The

small shelf installs on the back of the rear rails, extending toward the center of the rack. The bottom

of the small shelf should align with the bottom of the large shelf.

9. Partially insert screws into the open holes in the ears of the small shelf.

10. Tighten all the screws completely.

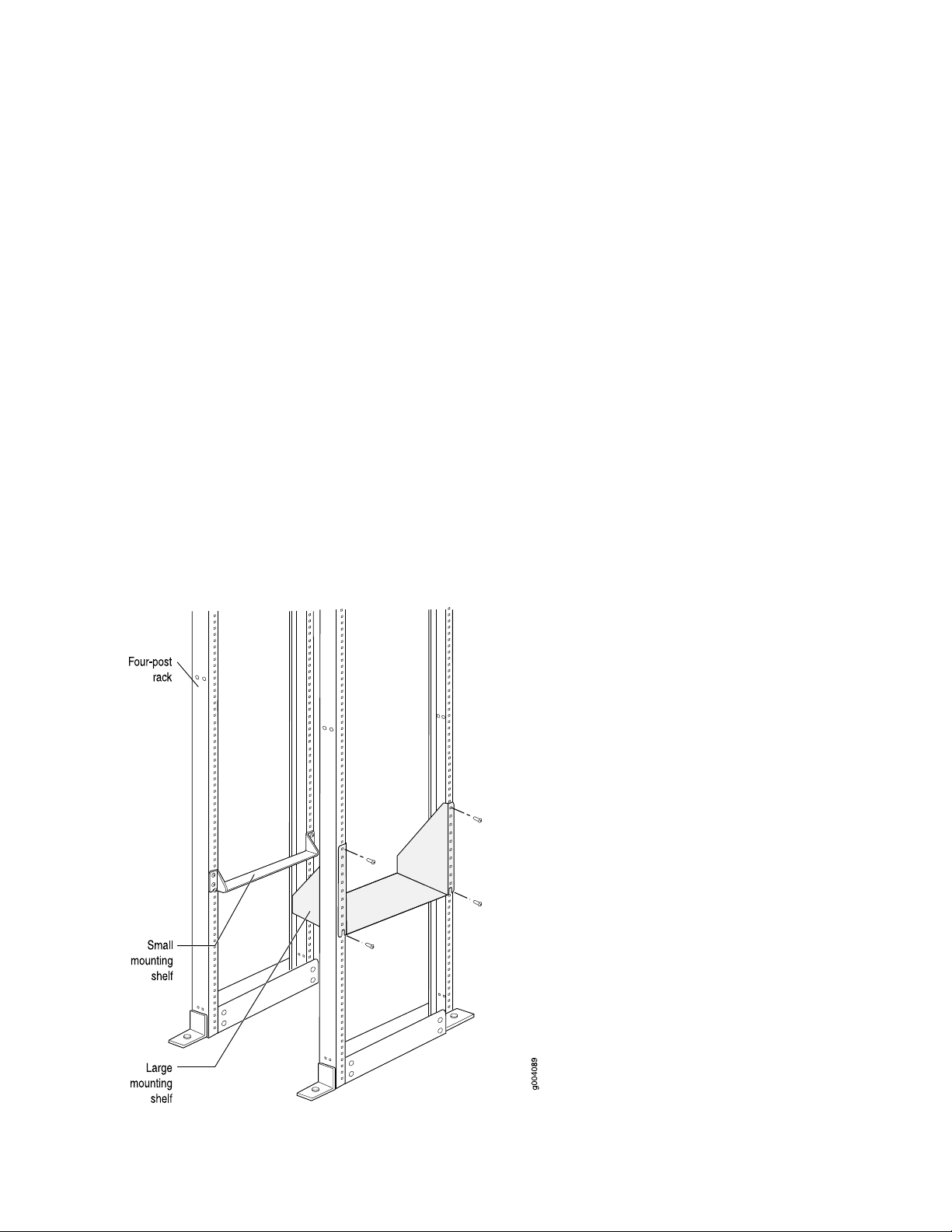

Figure 2: Mount Hardware for a Four-Post Rack or Cabinet

Install the Mounting Hardware in an Open-Frame Rack

To install the mounting shelf as shown in Figure 3 on page 8:

1. On the rear of each rack rail, partially insert a mounting screw into the highest hole specified in the

SRX5800 Services Gateway Hardware Guide for the large shelf.

2. Install the large shelf on the rack. Hang the shelf over the mounting screws using the keyhole slots

located near the top of the large shelf flanges.

3. Partially insert screws into the open holes in the ears of the large shelf.

4. Tighten all the screws completely.

Figure 3: Mount Hardware for an Open-Frame Rack

Proceed to “Step 3: Install the Services Gateway” on page 9.

Step 3: Install the Services Gateway

IN THIS SECTION

Remove Components | 9

Install the Services Gateway | 11

Reinstall Components | 12

Because of the services gateway’s size and weight, you must use a mechanical lift to install the services

gateway in the rack. Also, you must remove all components, as shown in Figure 4 on page 9 and

Figure 5 on page 10, before you install the services gateway.

Remove Components

Figure 4: Components to Remove from the Front of the Services Gateway

Lower

fan tray

Upper

fan tray

Air

filter tray

SCB0

IOC and

SPC slots

IOCs

IOC and

SPC slots

SCB1

SCB2

or card 6

g030211

Figure 5: Components to Remove from the Rear of the Services Gateway

Before you install the services gateway, you must remove the following components:

•Power supplies

•Cards (SCBs, SPCs, IOCs, Flex IOCs, and MPCs)

•Air filter

•Fan trays

•Cable management system

To remove the components from the services gateway:

1. Slide each component out of the chassis evenly so that it does not become stuck or damaged.

2. Label each component as you remove it so you can reinstall it in the correct location.

3. Immediately store each removed component in an electrostatic bag.

4. Do not stack removed components. Lay each one on a flat surface.

NOTE: For complete instructions on removing services gateway components, see the SRX5800

Services Gateway Hardware Documentation at www.juniper.net/documentation/.
