Replacing an SRX5800 Services Gateway SCB

Before replacing an SCB, read the guidelines in Operating and Positioning the

SRX5800 Services Gateway SCB Ejectors. To replace an SCB, perform the following

procedures:

1. Removing an SRX5800 Services Gateway SCB on page 1

2. Installing an SRX5800 Services Gateway SCB on page 2

Removing an SRX5800 Services Gateway SCB

To remove an SCB (see Figure 1):

NOTE: The SCB and Routing Engine are removed as a unit. You can also remove the

Routing Engine separately.

CAUTION: Before removing an SCB, ensure that you know how to operate the ejector

handles properly to avoid damage to the equipment.

1. Power off the device.

2. Place an electrostatic bag or antistatic mat on a flat, stable surface.

3. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and

connect the strap to one of the ESD points on the chassis.

4. Rotate the ejector handles simultaneously counterclockwise to unseat the SCB.

5. Grasp the ejector handles and slide the SCB about halfway out of the chassis.

6. Place one hand underneath the SCB to support it and slide it completely out of

the chassis.

7. Place the SCB on the antistatic mat.

8. If you are not replacing the SCB now, install a blank panel over the empty slot.

Replacing an SRX5800 Services Gateway SCB ■1

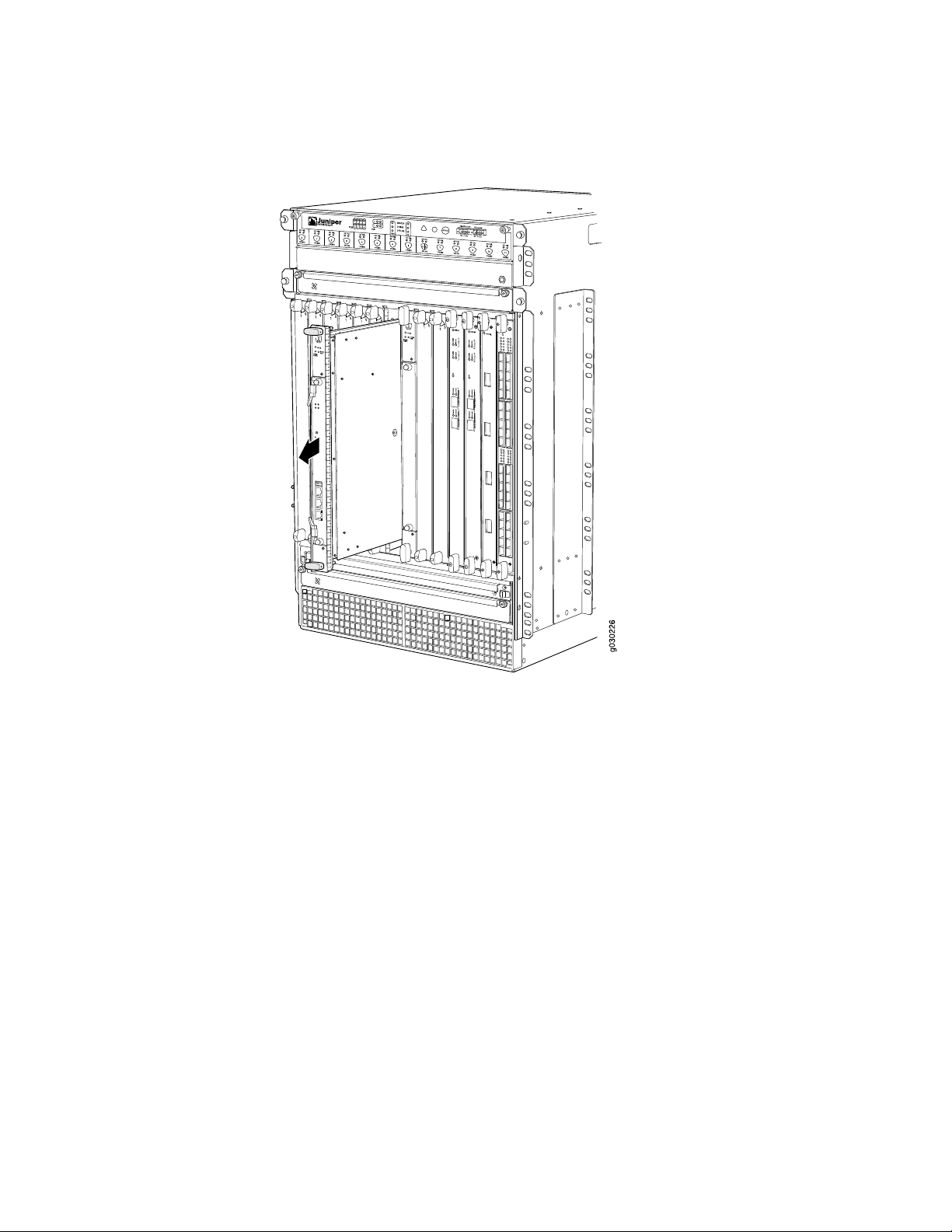

Figure 1: Removing an SCB

Installing an SRX5800 Services Gateway SCB

To install an SCB (see Figure 2):

1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and

connect the strap to one of the ESD points on the chassis.

2. Power-off the services gateway.

3. Carefully align the sides of the SCB with the guides inside the chassis.

4. Slide the SCB into the chassis until you feel resistance, carefully ensuring that it

is correctly aligned.

5. Grasp both ejector handles and rotate them simultaneously clockwise until the

SCB is fully seated.

6. Place the ejector handles in the proper position, vertically and toward the center

of the board.

7. Power-on the services gateway. The OK LED on the power supply faceplate should

blink, then light steadily.

8. To verify that the SCB is functioning normally, check the LEDs on its faceplate.

The green OK/FAIL LED should light steadily a few minutes after the SCB is

installed. If the OK/FAIL LED is red, remove and install the SCB again. If the

2■Installing an SRX5800 Services Gateway SCB

OK/FAIL LED still lights steadily, the SCB is not functioning properly. Contact

your customer support representative.

To check the status of the SCB:

user@host> show chassis environment cb

CB 0 status:

State Online Master

Temperature 30 degrees C / 86 degrees F

Power 1

1.2 V 1202 mV

1.5 V 1511 mV

1.8 V 1798 mV

2.5 V 2481 mV

3.3 V 3306 mV

5.0 V 4956 mV

12.0 V 12084 mV

1.25 V 1250 mV

3.3 V SM3 3287 mV

5.0 V RE 5046 mV

12.0 V RE 11910 mV

Power 2

11.3 V bias PEM 11292 mV

4.6 V bias MidPlane 4833 mV

11.3 V bias FPD 11156 mV

11.3 V bias POE 0 11253 mV

11.3 V bias POE 1 11272 mV

Bus Revision 42

FPGA Revision 1

CB 1 status:

State Online

Temperature 31 degrees C / 87 degrees F

Power 1

1.2 V 1205 mV

1.5 V 1508 mV

1.8 V 1817 mV

2.5 V 2507 mV

3.3 V 3306 mV

5.0 V 5053 mV

12.0 V 12200 mV

1.25 V 1256 mV

3.3 V SM3 3306 mV

5.0 V RE 5091 mV

12.0 V RE 0 mV

Power 2

11.3 V bias PEM 11214 mV

4.6 V bias MidPlane 4821 mV

11.3 V bias FPD 11350 mV

11.3 V bias POE 0 11350 mV

11.3 V bias POE 1 11330 mV

Bus Revision 42

FPGA Revision 0

Installing an SRX5800 Services Gateway SCB ■3

Figure 2: Installing an SCB

Published: 2009-11-03
