Operation Instruction
www.jgaurora3d.com
Read it carefully before printing and keep it properly.
JGAURORA 3D Printer
Model:Z-603S
Shenzhen Aurora Technology Co.,Ltd. ----3D printer operation instruction
- 1 -
CONTENTS
Introduction …………………………………………………… - 2 -
Shenzhen Aurora Technology Co.,Ltd. ----3D printer operation instruction
- 2 -
INTRODUCTION
Z- 603S model is designed FDM 3d printer by Shenzhen Aurora
Technology Co., Ltd, which could print the plastic models that you
drawn.
characteristics: CNC laser cutting Metal body, transmit by belt
and screw rod ,linear bear in X-Y-Z axis,which construction make
printing much more table and high precision with less shake.
Special note:
1. All content in this manual is strictly checked, if any printing errors
or misunderstandings on the content, Shenzhen Aurora reserves
the rights of interpretation.
2. Any update information, will not notify.
Shenzhen Aurora Technology Co.,Ltd. ----3D printer operation instruction
- 3 -
A,Security Considerations
Do not touch the extruder and hot bed, when machine
working, temp. of extruder will be about 200 centigrade, hot
bed could be 110 centigrade.
Do not put your hand into machine when printing, in case
of crushing.
The power supply use 110V-220V~50HZ alternating current,
the tripod socket must be grounded, don’t add another power, in
case of fire or electric shock.
We suggest you wear safety goggles when tear off supports
of models.
Put the machine at a drafty room, some smells from
the material may let you uncomfortable, especially ABS
material.
Please read below items, in case of damage and danger.
Shenzhen Aurora Technology Co.,Ltd. ----3D printer operation instruction
- 4 -
B.PRODUCT DETAILS
1.Specifications
Model：Z-603S
Nozzle diameter：0.4mm
Layer thickness：0.1-0.3mm
Machine size：480*365*410mm
Printing speed：10-300mm/s
Machine weight：17KG
XY axis position accuracy：0.05mm
Packing size：580*460*510mm
Z axis position accuracy：0.015mm
Gross weight：20KG
Printing material：ABS,PLA,TPU,PA
Build size：280*180*180mm
Material tendency：PLA
LCD screen：Yes
Filament diameter ：1.75mm
Offline printing：USB
Software language：Multi-Language
File format：STL、G-Code、OBJ
Function of support：automatically
OS：windows(linux、mac)
Software：Cura
Working condition：
10-30℃，Humidity
20-50%
2.Name of machine parts
Pic. 1
Extruder
XY Axis
Hotbed
Frame
LCD display
Rotary button
LCD Switch
Fan switch
Z axis
USB cable port
SD card port
Shenzhen Aurora Technology Co.,Ltd. ----3D printer operation instruction
- 5 -
3.Extruder drawing
Pic.3
Pic.3
4.Tool list
Pic. 2
Pic. 4
Shenzhen Aurora Technology Co.,Ltd. ----3D printer operation instruction
- 6 -
C.CURA SOFTWARE
1、Cura14.07 installation
a.Where can I find the software ?
1).SD card with shipment ; 2).download from internet；
b.installation process
1).From SD card with shipment
Insert SD card and open the file
Pic. 7
2).Download from internet
Official website：https://ultimaker.com/en/cura-software/list
Pic. 5
Pic. 6
Shenzhen Aurora Technology Co.,Ltd. ----3D printer operation instruction
- 7 -
Select the right version as per your company system
b.Software installation process
Double click and follow the steps to install it
Pic.9
Pic. 8
Shenzhen Aurora Technology Co.,Ltd. ----3D printer operation instruction
- 8 -
Pic.10
Pic.11
Shenzhen Aurora Technology Co.,Ltd. ----3D printer operation instruction
- 9 -

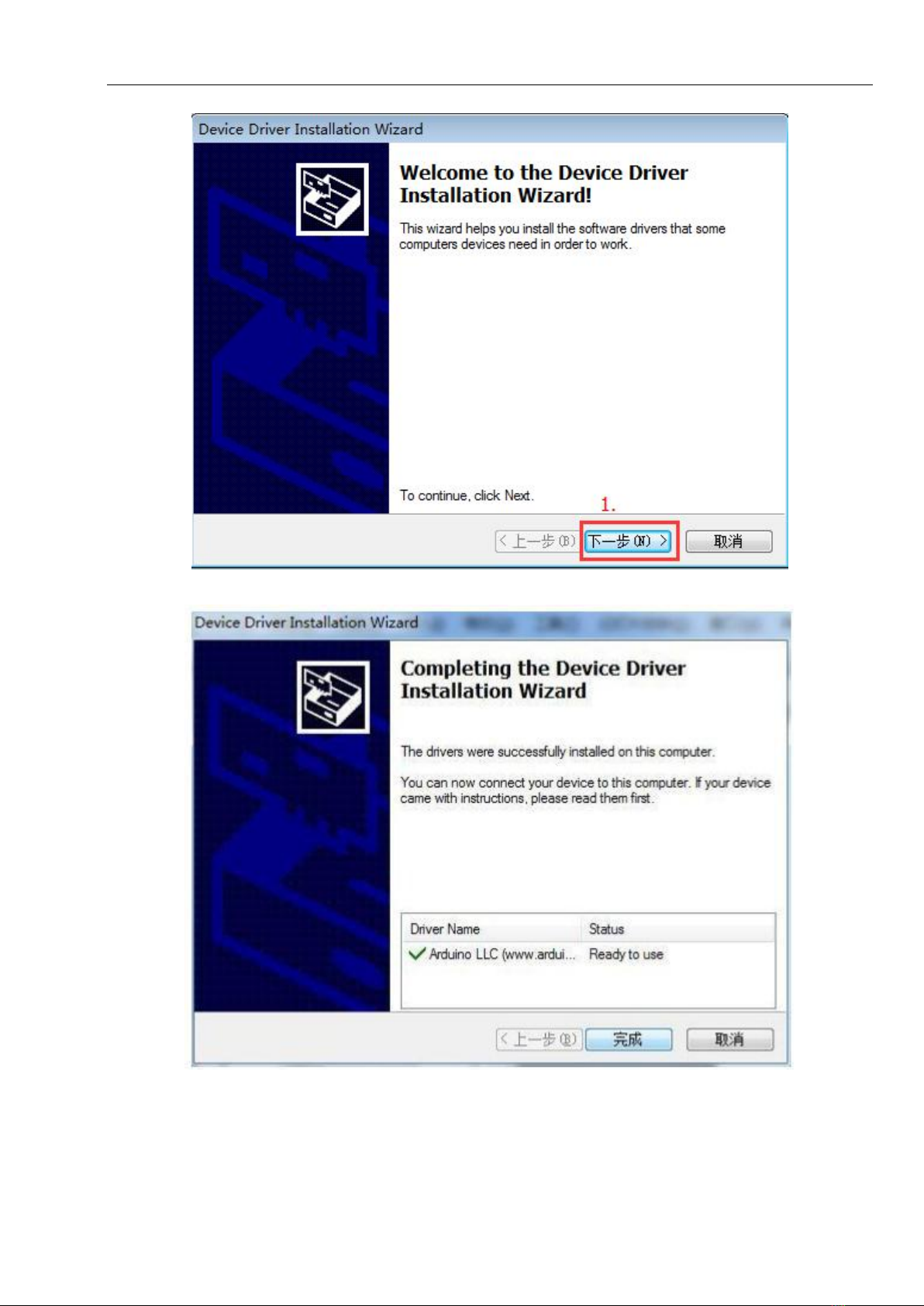

Pic.12
Pic.13
