Jensen JENHR1D Instrucciones de instalación y funcionamiento
1
JENHR1D
7” LCD MONITOR
WITH BUILT-IN DVD PLAYER FOR
REAR SEAT ENTERTAINMENT
PUSH
OPERATION MANUAL/ INSTALLATION GUIDE
®
128-9095A
2
Important Notice
Installation of headrest products require careful planning and preparation.
Be extremely careful of seats that have airbags built into them. Keep wiring
away from sides of seats. If you have any questions regarding wire routing or
installation in a vehicle, please contact Audiovox Technical Support at 1-800-
225-6074.
Do not bypass the fuse built into the accessory plug. Bypassing the fuse can
result in damage to the vehicle if a short circuit develops between the vehicle
connection point and the mobile video product.
An LCD panel and/or video monitor may be installed in a motor vehicle and
visible to the driver if the LCD panel or video monitor is used for vehicle
information, system control, rear or side observation or navigation. If the LCD
panel or video monitor is used for television reception, video or DVD play, the
LCD panel or video monitor must be installed so that these features will only
function when the vehicle is in “park” or when the vehicle’s parking brake is
applied.
An LCD panel or video monitor used for television reception, video or DVD play
that operates when the vehicle is in gear or when the parking is not applied
must be installed to the rear of the driver’s seat where it will not be visible,
directly or indirectly, to be operator of the motor vehicle.
Licensed under one or more of the following patents:
Patent NOS. 7,245,274 , 6,899,365 and 6,678,892
3
FEATURES
• 7” Digital Thin Film Transistor (TFT) Active Matrix Liquid Crystal Display (LCD)
Monitor
• Built-in DVD Player
• Last position memory for DVD player
• Three Audio / Video Source inputs (DVD, AV and AUX)• USB 2.0 port / SD Card
Reader input
• Screen mode selection (4:3, 16:9)• On Screen Display (OSD) for control of picture
quality and functions
• Full function remote control
• Plays DVD, CD and MP3 discs
• IR headphone (optional)
SPECIFICATIONS
Type TFT Active Matrix LCD
Resolution 480x234
Pixels 336,960
Operation Temperature 32 ~113º F (0 ~ 45º C)
Storage Temperature -4 ~ 149º F (-20 ~ 65º C)
Backlit life 20,000 Hours
Video Display System NTSC/PAL/AUTO
Headphone Audio Output 0.03W @ 32 ohms
Video Output 1.0Vp-p @ 75 ohms
Power Source 12 VDC
Dimension (L x W x H) 147mm x 275mm x 200mm
5.7in x 10.8in x 7.8in
Specications subject to change without notice.
4
MATERIAL TO USE IN THIS PACKAGE:
1) JENHR1D System Monitor with DVD Player (JENHR1D) (1pc)
NOTE: Headrest cables are included with the headrest DVD player and the headrest
monitor.
PUSH
POWE R SOURCE
VOLU ME
-+
MUTE
ENTE R
PIX
PREV NEXT PAUS E
STOPFFPL AYFR
AUDI OSUBT ITLEREPEATSETU P
ZOOM
DVD SO URCE
DISC ME NU
DISPLAY
1 2 3 4
5 6 7 8
9 0
FMM ON/O FF CHANNEL SELE CT
SYST EM MENU
1) Remote Control
P/N 136-5150) - (1pc)
2) AV Adapter Cable
P/N 112B3227 - (1pc)
3) Black Vinyl Headrest Cover
(P/N 126-1377)-(1pc)
4) Pewter Vinyl Headrest Cover
(P/N 126-1378)-(1pc)
5) Support Tube Adaptor Box
(P/N 170-0161)-(1box)
NOTE: The JENHR1D monitor has been designed to be
interchangeable from one headrest to the other. The
headrests will still have the Cigarette Lighter Adaptor
cables and 3 RCA Jack (AV Input) on them and should
be connected to their respective connectors. The
headrest cover from the manufacturer is covered with
shale colored vinyl.
5
HEADREST COVER REPLACEMENT:
NOTE: Choose the best color match for your vehicle.
1. Lay the headrest on a at surface, screen facing up. Using a Philips screwdriver,
unscrew the two Philips screws and lift the bottom edge of the monitor up-
ward.
2. Carefully tilt the bottom edge of the DVD player upward and pull towards you
to detach it from the top of the headrest.
3. Carefully unplug the wire from the back of the DVD player and set aside in a
safe place.
4. Detach the velcro tabs securing the headrest cover and slip the cover o.
5. Replace the headrest cover with the desired color and secure the headrest
cover by re-attaching the velcro tabs. Slide the posts through the rectangular
cutouts rst.
6. Carefully plug the harness back into the back of the DVD player.
Unscrew Philips Screws
Figure A
Detach Velcro Tabs
Figure B
Figure C
RED WIRE
6
7. Replace the player into the headrest.
a. Slide the top of the DVD player into the top of the headrest.
b. When lowering the bottom of the DVD player make sure the cable is not
trapped between the DVD player and the headrest inside the shell.
c. Press down on the DVD player to align the Philips head screws with the
holes in the headrest.
d. Secure the DVD player with two screws. Do not over tighten the screws.
8. Tighten screws.
Tighten Philips Screws
Push
Figure D
Figure E
7
VEHICLE PREPARATION
1. Read the manual and get familiar with the product requirements and
connections.
2. Install the headrests.
a. Remove vehicle’s original headrests and store in a safe place.
b. Locate the box of tube adapters and nd the tubes that match the
diameter of your factory headrest post. There are six dierent sizes:
12mm, 12.5mm, 12.7mm, 13.8mm, 14mm, and 16mm
The chart lists standard post sizes for dierent vehicle makes. Insert
appropriate support tube adaptors in vehicle post guides. (if needed).
Vehicle Factory Post
Option Sizes
Ford/Lincoln 10 mm, 12 mm and 12.7 mm
Nissan/Inniti 12.7mm
Toyota/Lexus 12 mm and 13.88 mm
Honda/Acura 10 mm and 12.7 mm
Chrysler/Dodge 10 mm, 12 mm, and 12.7 mm
GM/Chevrolet 10 mm, 11 mm, 12 mm and 14 mm
Locate an accessory power source (+12VDC present when the ignition key is in the
accessory and run positions. 0VDC should be present when the ignition key is in the
OFF position). (Refer to the Wiring Diagrams on page 9. Be sure, that all the wiring
is protected from sharp edges and is routed in such a manner that it will not be
pinched, when it is fully installed.
3. Plug the power adapter into the accessory socket.
8
Wireless Headphones
The JENHR1D is equipped with a dual channel IR (Infrared) transmitter for use with
wireless IR headphones (not supplied with the JENHR1D) which are available at
many electronics stores.
If two JENHR1D’s are installed in a vehicle the rst JENHR1D has to be set to
transmit on channel A (1) and the second JENHR1D has to be set to transmit on
channel B (2). See page 17 for details on setting the IR transmitter channel.
If wireless headphones are not used standard wired headphones or ear buds can be
used.
NOTE: A single channel headphone is required when only one JENHR1D is installed. If
2 JENHR1Ds are installed a 2 channel headphone is required for the second headrest.
Wireless FM Modulator
The JENHR1D is equipped with a built-in wireless FM Modulator, that allows you
to listen to the DVD audio signal by tuning your vehicle’s radio to the selected
frequency, (CH1 87.7MHz, ( 88.1MHz, 88.5MHz, 88.9MHz, CH5 106.7.1MHz, CH6
107.1MHz, CH7 107.5MHz, CH8 107.9MHz. This feature is accessed by using the FM
transmitter buttons on the remote (FMM ON/OFF, and CHANNEL SELECT).
Whenever the FM Modulator is on, broadcast reception on the vehicles radio will be
poor. Switching the FM Modulator o will allow normal radio reception.
NOTE 1: In certain areas where there are a large number of FM radio stations (e.g.
large cities, urban areas), the reception of the FM signal may not be satisfactory,
resulting in static, distorted sound or signal bleed thru from strong local radio
stations. This is not a defect in the product, but the result of a stronger local radio
station overpowering the wireless FM transmitter in your headrest monitor.
NOTE 2: If two JENHR1D’s are installed in the vehicle do not use both FM Modulators
at the same time.
9
JENHR1D WIRING DIAGRAM
1. Connect the cigarette lighter adaptor to the car.
Headrest Monitor
PUSH
Cigarette Lighter Adaptor
RCA Jack (AV Input)
10

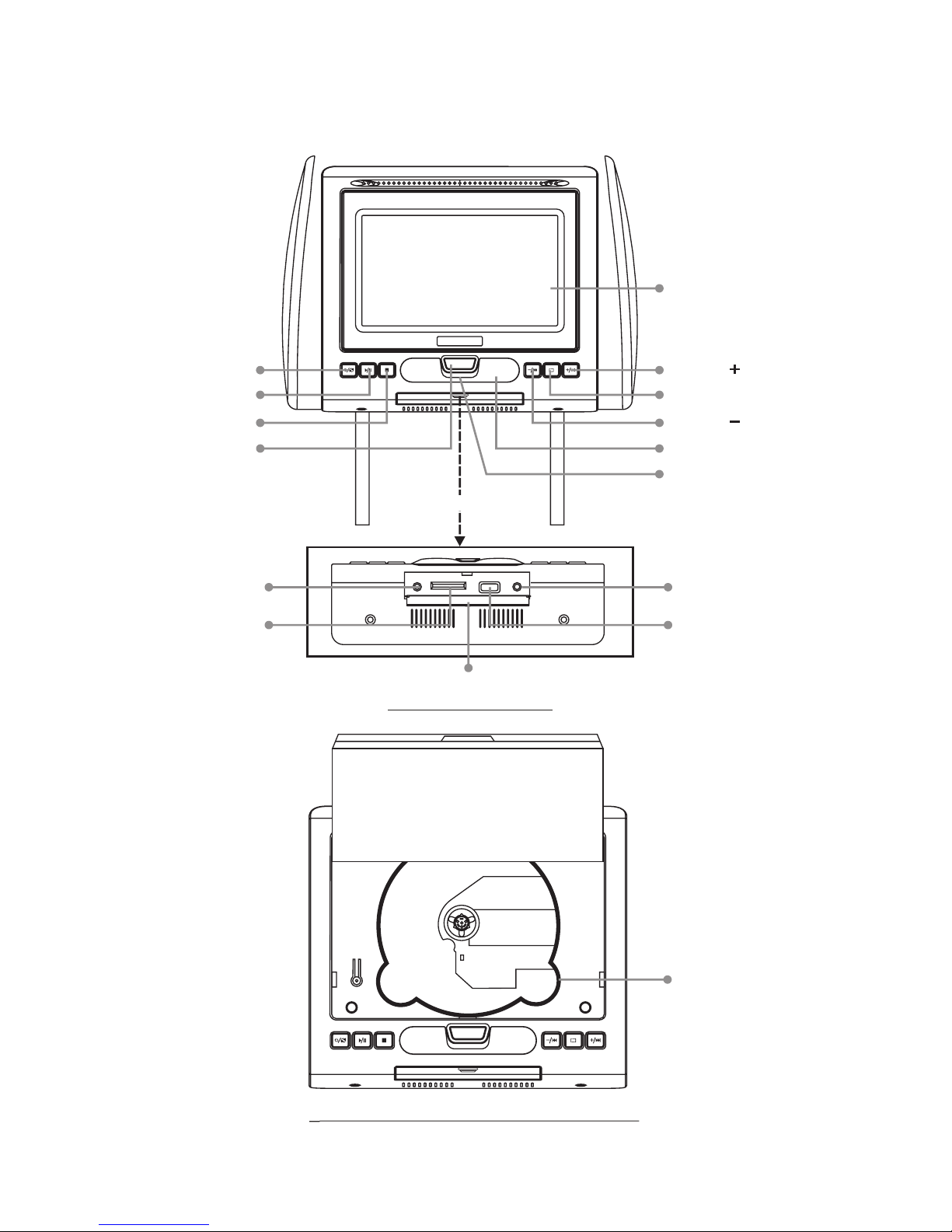

JENHR1D CONTROLS AND INDICATORS DIAGRAM
(Front View)
PUSH
POWER/SOURCE
SCREEN RELEASE
PULL DOWN
PLAY/PAUSE
STOP
VOLUME /NEXT
SYSTEM MENU
VOLUME /PREVIOUS
IR SENSOR
IR HEADPHONE
TRANSMITTER LENS
AUX IN SD USB PHONE
AUX IN JACK
USB PORT
SD CARD READER
COVER
LCD PANEL
PUSH
DVD DISC
(FRONT VIEW MONITOR OPEN)
(BOTTOM VIEW)
HEADPHONE JACK
