Jensen CDR5620 Instrucciones de funcionamiento

CDR5620

6.2” 2 DIN CAPACITIVE TOUCH SCREEN

MULTIMEDIA DVD RECEIVER

AM-FM-RDS

USB/microSD Multimedia Player

Front & Rear Camera Inputs

INSTALLATION &

OWNER’S MANUAL

W AT T S Front & Rear

Camera

CDR5620

INFORMATION

SD Logo is a trademark of SD-3C, LLC.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth

SIG Inc.

Other trademarks and trade names are those of their respective owners.

transmitted in any form or by any means, including photocopying, recording, or

other electronic or mechanical methods, without the prior written permission of

Namsung America Inc.

FCC Compliance

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may

cause undesired operation.

Warning: Changes or modications to this unit not expressly approved by the party

responsible for compliance could void the user’s authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for

a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be

determined by turning the equipment o󰀨 and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit di󰀨erent from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

CDR5620 INFORMATION

Video / movie playback will not operate while the vehicle is moving.

This is a safety feature to prevent driver distraction. In-dash video / movie

functions will only operate when vehicle is in Park and the parking brake is

engaged. It is illegal in most jurisdictions for the driver to view video while

the vehicle is in motion.

The SAFETY NOTICE is reminder to drive responsibly and safely while using your

mobile phone device, or any APP’s that are compatible with this unit.

it is highly recommended that your JENSEN CDR5620 is installed by a professional

installer or an authorized dealer.

This product is only for use in vehicles with 12VDC negative ground only.

To prevent damage or injury:

• Make sure to ground the unit securely to the vehicle chassis ground.

• Do not remove the top or bottom covers of the unit.

• Do not install the unit in a spot exposed to direct sunlight or excessive heat or the

possibility of water splashing.

• Do not subject the unit to excessive shock.

• When replacing a fuse, only use a new one with the correct rating. Using a fuse with

the wrong rating may cause the unit to malfunction.

• To prevent short circuits when replacing a fuse, disconnect the wiring harness rst.

• Use only the provided hardware and wire harness.

• If you experience problems during installation, consult your nearest JENSEN dealer.

• If the unit malfunctions, reset the unit as described. If the problem still persists,

consult your nearest JENSEN dealer or call tech assistance @ 1-888-921-4088.

• To clean the monitor, wipe only with a dry silicone cloth or soft cloth. Do not use

a sti󰀨 cloth, or solvents such as paint thinner and alcohol. They can scratch the

surface of the panel and/or remove the printing.

• When the temperature of the unit falls (as in winter), the liquid crystal inside the

screen will become darker than usual. Normal brightness will return after the unit is

in use for a while.

• When extending the ignition, battery or ground wiring, make sure to use

automotive-grade wiring with an a minimum AWG 16 or more to prevent voltage

drops.

• Do not touch the liquid crystal uid if the LCD is damaged or broken. The liquid

crystal uid may be hazardous to your health or fatal. If the liquid crystal uid from

the LCD contacts your body or clothing, wash it o󰀨 with soap immediately.

Safety Notice

INSTALLATIONCDR5620

Please read and understand entire manual before installation.

Consult a qualied technician for detailed instructions or installation

assistance.

Before You Start

• Disconnect negative battery terminal.

• Avoid installing the unit where it would be subject to high temperatures,

such as from direct sunlight, or where it would be subject to dust, dirt or

excessive vibration.

Getting Started

• Unpack unit from its protective packaging.

• Connect vehicle wiring harness and antenna to this receivers harness.

See wiring instructions. Consult a qualied technician if you are unsure.

• Certain vehicles may require an installation dash kit and/or wiring harness

adapter (sold separately).

• Reconnect battery negative terminal.

• Test for correct operation and secure back into dashboard.

• Snap trim ring into place if needed.

Typical ISO-DIN Installation

Preparation

Tools Required

CDR5620 INSTALLATION

Tips

Nyne ADS15

USBCHARGE

5V1A

When replacing a fuse, make sure to use the correct type and amperage.

Using an incorrect fuse could cause damage. The unit uses (1) 15 amp ATO

blade-type fuse located on the back of the unit.

Front / Rear camera inputs

Up to two cameras (not included) can be used. We recommend JENSEN

Part # BUCAM200J for front camera and BUCAM300AJ or BUCAM400AJ for

rear camera.

Input / Output Wiring Diagram

POWER MAXIMUM OUTPUT 500mA

Replace with

ATO Type fuse

Only

OPERATIONCDR5620

Getting Started - First Time Setup Wizard

Español

Tips

Nyne ADS15

USB CHARGE

5V 1A

RDS Auto Clock Set

Tips

Nyne ADS15

USB CHARGE

5V 1A

Select Language Set the Clock

Set Radio Region

Tips

Nyne ADS15

USB CHARGE

5V 1A

Tips

Nyne ADS15

USB CHARGE

5V 1A

Set RDS Functions

Auto Store Presets Pair Bluetooth

Tips

Nyne ADS15

USB CHARGE

5V 1A

Tips

Nyne ADS15

USB CHARGE

5V 1A

The rst time the unit is powered ON, the SETUP WIZARD will help

guide you through the main radio system settings and connect to your

Bluetooth Device.

STEP 1 STEP 2

STEP 3 STEP 4

STEP 5 STEP 6

Tips

Nyne ADS15

USB CHARGE

5V 1A

To rerun the SETUP WIZARD again, long press RESET button with a paperclip for 3

seconds, or go to ABOUT section in SETUP, select SETUP WIZARD

Tips

Nyne ADS15

USBCHARGE

5V1A

The SETUP WIZARD can be skipped at any time.

Select JENSEN BT then enter

PASSCODE 0000 on your Device

OPERATIONCDR5620

Main Control Locations

Press to activate the voice assistant feature.

Press SRC to access available modes: Radio,

Bluetooth Phone, Bluetooth Audio, Disc, USB, SD

Card, Auxiliary Input, Rear Camera and Settings.

Press and hold to turn the unit o󰀨. Press any button

to turn the unit on.

Rotate to increase or decrease volume levels.

Press to silence the audio. Press again to return to

the previously selected volume. Rotating the volume

knob while muted will also cancel the mute function.

To reset all settings to the factory default, use a

paper clip to press the reset button (located behind

the door on the front panel) for three seconds.

Connect external audio/video devices to the RCA

auxiliary input located behind the door on the front

panel.

Insert a microSD card into the microSD slot (located

behind the door on the front panel) to play MP3 audio

les or view XviD or MP4 video les or JPG photos.

Connect a USB device to play MP3 audio les or

view XviD or MP4 video les or JPG photos, or use

as a charging port to charge your device.

Press to eject a disc from the disc slot.

Voice Control 1

Source Menu 2

Power 3

Volume 3

Mute 3

Reset 4

Auxiliary Input 5

microSD Card 6

USB 7

Eject 8

OPERATIONCDR5620

Main Menu Operation

Press to access Radio.

Press to access Media Player.

Press to access BT handsfree calling.

Press to put the unit in standby mode.

Press anywhere on the screen to return to

the previous mode.

Press to access Disc.

Press to access USB.

Press to access microSD Card.

Press to access BT Music.

Press to access Auxiliary Input.

Press to access the Front or Rear Camera.

Press to access Settings menu.

Radio 1

Media Player 2

BT Handfree Calling 3

Standby Mode 4

Disc 5

USB 6

microSD Card 7

BT Music 8

Auxiliary Input 9

Camera 10

Settings Menu 11

78 9 10 11

OPERATIONCDR5620

From the Main Menu, press the gear icon to access the Settings menu and adjust

General, Clock, Audio, Bluetooth, Display or About options.

General:

• Language - Select English or Spanish.

• Tuner Region - Select America, Europe or Latin America.

• Beep - Enable or disable the audible beep.

• Rear Camera Delay- Select desired delay for rear camera: .5 seconds, 2

seconds, 3 seconds or Off (no delay).

• Reverse Trigger - Select On or Off for the reverse trigger feature.

• Rear Camera Image - Select Normal or 180 display of the rear camera image.

Clock:

• Mode - Select between 12-hour and 24-hour clock display.

• Hour - Set the hour for the clock display.

• Min - Set the minute for the clock display.

• AM/PM - Set AM or PM for the clock display.

Audio:

• Camera Audio - Turn the rear camera audio On or Off.

• Audio Level - Set audio levels (-7 to 7) for each audio source: Tuner, USB, SD

Card and Bluetooth Handsfree.

Bluetooth:

• Bluetooth - Turn Bluetooth signal on or off.

• Auto Connect - Turn auto connect feature on or off.

• Auto Answer - Turn auto answer feature on or off.

• PIN - Change the Bluetooth PIN (default is OOOO).

• Name - Displays the device name (JENSEN BT).

Display:

• Illumination Trigger - Turn the illumination trigger On or Off.

• Brightness Day - Adjust daytime brightness level (1 to 10).

• Gamma Day - Adjust daytime gamma level (-4 to 4).

• Wallpaper - Select one of four available wallpaper options.

• Contrast - Adjust contrast level (-4 to 4).

• Hue - Adjust hue (-4 to 4).

About:

• Screen Calibration - Press to calibrate the touch screen.

• Version - Press to display version numbers.

• System Reset - Press to restore unit to default factory settings.

• Setup WIzard - Press to initiate the system Setup Wizard.

• EULA - Select On or Off.

Settings Menu

OPERATIONCDR5620

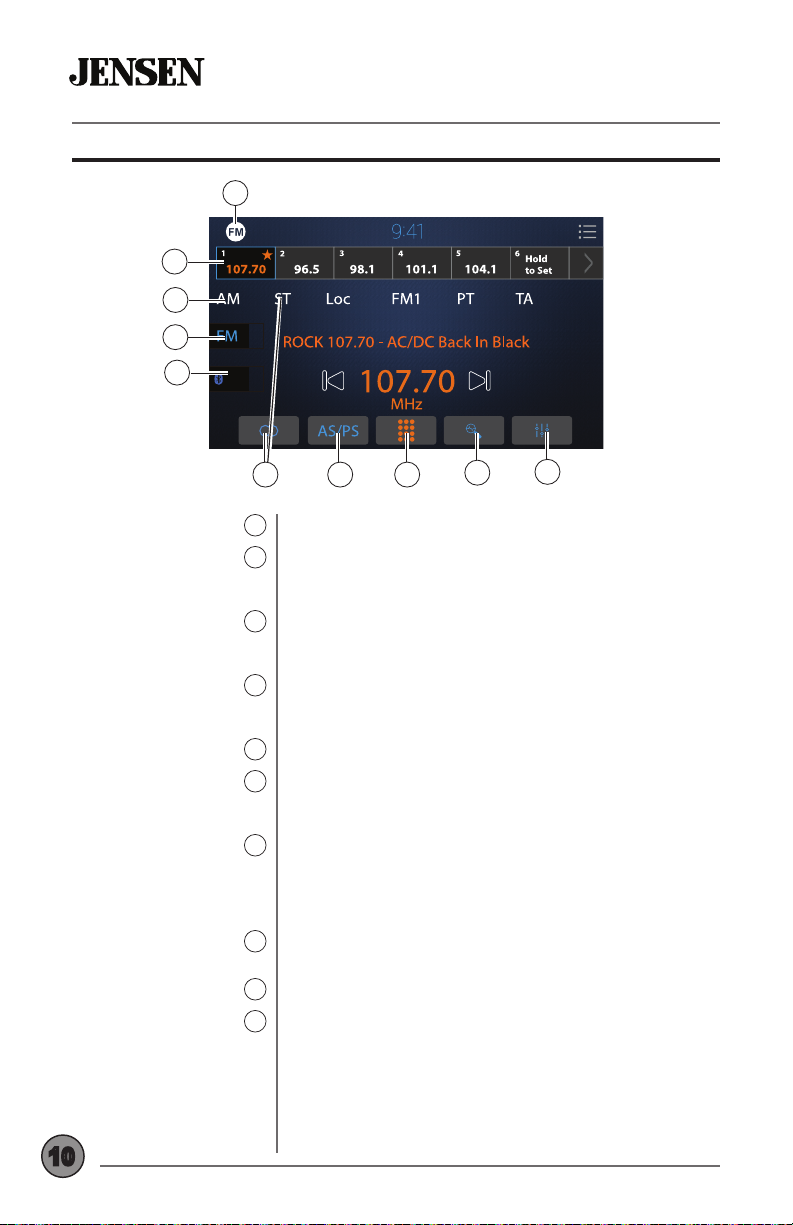

Tuner Operation

Main Menu 1

Preset Stations 2

AM Bands 3

FM Bands 4

Bluetooth Phone 5

Stereo / Mono 6

AS/PS 7

Direct Station Access 8

Station Search 9

Audio 10

Press to return to the main menu.

Press any preset button to play the corresponding

preset station. Press and hold to save the current

station as a preset.

Press to select between 2 AM bands.

Note: The 6 preset buttons will reect the 6 stations

stored in the current band.

Press to select between 3 FM bands.

Note: The 6 preset buttons will reect the 6 stations

stored in the current band.

Press to access the Bluetooth phone.

Press to toggle between Stereo and Mono tuning. This

feature can also be adjusted using the ST/MONO icon

under the preset buttons.

Press briey to scan preset stations in the current band

and listen to each for 5 seconds. Press again to stop

scanning and listen to the current station. Press and

hold to automatically search and save the strongest

stations in the current band as presets.

Press to diplay the number pad and tune to a station by

directly entering the station number.

Press to search for the next strong station.

Press to display and adjust the following audio options:

1. EQ - Choose a preset EQ option (Classic, Rock, Pop,

Jazz or Flat) or manually adjust equalization curves.

2. Loudness

3. Balance / Fader

4. Subwoofer

7 8 910

Tabla de contenidos

Otros manuales de Sistema de vídeo para coche de Jensen

Jensen

Jensen CAR910W Instrucciones de funcionamiento

Jensen

Jensen MS4200RS - Navigation System With CD Player Manual de usuario

Jensen

Jensen CAR8000 Instrucciones de funcionamiento

Jensen

Jensen CMN86 Instrucciones de funcionamiento

Jensen

Jensen JMV111 - DVD Player With LCD Monitor Manual de usuario

Jensen

Jensen VM9224BT Manual de usuario

Jensen

Jensen JENHR1D Instrucciones de instalación y funcionamiento

Jensen

Jensen CAR68 Instrucciones de funcionamiento

Jensen

Jensen MVB85A - 8.5" LCD Overhead Monitor Manual de usuario

Jensen

Jensen VM9022HDN - Touch Screen Double Din MultiMedia... Manual de usuario

Jensen

Jensen VM9114 Manual de usuario

Jensen

Jensen VM9725BT Manual de usuario

Jensen

Jensen Multimedia AM/FM/DVD Receiver VM9511TS Manual de usuario

Jensen

Jensen Mobile Multimedia AM/FM/DVD Receiver VM9410 Manual de usuario

Jensen

Jensen VM9424 Manual de usuario

Jensen

Jensen JRV4100 Instrucciones de instalación

Jensen

Jensen CMR2720 Instrucciones de funcionamiento

Jensen

Jensen Mobile Multimedia AM/FM/DVD Receiver VM9410 Manual de usuario

Jensen

Jensen VX3016 Manual de usuario

Jensen

Jensen VM9224BT Manual de usuario

Jensen

Jensen CM7MIR Instrucciones de funcionamiento

Jensen

Jensen CAR710X Instrucciones de funcionamiento

Jensen

Jensen CAR910X Instrucciones de funcionamiento

Jensen

Jensen VX3020 Manual de usuario

Manuales populares de Sistema de vídeo para coche de otras marcas

Stinger

Stinger HEIGH10 RB10RAM13B Manual de usuario

Eonon

Eonon E1057 Manual de usuario

Milion

Milion D2223 Manual de usuario

Metra Electronics

Metra Electronics 99-8153 Manual de usuario

Voxx Electronics

Voxx Electronics HR8MA1 Manual de usuario

Axxera

Axxera AV604Bi Manual de usuario

Clarion

Clarion NX706E Manual de usuario

Pyle view

Pyle view PLDN74BTi Manual de usuario

Clarion

Clarion NX602 Manual de usuario

PowerAcoustik

PowerAcoustik PTID-5850N Manual de usuario

RCA

RCA DRC6296 - Twin 9" Mobile DVD System Guía del usuario

Lanzar

Lanzar SVDVD5 Manual de usuario

Kia

Kia MTXM100YPPE Manual de usuario

Eonon

Eonon E1060 Manual de usuario

Macrom

Macrom M-AN900 Manual de usuario

Hyundai

Hyundai BAPE-L3000N Manual de usuario

r.LiNK

r.LiNK RL2-UCON8-SM Manual de usuario

Blaupunkt

Blaupunkt DVP 01C Manual de usuario
