Jbc SF Manual de usuario

Español 12

Automatic Solder Feeder

Ref. SF

English 2

Page

www.jbctools.com

Packing List

The following items should be included:

Manual ...............................1 unit

Ref. 0019329

Allen key Ø 1,5 ................1 unit

Ref. 0741610

SF Control Unit ............. 1 unit

Ref. SF-110VA (10 0-120V )

SF-210VA (230V)

Allen key Ø 2,5 ................1 unit

R ef. 0 0125 74

Reel support ................ 1 unit

Ref. 0018032

0018033

0003412 (x2)

Power cable .................... 1 unit

Ref. 0009417 (100V/120V)

0009401 (230V)

Spanner ............................ 1 unit

Ref. 0017631

Guide Set ........................1 unit

Ref. GSF10V - wire Ø 1 mm

Automatic Solder Feeder

Ref. SF-A

lock rings

Solder Feed

Handle .............................. 1 unit

Ref. SF280-A

www.jbctools.com

Power Socket

Fuse

RJ12 connection

for Robot System

USB-B connector

Tin wire inlet

Features

Solder Feed Handle

Ref. SF280-A

Control Unit

Main Switch

Control

Screen

www.jbctools.com

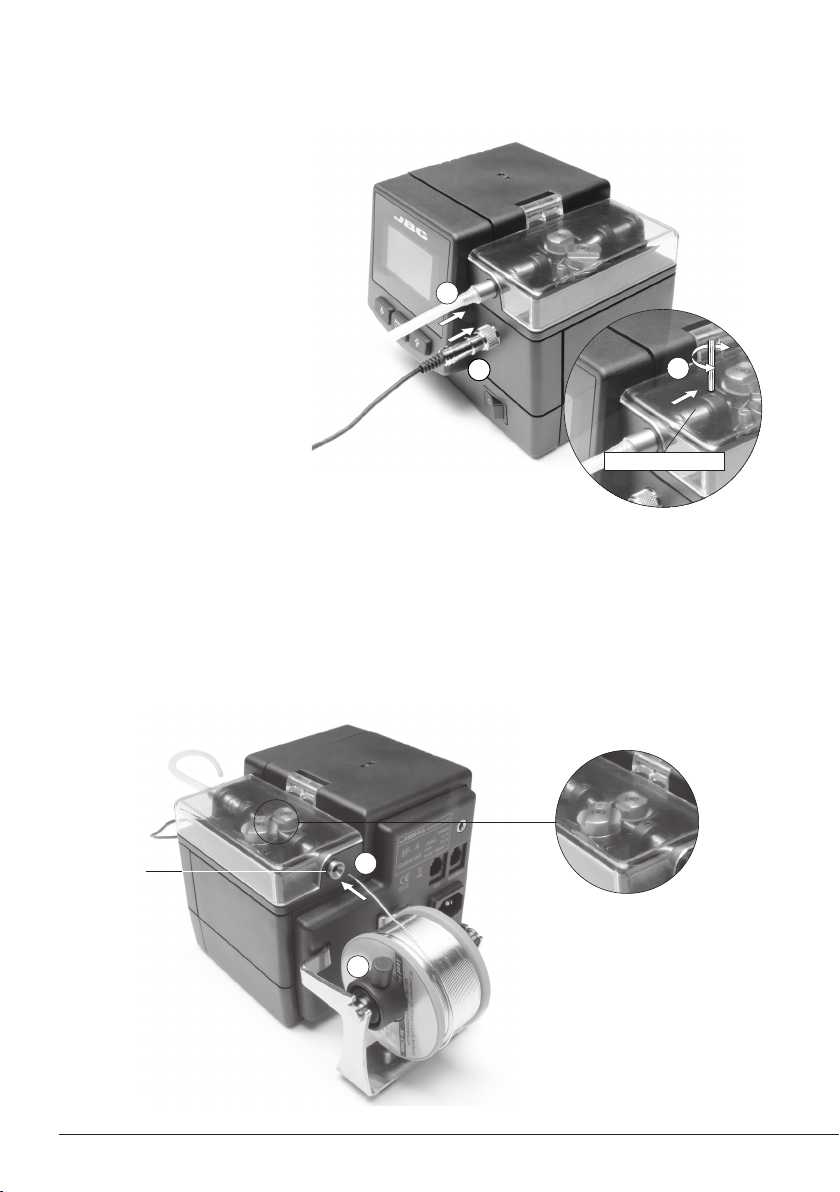

Tool assembly

Connect the tool to the control

unit.

1. Push the guide to the end

and tighten the screw.

2. Connect the jack.

Load the solder wire

1. Use the lock rings to prevent the reel from sliding on the bar.

2. Feed the wire into the guide (2) until it reaches the drag wheels.

Guide tube

3. Press the button on the tool

or the wire-load button on the

station.

4. Make sure the wire passes

through the tube.

insert to the end

Changing the drag wheels and the blade

1. Use the allen key and the spanner to loosen

the screws.

2. Replace the drag wheels and the blade with

the new ones.

Fixing the guide tube

1. You can easily adjust the length of the tube by opening the guide clamp.

Drag

wheel

Drag

wheel

Blade

www.jbctools.com

Back

Setting Program 35

Continuous Mode Discontinuous Mode Program 35

Speed Length Length

STEP1 STEP2

Speed Speed

SUPPLIED:2.0mm/5s 40% 40%

mm/s mm mmmm/s mm/s

40 1.5 1.520 20

STEP3

Length Speed

mm mm/s

5.0 20.0

STEP 1

STEP 2

STEP 3

Back

Edit Program

mm/s

STEP 1 STEP 2 STEP 3

5.0 3.0 1.5

20.0 24.5 20.0

FACTORY 1 1Program35

FACTORY1

2Program22

LAB2

3Program35

FACTORY1

Program Concatenation

Back

Work Screen

Control Process

Choose between continuous, discontinuous and program mode:

Program mode

With the SF you can define up to 35 dynamic programs. In each one you can configure up to 3

steps with different lenght wire and dispensing speed.

Execute them sequentially and cyclically with the ‘Edit Concatenation List’ option.

Main Menu

5 Tin Reload Process

6 Counters

7 Software Version

1 Reset settings

Station settings

Tool settings

4 Programs Settings

Back

Exit

1 Length units*

Beep Off

Change PIN

1 Mode

Discontinuous

Backward Off

Tool Settings

Station Settings

Back

1 Edit Program

Delete Program

Edit Concatenation List

Program Settings

Back

1 Manual Reload

Automatic Reload

Reload Menu

1 Plugged hours

7605

Working hours 350

3 Supplied mm 560

4 Work Cycles 75830

Counters

Back

5 Reset partial counters

Press Enter to toggle*

Screen Menu

Original PIN: 0105

Control Process

*switch total and partial

counters

*switch mm and inches

www.jbctools.com

Accesories

Solder Feed Handle Stand

Ref. SF-SD

It prevents the SF280-A Solder Feed Handle

from rolling away while working.

Guide Set

Ref. GSF08V - wire Ø 0,8 mm

Ref. GSF15V - wire Ø 1,5 mm

You can change the guide set depending on

the solder wire used.

Before carrying out maintenance, always allow the equipment to cool down.

Clean

periodically

- Clean the station screen with a glass cleaner

or a damp cloth.

- Use a damp cloth to clean the casing and the

tool. Alcohol can only be used to clean the

metal parts.

- Periodically check that the metal parts of the

tool and stand are clean so that the station

can detect the tool’s status.

- Periodically check all cables and tubes.

Maintenance

1. Pull off the fuse holder and remove the

fuse. If necessary use a tool to lever it off.

2. Insert the new fuse into the fuse holder

and return it to the station.

- Replace a blown fuse as follows:

- Replace any defective or damaged pieces. Use original JBC spare parts only.

- Repairs should only be performed by a JBC authorized technical service.

www.jbctools.com

- Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire.

- The power cord must be plugged into approved bases. Make sure that it is properly grounded

before use. When unplugging it, hold the plug, not the wire.

- Do not work on electrically live parts.

- The tool should be placed in the stand when not in use.

Handle with care, including when adjusting the stand position.

- Do not leave the appliance unattended when it is on.

- Do not cover the ventilation grills. Heat can cause inflamable products to ignite.

- Avoid the contact of flux with skin or eyes to prevent irritation.

- Be careful with the fumes produced when soldering.

- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when

working to avoid personal harm.

- Utmost care must be taken with liquid tin waste which can cause burns.

- This appliance can be used by children over the age of eight as well as persons with reduced

physical, sensory or mental capabilities or lacking experience provided that they have been given

adequate supervision or instruction concerning use of the appliance and understand the hazards

involved. Children must not play with the appliance.

- Maintenance must not be carried out by children unless supervised.

Safety

It is imperative to follow safety guidelines to prevent electric

shock, injury, fire or explosion.
