Jbc LC-2BA Manual de usuario

Soldering Station

Ref. LC-2BA

INSTRUCTION MANUAL

www.jbctools.com

Packing List

The following items are included:

Power Cord ................................................ 1 unit

Ref. 0019162 (230V)

Manual ......................................................... 1 unit

Ref. 0021007

LC Control Unit ........................................ 1 unit

Ref. LC-2BA (230V)

General Purpose Handle ...................... 1 unit

Ref. T245-A

Sponge ........................................................ 1 unit

Ref. S2027

Soldering Station

Ref. LC-2BA

INSTRUCTION MANUAL

www.jbctools.com

Power Socket

Main switch

Fuse

Quick Tip

Changer

Cartridge storage

Process Screen

Equipotential connection

Features

LC Control Unit

Ref. LC-2BA

Sponge

Ref. S2027

to tool

www.jbctools.com

ø 1

ø 1,5

ø 3,5

Quick Tip Changer

Changing the Grips

Compatible cartridges

The LC-2BA stations work

with C245 cartridges.

Find the model that best suits

your soldering needs in

www.jbctools.com

Save time and change cartridges safely without switching the station off.

1. Removing 2. Inserting 3. Fixing

Place the handpiece in the

extractor and pull to remove

the cartridge.

Place the handpiece on top

of the new cartridge and

press down slightly.

Use the holes for fixing the

cartridge* as follows:

a. For straight C210.

b. For curved C210.

c. For C245.

*Important

It is essential to insert the

cartridges as far as the mark

for a proper connection.

Mark

Put the slide-on tabs into the

new grip.

Push the grip with the tabs

onto the handle.

To remove the tabs, hold the

grip and pull. Use a pliers if

necessary.

tabs

new grip

Easily replace the Grips for T245-A using the slip-on tabs (Ref. 0016057)

1. Inserting tabs 2. Inserting handle 3. Removing tabs

Conical Chisel Conical-bent Bevel Special models

Accesories*

Placing the Wiper

1. Insert the wiper in the

cleaning place of the LC Unit

Control.

2. Press the wiper down to

ﬁx it in place.

3. Make sure that the wiper is

inserted correctly.

Wiper LC Ref.CL1170

1. Put the brass wool in the

dome and insert it in the

cleaning place of the LC Unit

Control.

2. Press the dome to ﬁx it in

place.

3. Make sure that the dome

is inserted correctly.

Dome LC Ref. CL0768

Placing the Dome

To remove the dome press the back tab and pull it out .

*These accessories are not included.

Removing the Dome

www.jbctools.com

OK OK OK

Operation

The JBC Exclusive Heating System

This revolutionary technology is able to recover tip temperature extremely quickly.

This allows the user to work at a lower temperature.

As a result, tip life increases by 5.

· Change temperature

(from 90 to 450ºC)

· Select temperature levels

· Fix one temperature

· Change Sleep temperature

· Set Sleep delay

(from 0 to 9 min or no Sleep)

· Change Hibernation delay

(from 0 to 35 min)

Long time in

the stand

1. Work 2. Sleep 3. Hibernation

When the tool is lifted from the

stand the tip will heat up to the

selected temperature.

When the tool is in the stand,

the temperature falls to the

preset sleep temperature.

After longer periods of

inactivity, the power is cut off

and the tool cools down to

room temperature.

- By pressing OK during three seconds will enter in Program.

- Moves by the options with the up and down keys.

Control Process

Stations settings Tool settings Counters Factory Password

Program version

Temperature unit Sleep delay* Total hours No Insert new code

Maximum temp. Sleep temperature Work hours Yes

Minimum temp. Hibernation delay Sleep hours

Sleep cycles

Beep sound Fix temperature Hibernation hours

Go back to menu Temp. adjust

Go back to menu

Extractor cycles

Go back to menu

* When the tool is in

the stand before

enter into sleep mode

Troubleshooting

Station troubleshooting available on the product page at www.jbctools.com

www.jbctools.com

Minimum temperature

Set the minimum temperature

to work with. Min. temp. by

default is 200ºC (392ºF). This

is considered to be a proper

starting point for leaded

applications.

Maximum temperature

Set the maximum temperature

to work with. Max. temp by

default is 400°C (750°F). This

is considered high enough

to work with most lead-free

applications.

Temperature unit

Celsius (ºC) or Fahrenheit (ºF)

RecommendationsParameter description

N/a

Warnings

The station temperature

range is 90-450ºC

(190-840ºF). Change the

temperature limits when

working with less common

applications such as low / high

melting point soldering (HMP)

or plastics (e. g. riveting).

Working with

temperatures over 400°C

(750°F) can damage the

PCB and its components.

Even in short time periods

of tip contact with the

soldering joint, the flux

may not work properly and

could reduce tip life. If the

solder joint requires more

power (e.g. multilayered or

high dissipation boards),

JBC recommends using

other aids like preheaters.

Be careful when using these parameters. They can reduce tip life if not used properly. Please follow

the recommended guidelines:

Parameters

Beep

Enable/disable the beep

sound of the keypad.

N/a N/a

Sleep delay

Set the time that the tool

will remain at the selected

temperature when in the stand

before entering sleep mode.

The tip temperature will then

drop to the Sleep temperature.

The sleep temperatures are

set to achieve a balance

between preventing oxidation

and reaching the working

temperature in a few seconds.

Because our tools reach the

working temperature from

the Sleep mode in a few

seconds, this parameter is

preset to 0 min. Once the tool

is returned to the stand the

temperature will drop to the

sleep temperature, extending

tip life and avoiding oxidation.

Retinning the tip before placing

the tool in the stand will protect

the tip and extend its life.

Setting these

parameters to higher

values will unnecessarily

accelerate oxidation and

shorten tip life especially

when working with

temperatures up to 450°C

(840°F).

Sleep temperature

This is the set temperature the

tip reaches when returned to

the stand.

RecommendationsParameter description Warnings

Hibernation Delay

Set the time the tool will

remain at Sleep temperature

before entering the

Hibernation mode. The power

supply is cut off and the tip

remains at room temperature.

Increasing the default

value will accelerate

oxidation and shorten the

tip life.

When you change

the cartridge type, the

parameter should be reset

to 0°C/F or to the value

needed for this cartridge.

E.g. If a correction of

+20°C (+36°F) is set for the

C245966 (thick type) and

you change the cartridge for

a C245030 (which is thinner)

without resetting, they would

be working at a temperature

of +20°C (+36°F) lower for

the C245030.

Protects the tip from oxidation

during long periods of

inactivity while the tool is in the

stand. Retinning the tip before

placing the tool in the stand

helps prevent oxidation and

extends the life of the tip.

Temp Adjustment

It provides a more precise

adjustment between the

selected temperature and the

actual one.

Set values within ±50°C

(± 90°F) to achieve zero error.

JBC strongly recommends

the use of TID-A or TIA-A

Thermometers to obtain

precise readings.

Fix one temperature

Fix a value within the

temperature range of the

station (90 - 450ºC /

190 - 840ºF).

Ideal for soldering more than

one component at a specific

temperature. The station will

reject any attempt to change

the temperature.

N/a

Change password

Change the default security

password number (0105).

The password must be

entered every time a

parameter is changed.

N/a

www.jbctools.com

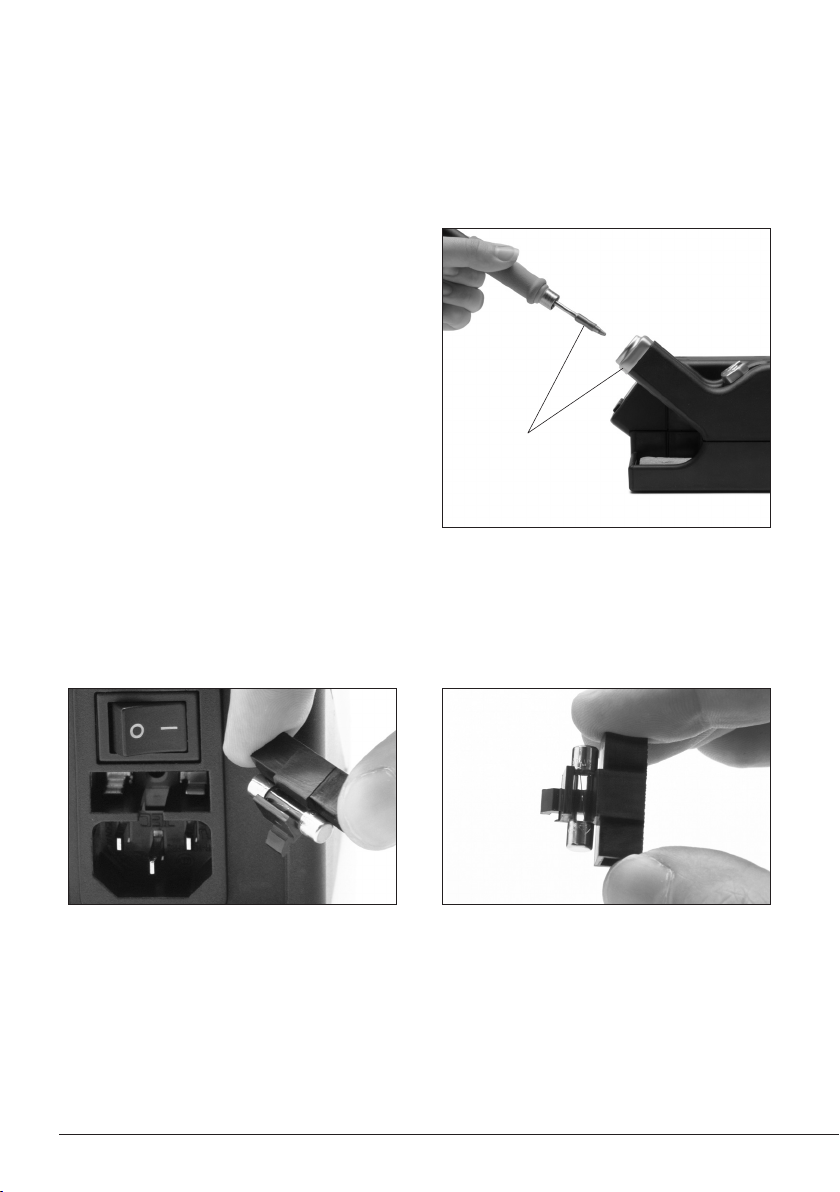

Before carrying out maintenance, always allow the equipment to cool.

- Clean the station screen with a glass cleaner

or a damp cloth.

- Use a damp cloth to clean the casing and the

tool. Alcohol can only be used to clean the

metal parts.

- Periodically check that the metal parts of the

tool and stand are clean so that the station

can detect the tool status.

- Maintain tip surface clean and tinned prior to

storage in order to avoid tip oxidation.

Rusty and dirty surfaces reduce heat transfer

to the solder joint.

- Periodically check all cables and tubes.

Maintenance

1. Pull off the fuse holder and remove the

fuse. If necessary use a tool to lever it off.

2. Press the new fuse into the fuse holder

and replace it in the station.

- Replace a blown fuse as follows:

- Replace any defective or damaged pieces. Use original JBC spare parts only.

- Repairs should only be performed by a JBC authorized technical service.

Clean

periodically
