Jbc CF Manual de usuario

www.jbctools.com

SOLDER FEED STATION

www. jb c to ol s. co m

SOLDER FEED STATION

AP130-A

Solder Feed Iron

MANUAL0002801 Reel

0006559

Feeding tube

POWER CORD

CL6210 Brass Wool

CF / SOLDER FEED STATION

CF-2C / CF-1C / CF-9C

Control Unit

S0354 Sponge

Main switch

Equipotential connection

Power Cord Socket

Cable collector

Tip Cleaning System

Process Control

Intelligent Heat Management

PART NAMES

INSTALLATION

AP130-A

Solder Feed Iron

USB-B connector to PC:

- Update station software

- Create graphs of the soldering process

- Manage and monitor parameters via PC

CONTROL UNIT

CF / SOLDER FEED STATION

Loosen the tightening knob to adjust the position

of the cable collector.

ADJUSTABLE STAND

CABLE COLLECTOR

The tool stand is easily adjustable. Loosen the tightening knob to adjust the position.

Slide the green piece down to place the wire.

Tap smoothly the cartridge on the wiper profile to

remove the excess of solder

Provides a deeper cleaning on the tip.

CL6205 Inox Wool

TAPPING WIPING

S0331 Sponge S0354 Sponge

Use the slots to wipe any posible particle sticked

on the tip

More agressive on the tip than the wool.

CL6220 Brushes

CLEANING OPTIONS

Full set of clean option: sponge, metal wool and brush

The smoothest cleaning method. The sponge has to be kept wet (not soaked) using distilled water.

Guide tube screw

Place the new cartridge in the solder feed handle.

Important: It is essential to insert the cartridge

till the end for a good connection.

Use the mark as reference.

CF / SOLDER FEED STATION

CHANGING THE CARTRIDGE

Cartridge screw

Alignment

Loosen the cartridge screw to release the

cartridge.

Align the tip of the cartridge with the solder

guide tube.

Important: It is esential to tighten the cartridge

screw for the tool to function.

SOLDER FEED IRON

AP130-A Solder Feed Iron

The AP130-A offers a ‘third hand’ by feeding soldering wire of diameters 0.8 to 1 mm.

Specifically suitable for high-volume soldering jobs, and whenever an extra hand is needed.

SN5450

Solder Reels for AP130-A

Supplied with lead

free solder reel - 99%

Sn / 0,3% Ag / 0,7%

Cu - with 50g solder.

Consult our wide range of cartridges with more than 300 references in www.jbctools.com.

For special cartridges contact with our distributor.

Uses C130 cartridge range.

ACCESSORIES (not included)

Press the empty reel to remove it and replace it

with a new one.

REPLACING THE REEL

Always use 0.8 to 1.0 mm diameter solder wire.

Press

F1204

Fume Extractor

BE-SA

Solder reel stand

For production-line purposes we

recommend using our BE-SA holder which

allows for solder reels of sizes up to 2.5 Kg

to be used.

Simply wrap a couple of turns of the solder

wire around an empty reel as shown.

Before fitting a new reel, pull out the solder

remaining inside the solder direction tube.

Insert the solder into its hole checking that the

wire becomes straight. Pull the trigger

intermittently until the solder feed system works

by itself.

Counters

Tool settings

Exit

1 Reset settings

Station settings

Tool settings

Plugged hours 0

Working hours 0

Sleep hours 0

Fix one temp -----

Temp levels set OFF

Sleep delay 0 min

4 Counters

Program version

Hibernation hours 0

No tool hours 0

6 Sleep cycles

Sleep temp 1800C

Hibernation delay

0 min

Temp adjust + O OC

Tool AP

Back

Station settings

1 Temp unit

Celsius

Maximum temp 4000C

Minimum temp 2000C

Help text OFF

5 Beep ON

6 Power limit 130W

Change PIN

Back

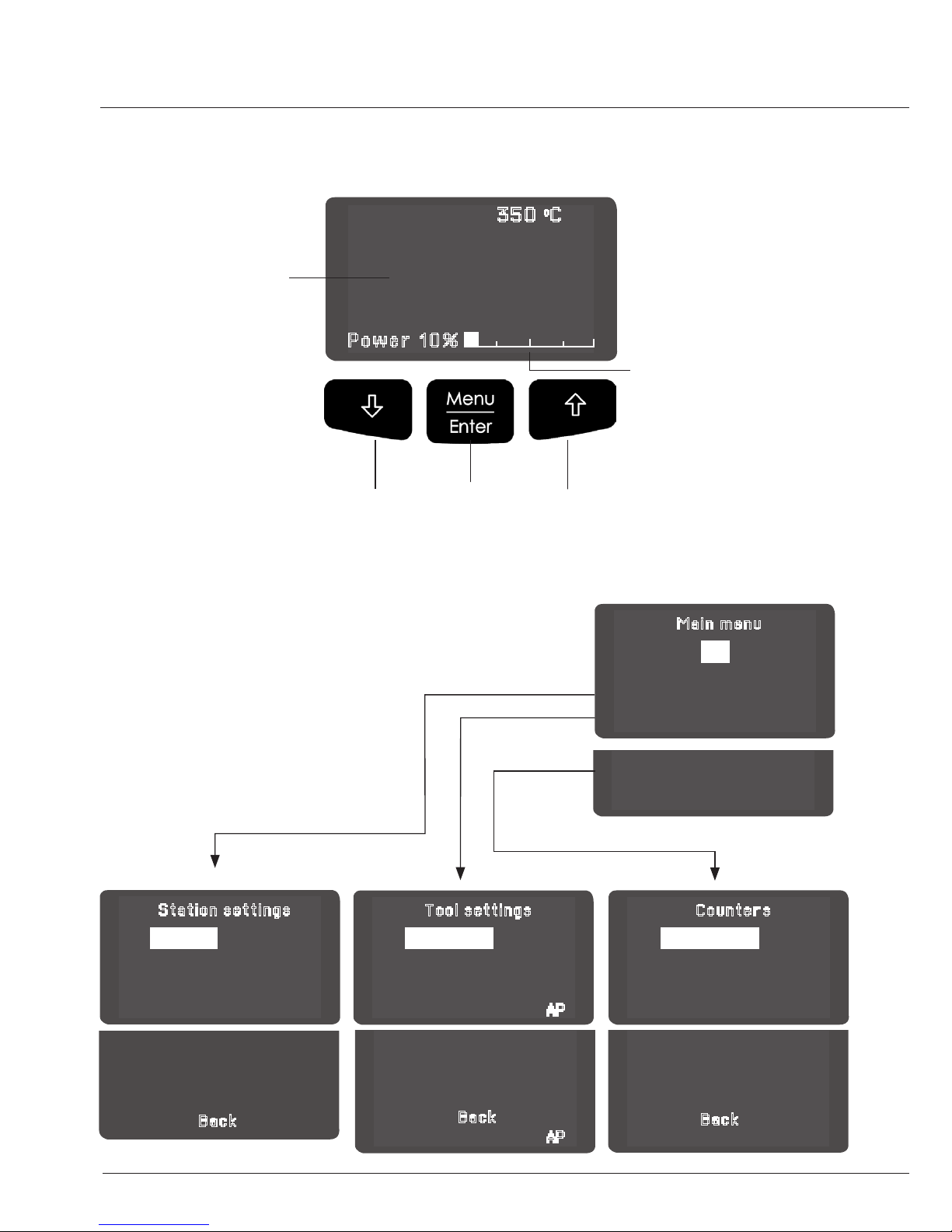

Main menu

Selected temp.

350 oC

Power 10%

350

CONTROL SCREEN

SETTINGS MENU

Tip temperature

Decrease &

move down

Increase &

move up

Access Menu &

Confirm Selection

% Instant power supplied

to the tool

Original PIN: 0105

CF / SOLDER FEED STATION

Expected life

(hours)*

Sleep

Temp

Working

Temp

Temp (ºC)

700

600

500

400

300

200

200 225 250 275 300 325 350 375 400 425 450

100

JBC stations intelligently manage the tool temperature and it helps to extend the tip life:

Heat management increase tip life which reduces cost of ownership.

HEAT MANAGEMENT

Work mode: Lift tool from the stand and the tool tip heats up to the selected temperature.

Sleep mode: When the tool is in the stand, the temperature reduces (preset sleep temperature is

180ºC / 360ºF).

Hibernation mode: After longer periods of inactivity (pre-set to 30 minutes), the power is cut off and

the tool cools down to room temperature.

MAINTENANCE

Prior to maintenance or storage should

disconnect the equipment from the power supply

and let it cool down.

- Use a damp cloth to clean the case and the

tool. Alcohol can be used only to clean the

metal parts.

- Check periodically that the metal parts of the

tool/stand are clean in order to have a good

detection when the tool is in the stand.

- Clean the station’s screen with a glass cleaner

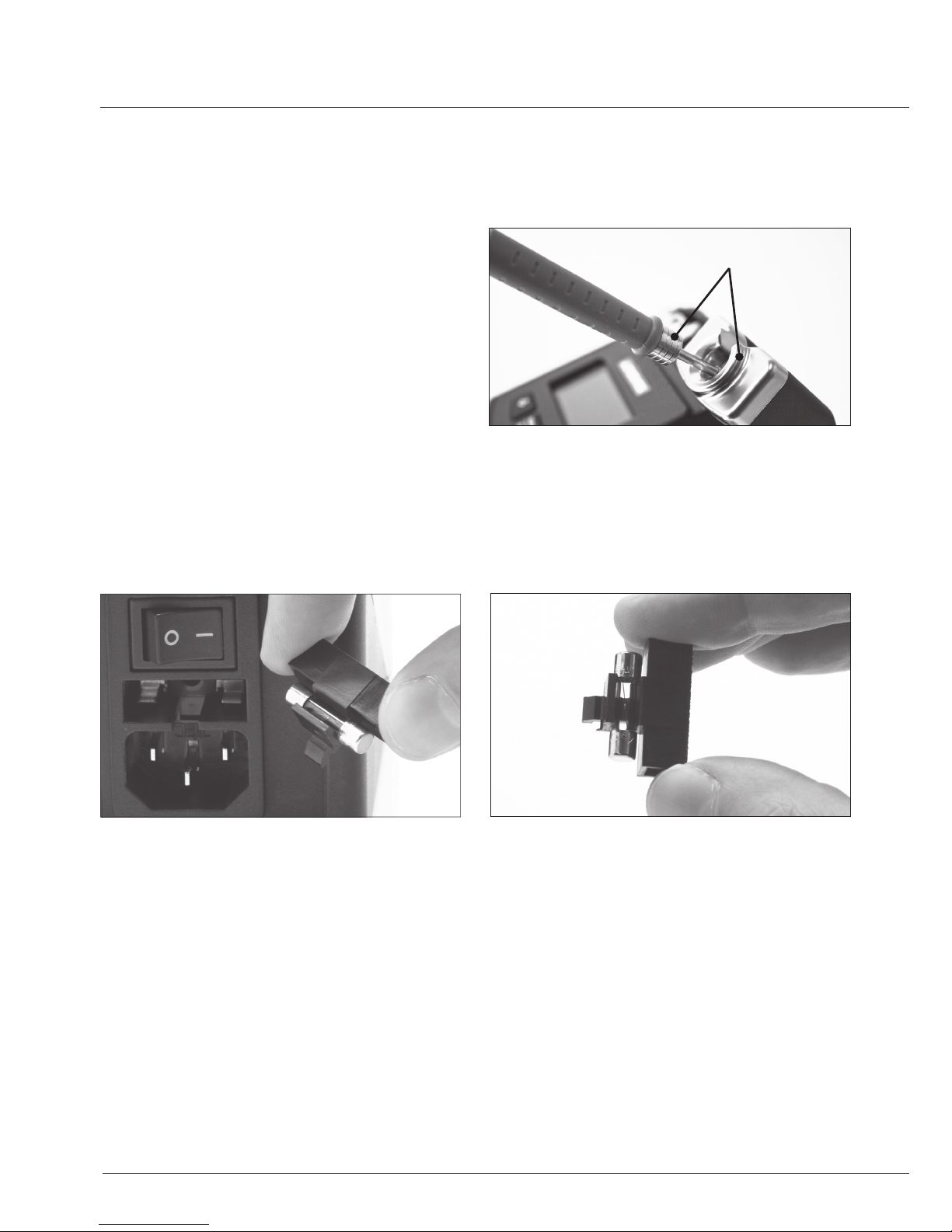

Remove the fuse by pulling the black cap. Help

yourself with a lever tool if necessary.

Place the new fuse into the holder by pushing

and enter it again into the station.

Clean periodically

or a damp cloth.

- Maintain tip surface clean and tinned prior to storage in order to avoid tip oxidation.

Rusty and dirty surfaces reduce heat transfer to the solder joint.

- Periodically check all cables and tubes connected.

- Replace any defective or damaged handpiece or tool.

- Replace the fuse if it is blown according to the following guidelines:

REPAIR

- Repairs should be performed only by a specialist. Otherwise JBC can not rule out the risk of accident.

- JBC offers you a professional after-sales service for your equipment.

CF / SOLDER FEED STATION
