Jbc HDE-9D Manual de usuario

Heavy Duty Station

INSTRUCTION MANUAL

HD Purpose

Handle ............................ 1 unit

Ref. T470-FA

Manual ............................ 1 unit

Ref. 0028206

HDU Control Unit .......... 1 unit Stand ................................ 1 unit

Ref. HD-SE

Power Cord .................... 1 unit

Ref. 0024077 (100V)

0023717 (120V)

0024080 (230V)

Stand Cable .................. 1 unit

Ref. 0024227

ESD Tip Cleaner ........... 1 unit

Ref. CL8499

Sponge ............................ 1 unit

Ref. S0354

Cartridge Holder............. 1 unit

Ref. SCH-A

Packing List

The following items are included:

This manual corresponds to the following references:

HDE-9D(100V )

HDE-1D(120V )

HDE-2D(230V)

Stand

Ref. HD-SE

HDU Control Unit

RJ12 connector

for Robot system

Peripheral connector

for joining modules

and pedals

USB-B connector

Equipotential connection

Power Socket

HD Purpose

Handle

Ref. T470-FA

C470 Cartridges

Required but not included

Stand Cable

Ref. 0024227

Connections

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

Peripherals

Join the station port with 1 module and 1 pedal. See the compatible peripherals below:

Fume

Extractor Switch

Ref. FSE-A

Nitrogen Flow

Regulator

Ref. MNE-A

Pedal

Ref. P-005

Pedal

Ref. P-005

Use this foot switch to enable/disable a module or make the tool enter/exit Sleep mode.

If you do not have a module, you can link up the P-305 Pedal Kit to the tool port.

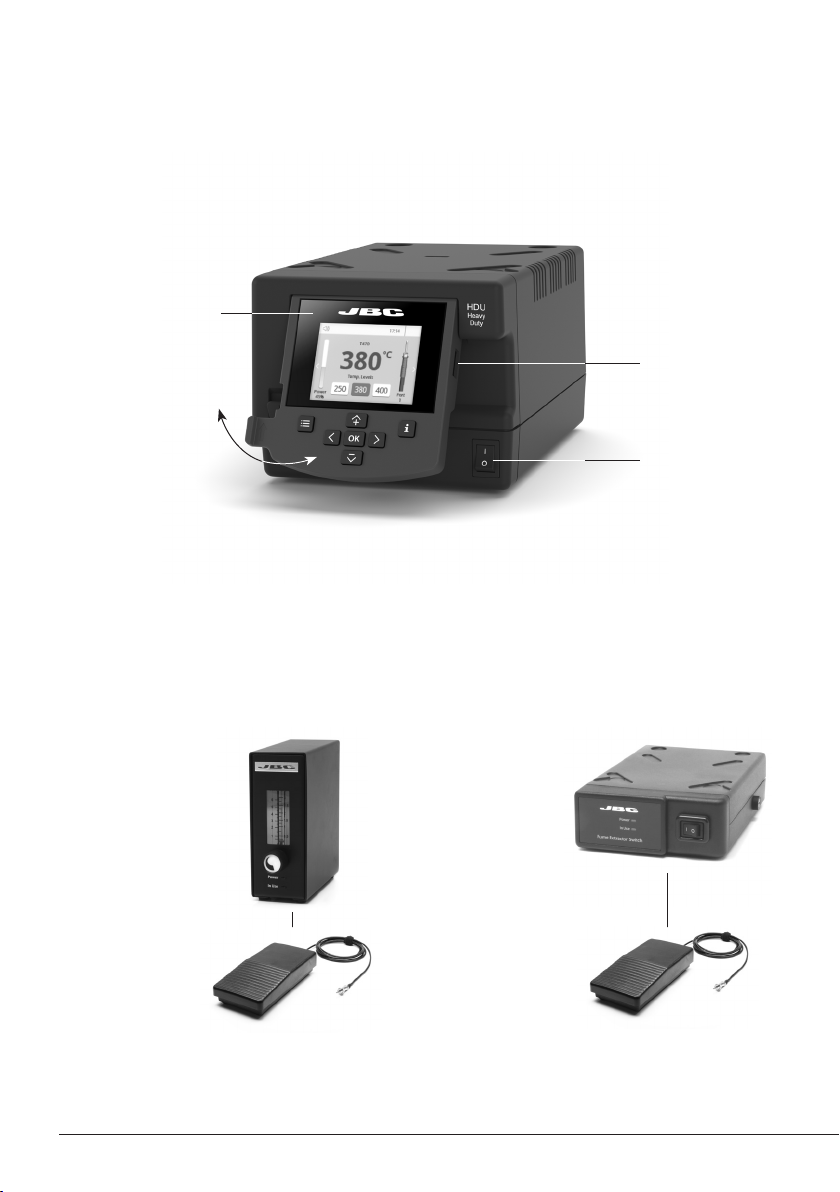

Features

USB-A connector

2,8” Color TFT screen

Tilt the display

for easy reading Main Switch

HDE Work Screen

The HDE offers an intuitive user interface which provides quick access to station parameters.

Default PIN: 0105

380ºC

Port

Power

45%

Temp. Levels

T470

250 380 400

17:14

350ºC

Port

Power

45%

Temp. Levels

250 350

17:14

T245

380

Menu Options

Station

Information

Power

Indicator

Tool

in use

DDE Work Screen

Status Bar

The DDE offers an intuitive user interface which provides quick access to station parameters.

Default PIN: 0105

Change

Port

Displayed if

Temperature

Levels are

Activated

Station Tools Counters

ResetLanguagePeripherals

Set the station

parameters

Set the tool

parameters

Consult / modify the

links of the peripherals

connected to the

station with the port

they are connected to.

Display the hours

worked in each cycle

It is possible to

choose the language

from a list.

Allows you to carry

out an overall station

reset restoring all the

parameters to their

default values.

Station troubleshooting available on the product page at www.jbctools.com

Troubleshooting

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

JBC Net

Export graphics

Insert a USB flash drive into the

USB-A connector to save your

soldering process in csv format.

Proﬁles

Advanced Functionalities

It provides detailed graphics of tip temperature and power delivery in real time during

solder joint formation for analysis purposes. This helps you decide how to adjust your

process or which tip to use to obtain the best quality soldering.

Graphics

Get greater quality and control in your production.

Manage your whole soldering process remotely in real time.

For more information see www.jbctools.com/webmanager.html.

Designed to avoid thermal shock when soldering Ceramic Chip components like

MLCC, this new and unique feature allows controlling the heating ramp up rate of the

tool to gradually increase the temperature of the component through all the phases of

the soldering process. Up to 25 fully conﬁgurable soldering proﬁles can be stored.

USB ﬂash drive is connected.

Station is controlled by a PC.

Station is controlled by a robot.

System notifications

Station software update.

Press INFO to start the process.

Warning.

Press INFO for failure description.

Error.

Press INFO for failure description,

the type of error and how to proceed.

The following icons will be displayed on the screen’s status bar.

Station update

Download the JBC Update File from

www.jbctools.com/software.html

Insert the USB flash drive with the

file downloaded to the station.

Files

Update

Soldering Net

Remotely manage and monitor as many stations as your Windows PC can handle.

Functions:

- Set all the station parameters from your PC.

- Organize groups of stations and set all their parameters at the same time.

- Store specific configurations for later uses.

- Analyze the soldering graphics of the stations on

your PC and export them.

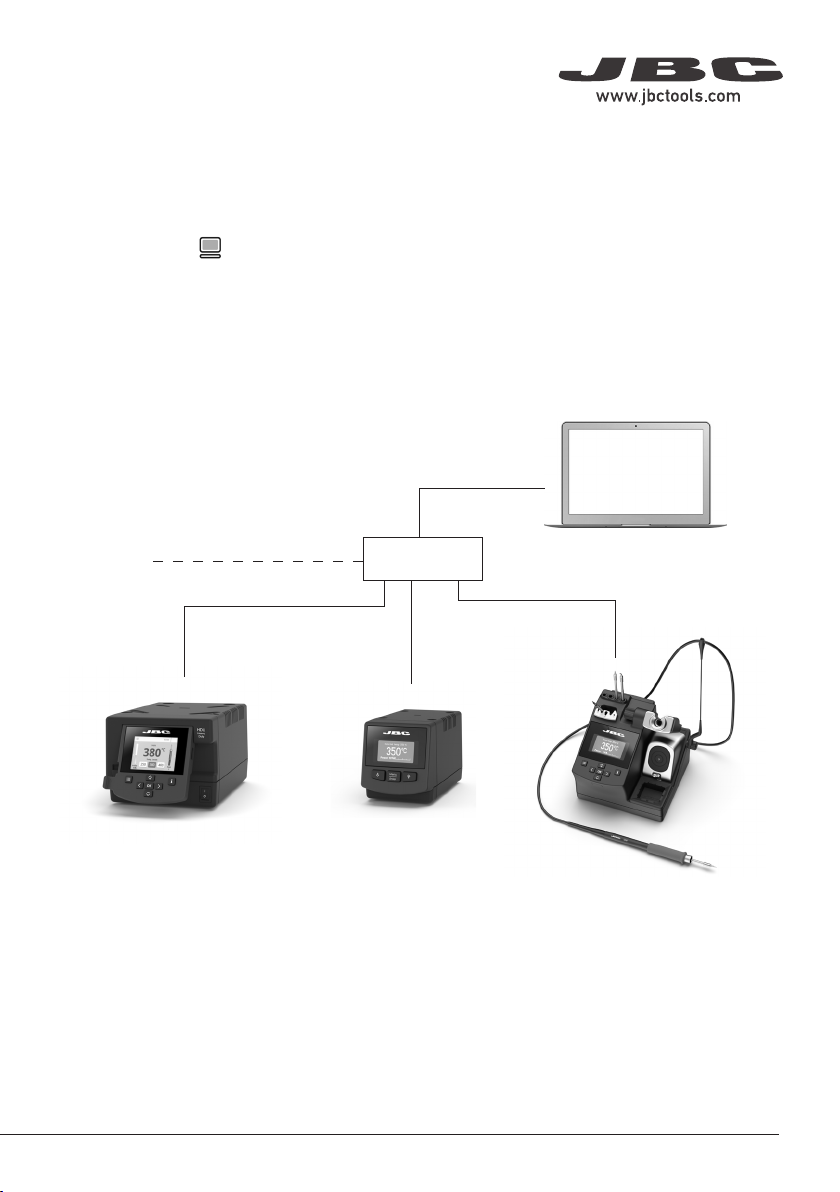

1. Download the JBC Software Manager and the user manual from jbcnet.solutions

2. Connect the stations via USB-B connector and the PC will automatically detect them.

3. The notification will be displayed on the station.

any JBC

station

USB Hub

JBC

Manager

software

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

Sleep

Port

Tool in the stand

17:14

Actual Temp. 180ºC

T470

Delay to hibernation: 29:30

Port

Actual Temp. 25ºC

17:14

T470

Hibernation

350ºC

Port

Power

45%

Temp. Levels

T470

250 350

17:14

400

Tools Menu:

· Set Sleep temperature

· Set Sleep delay

(from 0 to 9 min or no Sleep)

Tools Menu:

· Set Hibernation delay

(from 0 to 60 min or no

hibernation)

Tools Menu:

· Set temperature limits

· Select temperature levels

350ºC

Port

Power

45%

Selected 350º

C245-003

17:14 ?

Port

Sleep

Tool in the stand

Actual Temp. 180ºC

Delay to hibernation: 29:30

17:14

Port

Hibernation

Actual Temp. 25ºC

17:14

350 ºC

Port

Power

45%

Temp. Levels

T245

250 350 380

17:14

350 ºC

Port

Power

45%

Temp. Levels

T245

250 350 380

17:14

350 ºC

Port

Power

45%

Temp. Levels

T245

250 350 380

17:14

Operation

The JBC Most Efficient Soldering System

Our revolutionary technology is able to recover tip temperature extremely quickly. It means the user

can work at a lower temperature and improve the quality of soldering. The tip temperature is further

reduced thanks to the Sleep and Hibernation modes which increase up to 5 times the life of the tip.

3. Hibernation1. Work 2. Sleep

When the tool is lifted from

the stand the tip will heat up

to the selected temperature.

When the tool is in the stand,

the temperature falls to the

preset Sleep temperature.

After longer periods of

inactivity, the power is cut off

and the tool cools down to

room temperature.

Long period

in the stand

Tools Menu:

· Adjust temperature limits and

cartridge.

· Set temperature levels.

Tools Menu:

· Set Sleep temperature.

· Set Sleep delay.

(from 0 to 9 min or no Sleep)

Tools Menu:

· Set Hibernation delay.

(from 0 to 60 min or no

hibernation)

HD-SE

HDT-SE

HD-SE

HDT-SE

HD-SE

HDT-SE

HD-SE

HDT-SE

HD-SE

HDT-SE

Loosen the screw. Place the Soldering Iron in

the extractor and remove the cartridge.

Insert the cartridge and press slightly to the

mark*.

Stand

Once the cartridge is properly inserted we recommend tightening the screw to prevent it turning.

Important: It is essential to insert the cartridges as far as the mark for a proper connection.

3. Fixing

*Mark

1. Removing 2. Inserting

Screw

Changing Cartridges

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

CD-Q:

Changing the Grips

Put the slide-on tabs into the

new grip.

Hold the grip and pull the tab.

Use pliers if necessary.

tabs

new grip

Replace the grips easily using the slip-on tabs. Note: Choose the correct grip depending on your handle

model.

1. Inserting Tabs 2. Inserting Handle 3. Removing Tabs

The sealing plug prevents undesirable flux vapors or particles from entering inside the tool. Its usage

is highly recommended for intensive applications when soldering is exposed to FOD environments or

for applications where the soldering iron works close to vertical position. Note: Choose the correct

sealing plug depending on your handle model.

Sealing Plug Replacement

Before replacing the sealing plug, unplug the power supply and make sure the device is not hot.

Note: The chamfered side has

to be positioned towards the

handle.

2. Mounting Position 3. Inserting Sealing Plug1. Removing Sealing Plug

Sealing

Plug

Handle

Push the sealing plug inside

the handle until the sealing

plug and handle edges are

aligned.

Enter, not deeper than 8mm,

a small shaft or screwdriver,

lift and pull the sealing plug.

Never use a cartridge to do

this operation.

Handle ref.: T245-A / T245-C / T245-GA T210-A / T210-NA T245-PA T210-PA

Grip ref.: 0016057 (green) 0018658 (green) 0021528 (blue) 0023310 (blue)

Handle ref: T245 / T470 T210

Sealing plug ref.: OB2000 OB1000

Push the grip with the tabs

onto the handle.
